Product Overview

Description

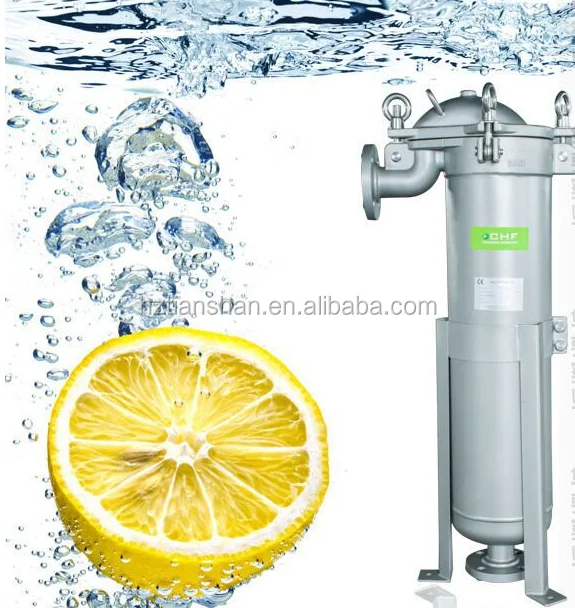

     Food grade Top-in Bag micron filter housing oil filter machines  for cooking oil / vegetable oil







Technical parameters	Design pressure: 0.96MPa 30min
	Maximum working pressure:0.60MPa
	Surface smoothness:Ra≤0.2
	Design flow rate:Ra≤0.2
	Inlet&outlet type thread or flange
	Type:single bag & multi bag filter housing
Designed for bag filtration system	Different kinds of bag support baskets to fit for
	wide range of filter bags
Complete stainless steel structure	Made of 100% SUS304, SUS316L, PP
Easy to clean	Surface is mechanical polished or sand blasting  passivation.
	dished end to aid clean down

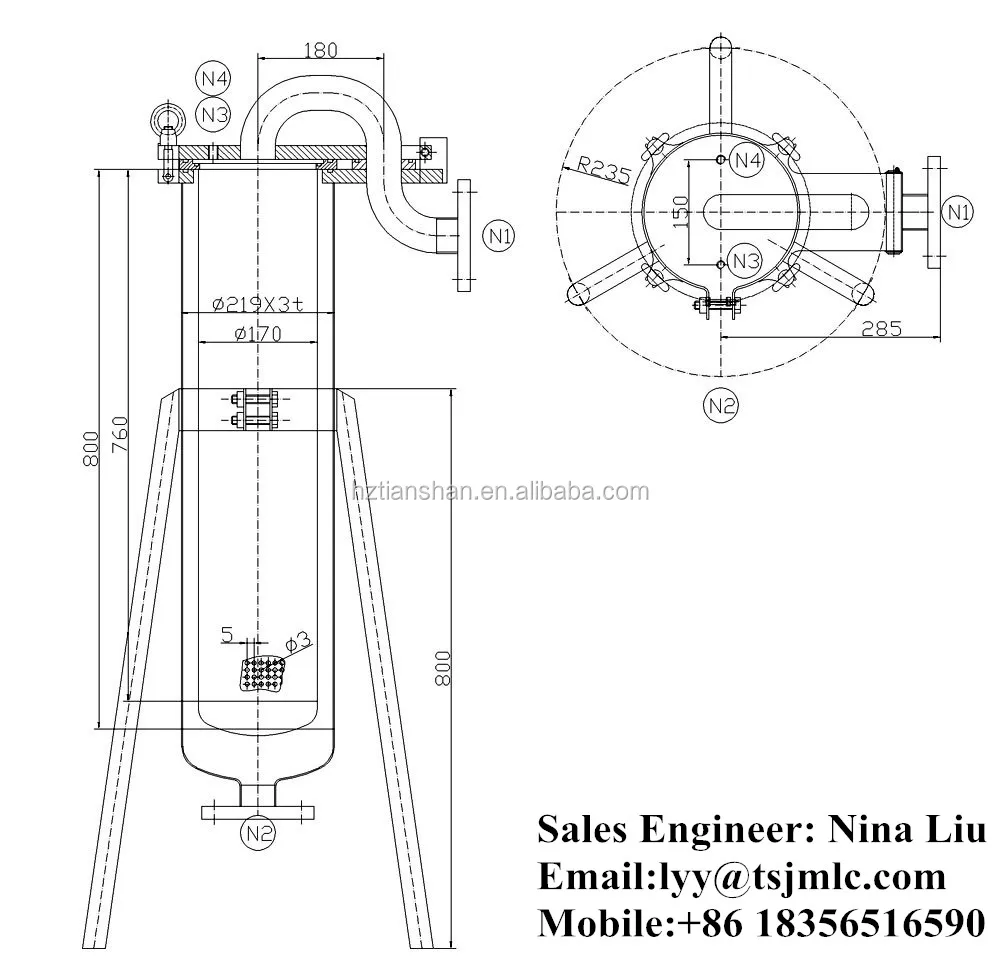

Specifications for single bag filter housing

No.	Size	Diameter	Length	inlet&outlet	Filter bag	Flow rate
	Code	(mm)	(mm)		size	(m/h)
1	BJD1	220	550	2" thread, clamp, flange	1	20
2	BJD2	220	950	2" thread, clamp, flange	2	40
3	BJD4	130	650	1" thread, clamp, flange	4	10



Specifications for multi bag filter housing

No.	Size	Diameter	Length	inlet&outlet	Filter bag	Flow rate
	Code	(mm)	(mm)		size	(m/h)
1	BJD2-2	400	1600	3" thread, clamp, flange	2*2	80
2	BJD2-3	500	1600	3" thread, clamp, flange	2*3	120
3	BJD2-4	550	1600	4" clamp, flange	2*4	160
4	BJD2-5	600	1600	4" clamp, flange	2*%	200



Ordering Guide

PRODUCT	Bag Size	Bag Q'ty	Inlet/Outlet		Connection	Surface	Materials
BJD	1 -#1 bag	01 - Single	A- side in and side out		K-coupling	S- sand blasting	304
	2 - #2 bag	02 - Two	B- side in and bottom out		F-bolt	T- polished	316L
	3 - #3 bag	03 - Three	C- bottom in and bottom out		S- thread		PP
	4 - #4 bag	04 - Four	D- top in and bottom out		How to order ?-example
	5 - #5 bag	06 - Six			Bag size: #1;  Bag Q'ty: Single
	6 - #6 bag	08 - Eight			Inlet/outlet: side in and side out
	7 - #7 bag	12 - Twelve			Connection: coupling
	X - other size				Surface: sand blasting
					Material: SUS304
					Selection code is: BJD101AKS304





Operating Conditions(Bag Filter):

Max.Operating Pressure: 6 bar(87psi) ,  10.34bar(150psi)

Max.Operating Temperature: 120°C

Applications(bag filter housing eaton replacement):

Processing Chemicals	Paints,Inks,Coolants
Oils,Edible Oils, Vegetable Oils	Pharmaceuticals
Sugar Syrup	Cleaning Fluids
