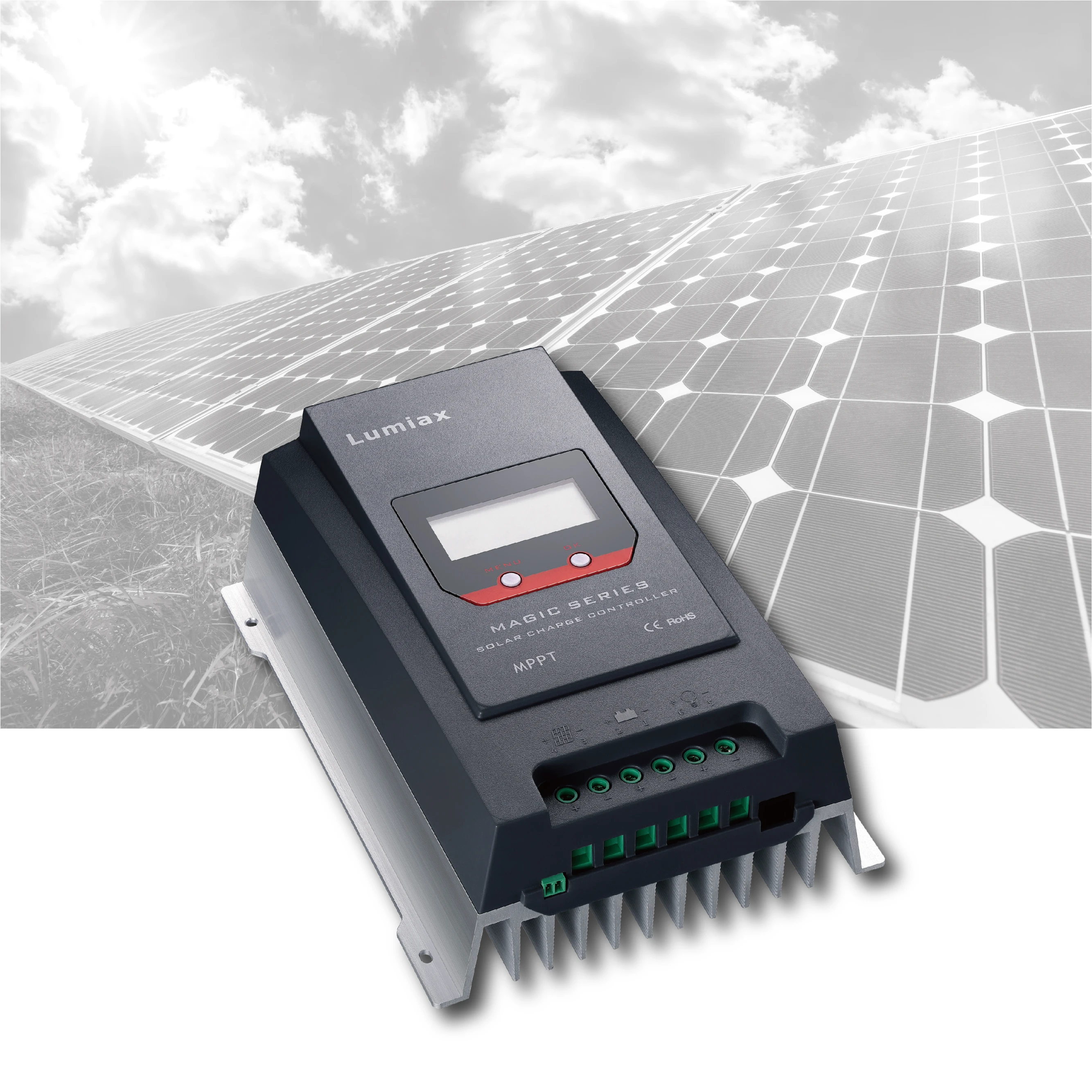

Lumiax 24v 48v 40a mppt solar charge controller for solar energy systems lcd
- Category: Solar Charger Controllers >>>
- Supplier: Qingdao Skywise Technology Co. Ltd.
Share on (60725952286):
Product Overview
Description
Secification/Parameters

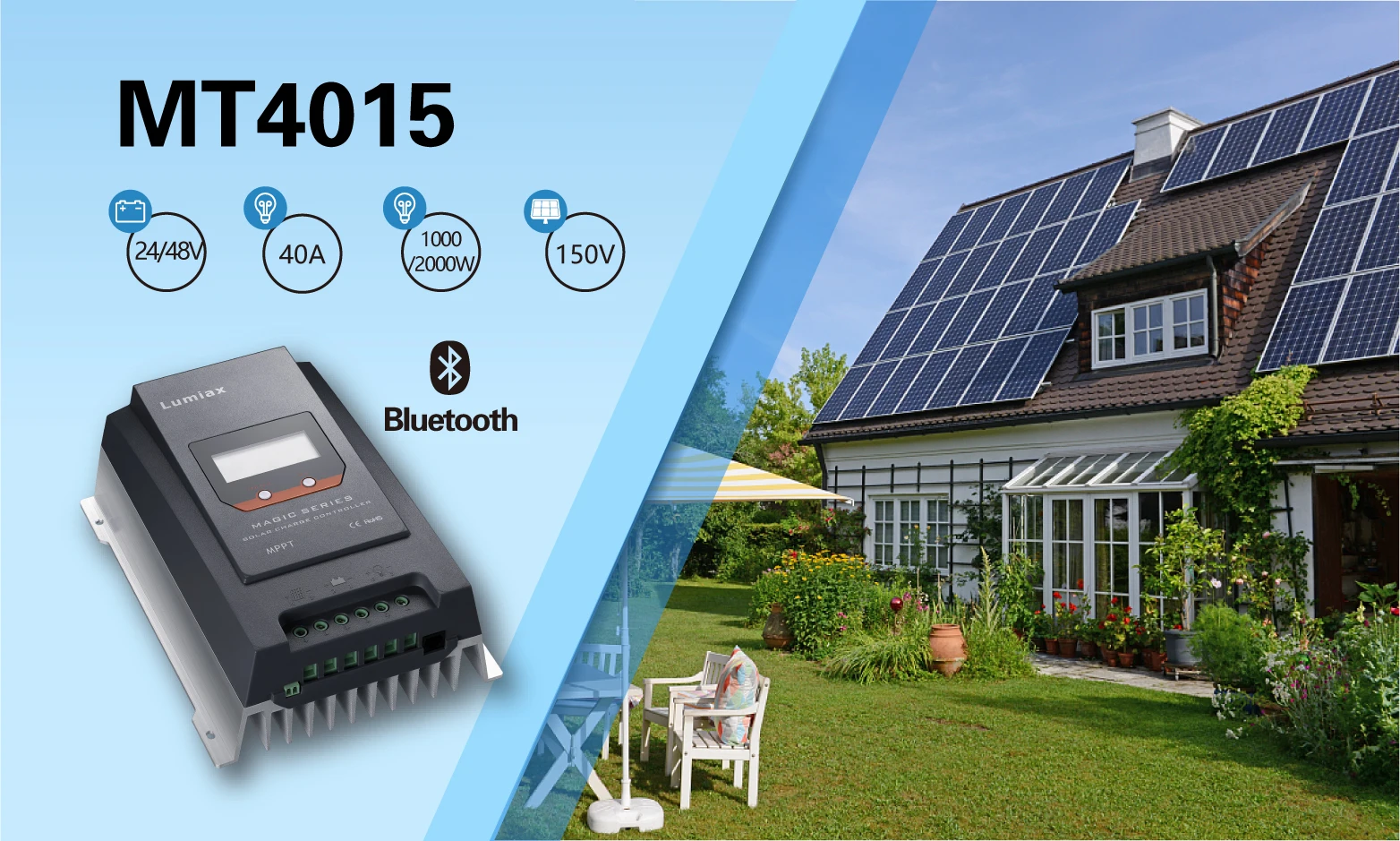

MT4015 | |||||||
Ampere | 40A | ||||||
System Voltage | 24V/48V | ||||||
Mppt Charging Voltage | < 29.0 / 58V @25℃ | ||||||
Boost Voltage | 28.0~29.6V/56.0~59.2V @25℃ （default:29.0/58.0V） | ||||||
Equal Voltage | 28.0~30.0V/56.0~60.0V @25℃ （default:29.6/59.2V) | ||||||
Float Voltage | 26.0~29.0V /52.0~58.0V@25℃ （default:27.4/54.8V） | ||||||
Low Voltage Disconnect | 21.6~23.6V/43.2~47.2V,SOC1~5(default: 22.4/44.8V) | ||||||
Reconnect Voltage | 22.8~25.6V/45.6~51.2V（default: 24.0/48.0V) | ||||||
Overcharge Protect | 31.3/62.3V | ||||||
Battery Type | Liquid, Gel, AGM,Lithium | ||||||
Max Voltage On Pv Terminal | 150V | ||||||
Max Input Power | 1000W / 2000W | ||||||
Dusk/Dawn Detect Voltage | 6.0~40.0V（default: 16.0/32.0V) | ||||||
Mppt Tracking Range | (Battery Voltage+1V) ~ Voc*0.9 | ||||||
Working Mode | Standard 24H; Dusk to Dawn; Timer; User-defined Mode | ||||||
Max Tracking Efficiency | >99.9% | ||||||
Max Charge Conversion | 98% | ||||||
Dimensions | 189 * 255 * 89 mm | ||||||
Weight | 2.5kg | ||||||
Self Consumption | 13mA | ||||||
Grounding | Common Negative | ||||||
Wire Recommend | 6AWG(16mm²) | ||||||
Protection Degree | IP32 | ||||||

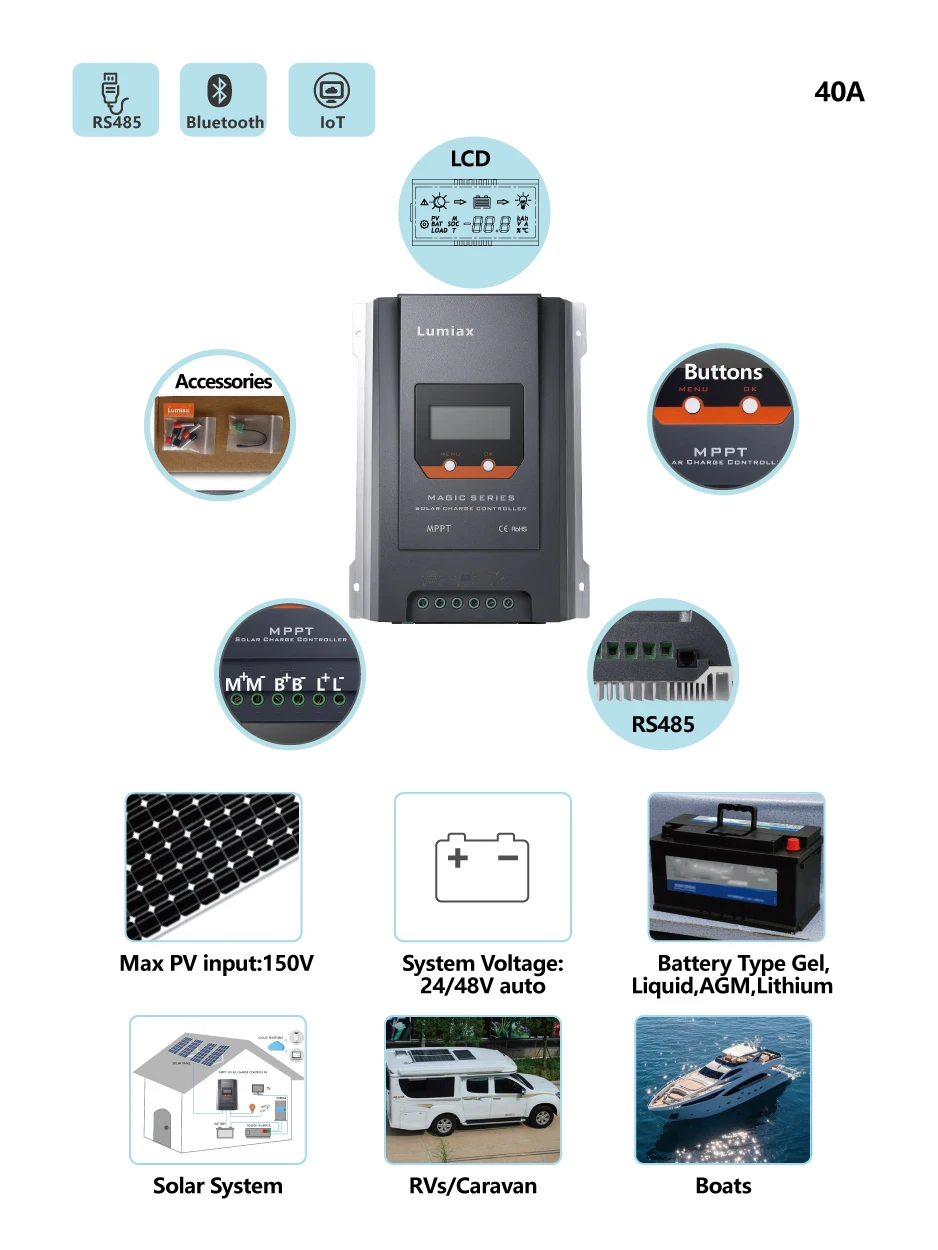

Product Description

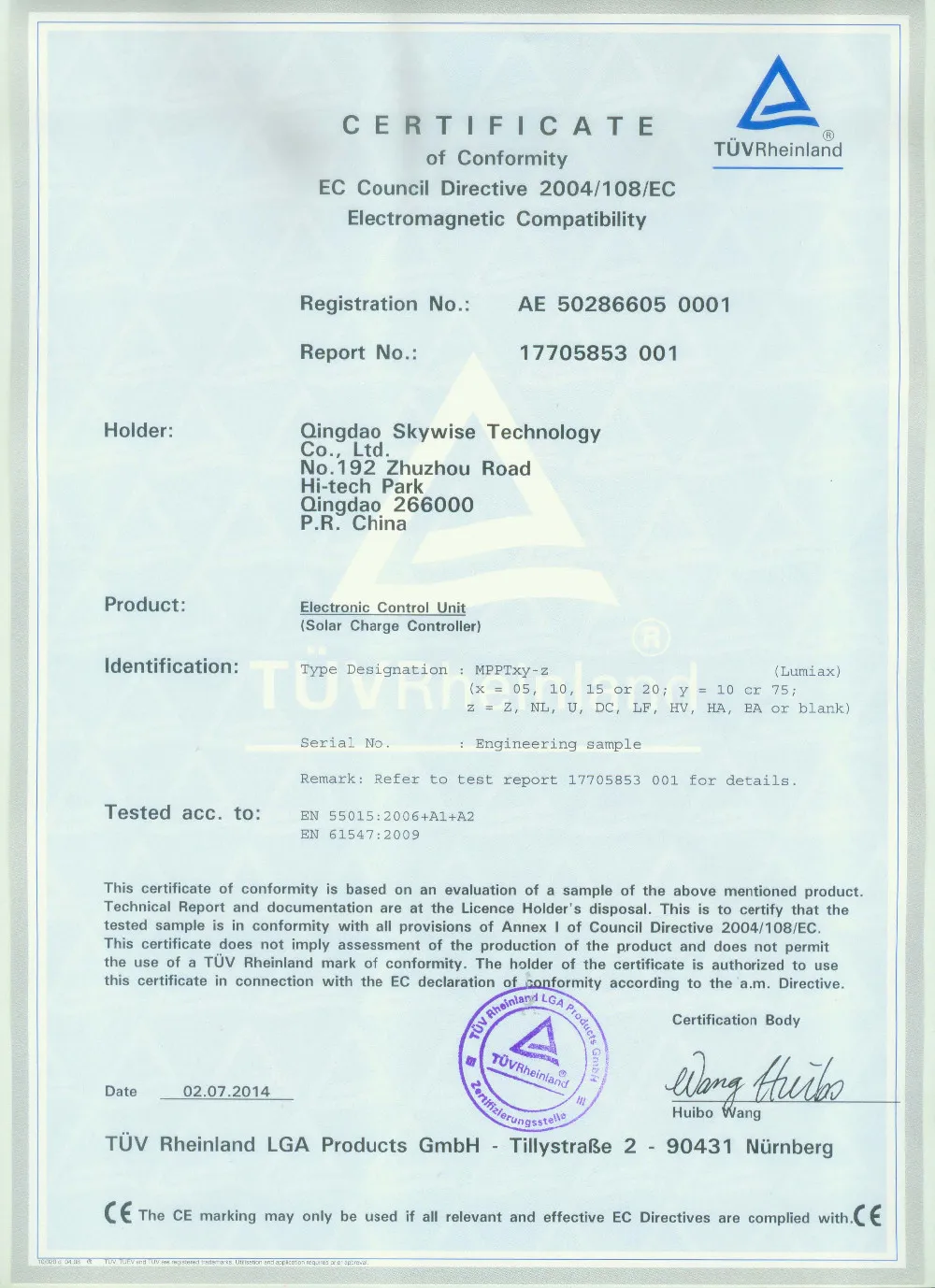

Certifications
