Shenzhen lcd manufacturer Customize 240x64 graphic lcd display screen RGB backlight
- Category: Graphic Display >>>
- Supplier: Shenzhen Enrich Electronics Co. Ltd.
Share on (60725967153):
Product Overview
Description
Product Description
PRODUCT PARAMETERS
| Product Name |

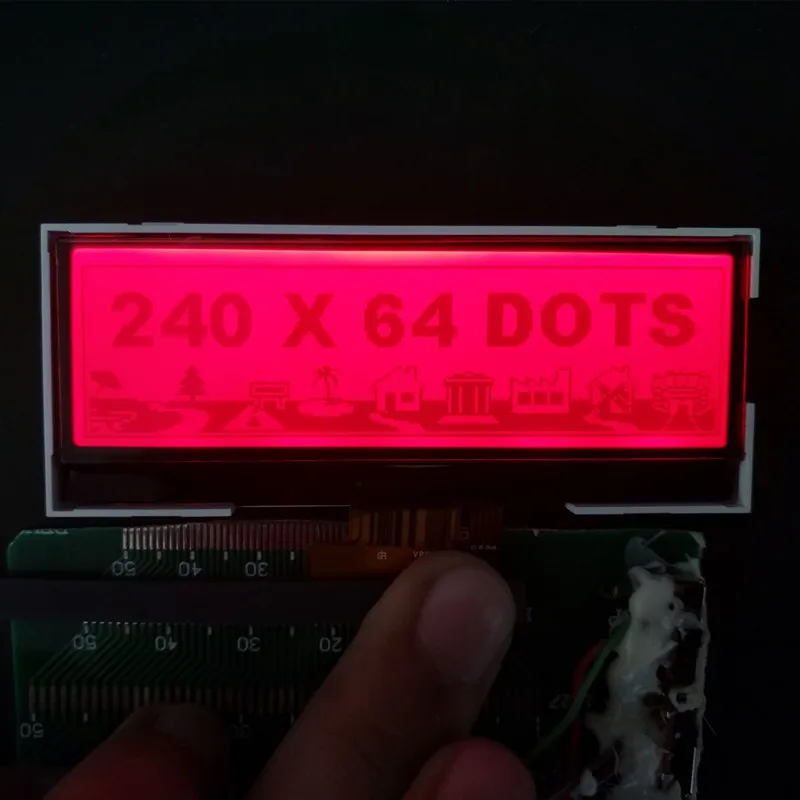

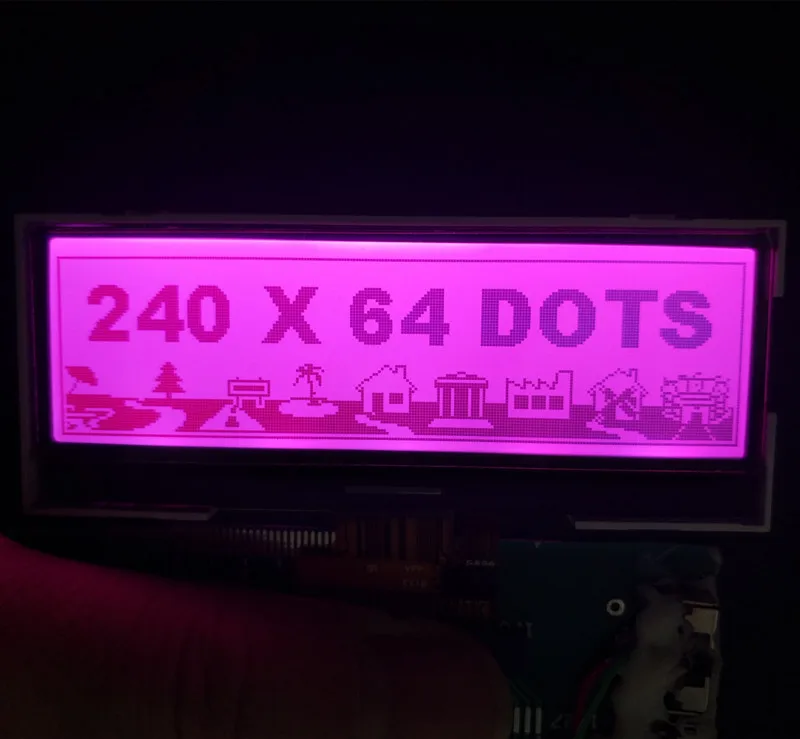

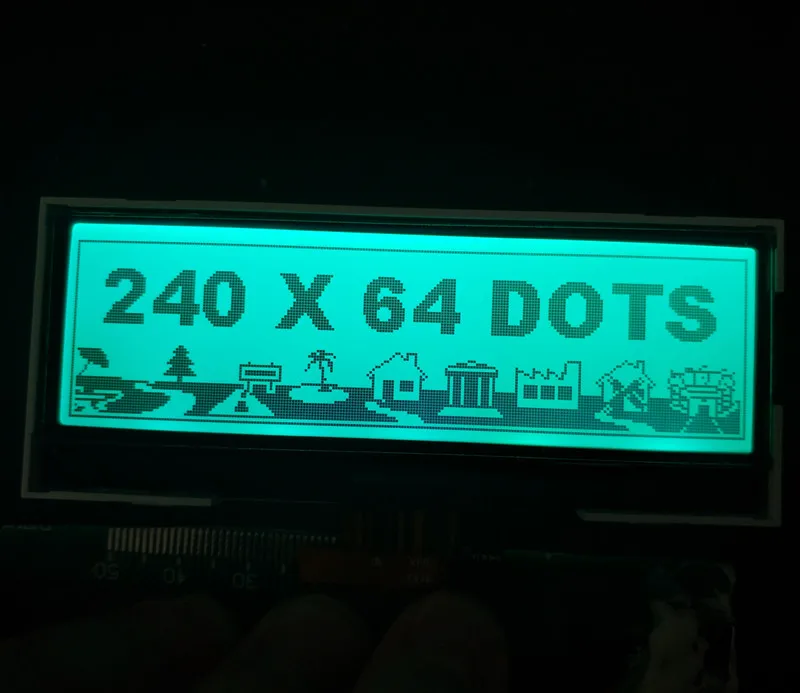

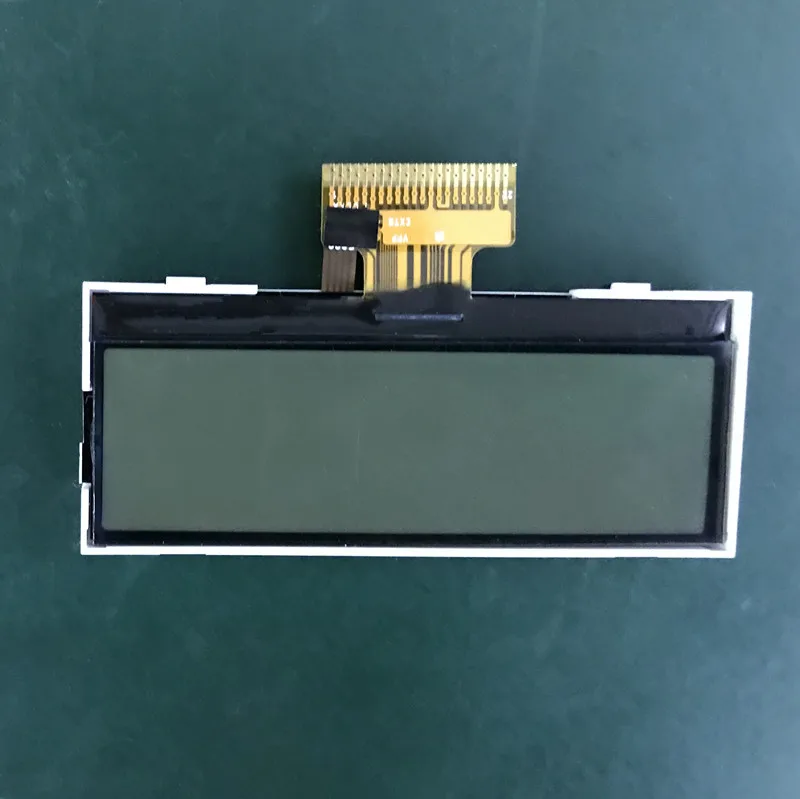

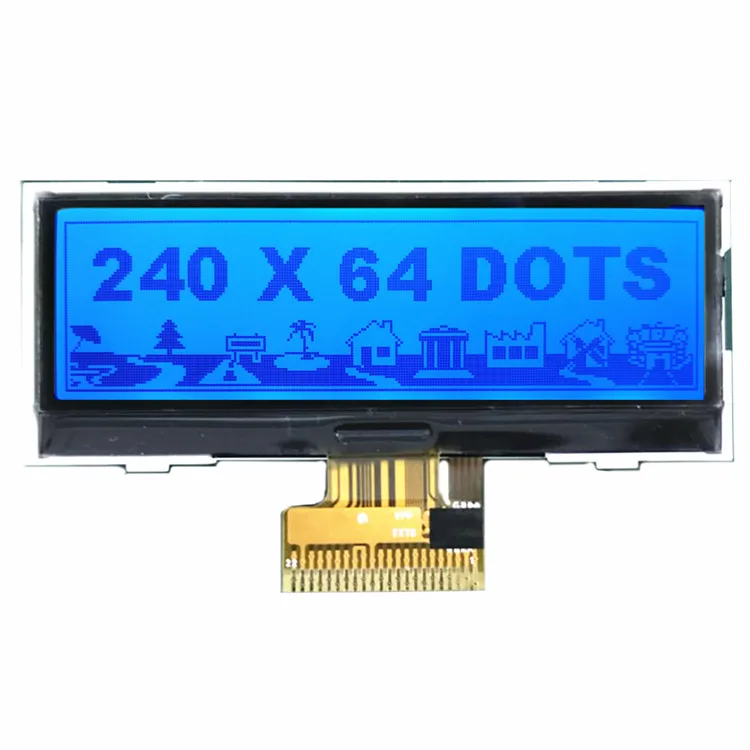

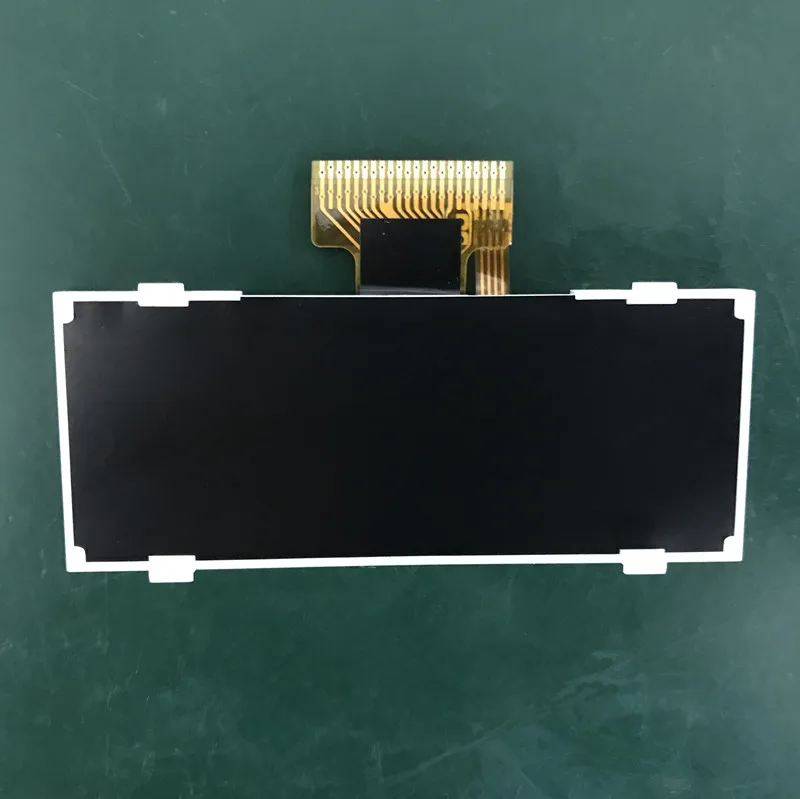

Shenzhen lcd manufacturer Customize 240x64 graphic lcd display screen RGB backlight
| ||
Outline Size
| 81.50x33.0mm | Interface | SPI |
Viewing Area
| 75.20x21.70mm | Drive IC | ST75256 |
Active Area
| 73.60X19.63mm | Backlight | RGB, 5 PCS LEDS |
Resolution
| 240x64 | Working voltage | 3.0V |
Viewing Angle
| 12 O'clock | Drive Method | 1/65 duty, 1/9 bias |
Operating temperature
| -20℃~+70℃ | Storage temperature | -30℃~+80℃ |
PIN AGGIGNMENT
| PIN | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 |
| SYMBOL | LED_A | LED_RK | LED_BK | LED_GK | ESD-GND | GND | SDA | SCL | RESET | A0 | CS | COM SCN | GND | VDD | VDD | CAP1N | CAP1P | XVO | VO | VG | GND | ESD-GND |

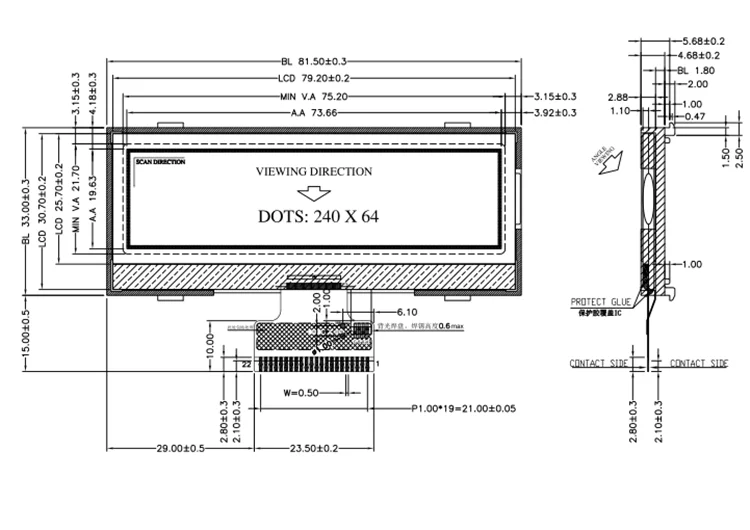

LCD OUTLINE SIZE
Similar Products
SIMILAR PRODUCTS
ENH-DG240160-01 ENH-DG160160-05 ENH-DG128064-99
ENH-DG128064-34 ENH-DG128064-123 ENH-DG1280128-07
Company Introduction
CUSTOM PROCESS
(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)
1.Firstly,discuss and confirm all of the details.
2.Payment for tooling process.
3.Formal drawing will be sent within 5 days and confirmed by your side.
4.15-20 days for tooling process.
5.Samples(5-20 pcs)will be sent to you to test and confirmed.
6.Place order for mass production after samples are confirmed.
