Customized price high frequency electromagnetic Lab Vibration Mechanical random Shaker Test Table
- Category: >>>
- Supplier: Dongguan Xinbao Instrument Co. Ltd.
Share on (60725991693):
Product Overview
Description

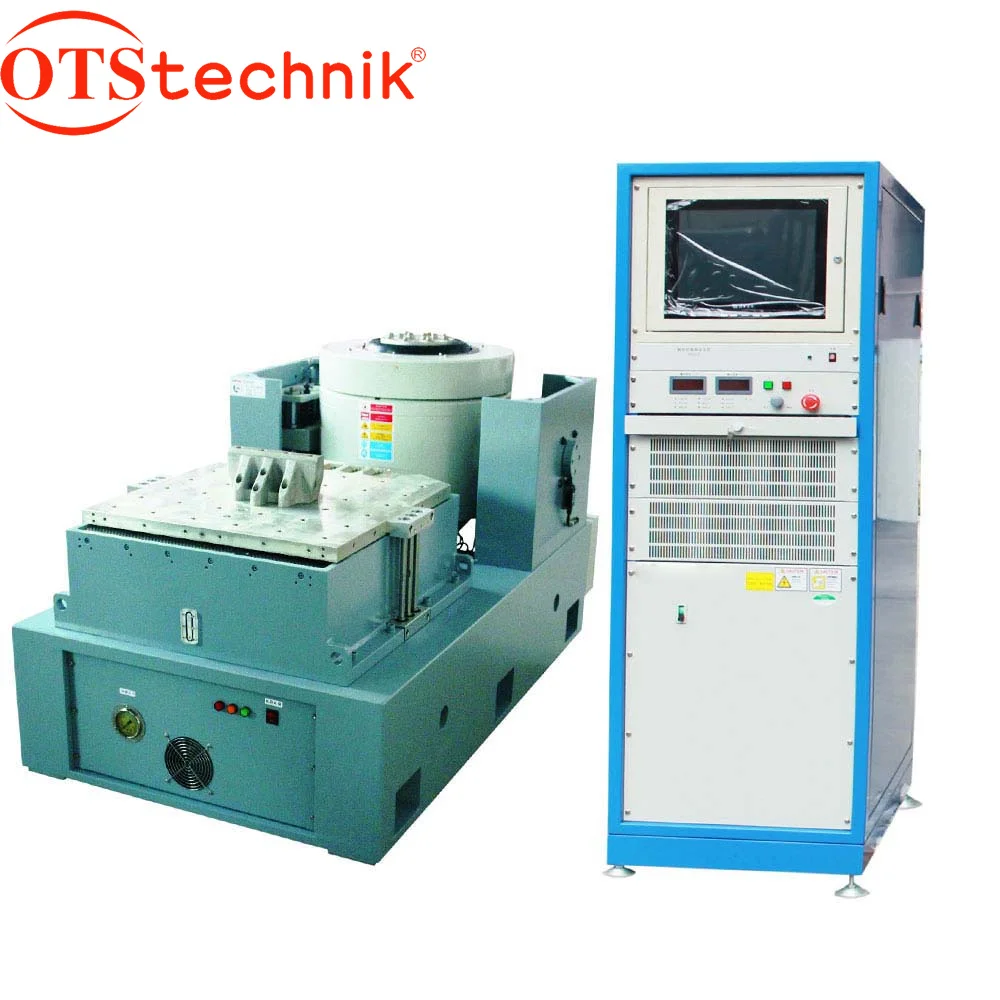

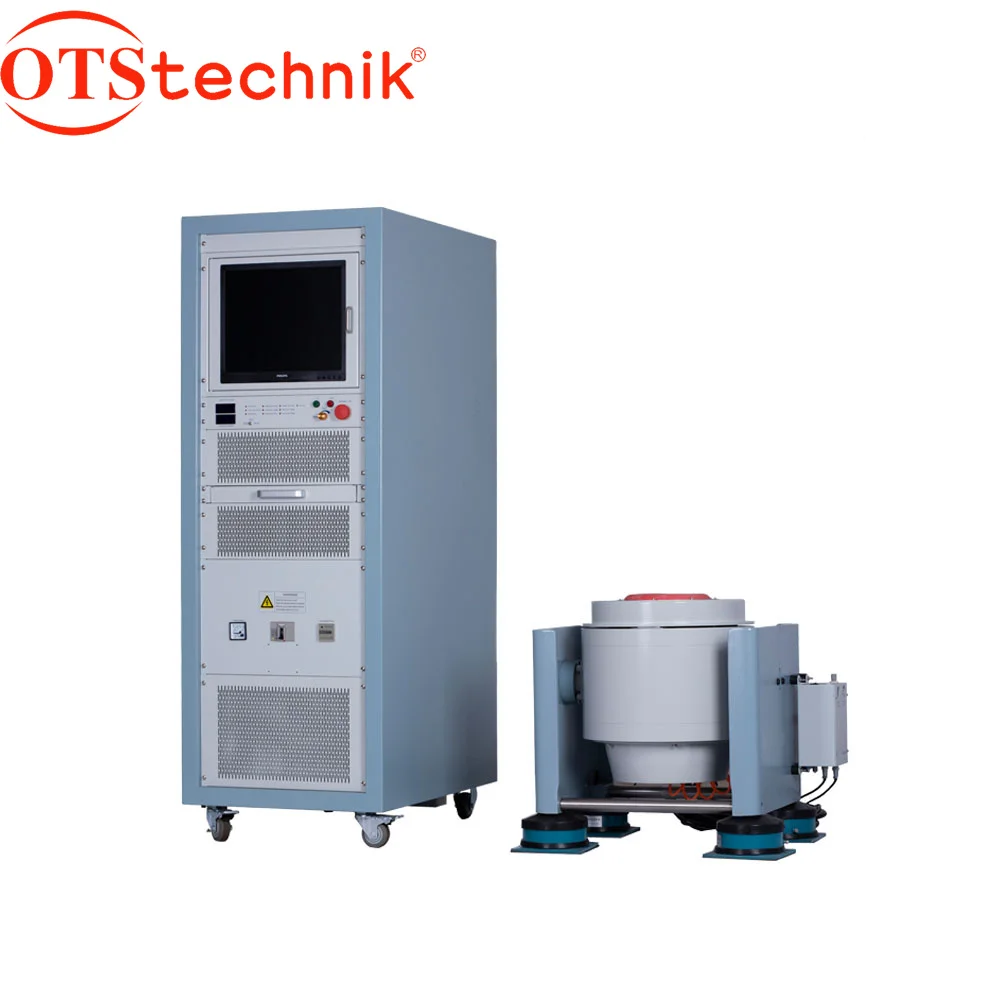

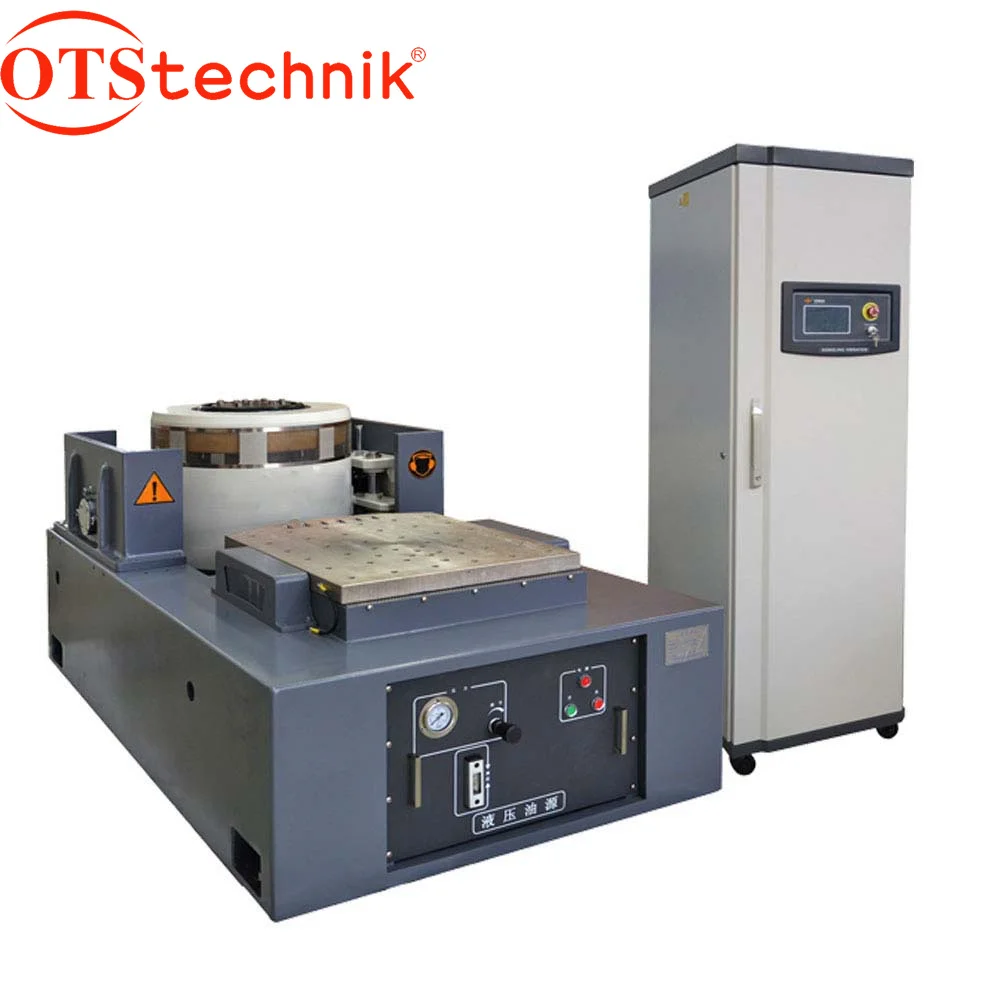

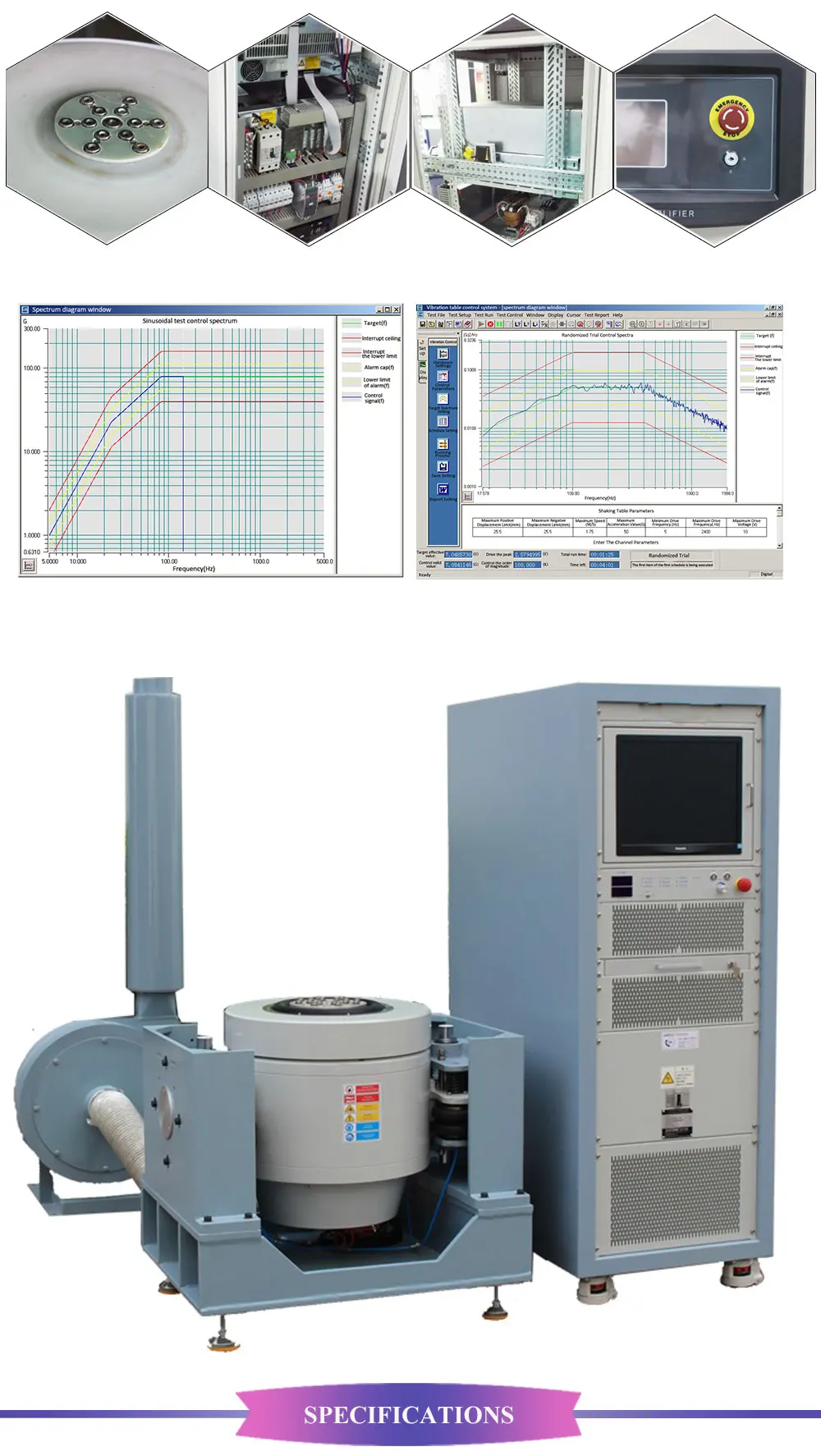

High Frequency Vibration Test Machine

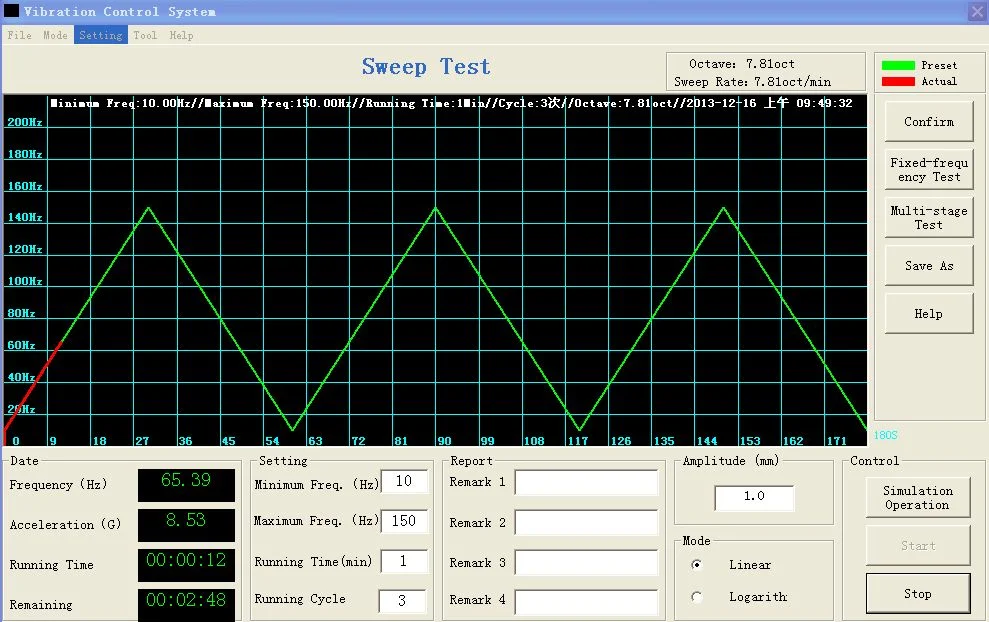

Through the vibration controller of the signal source output to the power amplifier, amplified by the signal and then input to the vibration table body, generating excitation source, simulate the actual situation of the specimen to the vertical vibration test; through the acceleration sensor signal acquisition and input to Vibration control device, the output signal and feedback signal stacking calculation, to achieve the excitation source and the target spectrum of high degree of coincidence. The system is given by the signal target spectrum, to complete the vibration test of the specimen, the test specimen vibration durability, integrity and so on.
Sine thrust | 600kgf |
Random thrust | 600kgf |
Impact thrust | 1200kgf |
Frequency Range | 5～2000Hz |
Continued displacement | 51mm |
The impact of displacement | 51mm |
Maximum speed | 2m/s |
Maximum acceleration | 981m/s2 |
Moving coil diameter | Φ150mm |
Allow eccentric moment | ＞190N.m |
Load connection point | 6 piont |
Equivalent mass of moving parts | 6kg |
Countertops screw size (standard) | M8 |
Screw layout table (diameter, circumference) | 8 on Φ100mm，8 on Φ,200mm. |
Axial isolation frequency | ＜3Hz |
Maximum load | 120Kg |
Magnetic flux leakage | ＜1mT |
Dimensions (without packaging)（L×W×H） | 1600mm×985mm×850mm |
Vibration table Weight | 1850kg |
Advantage
Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Recommend Products
Company Profile
VR
Dongguan Xinbao Instrument Co., Ltd, with its own brand--OTS, has been dedicating in providing professional testing equipment with top quality since its establishment in 1978. It owns sophisticated and advanced technology in producing environmental test chambers and mechanical test machines like temp humidity chamber, thermal shock test chambers, rain and dust test chambers, salt spray chambers ,walk in /drive in test chambers, tensile testing machine, vibration test machine, other customized test chambers and so on. Products made by OTS reach international standards: ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, IEC. Also they are widely used in different area: R&D Institutions, Quality inspection institutions, universities,electronics, communications, instrumentation, automobile, plastic, metal, building materials, aviation, etc.
Manufacturing Technique
Customer Photos
Now OTS has its main production base in Dongguan, a branch in Suzhou and offices in South Asia, Europe, USA. OTS also owns an independent laboratory which exhibits all currently produced machines under CNAS calibration, so customers can check the function and quality immediately. Equipped with over 30 workers in a metal plate department, OTS is capable to produce customized shells; What’s more, OTS has enough stock to satisfy customers need in time. In the meanwhile, every machine must be examined for 3~days before shipment and with lifetime maintenance service.
Certifications
Packing&Shiping
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
