wifi LTE router support protocols PPTP,L2TP,IPSEC VPN,DDNS,TR-069,GRE,DHCP,HTTP,HTTPS, SSH,TCP,UDP,Open VPN,SNMP


Product Application

HDRM100 router and modem integrated device is designed for global market, It comes with industrial quality and multiple RF band combination.
HDRM100 supports 2G/3G/4G LTE, GPS, WIFI feature. It provides stable and reliable data connection for user devices such as RTU, Kiosk, Power Ammeter and other remote devices management applications. In order to achieve permanent online, some key features such as watch-dog, wide temperature/ voltage range and multiple RF band/mode are supported by HDRM100, which making it can be used in any environment of worldwide.

\t
SPECIFICATIONS
\t
Product feature
\t
Frequency bands
\t
Data rate
\t
• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• Integrate 3G/4G LTE,WIFI,GPS feature;
• WIFI High quality performance without congestion;

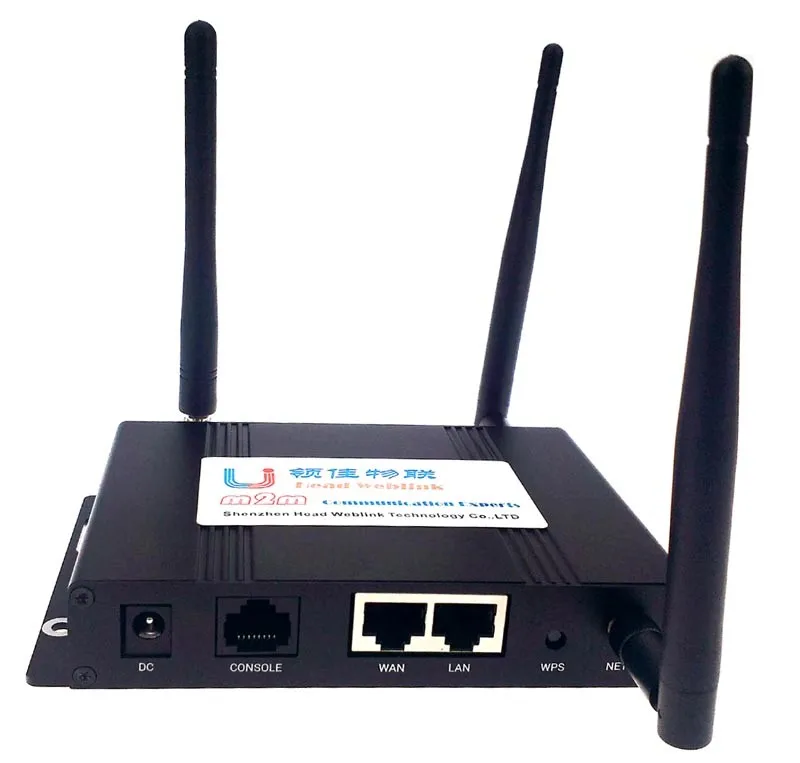

• 1 WAN/1 LAN or 2 LAN ports, One console port;
• With SIM card slot;
• Supported communication protocols: PPTP,L2TP,IPSEC VPN,DDNS,TR-069,GRE,DHCP,HTTP,HTTPS, SSH,TCP,UDP,Open VPN,SNMP;
• Remote management platform;
• Firmware version: Linux or Openwrt;
• Wide power supply: +5V~+48V/1A
• Small size dimension:115mm*73mm*20mm

• Temperature.
Operating Temperature -40~+75ºC
Storage Temperature -45~+85ºC

• Environment humidty. 5%~95%
\t
* 4G LTE router.
HDRM100 V2/4G Series
Version A
LTE FDD. B2,4,5,17
UMTS. 850/1900MHz

Version E
LTE FDD. B1,3,7,8,20
LTE TDD B38, B40
UMTS. 900/2100MHz
GSM. 900/1800MHz

Version SA
Seven-Band LTE-FDD B1/B3/B4/B5/B7/B8/B28
Tri-Band LTE-TDD B38/B40/B41
Qual-Band UMTS/HSDPA/HSPA+ B1/B2/B5/B8
Qual-Band GSM/GPRS/EDGE B2/B3/B5/B8

Version C
LTE FDD. B1,3,7,8
LTE TDD B38, B39, B40, B41
UMTS. 900/2100MHz
TD-SCDMA. 1880~1920MHz & 2010~2025MHz
GSM. 900/1800MHz

Version JC
LTE FDD. B1,B3,B8,B18,B19
LTE TDD. B41
UMTS. B1,B6,B8
GSM. 900/1800MHz

Version JE
LTE FDD. B1,B8
UMTS. B1,B8
GSM. 900/1800MHz
* 3G router.
HDRM100 V2/3G (WCDMA)

WCDMA. 850/1900MHz & 900/2100MHz
GSM. 850/900/1800/1900MHz

HDRM100 V2/3G (EVDO).
EVDO 800MHz & 800/1900MHz
\t
4G LTE router.
HDRM100 V2/4G
FDD LTE. DL,100Mbps UL,50Mbps
TDD LTE. DL,50Mbps UL,25Mbps
WCDMA. DL 42Mbps UL5.76Mbps
TD-SCDMA. DL 2.8Mbps UL 2.2Mbps

Or

LTE Category 4 - 150 Mbps (DL)
LTE Category 4 - 50 Mbps (UL)

3G router.
1). HDRM100 V2/3G (WCDMA)
WCDMA. DL 14.4Mbps, UL 5.76Mbps


2).HDRM100 V2/3G (EVDO)
EVDO. DL 3.1Mbps, UL 1.8Mbps
Detailed Images

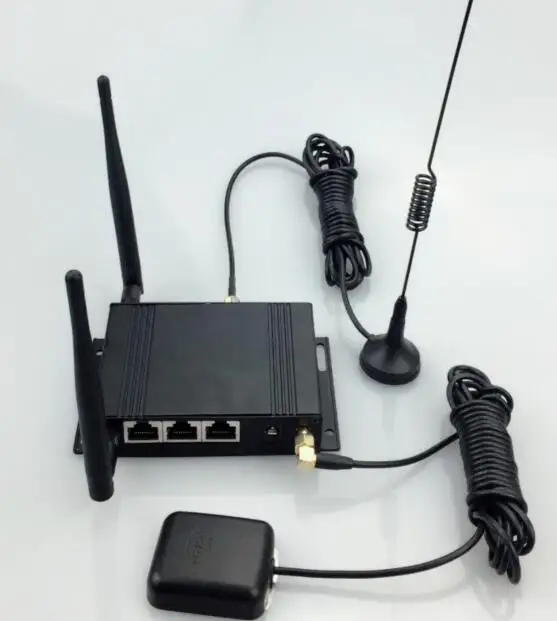

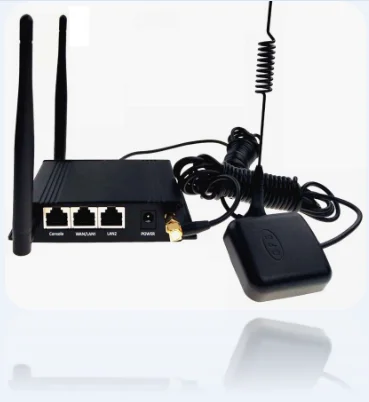

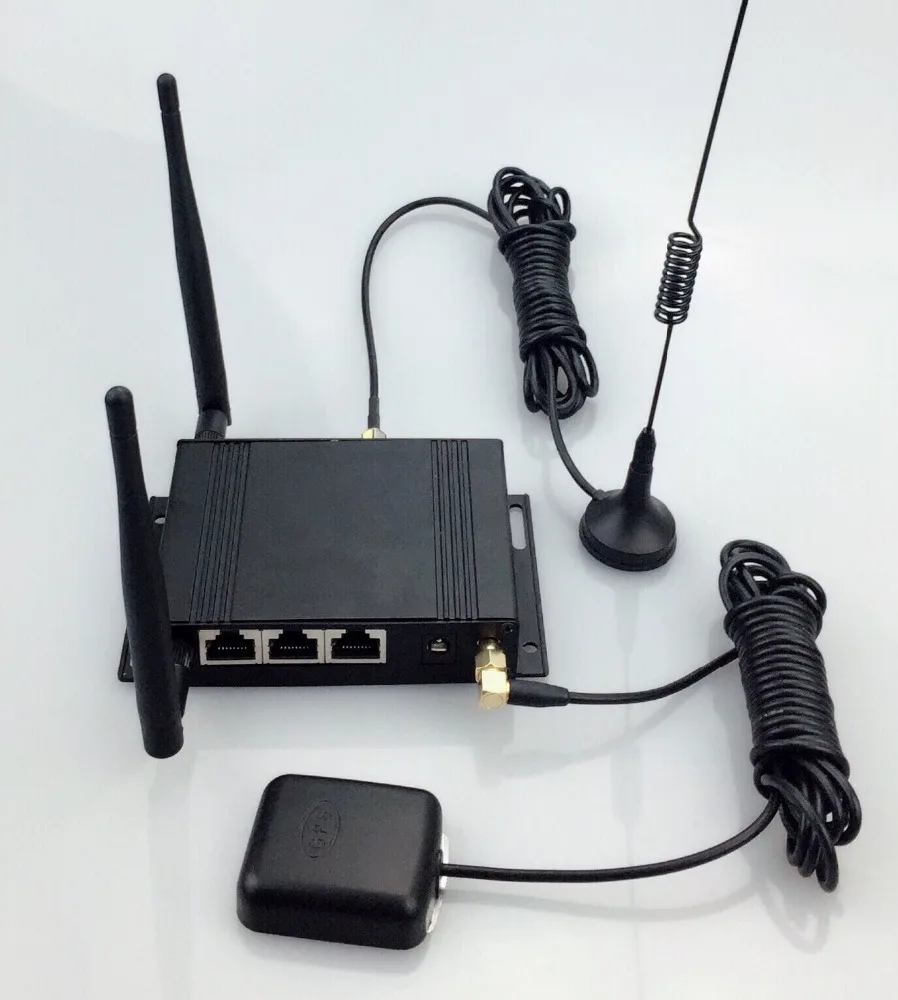

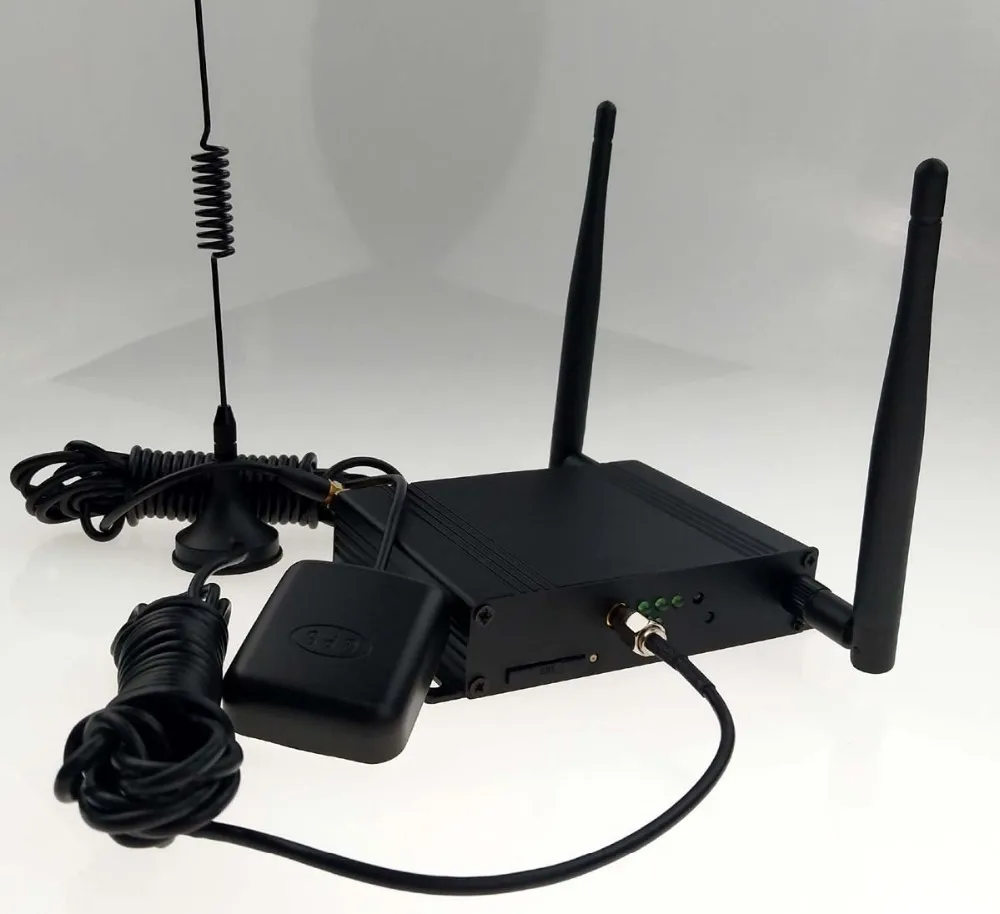

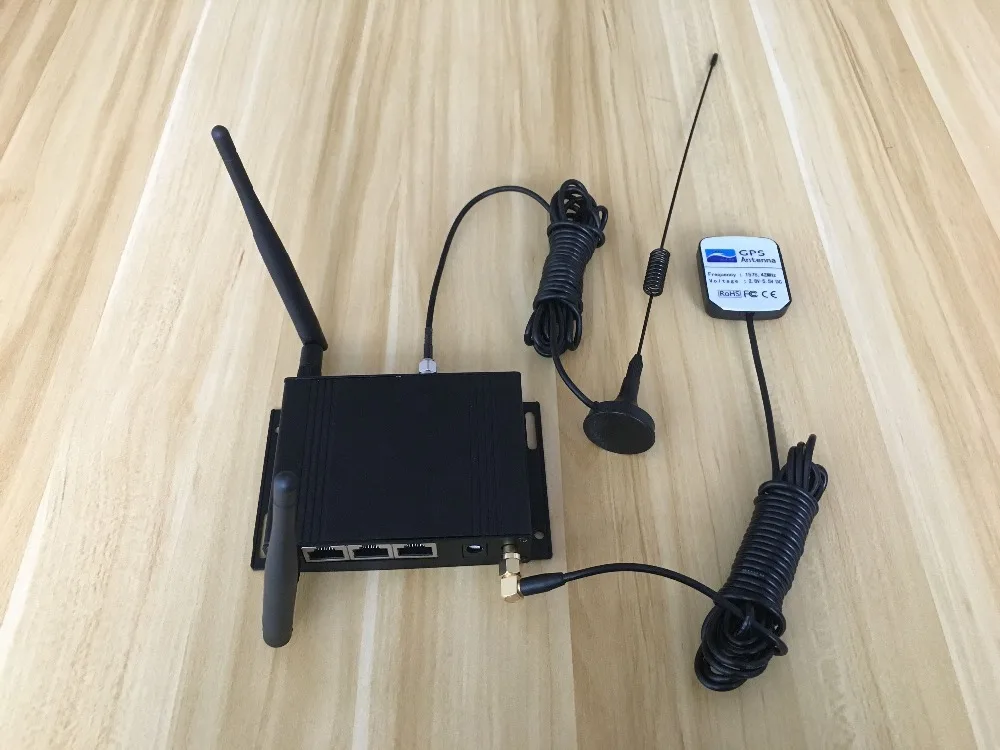

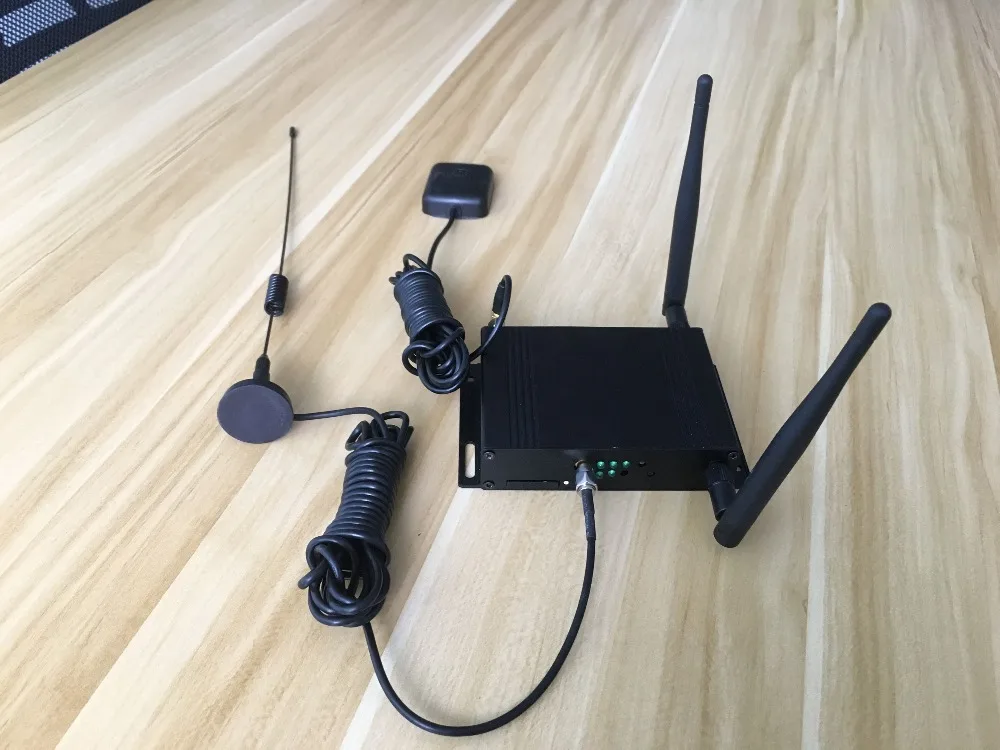

Machine Parts

1. Router

2. dual 4G antenna

3. one wifi antenna

4. GPS antenna optional

5. power adapter

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
26 (CM) * 10 (CM) * 22 (CM)
\t
Weight
\t
0.6KG
\t



Packaging Details
\t
The normal package is carton(Size: L*W*H). If export to european countries,the cartons will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
