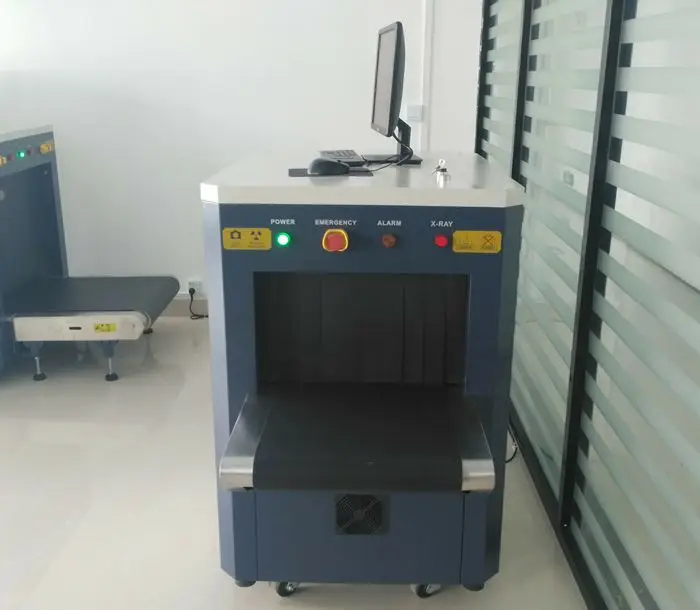

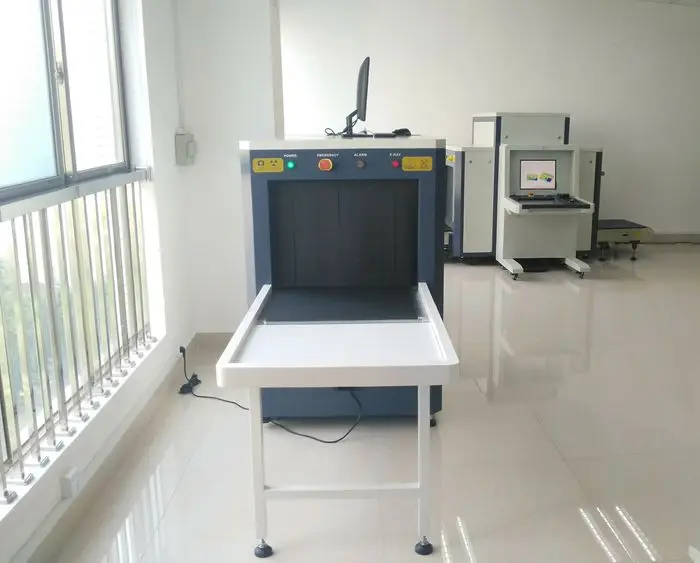

TS 5030C multi energy x ray bag scanner machine
- Category: >>>
- Supplier: Shenzhen Hezhong Electronics Technology Co. Ltd.
Share on (60726026574):
Product Overview
Description
Public security inspection conveyor x-ray machine TS-5030C for baggages
Product Description
X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards
Work Principle
Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes. Luggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,. After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel. The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.
Specifications
1.display:19 inch(or bigger size) large industry screen display
2.the detector: bin song,Japan imported detector
3.single X-ray source: the kernel is the America imported tube
4.the drum: linear Germany Yintono drum
5.belt: green belt of low noise

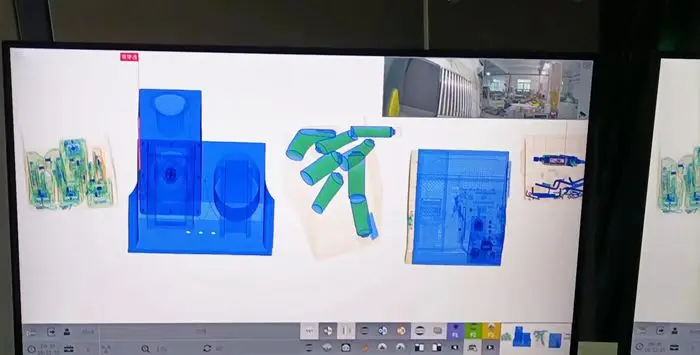

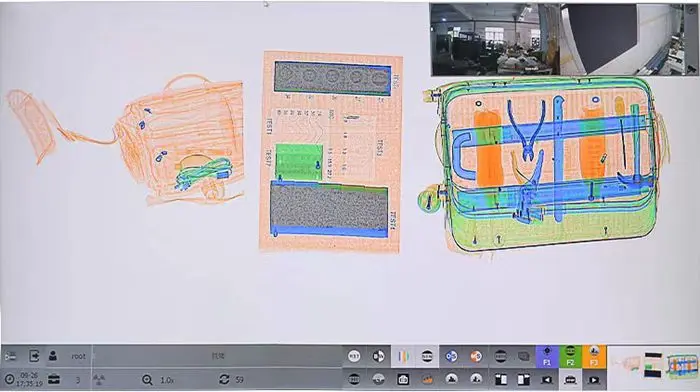

6.color: black and white, color, black and white contrast reversal
7.processing system: industrial grade DSP embedded processor
8.operation interface: floating, soft touch button operation
9.toolbox: one special toolbox
10.button keyboard and mouse: each one
11.Tunnel Size: 610(W)×410(H)mm (±10mm)
12.Conveyor Speed: 0.22m/s,Anode Voltage:140kv
13.Conveyor Max Load: 175kg
14.X ray dose per each inspection: 1.5µGy
15.Wire Resolution: 0.0787mm metal line
16.Penetration: 34MM steel Penetration Resolution: dia 0.254mm copper wire (AWG32) under three-step aluminum wedge 9.5mm,15.9mm,22.2mm
17.Film Safety: Guarantee ASA/ISO1600 Film
18.Maximum leakage radiation: <0.1µGy/h Image Display: High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Schematic View

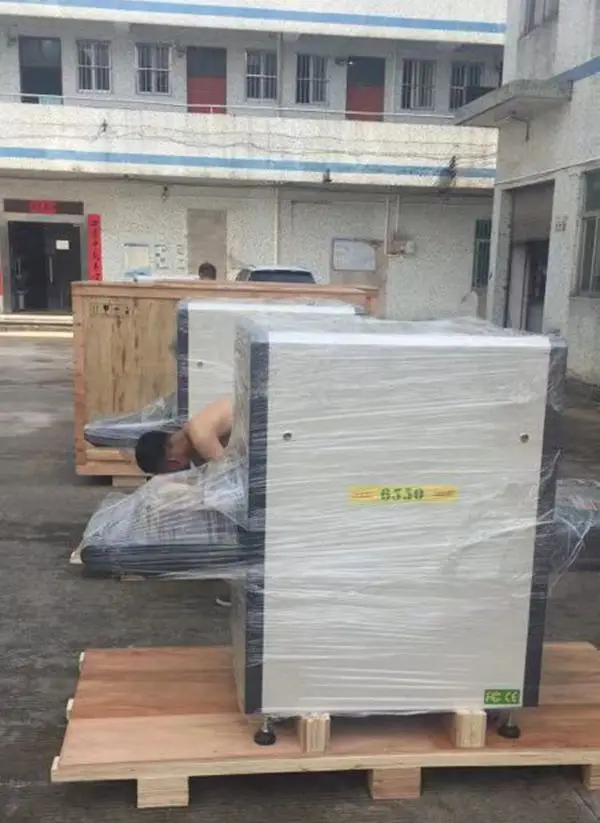

Packaging & Shipping
1.X ray source x1
2.X ray source control and driving device x1
3.X ray detector array box x1
4.Electronic control unit x1
5.The IPC( industrial personal computer) x1
6.The display device x1
7.The intermediate circuit breaker x1
8.The key switch x1
9.The cooling fan x1
10.The conveyor belt and frame x1
11.The light barrier x1
12.The system power supply device x1
Packing details | carton packing |
1 set/ctn | |
Packing Size: (L)1750*(W)822*(H)1250mm | |
Gross Weight:300kg | |
Payment terms | T/T, Western Union, Money Gram, Cash, Escrow,L/C |
Shipping methods | By air (5-7days, most expensive) |
By express (3-7days, more expensive) | |
By sea (15-28days, cheapest) |
Our Services
We support OEM and ODM service, can print your logo according to your demand.5 years warranty and
on-side service,give you technology training
