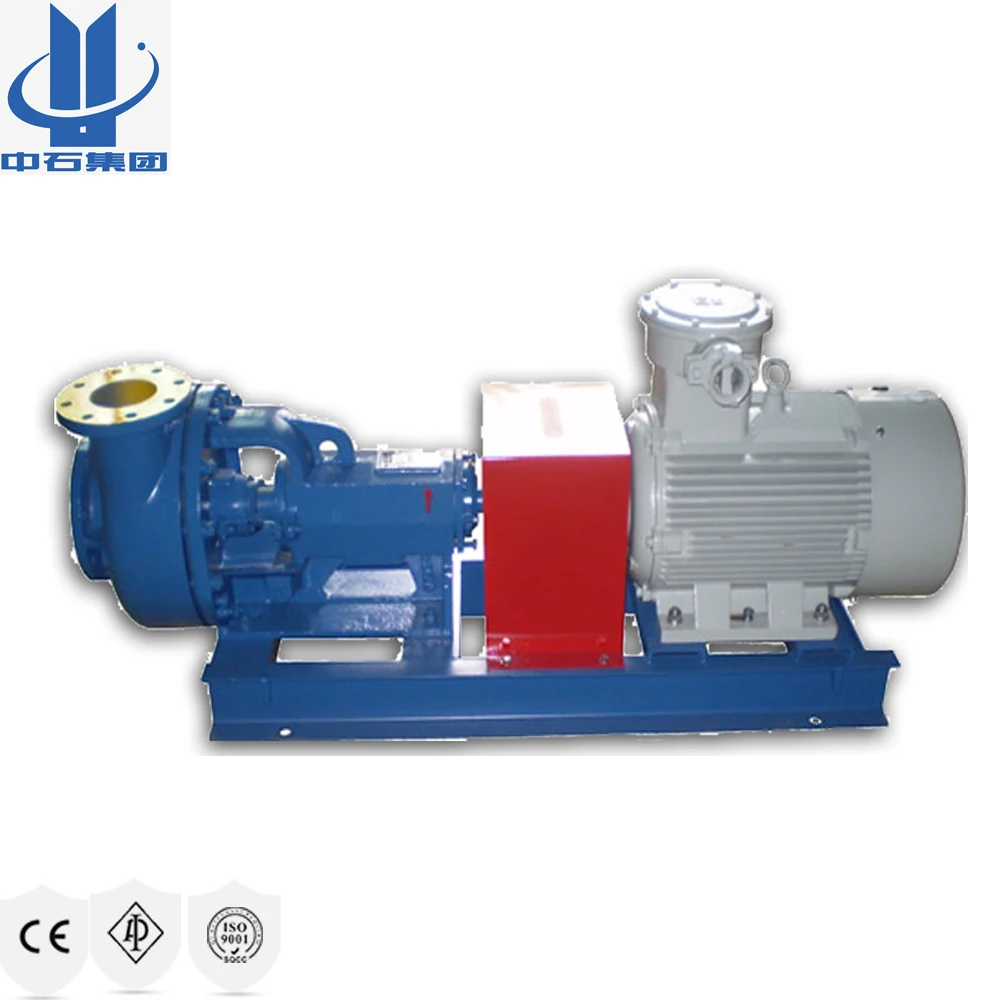

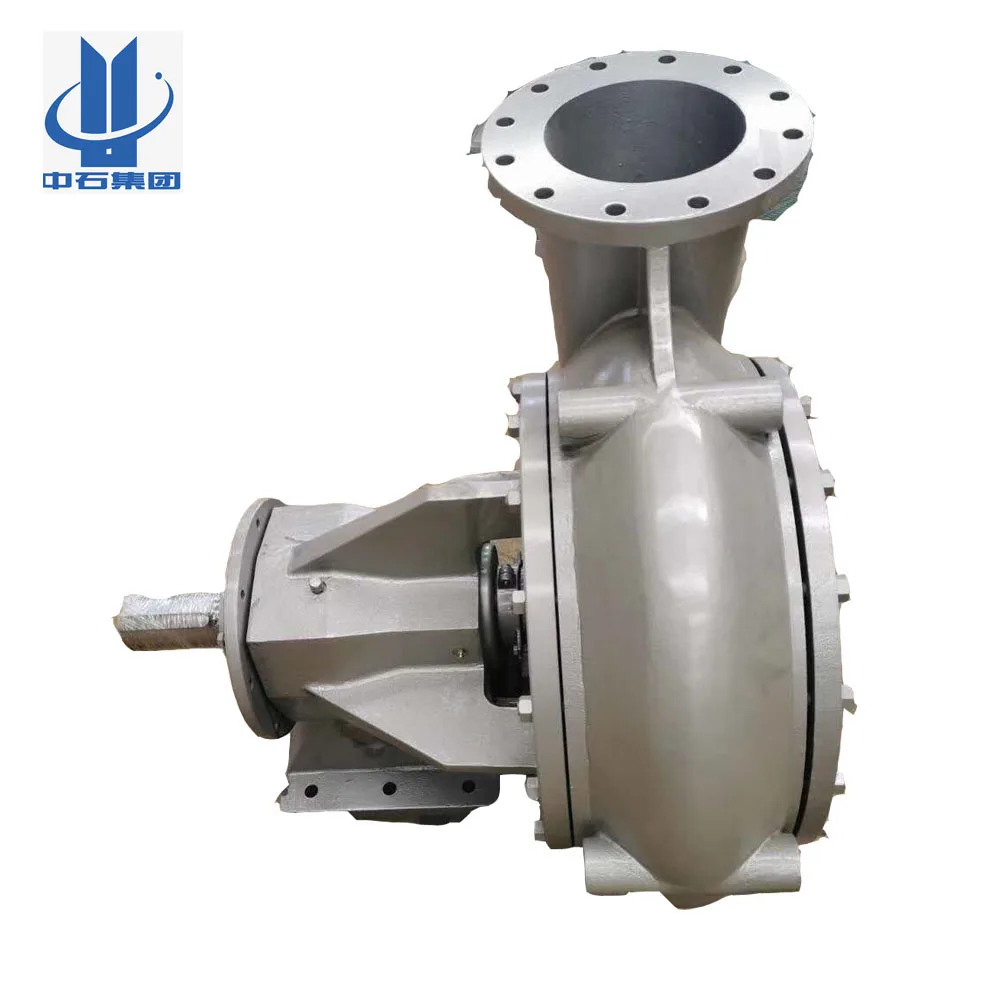

SB 8'x6'x14' Heavy Duty Centrifugal Single Suction Dry Small Sand Pump
- Category: >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (60726049126):
Product Overview
Description
Products Description
Usage and Application Range
SB series centrifugal sand pump mainly supplies to solids control circulating system of oilfield drill rig,and be used to provide drilling liquid with a certain discharge capacity and pressure to sand, desilter and mud mixer,to assure these equipments work efficiently.
Main Structure ,Feature
Its main parts are pump shell, impellers, bearing block, pump axle, bearing, shaft coupling,wearing plate, seal apparatus, oil seal, motor and base.Main Structure Feature
The Series Centrifugal Sand Pump has these features:
(1) Open impeller,apply to transport high viscosity drilling liquid.
(2) Combination seal for a long service life.
(3) Use universal bearing houses and bearings,convenient to maintain and cut the costs.
(4) The major parts are made from antiwear nodular iron,and long service life.
The Series Centrifugal Sand Pump has these features:
(1) Open impeller,apply to transport high viscosity drilling liquid.
(2) Combination seal for a long service life.
(3) Use universal bearing houses and bearings,convenient to maintain and cut the costs.
(4) The major parts are made from antiwear nodular iron,and long service life.

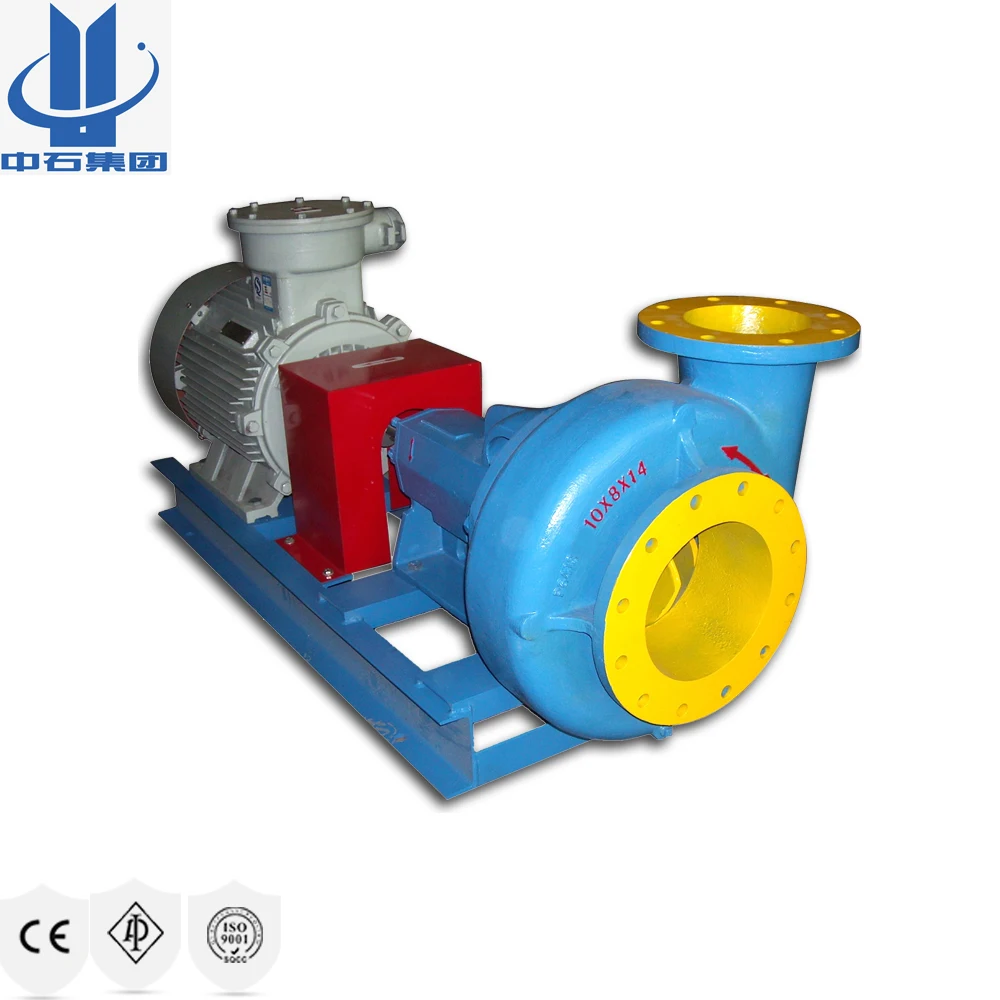

Model | SB10×8×14 |
Discharge capacity | 260~300m3 /h |
Pump Head | 33 m |
Efficiency | 65% |
Motor power | 75/90 kW |
Motor speed | 1450/1750(60Hz) rpm |
Inlet Diameter | 10" |
Outlet Diameter | 8" |

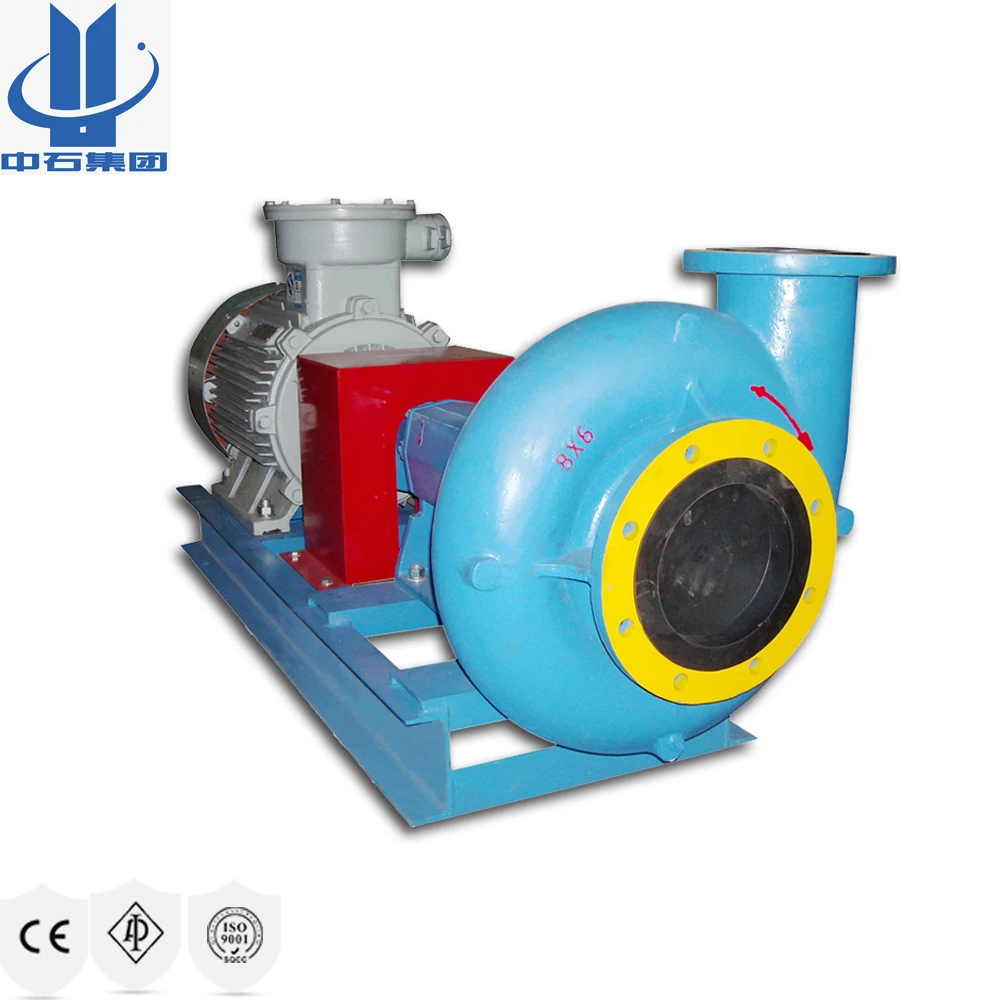

Model | SB8×6×14 |
Discharge capacity | 240~260m3 /h |
Pump Head | 33m |
Motor power | 55/75KW |
Inlet Diameter | 8" |
Outlet Diameter | 6" |
Model | SB6×5×14/11 |
Discharge capacity | 200~220m3 /h |
Pump Head | 28m |
Motor power | 37/45/55KW |
Inlet Diameter | 6" |
Outlet Diameter | 5" |
Model: SB4×3×13
Model: SB3×2×13
XP Series Centrifugal Sand Pump
The XP is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, or just plain tough to pump. The XP14×12×22 and XP12×10×23 can deliver flow rates from 3000 - 7500 gpm at 75 - 410 feet
of head at low speeds
of head at low speeds
XP Series Centrifugal Sand Pump
The compact overall dimensions of the JXP make it an excellent choice for high volume mobile and stationary applications where a small footprint is critical.
Product Details

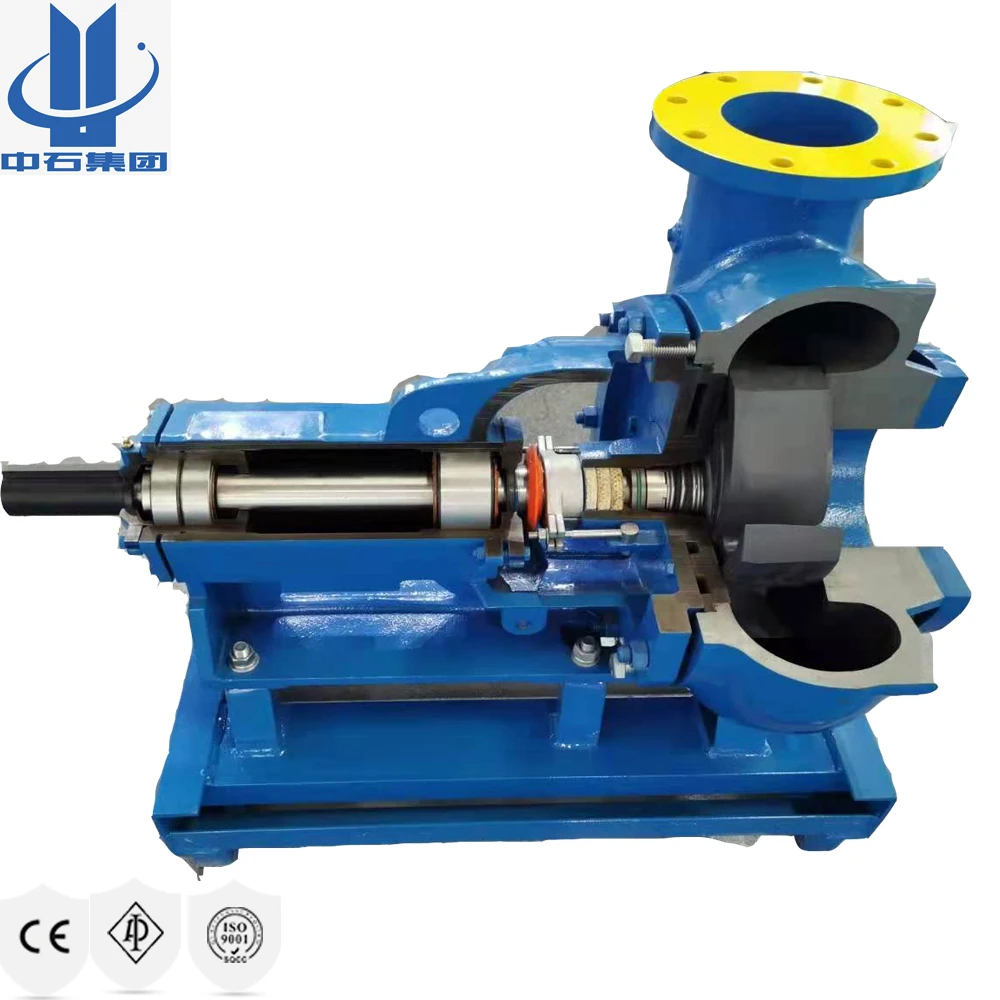

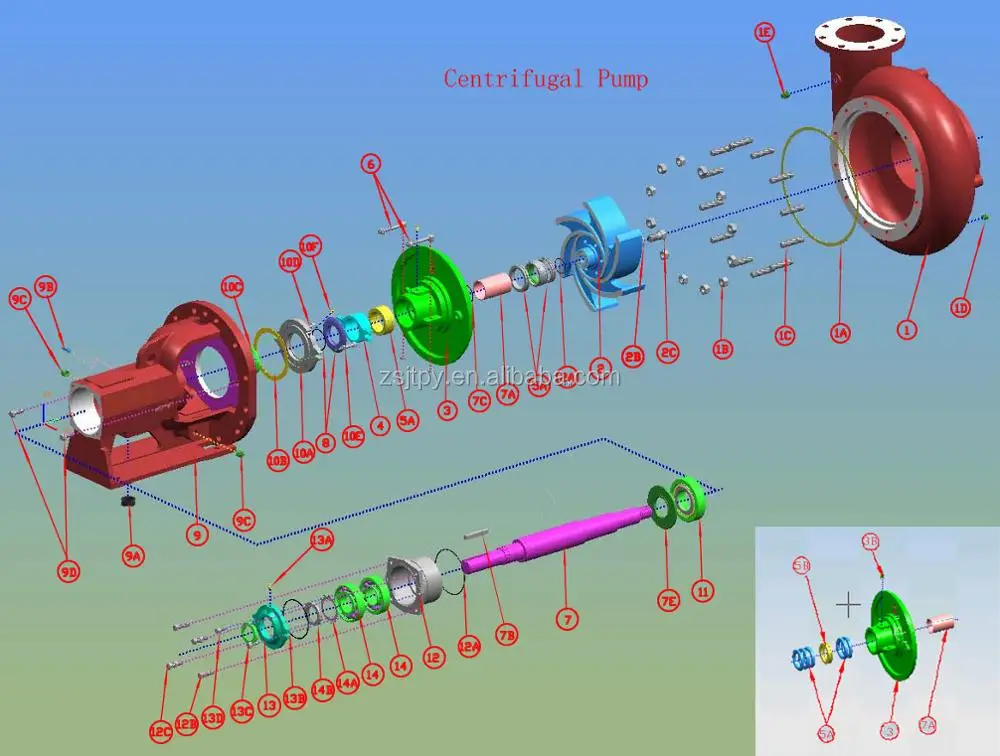

Main Structure
Stuffing box
Seal,mechanical
Frame,grease lubricated
Casing
Impeller.
Cover,inboard bearing
Product Paramenters
Application Fields
Typical Applications
Frac blending Paper pulp processing Sand slurries Sewage Supercharger pumps Wast slurries
SB series centrifugal sand pump includes virtually all of the features of the
SB series pumps are more compact in design and can be adapted for hydraulic motor drive.These features make .JDSB series pump ideal for use in applications such as oilfield frac trucks as well as blending and pump charging for
water well drilling applications.
water well drilling applications.
All parts for these pumps are identical to the SBseries pump except for the frame and shaft.The frame and shaft have been shortened 4" to reduce the length of the pump.When space is a premium and prime mover
options are limited, the SB series pump is the pump of choice.
options are limited, the SB series pump is the pump of choice.

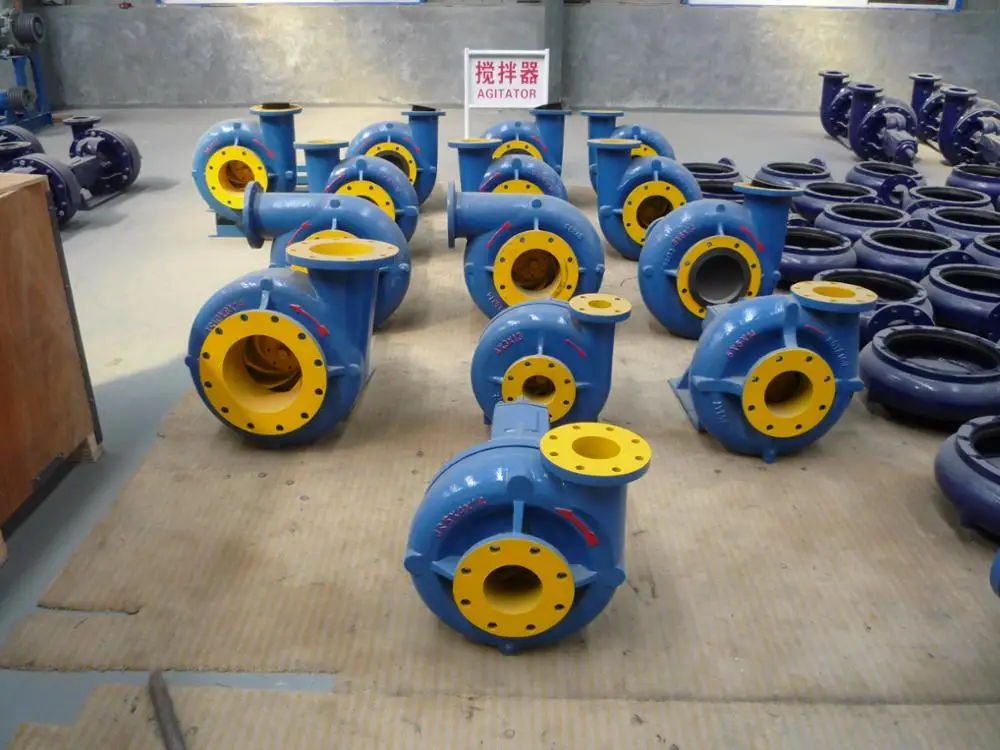

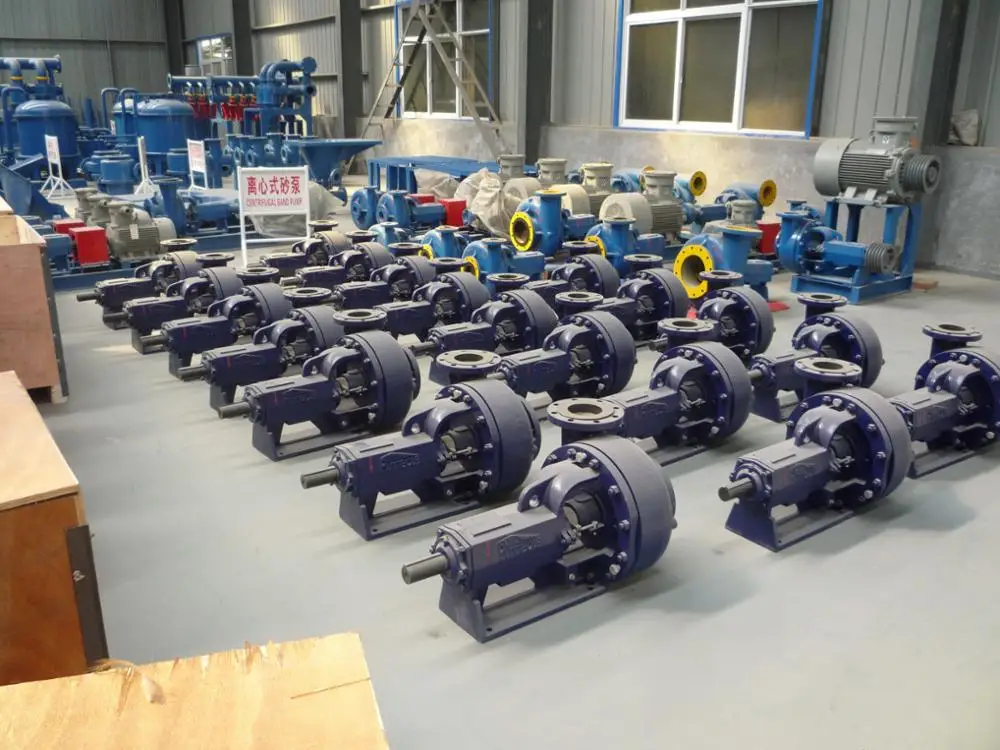

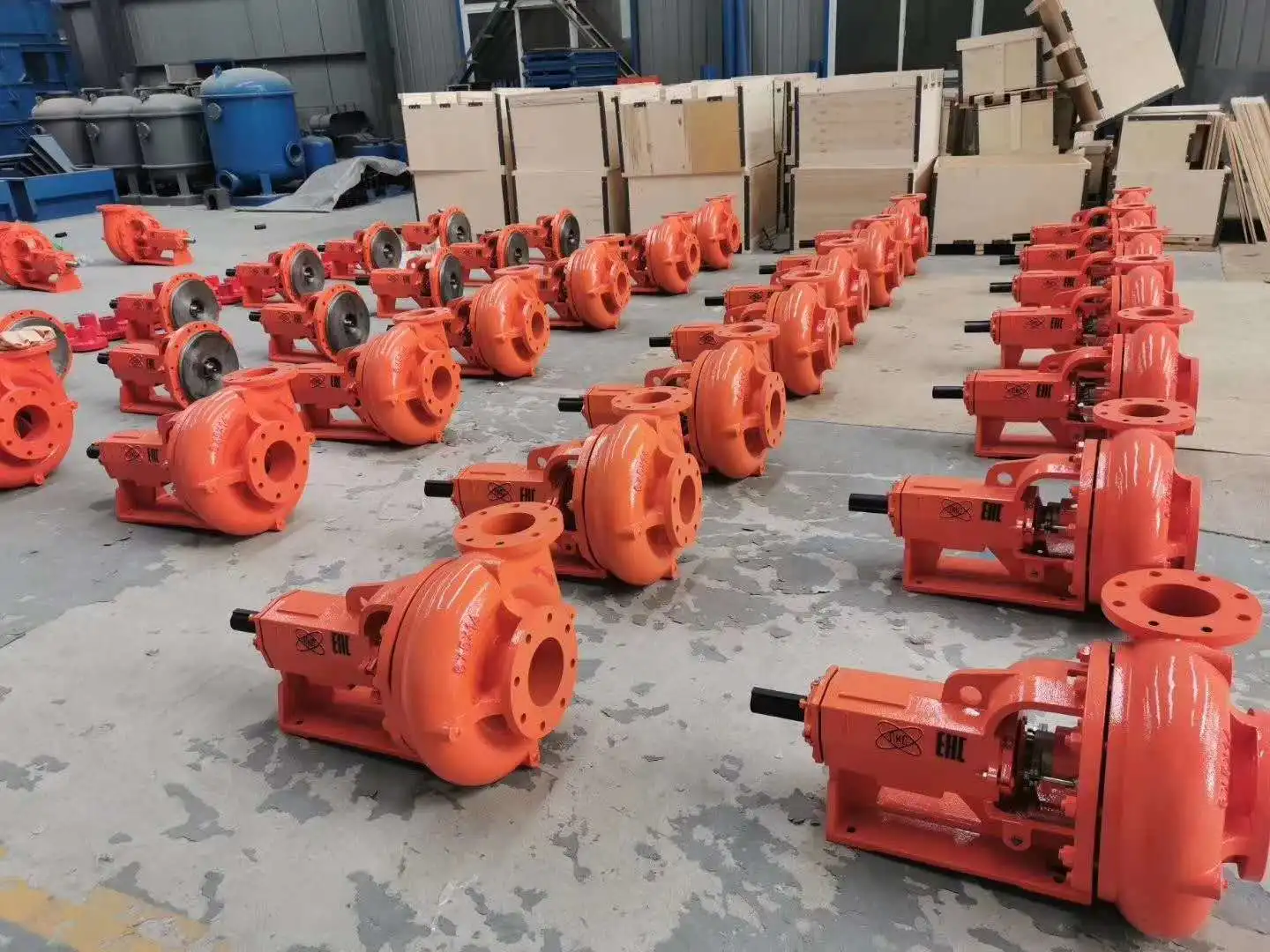

Factory Production
Package&Shipping Details
Company Profile
Puyang Zhongshi Group has been professional in oilfield equipment manufacturing for more than 20 years and our market has spead to more than 15 countries.Our products include drilling fluid cleaner,mud circulation tank,Sand pump,shale shaker,centrifuge,desander,desilter,vacuum degasser,mud gun,container house and drilling tools.We have owned ISO9001 and API quality certificates and professional engineers with abroad experience.
