What's the introduction of high viscosity flow measurement?

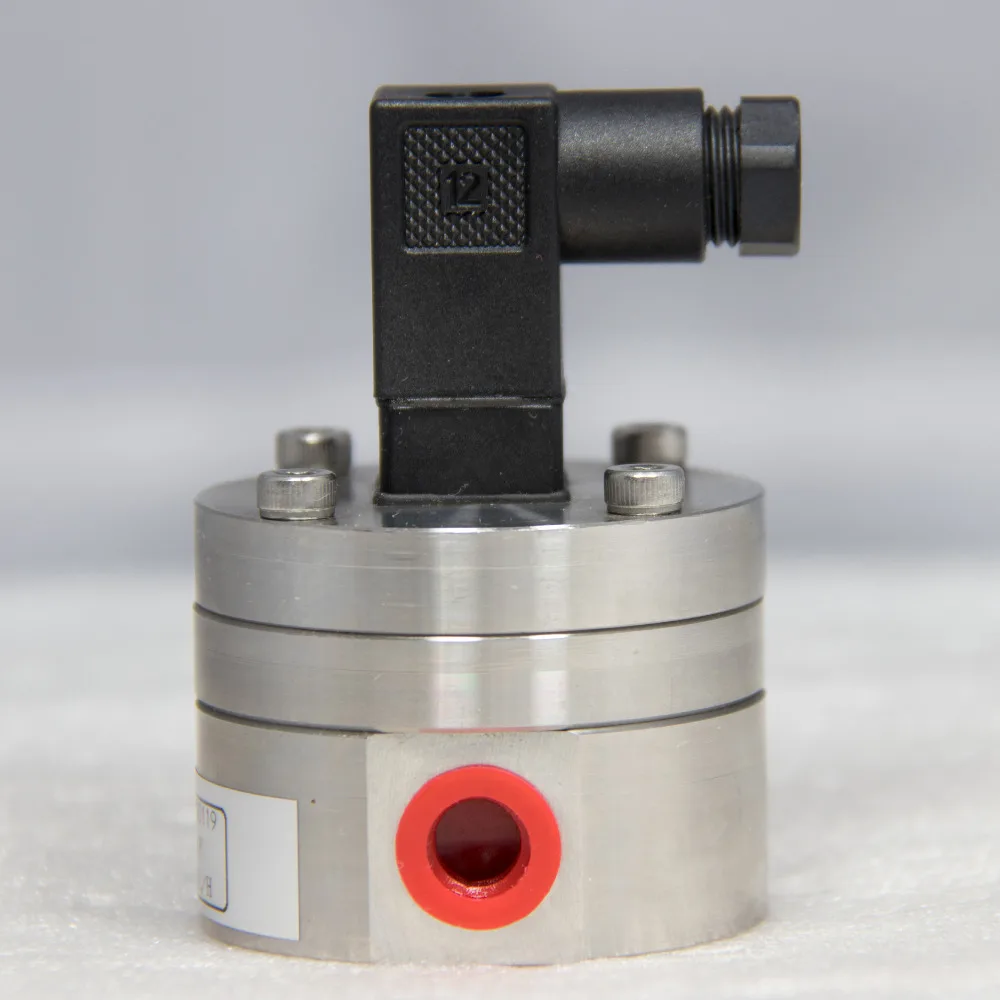

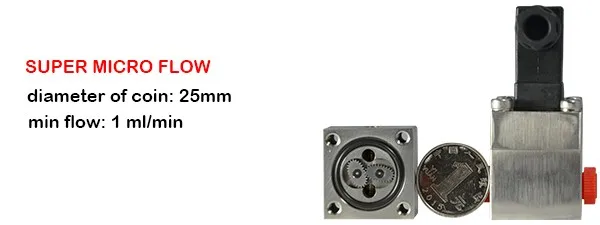

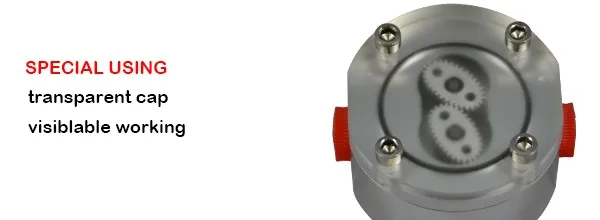

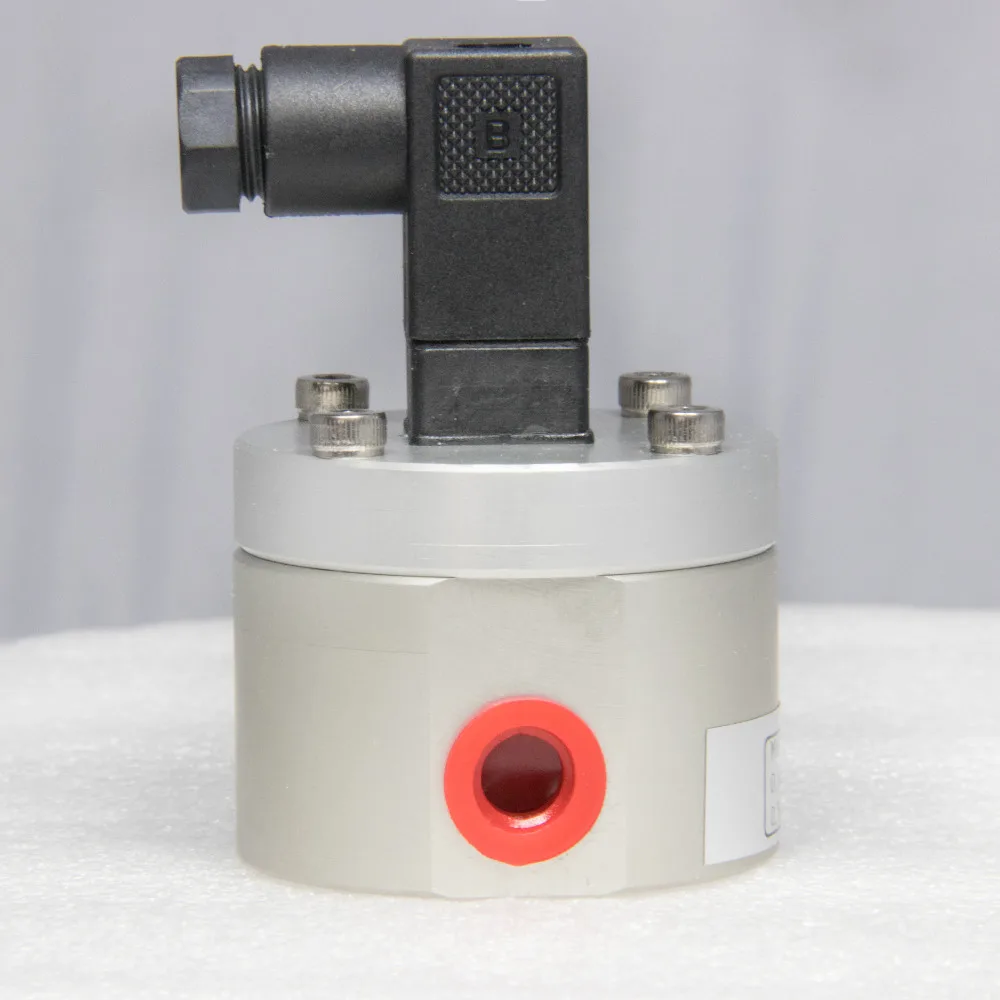

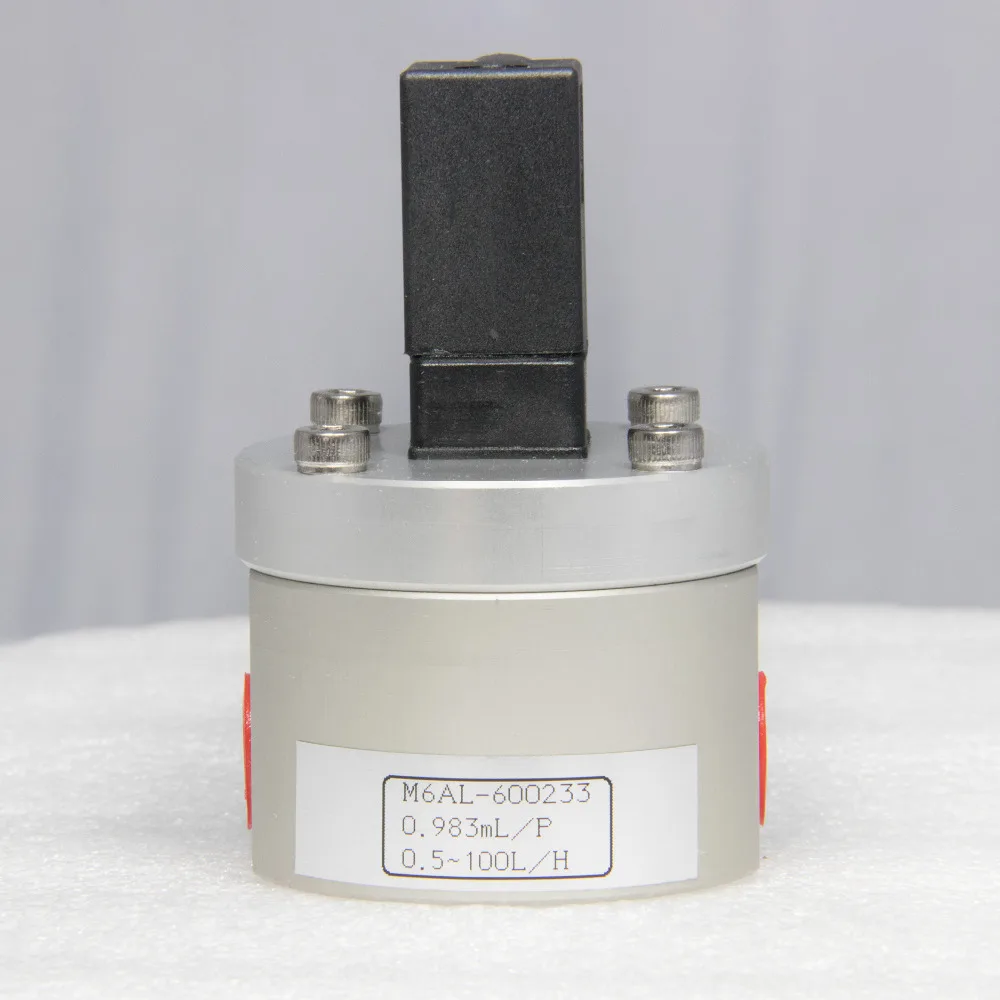

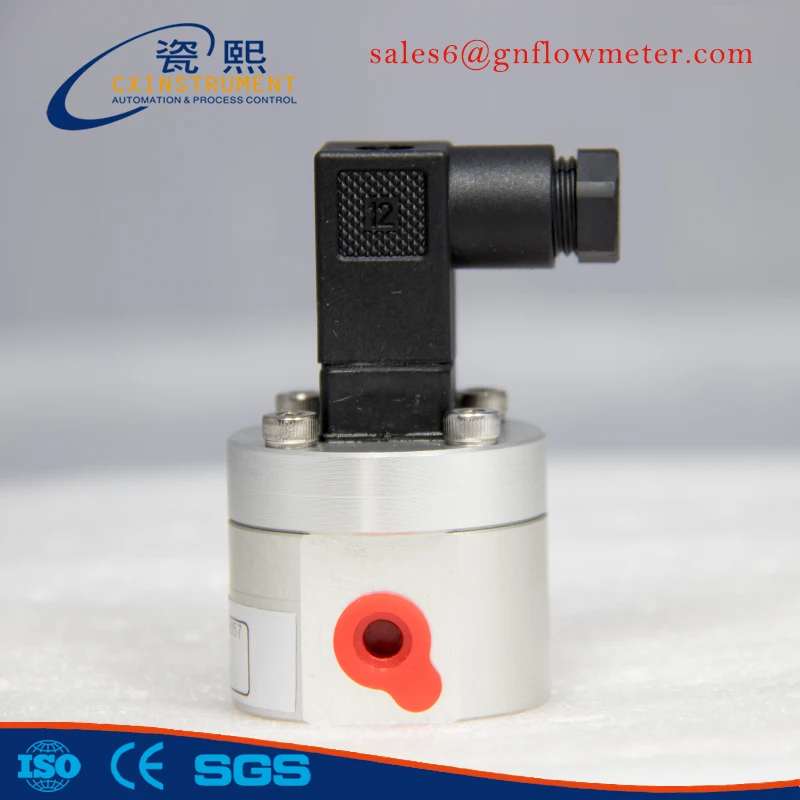

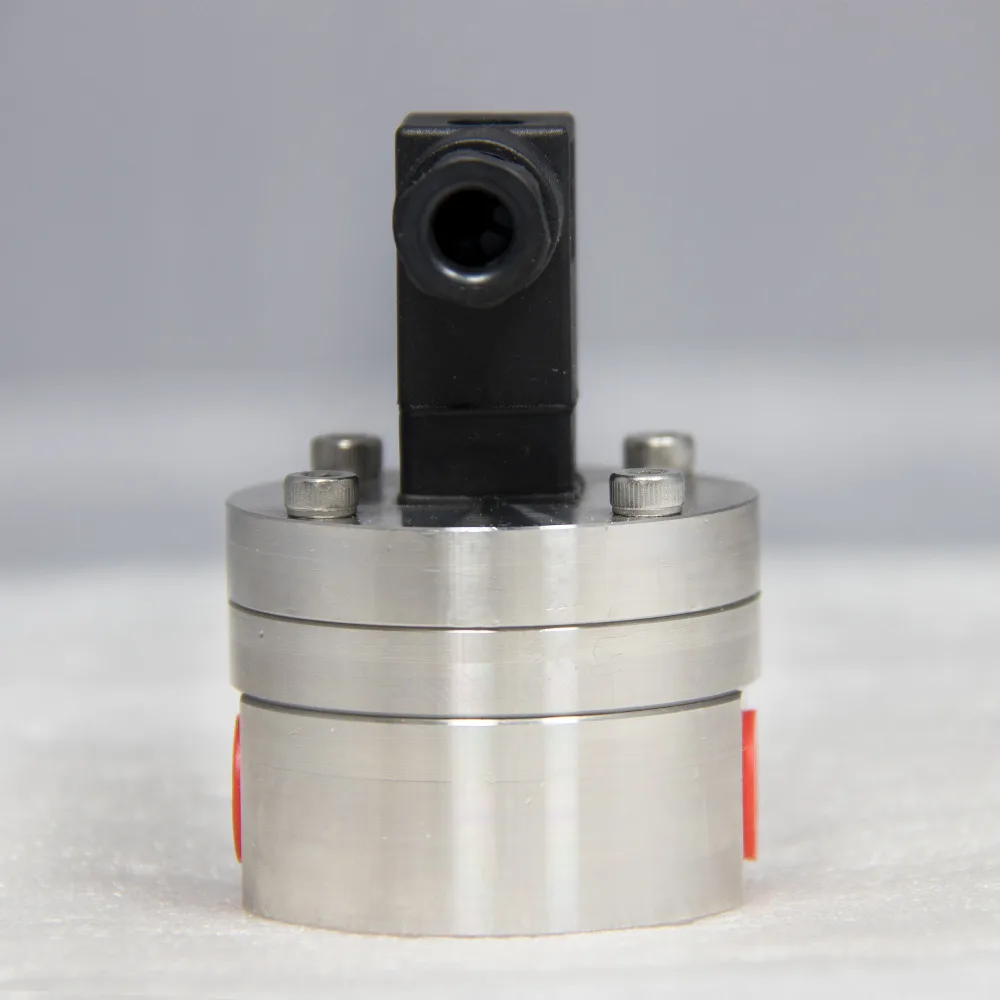

Micro capacity flowmeters provide precise volumetric flow measurement of clean liquids found in a broad
range of industries including automotive, aviation, mining, power,paint & petroleum. Applications include the distribution of fuels, fuel oils, lubricants, alcohols, blending of bio & ethanol fuels, grease, adhesives, ink, insecticides & non-conductive liquids either pumped or gravity fed
what's the main features of our high viscosity flow measurement ?
1) Compact & economical design suited for OEM
2) High accuracy & repeatability
3) No requirement for flow conditioning
4)Stainless steel rotors
5) Measures high & low viscosity liquids
6)Original Equipment Manufacturers
What's the main parameters of super high viscosity flow measurement ?
Model | CX-M3 | CX-M5 | CX-M6 | CX-M9 | CX-M25 |
Flow range | 1-300 ml/min | 5-1750 ml/min | 0.5-100 ml/min | 5-550 l/H | 5-110 l/min |
Connection | G1/8 female thread | G1/8 female thread | G1/4 female thread | G1/4 female thread | G1 female thread |
Accuracy | 0.5% | ||||
Temperature | -30~80°C(customized for 150C) | ||||
Pressure | 32bar(customized for 250bar) | ||||
Output | square-wave pulse | ||||
Supply | 4-26VDC | ||||
-SS series |
| ||||
material | chamber:ss316 ,gear:SS316L, shaft:SS316L | ||||
Medium | suitable for various chemical liquid | ||||
-AL series |
| ||||
Medium | suitable for non-corrosive fluid | ||||
material | chamber: anodized aluminum , gear: anodized aluminum, shaft:SS316L | ||||
