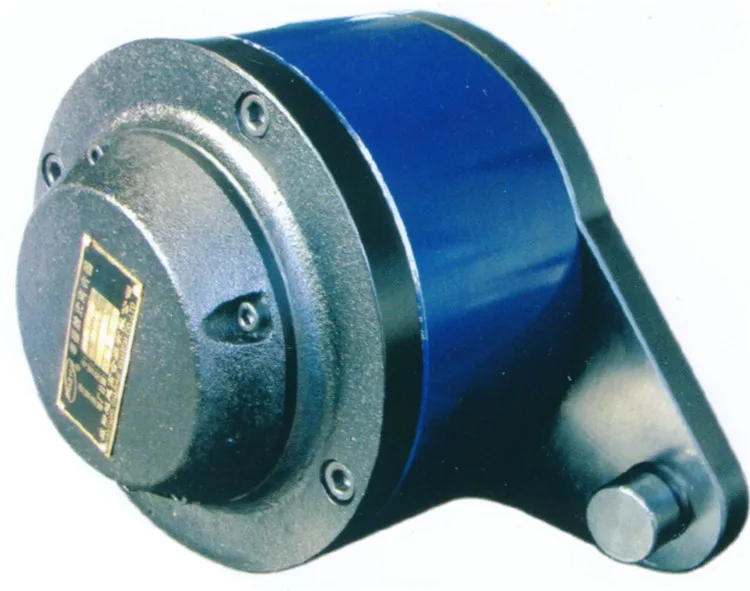

NF heavy load machinery non contact backstop bearing overrunning clutch

Price:RUB 22,745.40 - RUB 227,454.00

Quantity:

Product Description

NF heavy load machinery non contact backstop bearing overrunning clutch

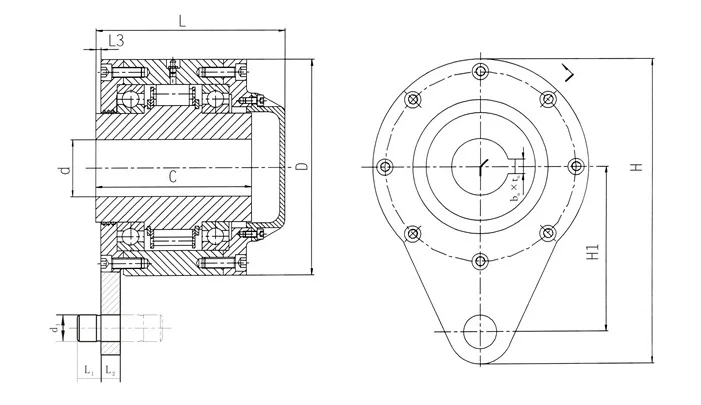

Parameter of NF non contact backstop

TYPE	NOMINAL TORQUE [N · m]	NON CONTACT ROTATE SPEED [r / min]		DIMENSION IN CONTOUR [mm]										WEIGHT [kg]
TYPE	NOMINAL TORQUE [N · m]	MININUM [n_min]	MAXIMUM [n_max]	d [E7]	D [h6]	H	H₁	L	L₁	L₂	L₃	C	d1	WEIGHT [kg]
NF10	1000	450	1500	40 ~ 50	190	273	150	173	25	20	5	145	28	27
NF16	1600	450		45 ~ 60	208	295	160	182		22		150	32	31
NF25	2500	425		50 ~ 70	230	323	170	190		25		155	38	38
NF40	4000	425		60 ~ 80	245	350	185	207	28	30		166	42	49
NF63	6300	400		70 ~ 90	260	370	195	221	30	35		180	45	62
NF80	8000	400		80 ~ 100	275	396	210	226	35	35		185	48	73
NF100	10000	375		90 ~ 110	295	425	225	261	35	45		220	52	98
NF125	12500			100 ~ 130	330	473	250	296	40	50	8	250	58	154
NF160	16000		1000	110 ~ 140	360	512	270	306	40	55		260	62	175
NF200	20000	350		120 ~ 150	400	565	300	306	50	58		260	65	214
NF250	25000	350		130 ~ 160	430	620	335	316	50	63		270	70	256

Parameter of Keyway

d	40~44	>44~50	>50~58	>58~65	>65~75	>75~85	>85~95	>95~110	>110~130	>130~150	>150~160
bn x t_n	12 x 3.3	14 x 3.8	16 x 4.3	18 x 4.4	20 x 4.9	22 x 5.4	25 x 5.4	28 x 6.4	32 x 7.4	36 x 8.4	40 x 9.4
