Check Valve 3000psi High Pressure Stainless Steel One Way Stainless Steel Gas Standard Normal Temperature General Manual CV AFK
- Category: >>>
- Supplier: Shenzhen Wofly Technology Co. Ltd.
Share on (60726158094):
Product Overview
Description
Product Description
Stainless Steel 316 Air Compressor One Way Check Valve
High Pressure No Return Valve
*Product Specification
*Name: Check valve
*Size: 6mm 8mm 10mm 1/8" 1/4" 3/8" 1/2"
*Connection: Ferrule OD
*Pressure: 1000 Psi, 3000psi
*Material: Stainless steel 316
Specification | ||||||
Number | Part | SS316 VALVE | Brass valve | |||
1 | Valve body(Inlet) | SS316 | Brass | |||
2 | Packing | SS316 | Brass | |||
3 | O-Ring | VITON/BUNA | VITON/BUNA | |||
4 | Ball | SS316 | Brass | |||
5 | Spring | SS316 | Brass | |||
6 | Valve Body(Outlet) | SS316 | Brass | |||
Dimensions(inch) | ||||||||||
Name | Size | A-PT/NPT/G | B-PT/NPT/G | C-(mm) | D(mm) | |||||
CV-01 | 1/8" | 1/8" | 1/8" | 19 | 74 | |||||
CV-02 | 1/4" | 1/4" | 1/4" | 19 | 74 | |||||
CV-03 | 3/8" | 3/8" | 3/8" | 22 | 74 | |||||
CV-04 | 1/2" | 1/2" | 1/2" | 27 | 75.5 | |||||
CV-06 | 3/4" | 3/4" | 3/4" | 35 | 83.5 | |||||
CV-8 | 1" | 1" | 1" | 41 | 87.5 | |||||
Can be customized according to customer‘s’ requirements | ||||||||||

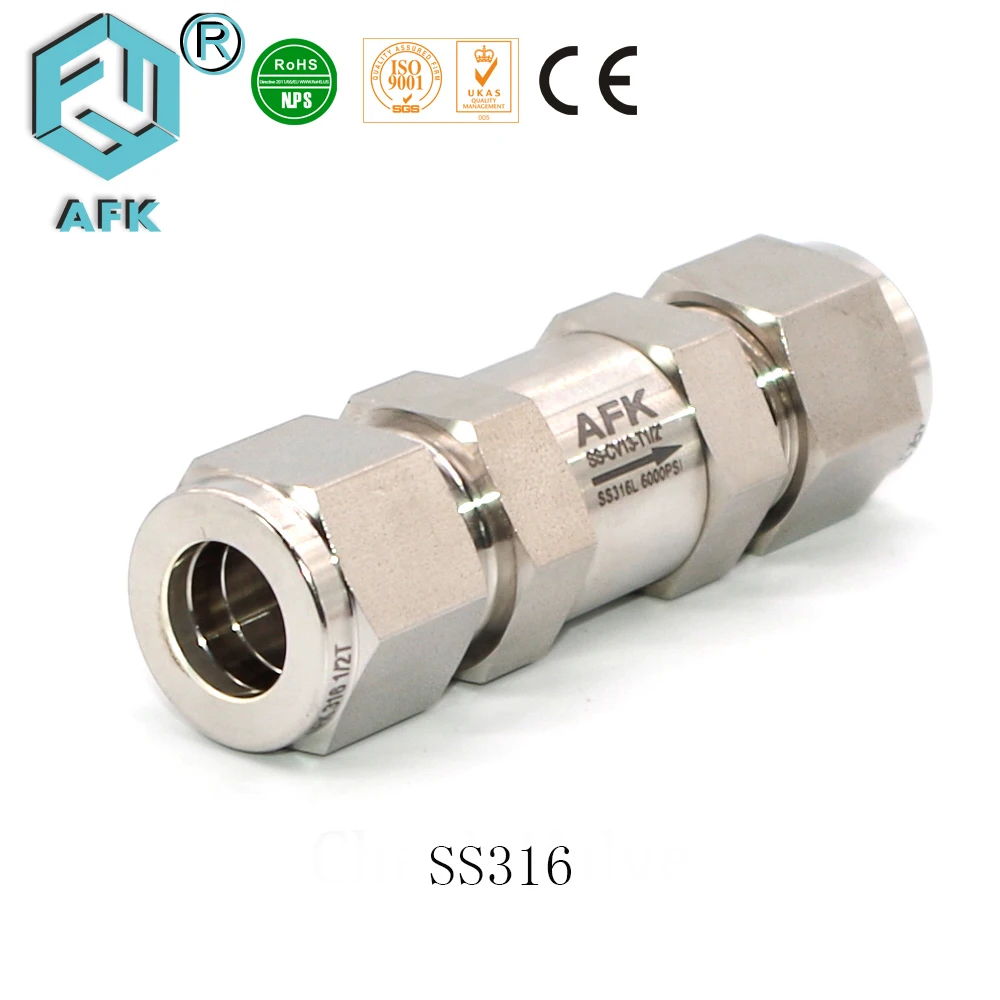

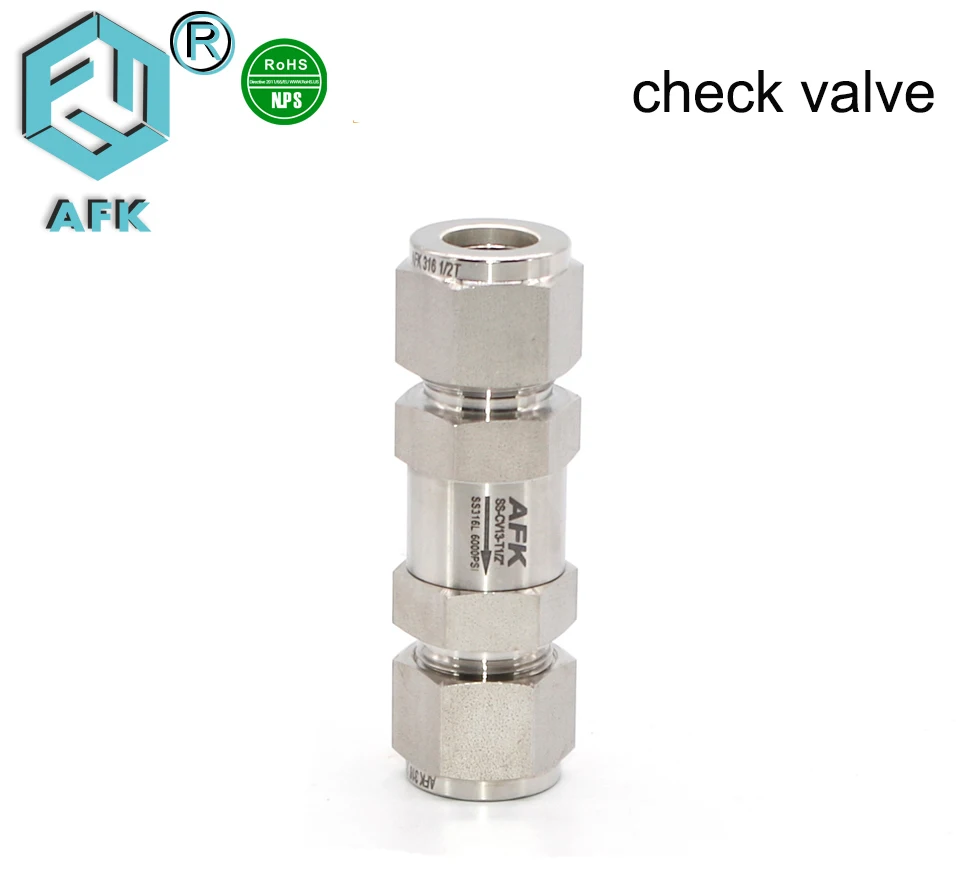

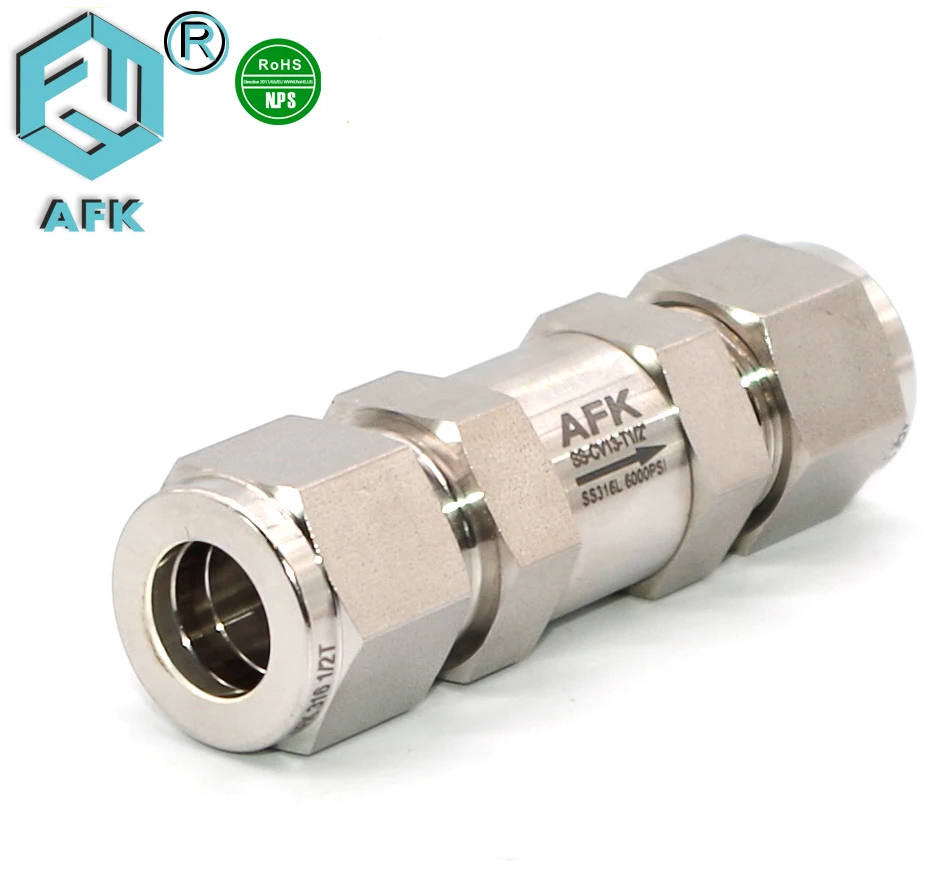

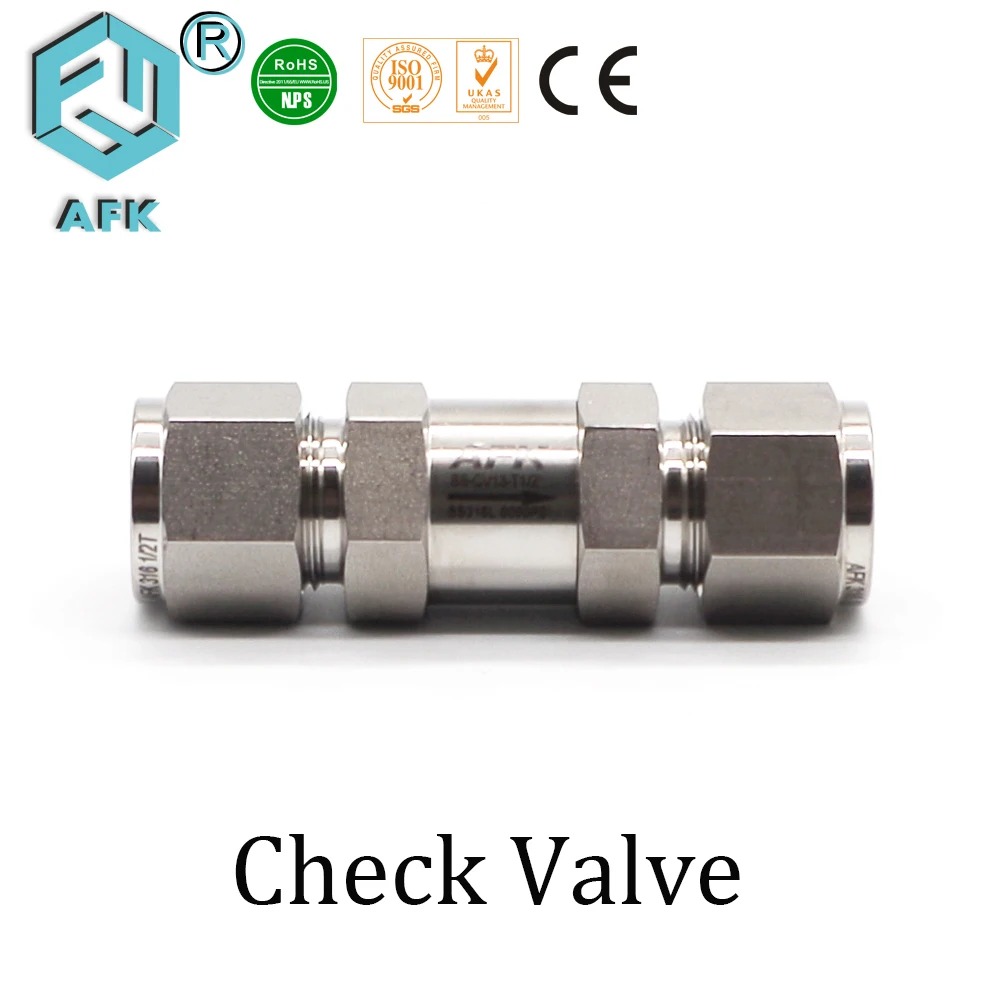

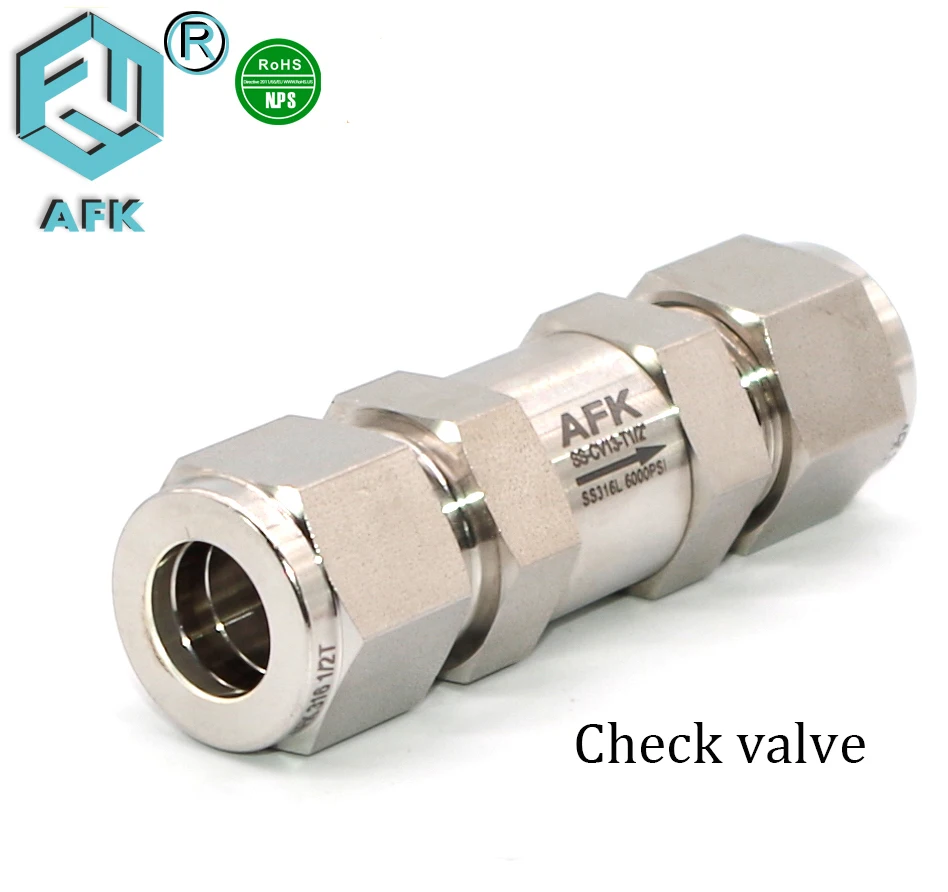

Product Show
Related Products
Natural gas pipe fittings 90 degree elbow stainless steel pipe fitting
Stainless Steel 316 equal tube 3mm 4mm 6mm 8mm 10mm OD Double ferrule union compression fittings
Stainless steel 316 hexagon pipe fitting Reducer Bushing connector
Stainless steel 1/4" pipe fittings Male NPT threaded compression fitting connector
Our Company
Certifications
Packing & Delivery
Packing
Export packing
Delivery
Within 7 days in stock
