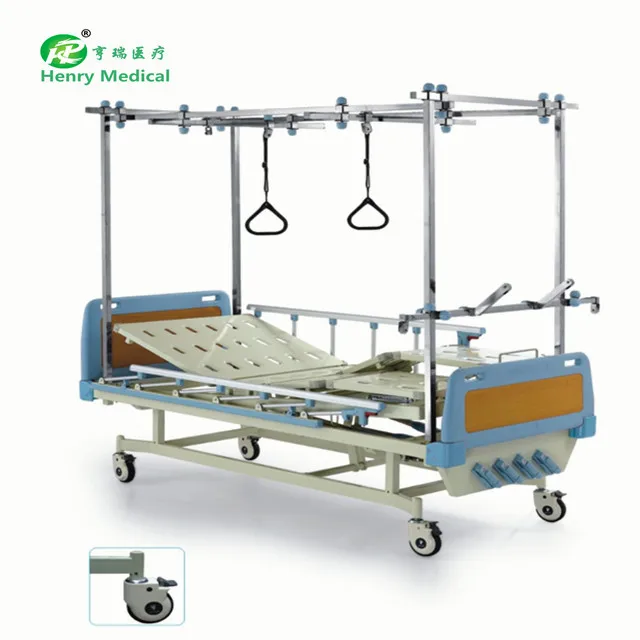

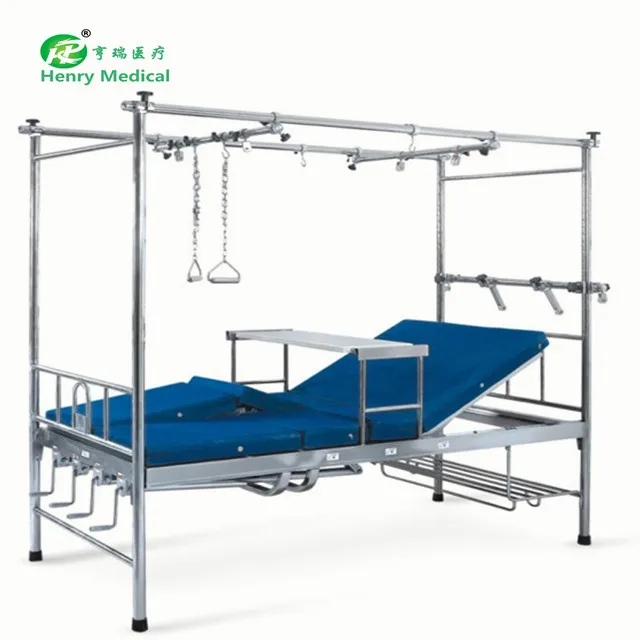

Hospital Furniture Orthopedic wards use hospital orthopaedics beds

Features:

DIMENSION:L2150×W970×H450-720mm
1. Carbon steel bed frame, punch steel bed platform design.The bed platform is shaped once for all by cold rolled steel plate, which is durable and reliable.
2. High-temperature electrostatic of painting on bed platform, which is anti-aging and anti-rust.
3. Head and foot board made of ABS which can be detachable.
4. Aluminum alloy collapsible side rails with unique pinch resistant design.
5. 5 inch silent castors with cross brake.
6. Stainless steel orthopedic frame, four ABS cranks control backrest, footrest and hi-low adjustment.

Functions:

1. Backrest lifting 0°to 80°(±5°)
2. Footrest lifting 0°to 40°(±5°)
3. Height adjustment 450-720mm
4. Trendelenburg from 0°to 12°
5. Reverse Trendelenburg form 0°to -12°

Quality Assurance:

1. Warranty period: under the standard of the product is used, the bedstead is responsible for one year warranty, the motor warranty two years (human, improper use and damage is not within the scope of the warranty) warranty period internal cause improper use need to repair and charge the cost of replacement parts.

2.Bed as a whole by Swiss "golden horse" automatic water spraying line, USES the akzo powder electrostatic spraying, bright color and attached firmly.

3.Bed frames for carbon steel frame and steel plate thickness of 1.0-1.2 mm.

Main Technical：
