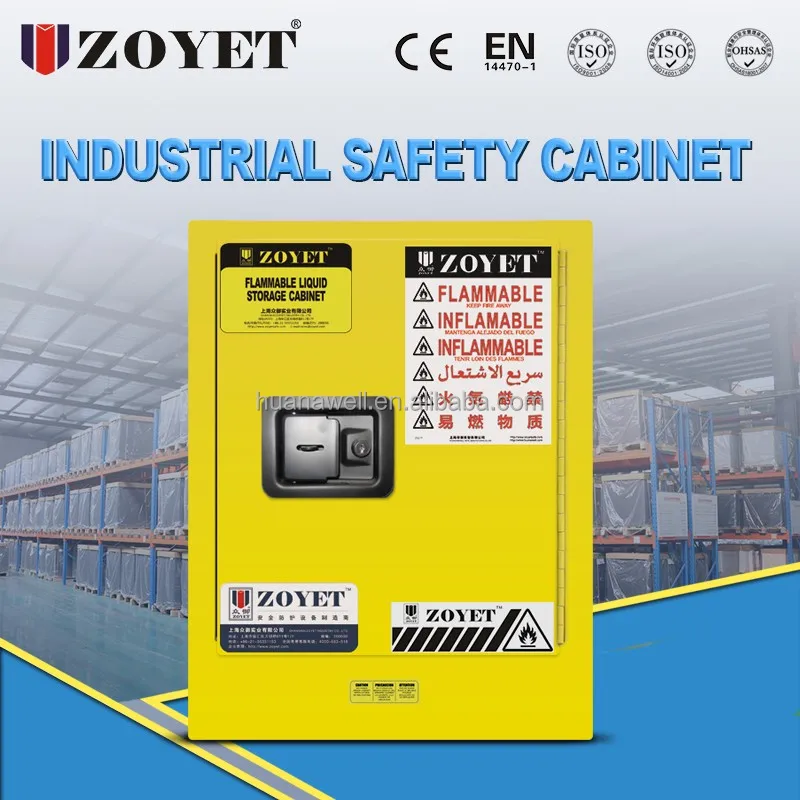

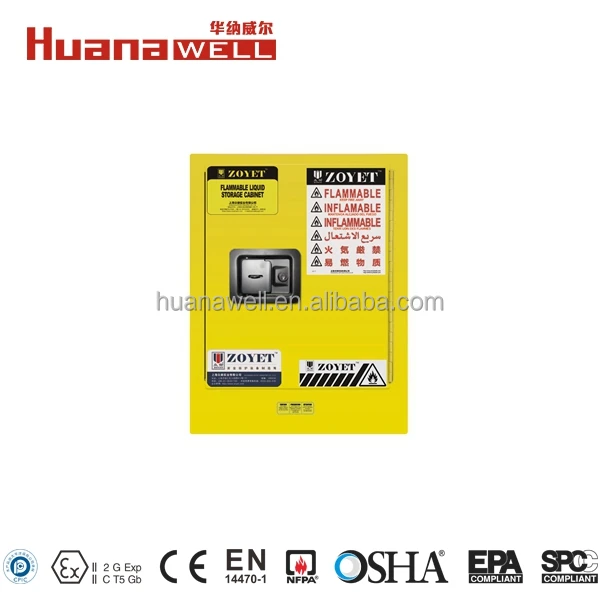

ZOYET Small Flammable liquid safety cabinet Fireproof Safety Storage Cabinets comply with CE EN14470
- Category: >>>
- Supplier: Wuxi Huanawell Metal Manufacturing Co. Ltd.
Share on (60726211152):
Product Overview
Description
Product Description
Model No. and Color Options | ZYC0004/Yellow |
Capacity | 4 gallons/15Liter |
No. of Doors | 1 |
Door Type | Manual closing |
No. of Shelves | 1 |
Adjustable Shelves | Yes |
Dimensions(Exterior) | 560H*430W*430D(mm) |
Dimensions(Interior) | 450W*340H*345D(mm) |
Compliance | OSHA 29 CFR 1910.106 & NFPA |
Detailed Images
* Designed to meet OSHA and NFPA 30 standards, flammable cabinet is constructed of sturdy 18-gauge (1-mm) thick double-wall,welded steel with 1-1/2-in (38-mm) of insulating air space for fire resistance.
* High-performance, self-latching doors close easily and securely for maximum protection under fire conditions.
* Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.

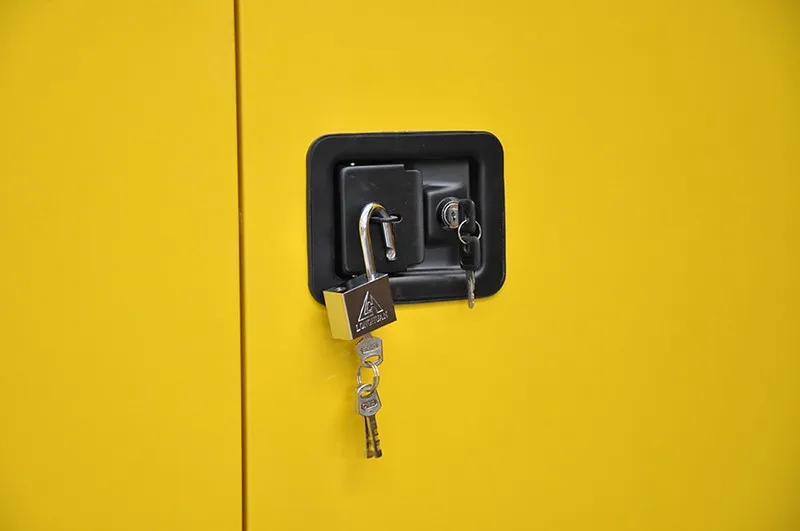

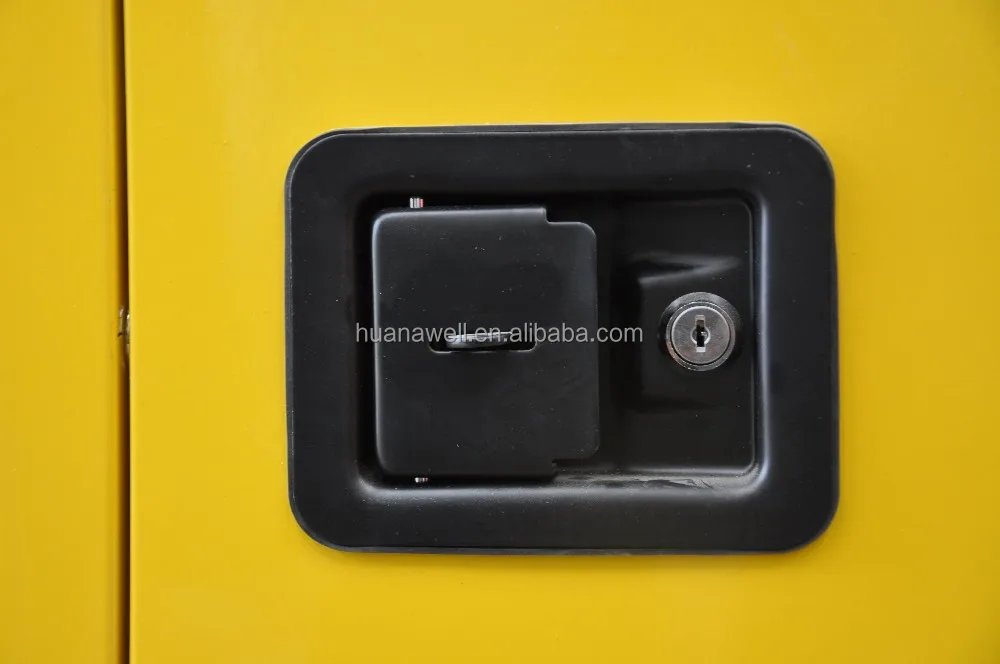

* For added security, Solid-K™ handle comes with a cylinder lock and key set or accepts an optional padlock.
* Ref-L™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a
flashlight.

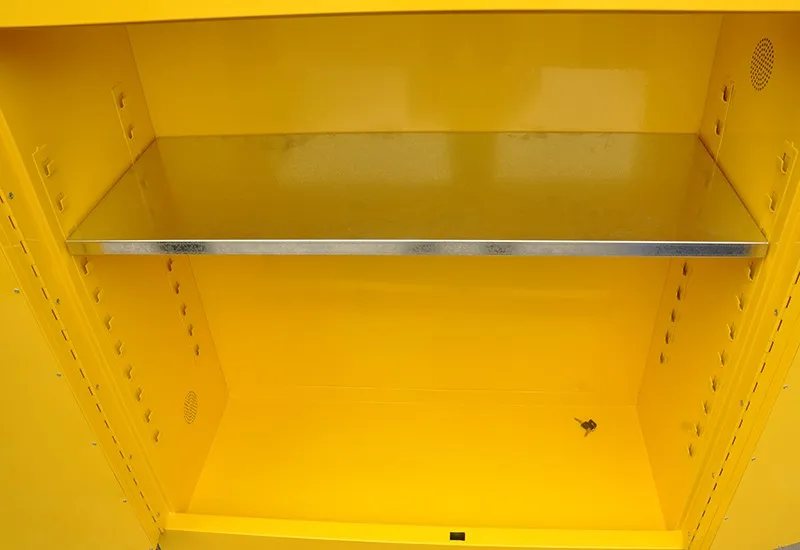

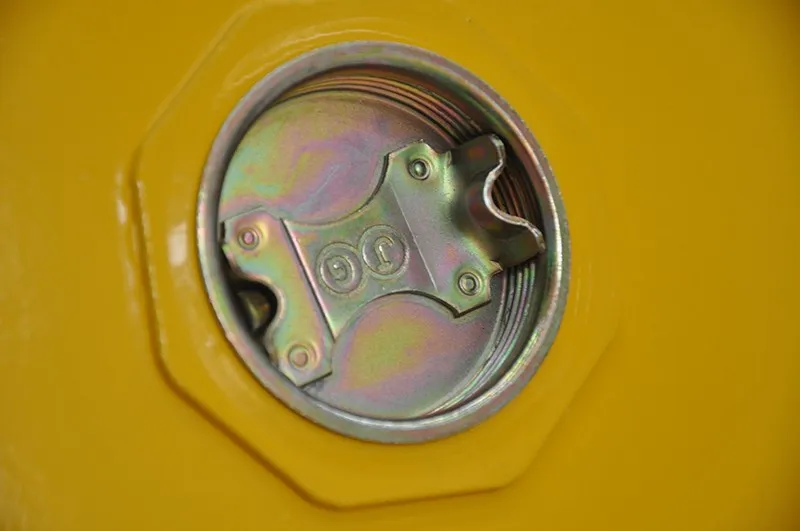

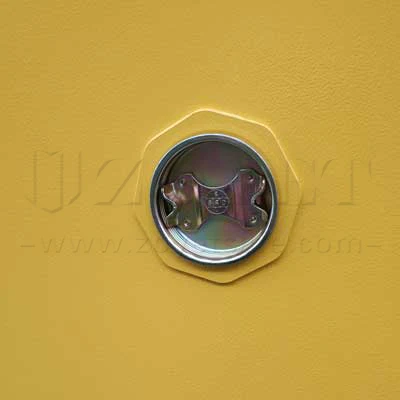

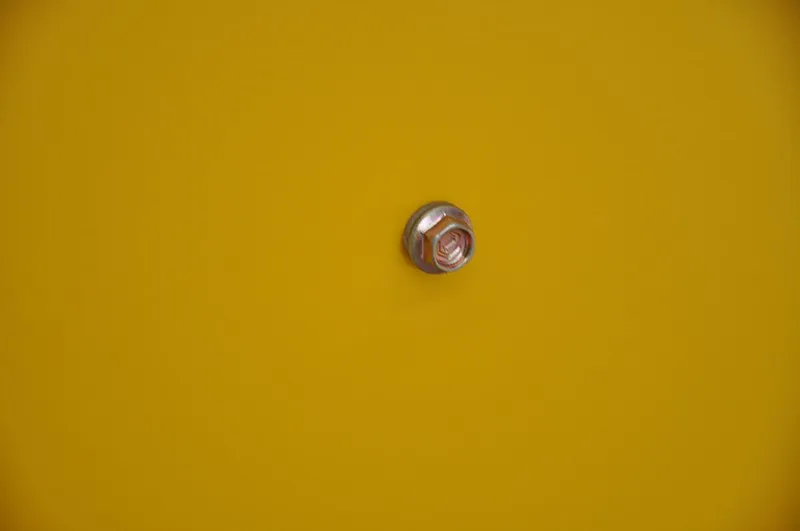

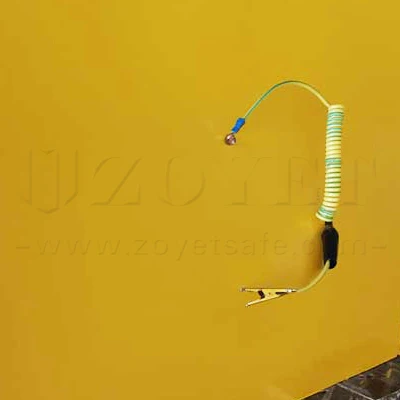

* Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on 2.36-in (60-mm) centers for versatile storage. Cabinets also feature a leakproof 2-in (51-mm) bottom sump, dual vents with flame arresters, four adjustable self-leveling feet, grounding connector and trilingual warning label.
* Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
* High-performance, self-latching doors close easily and securely for maximum protection under fire conditions.
* Fail-safe closing mechanism ensures three-point stainless steel bullet latching system works every time.
* For added security, Solid-K™ handle comes with a cylinder lock and key set or accepts an optional padlock.
* Ref-L™ reflective warning labels are highly visible under fire conditions or during power outages when illuminated with a
flashlight.
* Galvanized steel shelves direct spills to back and bottom of a leakproof sump. They adjust on 2.36-in (60-mm) centers for versatile storage. Cabinets also feature a leakproof 2-in (51-mm) bottom sump, dual vents with flame arresters, four adjustable self-leveling feet, grounding connector and trilingual warning label.
* Durable lead-free epoxy/polyester powder-coat finish provides excellent chemical resistance.
Size Information
Size Chart of This Design
Name | Huanawell Model | Number of doors and style | Shelf | Capacity | Ext. Dimension H*W*D/MM |
ZYC0004 | 1 door, manual | 1 | 4Gal/15L | 560*430*430 | |
ZYC0012 | 1 door, manual | 1 | 12Gal/45L | 890*590*460 | |
ZYC0022 | 1 door, manual | 2 | 22Gal/83L | 1650*590*460 | |
Flammable | ZYC0030 | 2 door, manual | 1 | 30Gal/114L | 1120*1090*460 |
Cabinet | ZYC0045 | 2 door, manual | 2 | 45Gal/170L | 1650*1090*460 |
ZYC0060 | 2 door, manual | 2 | 60Gal/227L | 1650*860*860 | |
ZYC0090 | 2 door, manual | 2 | 90Gal/340L | 1650*1090*860 | |
ZYC0110 | 2 door, manual | 2 | 110Gal/410L | 1650*1500*860 | |
