Lead free reflow soldering machine

Product Overview

Description

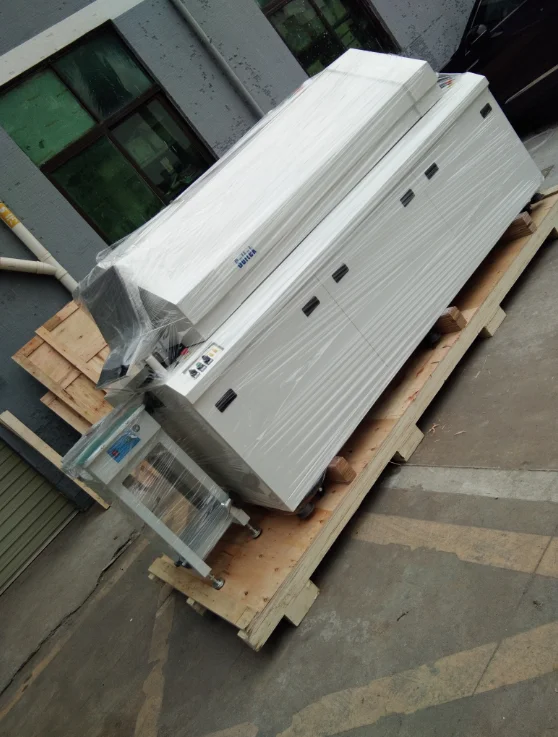

ES Reflow with mesh belt and pin chain full convection oven

This is an economical reflow soldering machine.

In an ideal profile, preheat temperatures are maintained long enough
to permit activation of fluxes, while exposure of the components to
higher reflow temperatures is kept to a minimum. These full
convection reflow ovens achieve perfect heating profiles despite their
modest size.

The ES reflow oven offers full forced hot air heating to maintain
consistent edge-to-edge temperatures, regardless of component size
or density. Infinite profiling possibilities are achieved in this reflow
oven through 8 independently-controlled heating zones, with bottom
side heating also adjustable to prevent overheating of inverted
components on double-sided boards.

Items                          ES4                         ES5                       ES6
Hot Air Zones     4 Top 4 Bottom    5 Top 5 Bottom    6 top 6 Bottom
Heating length          1200mm            1500mm             1800mm
Overall dim.   L2400*W1170*H1400   L2700*W1170    L3000*W1170
Net weight         about 450 Kg        about 550 Kg        about 650 Kg
General power        23KW                28KW                  33KW
Consumption    Approx.8KW    Approx.9.5KW         Approx.11KW
Ramp time           30 minutes        30 minutes         30 minutes
Control type       PC and  PLC Control
Temp range        Ambient-350℃
Temp accuracy        ±1 ℃
Temp uniform        ±2 ℃
Cooling type        1 cooling  Blower system 400mm
Conveyor type        Stainless steel mesh belt and Pin Chain
Conveyor height        900 ±20mm
PCB Clearance        30mm
Max PCB        400mm on mesh; 350mm on Pin chain (option: more width of mesh and chain )
Conveyor direction        Left to right (option: right to left)
Conveyor speed        0-900mm/min
Hood lift        By Pneumatic cylinder
Power supply        380v,3ph,50hz





Option:ES7 /ES8
