Fiber Glass duct rodders or push rodders and commonly called python rod by its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convinient to pull the cables , wires inside the duct , also it can be used to locate the duct block or damage portion identifications . its has high safety aspects to use underground applicartions because of its non conductivity of electricity, sets a major safety to site workers .

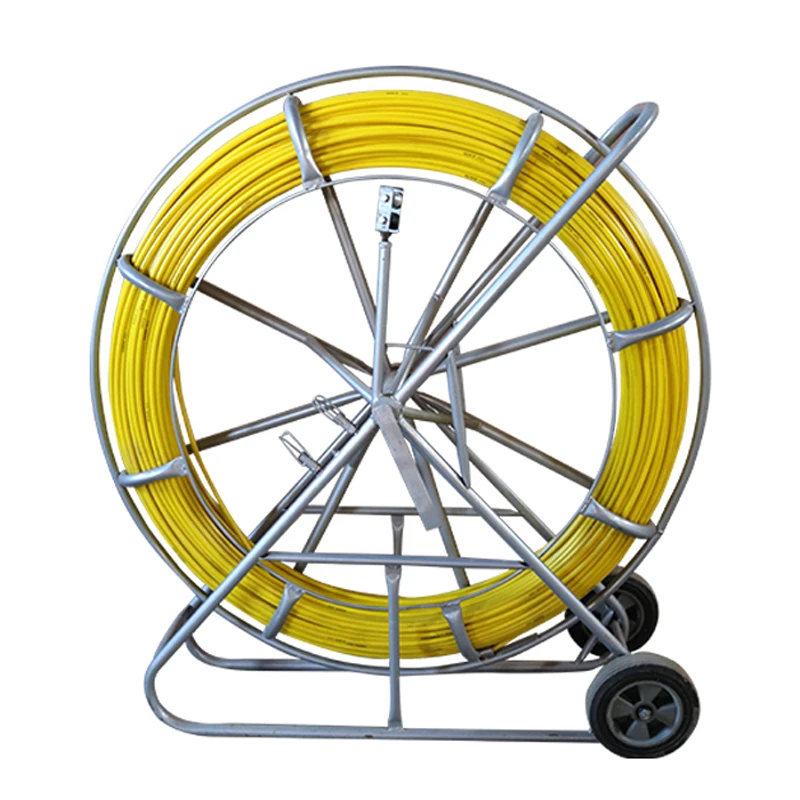

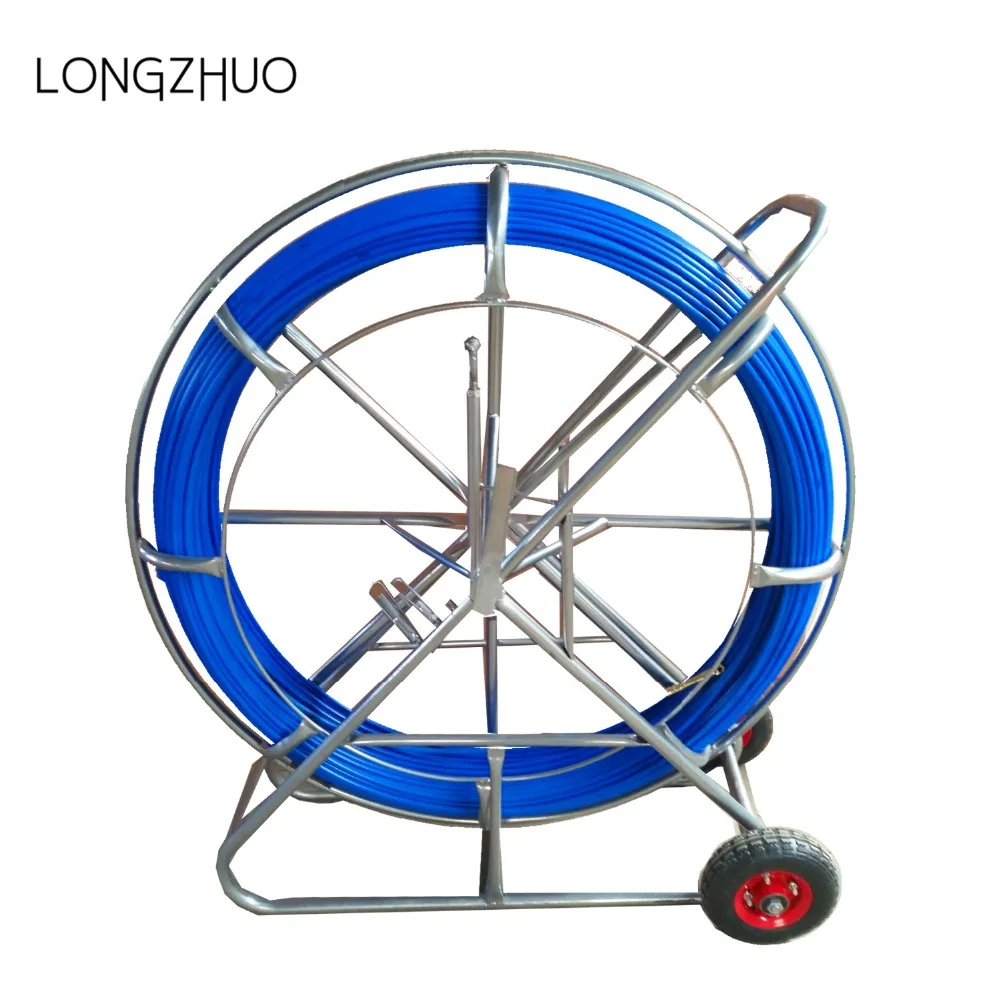

It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
The ducts rodders normmaly comes in various diameters from 5 mm to 15 mm as per ground applications. normally 10 mm dia FRP rodders used for pulling, cleaning and locating blocks in Fiber optic Cable network applications.
Fiber glass duct rod Specification
Duct rodder diameter is from 4.5mm-16mm, length can be 50m-500m or as your request.
Below are some of normal size of fiberglass duct rodder for your reference
Type
Diameter
Length
Frame size (cm)
Packing size (cm)
LZ-FDR-01
4.5mm
60m
50*40*15
50*40*15
LZ-FDR-02
6mm
100m
67*55*16
67*55*16
LZ-FDR-03
8mm
150m
95*90*48
95*90*48
LZ-FDR-04
12mm
150m
105*100*48
105*100*48
LZ-FDR-05
12mm
250m
130*120*48
130*120*48
LZ-FDR-06
16mm
350m
150*140*48
150*140*48
Production Process
Packing & Delivery
Packing details: Carton box or Wooden case as your request
OPERATE INSTRUCTION
FAQ
More about our company and service
1> Highest quality We are the manufacture who adopts import raw materials. It is amazing, and with cheap price and guaranteed quality. 2> Most competitive price We can adjustment the price according to your market demand’s changes, and also can launch a series of promotional activities in a bad economic environment. 3> Professional We are special in producing and sells, as development, methods, and handling. 4> Best service Answering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
More about us
1> Highest quality We are the manufacture who adopts import raw materials. It is amazing and with cheap price and guaranteed quality. 2> Most competitive price We can adjustment the price according to your market demand’s changes and also can launch a series of promotional activities in a bad economic environment. 3> Professional We are special in producing and sells, as development, methods, and handling. 4> Best service Answering emails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
