traffic line marking project thermoplastic line striping machine

Product Overview

Description

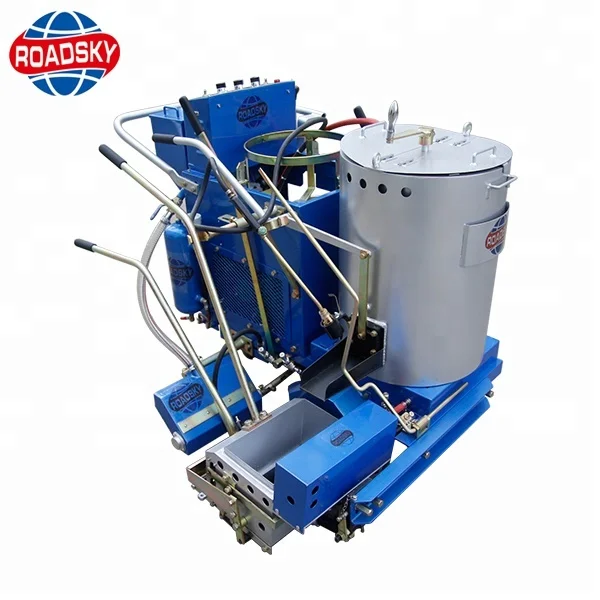

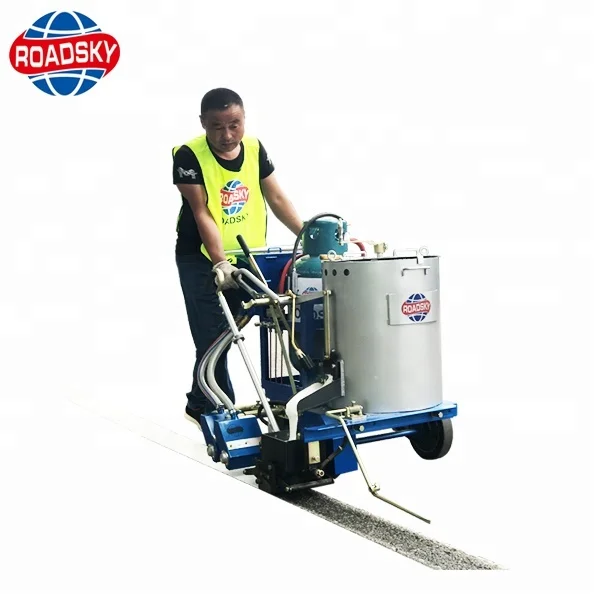

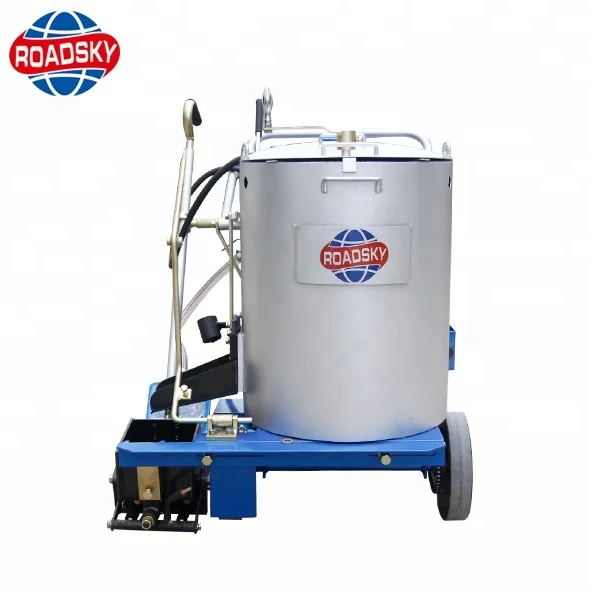

RS-1B Hand Push Thermoplastic Road Marking Machine



Hand Push Thermoplastic Road Machine is special purpose equipment for road marking.

Usage:highway,road axis, lane line, community, airport, etc

Shape of Lines:such as straight line, dotted line, curve, oriented arrow, and letters

Road Marking width:50/80/100/120/150/180/200/230/250/300/400/450 mm width(can be customized according to your requirement)



Model	RS-1B
Capacity of Paint Tank	100KG, 200KG or Customized
Capacity of Glass Beads Tank	10 kg
Marking Width	50-500 mm or customized
Size (L×W×H)	1210*760*1000 mm
Net Weight	125 kg
Thickness of Bottom   Line	1-4 mm
Marking Speed	500-1200 m/h







Using Combination

4.1 RS-1B with RS-11

RS-1B Hand Push Thermoplastic Road Marking Machine can be connected

with the RS-11 Line Driver, so that you can drive the machine for road marking.

It will save the manpower and enhance the working efficiency greatly.

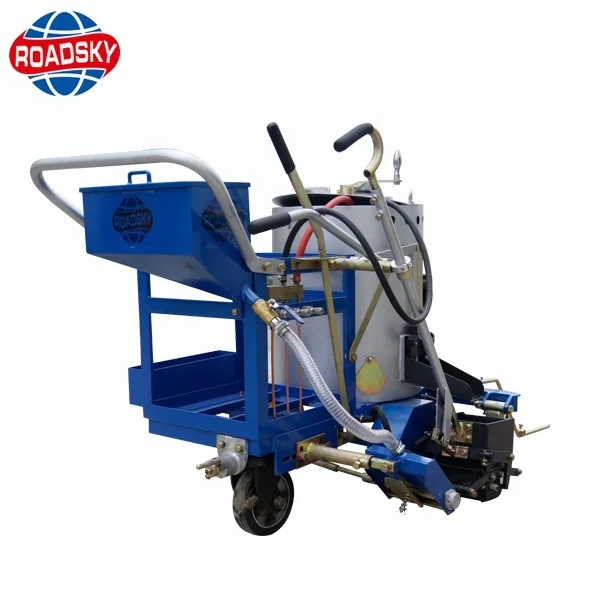

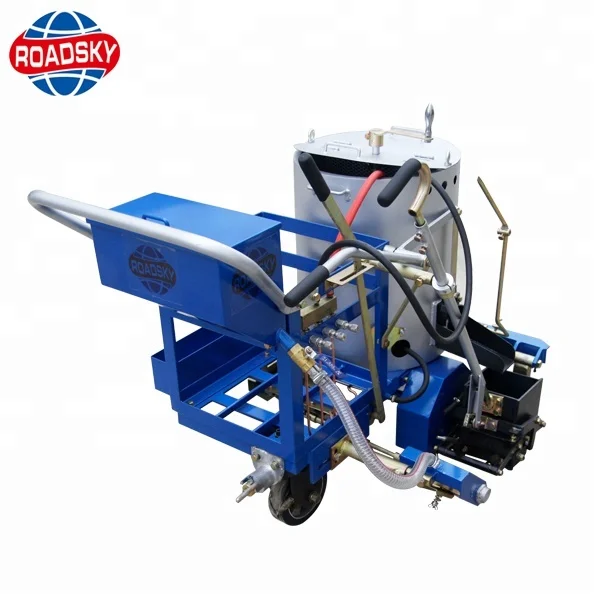

4.2 RS-1B with Double Glass Beads Dispensers

RS-1B with double glass beads dispensers has an excellent performance of reflector effect in the night as well as circumstances where light is weak. It can be applied to fields which require high reflection such as urban street and parking lots. Each glass beads tank capacity is 5kg.





different sizes of dies and glass bead dispensers









Road Marking Auxiliary Machine

 For more information, please contact us or check our website:

www.roadsky.com.cn.
