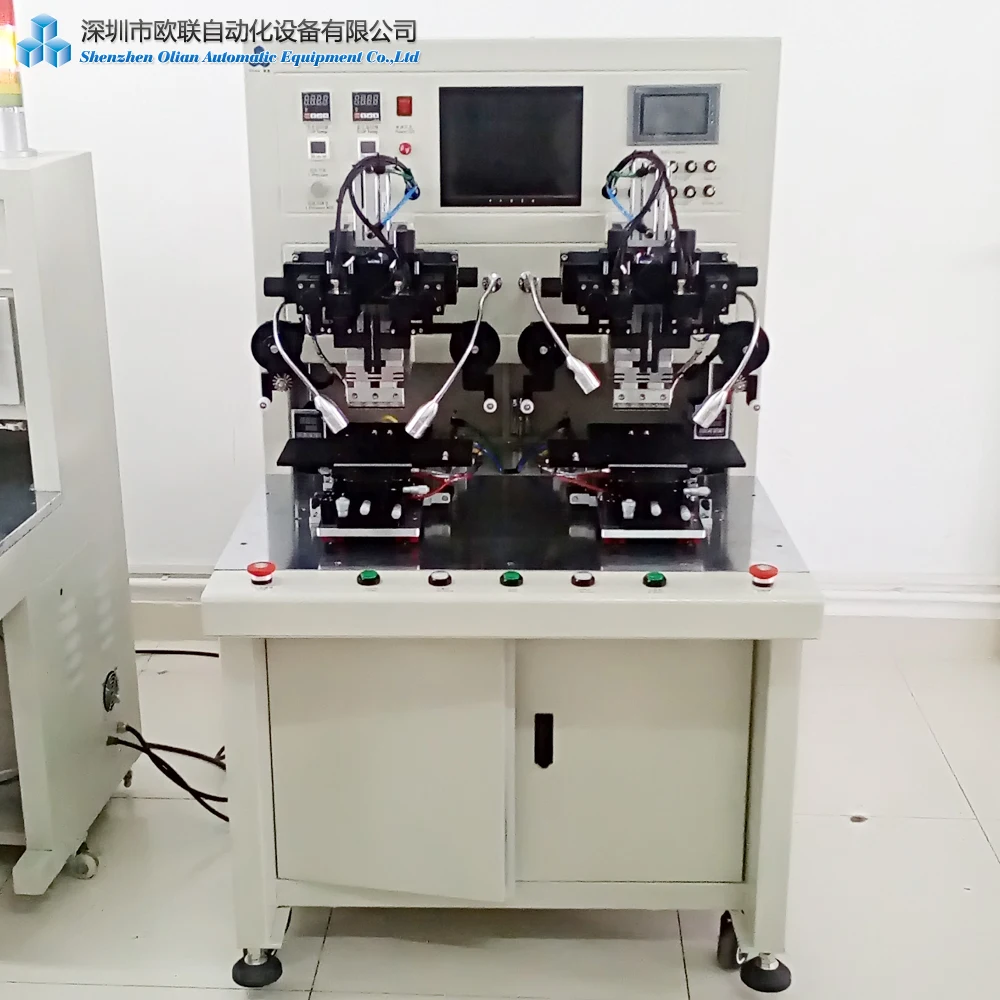

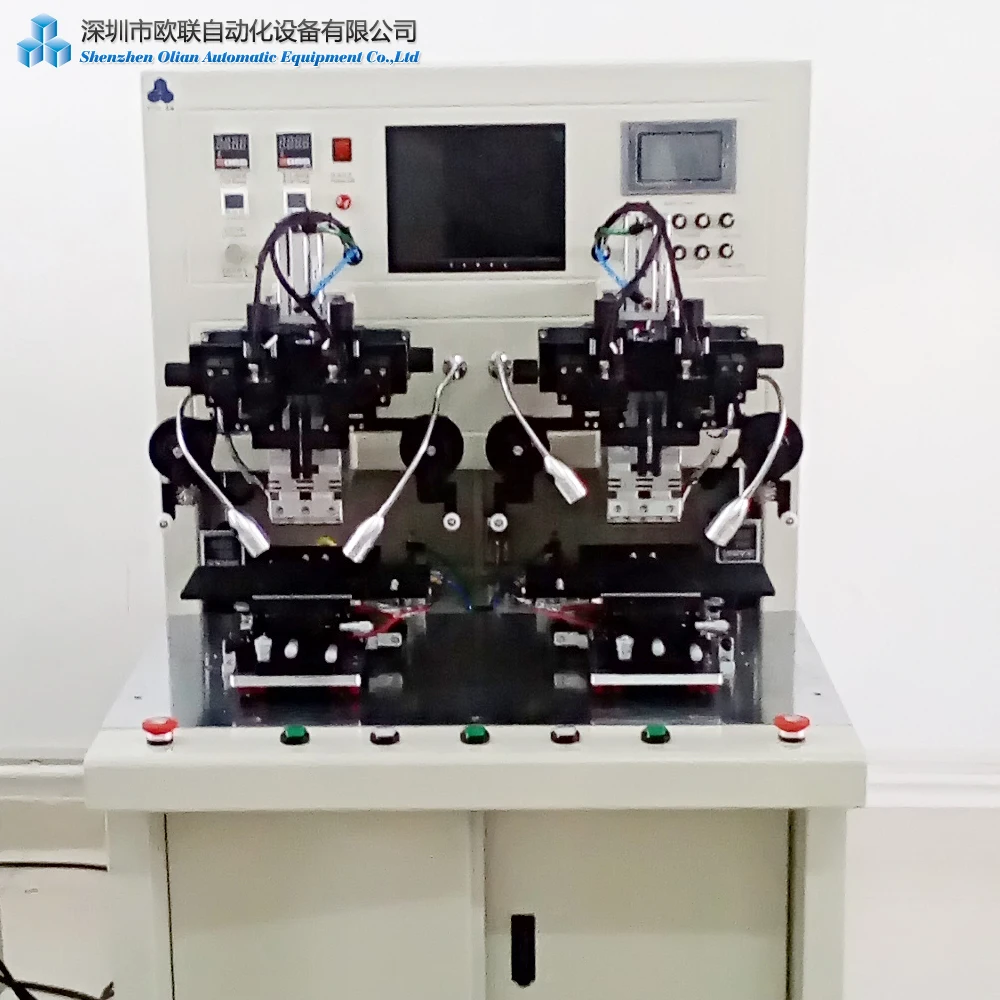

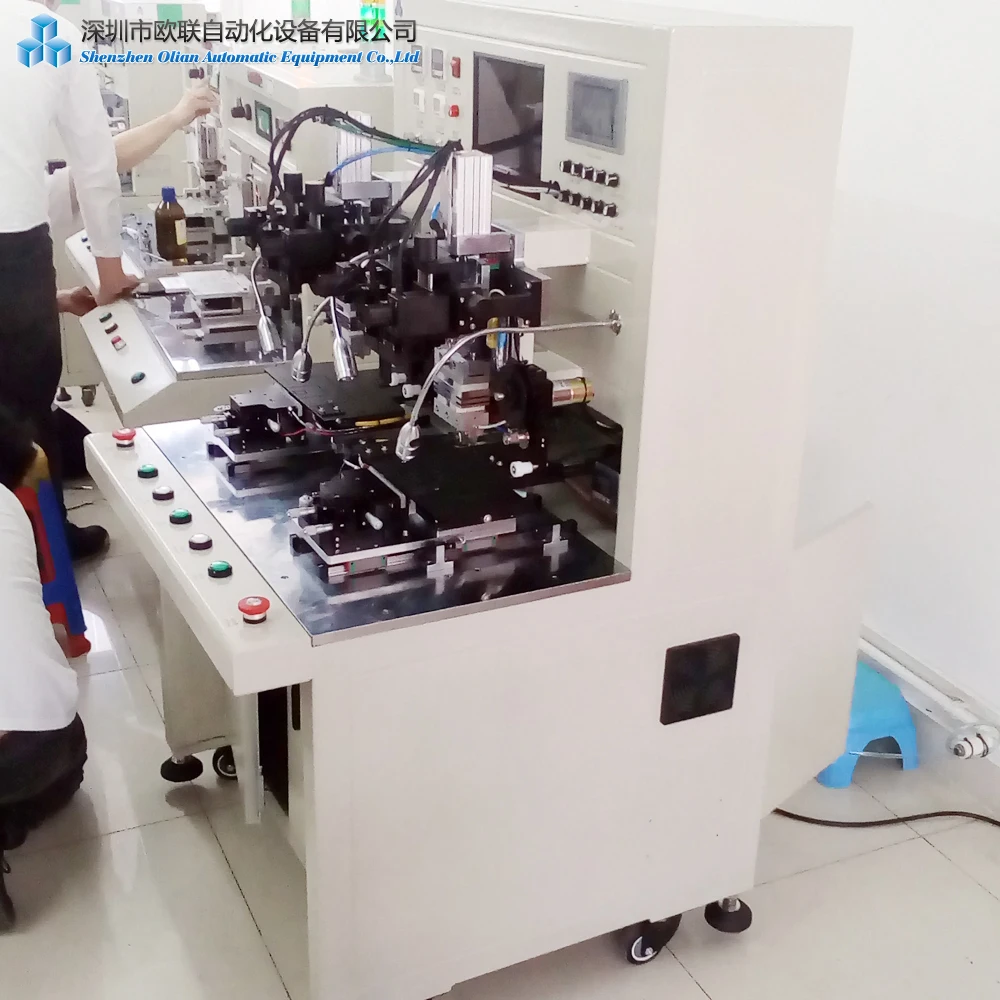

Olian new iphone x samsung s7 edge screen Automatic Flex Cable bonding Machine with 4 Microscope to repair all mobile phone LCD

Product Overview

Description

Olian new iphone x samsung s7 edge screen Automatic Flex Cable bonding Machine with 4 Microscope to repair all mobile phone LCD

*Constant temperature heating system

*PLC Control System

*Human - Machine interface

*Automatic temperature alarm

*Press Head Level Adjustable Device

*Down Contraposition HD Colorful CCD and 10.4 inch HD LCD

*Manual / automatic switching

*Imported electrical configuration



 Specifications:





Model:	OL-FC007
Product Name:	single head double heads 1~12inch LCD samll cheap heat press machine  for sale
Suitable For:	Suitable for alignment and press FPC to the LCD Panel which attached ACF
Size Range:	1~12 inch
Attach Precision:	±0.015mm
Machine Capacity:	6000pcs/day (12S/pc)
Power Supply:	220V±10%,50HZ,1200W
Air Supply:	0.5~0.7MPa,dry air
Platform Size:	L90*W60 MM
Platform Precision:	±0.01MM
Temp Range:	1~350℃
Time Range:	1~99.9sec
Product Size:	W850*D800*H1460MM
N.W:	About200KG













 What is the FOG

1, The popular explanation:

FOG is a kind of use in the flat display industry, such as, LCD screen, electronic paper production process, using ACF conductive adhesive as the media through a certain temperature, pressure, time to FPC dependend on the glass.

2, Professional explanation:

FOG is the abbreviation FPC ON the GLASS, that is, FPC dependend ON the GLASS of a kind of process.



What is the FPC

1, The popular explanation:

FPC is also called the soft circuit boards, flexible printed circuit boards, flexible circuit boards, or FPC soft board for short.With the high density of wiring, the characteristics of light weight, thin thickness.Mainly used in mobile phones, laptops, PDA, digital cameras, LCM, etc.

2, Professional explanation:

FPC is a Flexible Printed Circuit, FPC Flexible Printed Circuit based on polyimide or polyester film base material made of a kind of high reliability, excellent Flexible Printed Circuit.



What is a constant temperature heating
1, The popular explanation:

Constant temperature heating can be in a certain period of time to make up to set the temperature range of the cutting tools, in the process of production, the temperature of the cutting head is the same.

2, Professional explanation:

Constant temperature heating on the temperature of the liquid, solid or gas constant keep in a certain range of temperature or temperature, heat supply basic equal to itself the cooling process to reduce the heat.





What is the COF

1, The popular explanation:

COF package is to put the IC dependend on FPC: COF package for flip chip film.

2, Professional explanation:

COF is the abbreviation of Chip - on - flex, is to put the IC dependend on FPC,a new technology developed of liquid crystal display module,  by it in terms of product size, weight, high integration, have very big breakthrough.Due to the flexible circuit board PCB thickness thin, lighter than the solid, so COF package module is small volume, light weight, and the design and production speed  is quickly.







According to the application and promotion of Double-headed constant temperature hot press machine there are a variety of different keywords: for example, the thermostat bonding machines, semi-automatic automatic bonding machines, automatic bonding machine, double-position bonding machines, thermostats pressing machine, semi-automatic automatic pressing machine, automatic pressing machine, pressing machine double-position, constant hot press bonding machines, semi-automatic automatic hot press bonding machine, automatic hot press bonding machine, double-position hot press Pradesh machines, double-position thermostat bonding machines, FOG constant temperature bonding machine, FOG semi-automatic automatic bonding machine, FOG automatic bonding machine, double-position FOG bonding machines, FOG thermostatic pressing machine, FOG semi-automatic automatic pressing machine, FOG automatic pressing machine, pressing machine double-position FOG, FOG constant temperature hot press bonding machine, FOG semi-automatic hot press bonding machine, FOG automatic hot press pressing bonding machine, double-position FOG hot press bonding machine, FOG thermostat double-position bonding machines, OGS thermostat bonding machines, OGS semi-automatic automatic bonding machine, OGS automatic bonding machines, bonding machines double-position OGS thermostatic hot press, OGS semi-automatic automatic hot   press, OGS automatic pressing machine, hot press double location OGS, OGS constant temperature hot press bonding machine, OGS semi-automatic hot press bonding machine, OGS automatic hot press bonding machine, double-position OGS hot press bonding machine, double-position OGS thermostat bonding machines, FOB thermostat bonding machines, FOB semi-automatic automatic bonding machines, FOB automatic bonding machines, bonding machines double-position FOB, FOB thermostat hot press, FOB semi-automatic automatic hot  press, FOB automatic pressing machine, pressing machine double-position FOB, FOB constant temperature hot press bonding machine, FOB semi-automatic hot press bonding machine, FOB automatic hot press bonding machine, double-position FOB hot press bonding machine, double-position FOB thermostat bonding machines, FOB / TAB bonding machines, FOB / TAB bonding equipment, FOG thermostat bonding equipment, FOG semi-automatic automatic bonding equipment, FOG automatic bonding equipment, double-position FOG bonding equipment, FOG thermostatic pressing equipment, FOG semi-automatic pressing equipment, FOG automatic pressing equipment, pressing equipment double-position FOG, FOG heated hot press bonding equipment, FOG semi-automatic hot press state fixed equipment, FOG automatic hot press pressing bonding equipment.
