Price:$500.00 - $515.00

Quantity:


Product Overview

Description





We are Inverter industry leader !









Product Dominance

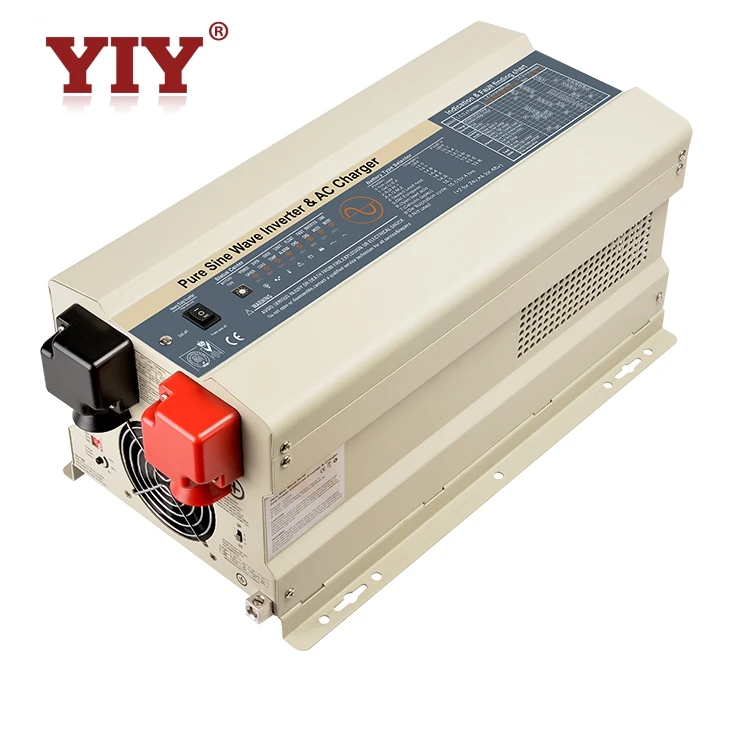

APP Series Pure Sine Wave Inverter&Charger


APP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer
switch into one complete system with a peak conversion efficiency of 92%.
It is packed with unique features and it is one of the most advanced inverter/chargers in the market today.
It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with
unprecedentedly high surge capability to meet demanding power needs of inductive loads without
endangering the equipment.



  Feature of APP Series Inverter&Charger



  1. High High overload ability up to 300% of rated power(20 sec)

  2. Low quiescent current, low power “ Power Saving Mode ” to conserve energy

  3. 4-step intelligent battery charging, PFC(Power Factor Correction) for charger

  4. 8 pre set battery type selector plus de-sulphation for totally flat batteries

  5. Powerful charge rate up to 110Amp, selectable from 0%-100%

  6. 10 ms typical transfer time between battery and AC, guarantees power continuity

  7. Smart remote control

  8. 15s delay before transfer when AC resumes, extra protection for loads when used with generator

  9. Allows start up and through power with depleted batteries

  10. 30A/40A through current ability

  11. Multiple controlled cooling fan

  12. Extensive protections against various harsh situations

  13. 13VDC battery recover point, dedicated for renewable energy systems











Product Parameter














































































































































































































































































































































Electrical Specvifications
 ModelAPP
1000W		APP
1500W		APP
2000W		APP
3000W		APP
4000W		APP
5000W		APP
6000W
Inverter OutputContinuous Output Power1000W1500W2000W3000W4000W5000W6000W
Surge Rating(20s)3000W4500W6000W9000W12000W15000W18000W
Capable of Starting Electric Motor1HP1.5HP2HP3HP4HP5HP6HP
Output WaveformPure Sine wave/Same as input(Bypass mode)
Nominal Efficiency>88%(Peak)
Line Mode Efficiency>95%
Power Factor0.9-1.0
Nominal Output Voltage rms100-110-120Vac / 220-230-240Vac
Output Voltage Regulation±10% RMS
Output Frequency50/60Hz ± 0.3Hz
Short Circuit ProtectionYes, Current Limit Function (Fault after 1sec)
Typical transfer Time10ms(Max)
THD< 10%
DC InputNominal Input Voltage12.0Vdc
( *2 for 24Vdc, *4 for 48Vdc)
Minimum Start Voltage10.0Vdc
Low Battery Alarm10.5Vdc / 11.0Vdc
Low Battery Trip10.0Vdc / 10.5Vdc
High Voltage Alarm & Fault16.0Vdc
High DC Input Recovery15.5Vdc
Low Battery voltage recover13.0Vdc
Idle Consumption-Search Mode< 25 W when Power Saver On
ChargeInput Voltage RangeWide: 90~135VAC / 164~243VAC;
Narraw: 100~135VAC / 194~243VAC;
Output VoltageDepends on battery type
Charger Breaker Rating10A10A10A20A20A30A30A
Max Charge Rate35A / 70-90A Max (Charger Current Control)
Over Charge Protection Shutdown15.7V for 12Vdc ( *2 for 24Vdc, *4 for 48Vdc)
Charger curve(4 stage constant current)
4 step digital controlled progressive charge		Battery types ( *2 for 24Vdc, *4 for 48Vdc)
Battery typeFast VdcFloat Vdc
Gel U.S.A14.013.7
A.G.M 114.113.4
A.G.M 214.613.7
Sealed Lead Acid14.413.6
Gel Euro14.413.8
Open Lead Acid14.813.3
Calcium15.113.6
De-sulphation15.5 for 4hrs
Remote Control Yes. Optional
Bypass & ProtectionInput Voltage WaveformSine wave (Grid or Generator)
Nominal Voltage120Vac230Vac
Low Voltage Trip 80V/90V±4%184V/154V±4%
Low Voltage re engage90V/100V±4%194V/164V±4%
High Voltage Trip140V±4% 253V±4%
High Voltage re engage135V±4%243V±4%
Max Input AC Voltage150VAC270VAC
Nominal Input Frequency50Hz or 60Hz (Auto detect)
Low Freq Trip47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
Low Freq re engage48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz
High Freq Trip55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
High Freq re engage54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz
Output Short circuit protectionCircuit breaker
Bypass breaker rating10A15A20A30A30A40A40A
Transfer switch rating30amp for UL & TUV40amp for UL
Max bypass current30amp40amp
Mechanical SpecificationMountingWall mount
Inverter Dimensions(L*W*H)382*218*179mm442*218*179mm598*218*179mm
Inverter Weight16KG17KG20KG24KG35KG45KG45KG
Shipping Dimensions(L*W*H)520*315*300mm580*315*300mm740*315*300mm
Shipping Weight18KG19KG22KG26KG37KG47KG47KG

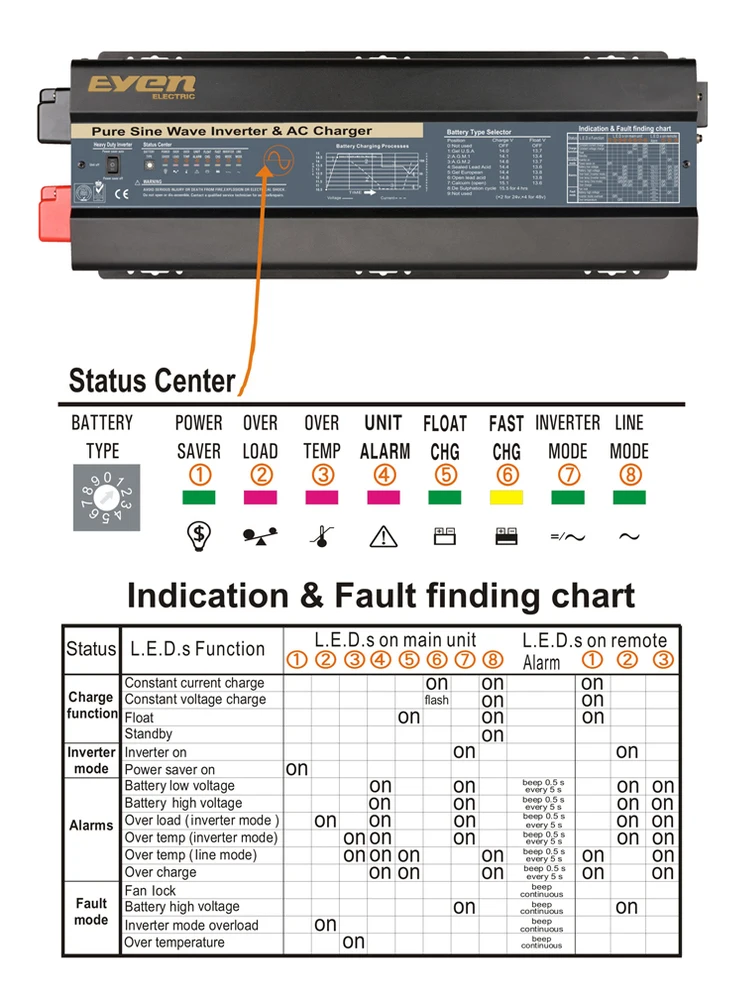

DisplayStatus LEDs / Status LEDs+LCD
Standard Warranty1 Year





Product Description

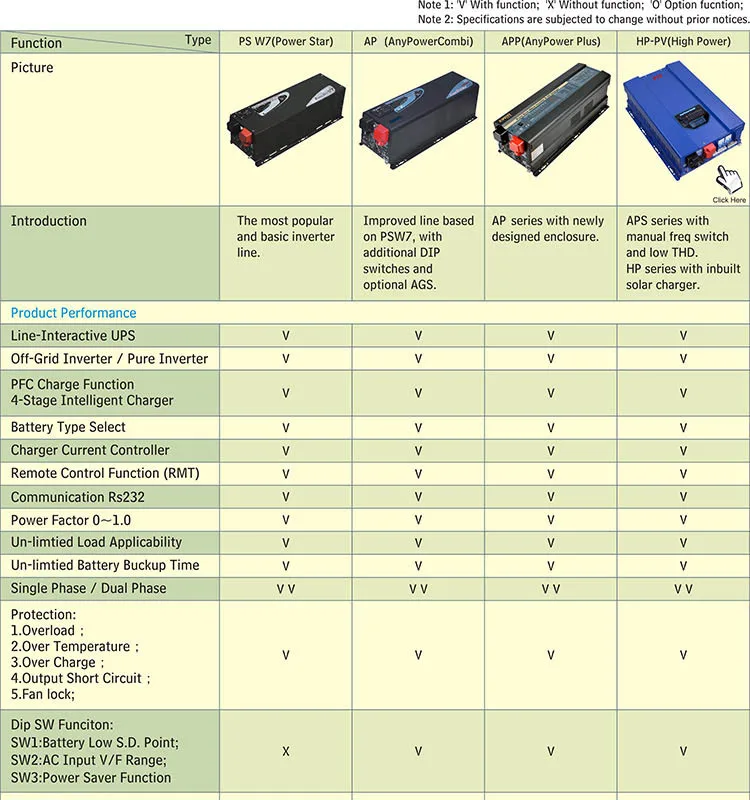

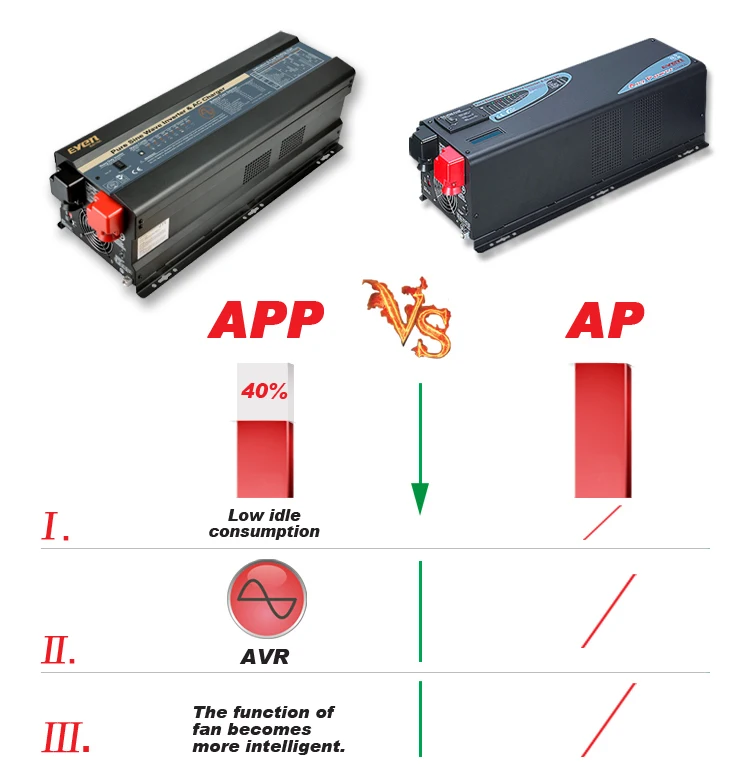

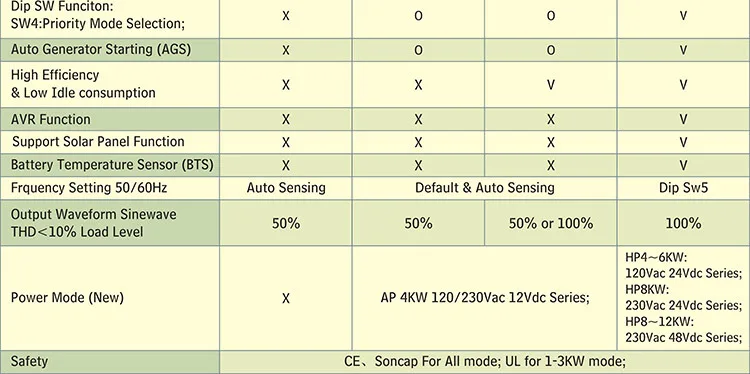

Function Contrast















Company Information










Zhejiang Yiyuan Electric Co., Ltd.





|


|--- Headquarters: add:WenZhou produce voltage stabilizer


|


|--- Branch:add:ShenZhen produce Inverter


|


|--- Found in 2008, Sales:12 worker: 150 engineer : 10


|
|--- 10% of profit use for advancement and innovation
|
|--- Have CE, TUV, FCC, PCT and ISO9001 certificates


|
|--- Market:Russia, Southeast Asia, Africa, Mid-east regions, North America












FAQ









Q 1. what's the payment term?


A. We accept TT,30% deposit and 70% balance agaisnt copy of BL




Q 2. how's the delivery time ?


A. usually it will take about 25 days for production




Q 3. tell me the standard of package?


A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.




Q 4. what kind of material of transformer?


A. we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.




Q 5.Could you offer Form A or C/O ?


A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.




Q 6.Would you accept to use our logo ?


A.If you have good quantity,it absolute no problem to do OEM.




Q 7.We want to know month capacity.


A. It depends on which model.For example for relay type small capacity , month capacity can reach near 20000pcs   and big capacity near 3000pcs.




Q 8.Where is your market?


A. Our products are popular in russia, indonisia, Philippines,italy, america, pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

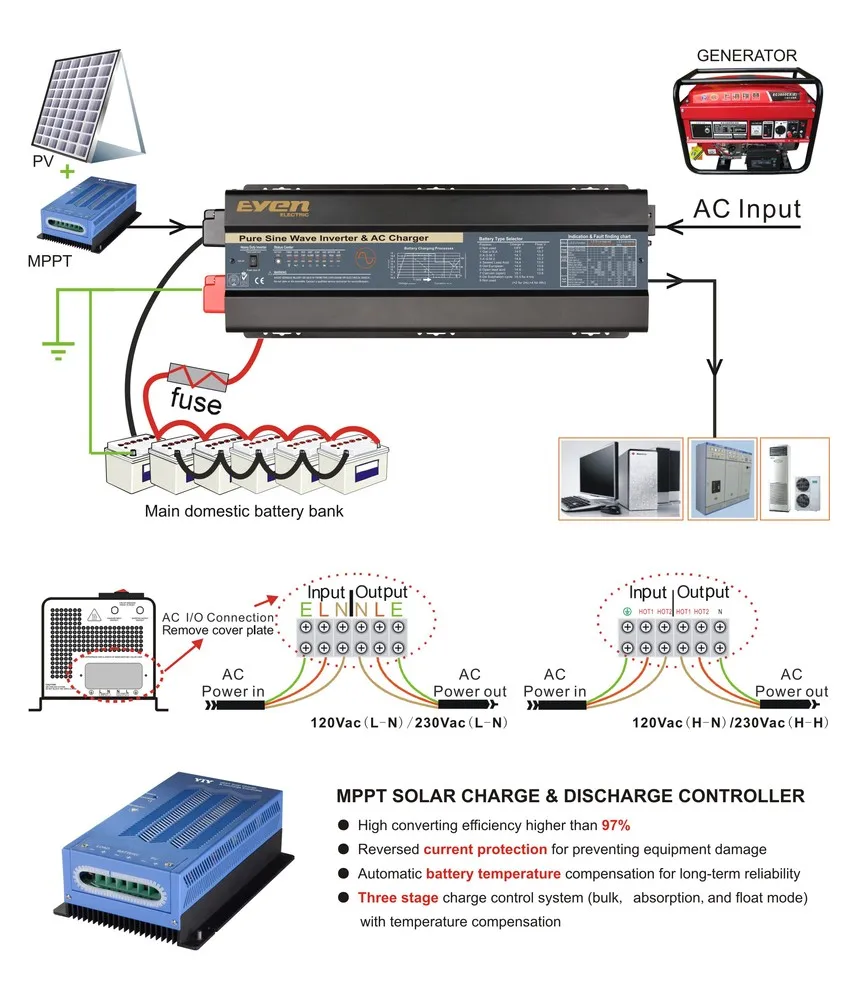

Q 9.Does the inverter connect with solar system ?


A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..




Q10. what kind of certificate you have ?


A. Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST, UL(pending) .
