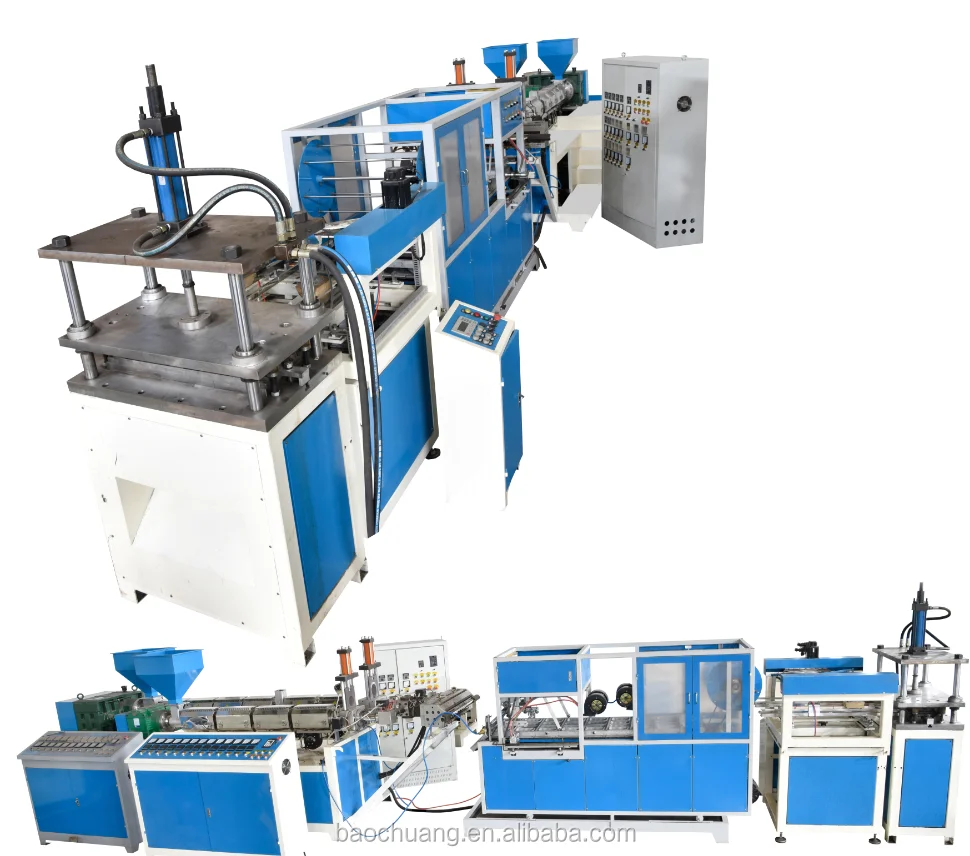

The Machine produces tableware by using a variety of raw materials such as PP(poly propylene), PS, PE,Calcium carbonate, plant fibre, Corn starch, Bamboo powder, Wood powder, Husk, Straw, and so on. It is able to manufacture a great variety of products such as bowl, cup, plate, dish, lunch box, cleaned vegetable tray etc.
Manufacturing Technique
90Main Screw
90mm
Power of main motor
37KW
Pumping speed of vacuum pump
70m3/h
Length-to-diametre ratio of main screw
1:36mm
Power of sucking plastic and shaping section
1.5KW
Pressure of air source
0.5~0.7mpa
Screw rotation speed
10~80r/min
Max shaping area
600mm×260mm
Power supply
380V50HZ
Heating system
65A
Max shaping depth
80mm
Weight of complete unit
6T
Extrusion output
120kg/h
Working speed
25-32s/min
Machine size(mm)
7000*1200*2000
Hourly Output Capacity
Plate Size(mm)
40%Starch, 40%PP, 20% Calcium Carbonate
40%PP, 60% Calcium Carbonate
60%PLA， 40% Talcium
240*240*90
1600-1800
1800-2000
2000-2200
200*140*70
2400-2600
2600-2800
3400-3600
150*150*80
1800-2000
2000-2200
2200-2400
220*120*80
2400-2600
2600-2800
3400-3600
The main advantages
1. Eliminates the drawing piece of manufacturing process 2. The plastic pellets can be formed directly and the gate plastic can be reused again. 3. Above process can save energy for re-heating the drawing piece, The electricity consumption of X-80 Production Line is 13 degrees per hour, and 15 degrees per hour for X-90 Production Line . 4. The thickness of the product can be controlled easily 5. It is adapted to producing inner or outer food container each as DO-FU box,jelly cup,fast food box,bowls,tray made of PP or other environment protection material. 6. Environmental Protection, This machine line is able to produce products with 70% starch, or up to 30% plant fiber(Bamboo powder, Wood powder, Husk, Straw) 8. Low-cost,This machine produces products with 80% Calcium carbonate.( the price of Calcium carbonate is about 61 USD per ton in China). 9. We provide the formula of producing products, and formula of producing Biodegradable boxes. The certificated degradation rate reaches 80% in 28 days. 10. This machine line and our formula has been certificated by CE, SGS. What is more, we owns a number of national patents. The products produce by this machine has been Inspected by Chinese Research Academic of Environmental Science Solid Institute and National Research Center for Environmental Analysis and Measurement.
Machine Details

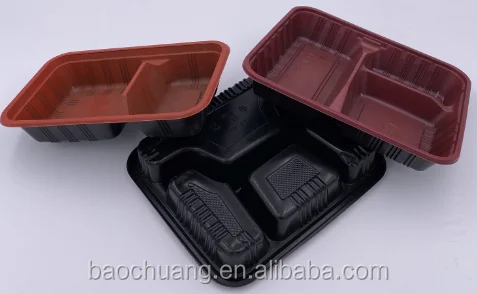

Sample Products
