Milling and Drilling Machine/Milling Drilling Machine Best Price ZAY7032V/1 ZAY7040V/1 ZAY7045V/1
- Category: >>>
- Supplier: Tengzhou Topway Machinery Co. Ltd.
Share on (60726315829):
Product Overview
Description
Product model:
Multi Variable Speed Drill Mill Machine ZAY7032V/1 7040V/1 7045V/1
The main performance characteristics:

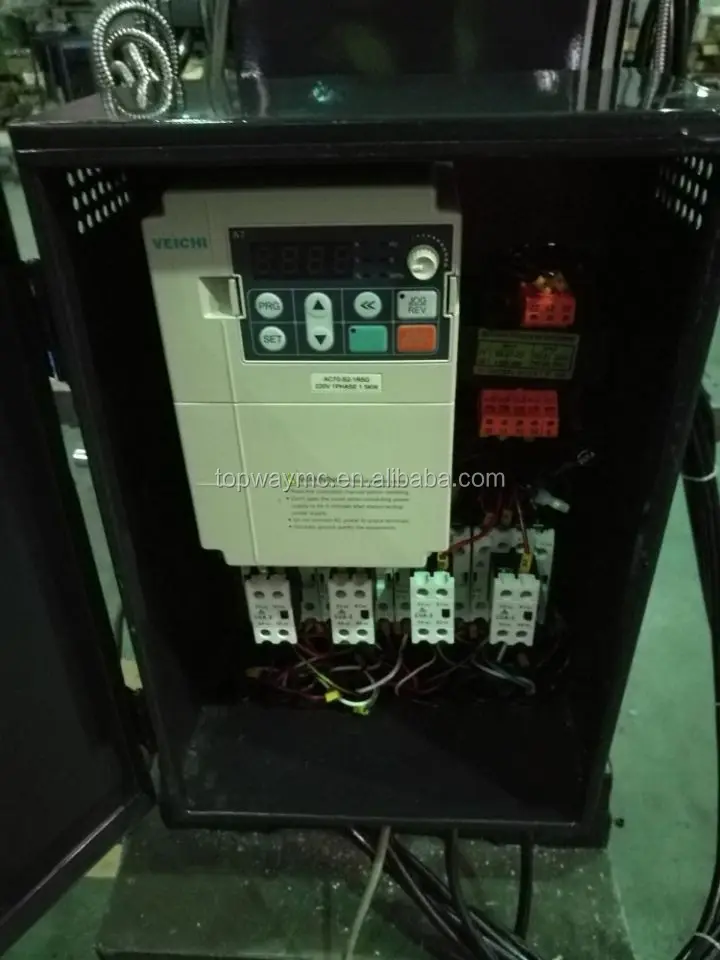

Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Product main technical parameters:
ITEM | ZAY7032V/1 | ZAY7040V/1 | ZAY7045V/1 |
Max.drilling capacity | 32mm | 40mm | 45mm |
Max Face mill capacity | 63mm | 80mm | 80mm |
Max End mill capacity | 20mm | 32mm | 32mm |
Distance from spindle nose to table | 450mm | 450mm | 450mm |
Min.distance from spindle axis to column | 260mm | 260mm | 260mm |
Spindle travel | 130mm | 130mm | 130mm |
Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |

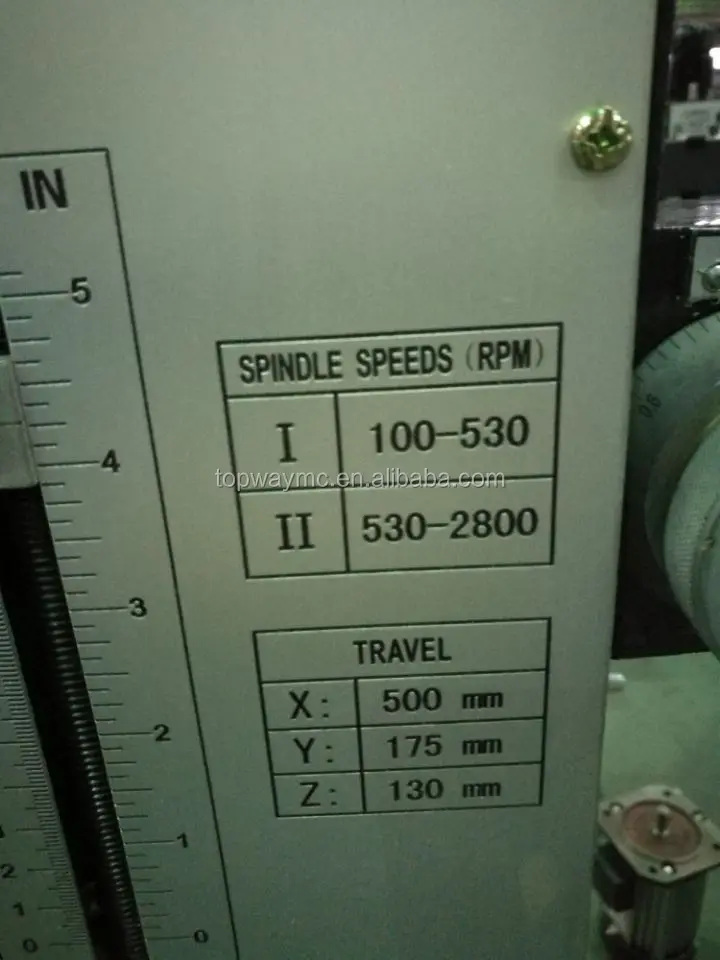

Range of spindle speed (2 steps) | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, |
Auto-feeding step of spindle | 6 | 6 | 6 |
Automatic feeding amount of spindle | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
Table size | 800×240mm | 800×240mm | 800×240mm |
Forward and backward travel of table | 175mm | 175mm | 175mm |
Left and right travel of table | 500mm | 500mm | 500mm |
Motor power(AC) | 1.1KW | 1.1KW | 1.5KW |
Voltage/Frequency | 110V or 220V | 110V or 220V | 110V or 220V |
Net weight/Gross weight | 320kg/370kg | 323kg/373kg | 325kg/375kg |
Packing size | 770×880×1420mm | 770×880×1420mm | 770×880×1420mm |

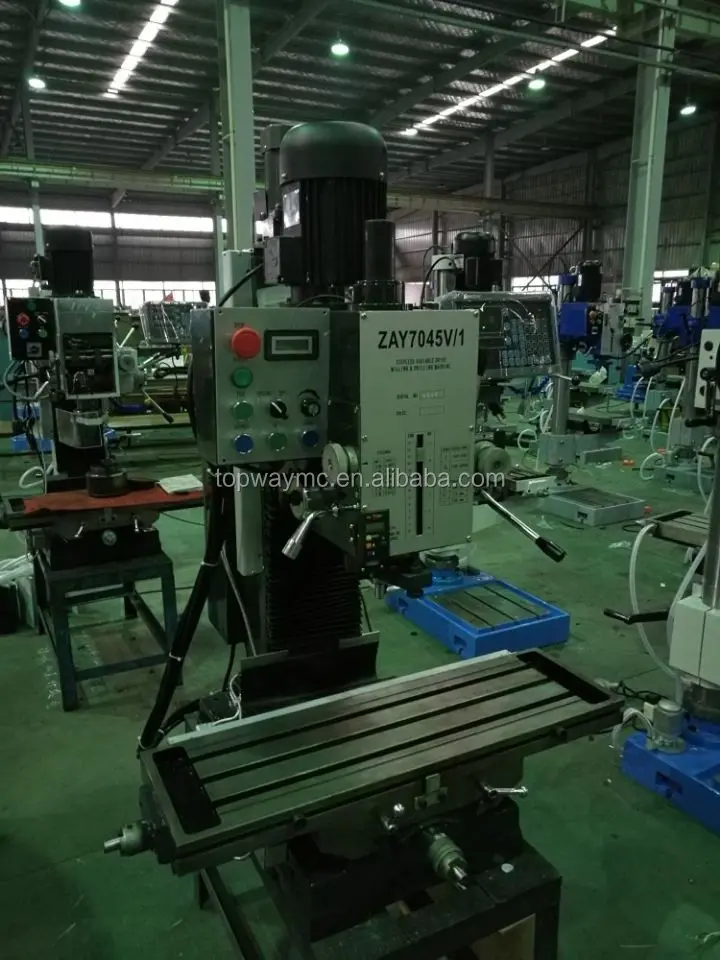

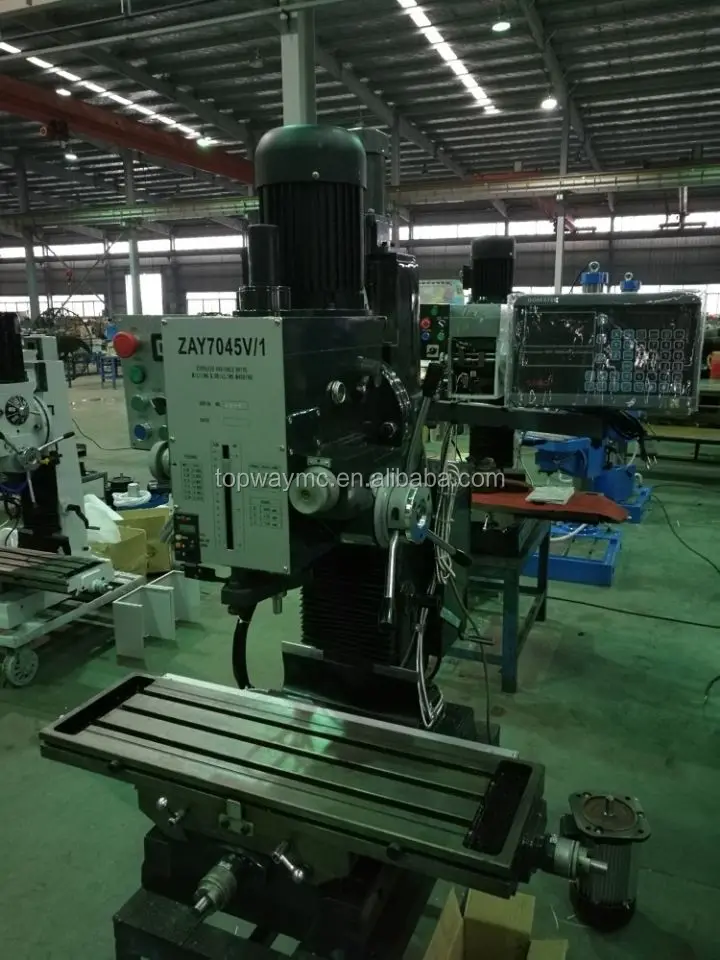

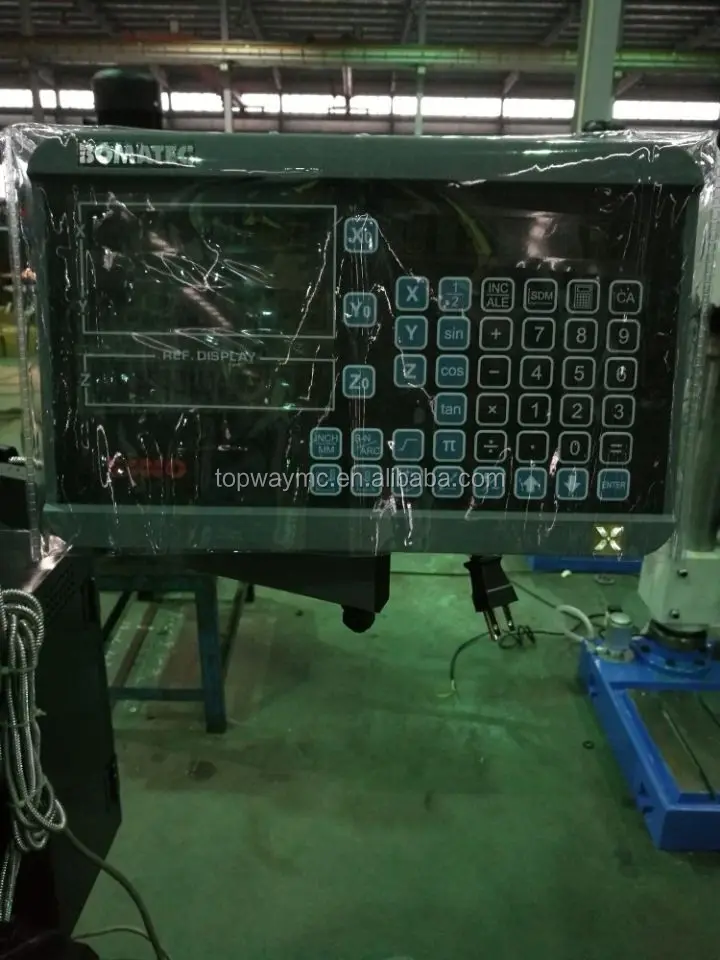

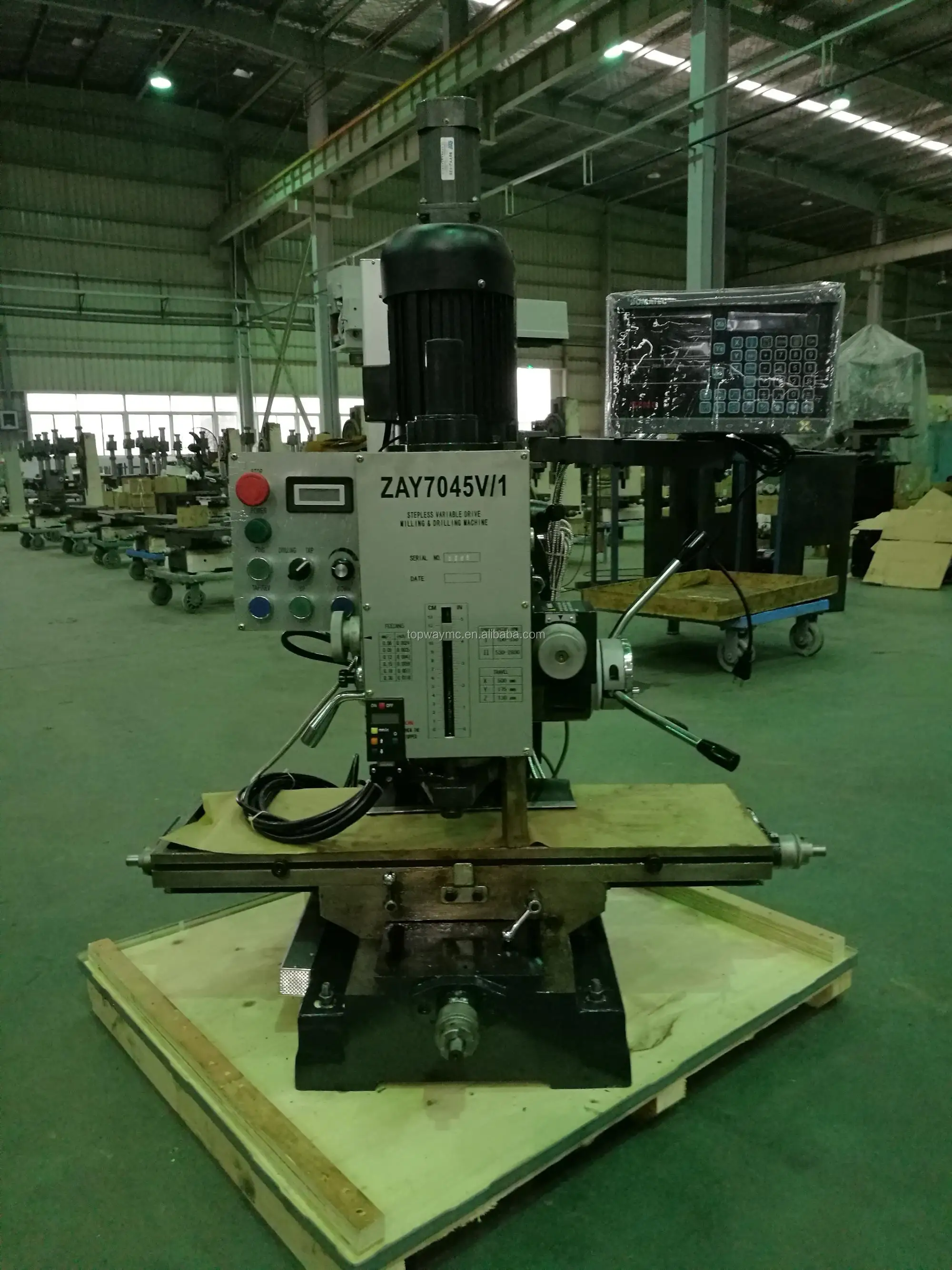

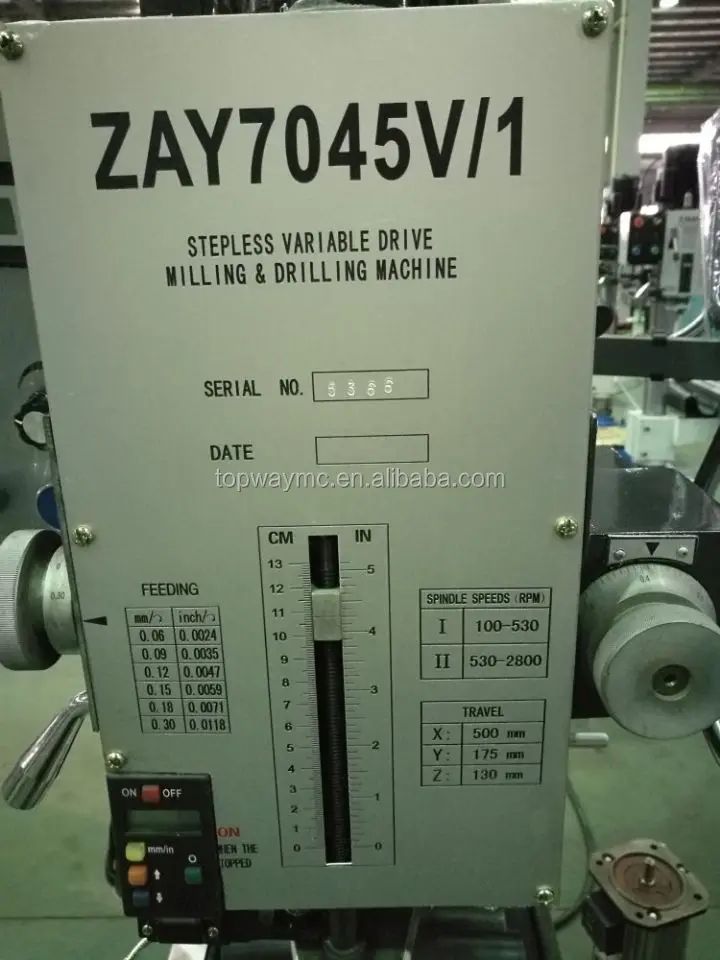

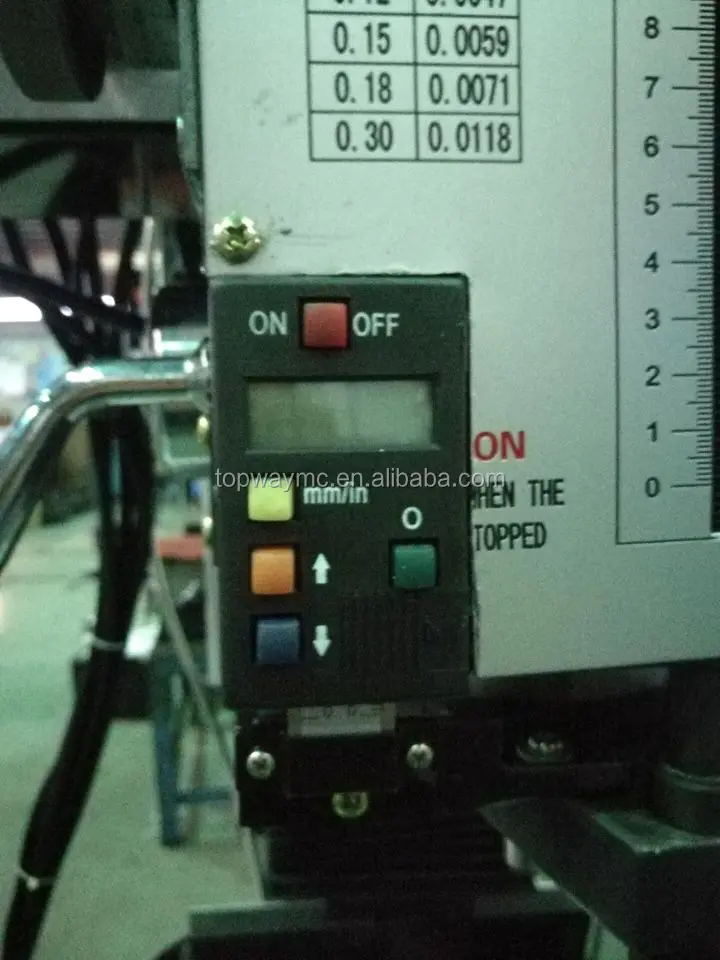

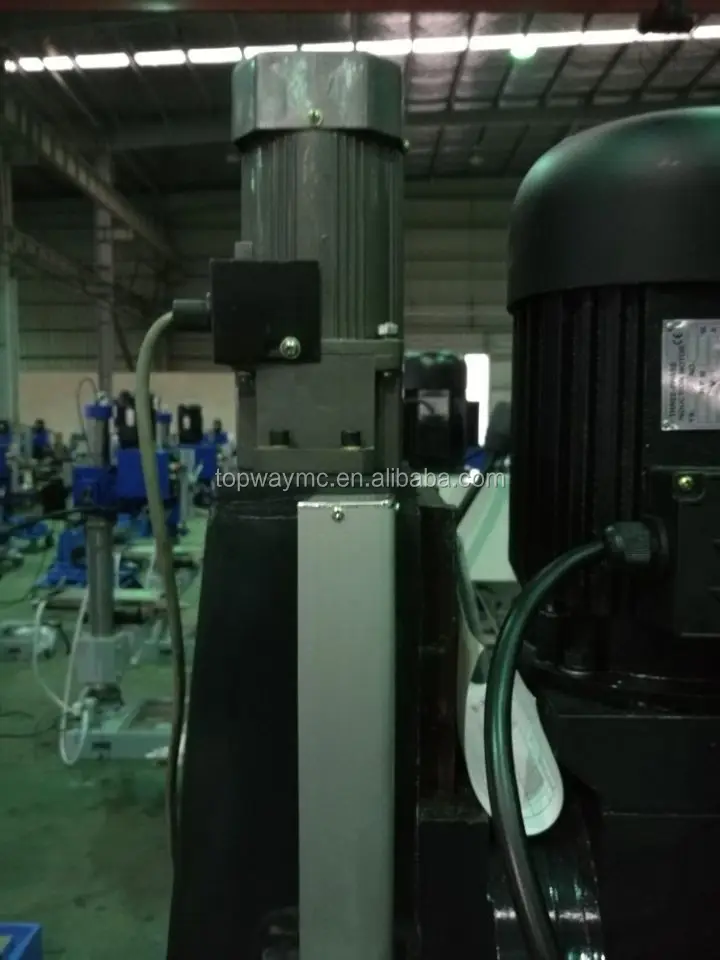

Product picture:
