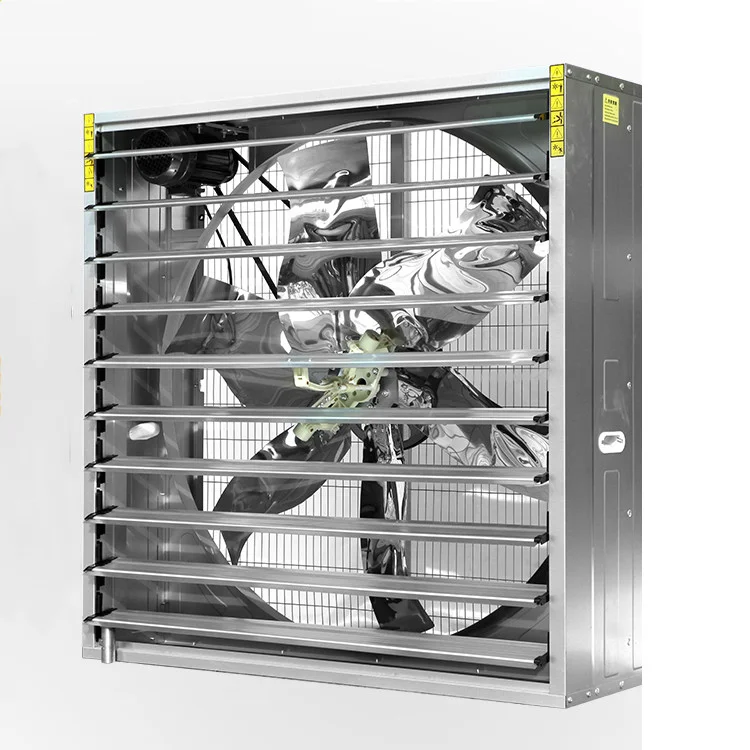

1380MM heavy drop hammer exhaust fan cooling fans for greenhouse /poultry farm
- Category: >>>
- Supplier: Shouguang Zehui Agricultural Science & Technology Co. Ltd.
Share on (60726318353):
Product Overview
Description
Products Description

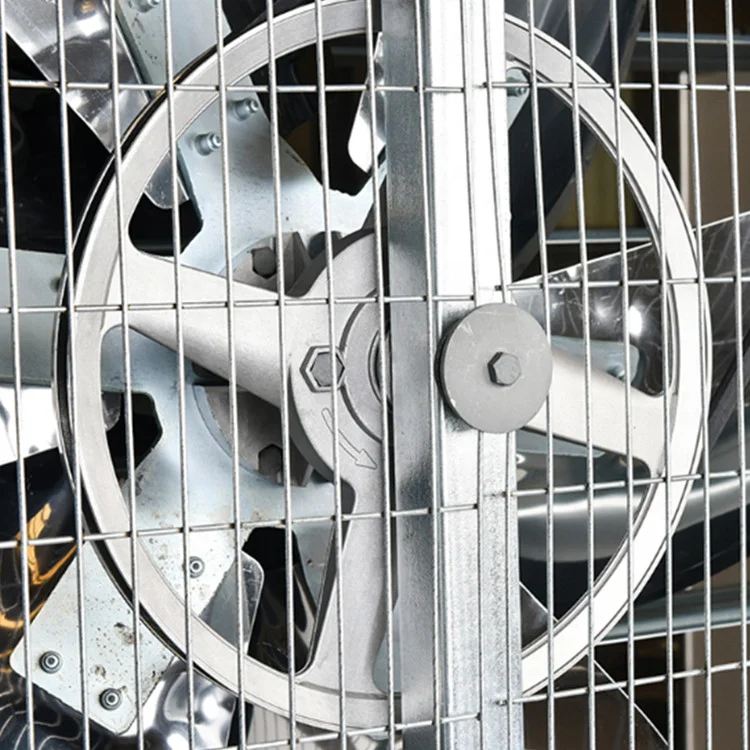

Hammer drop exhaust fan

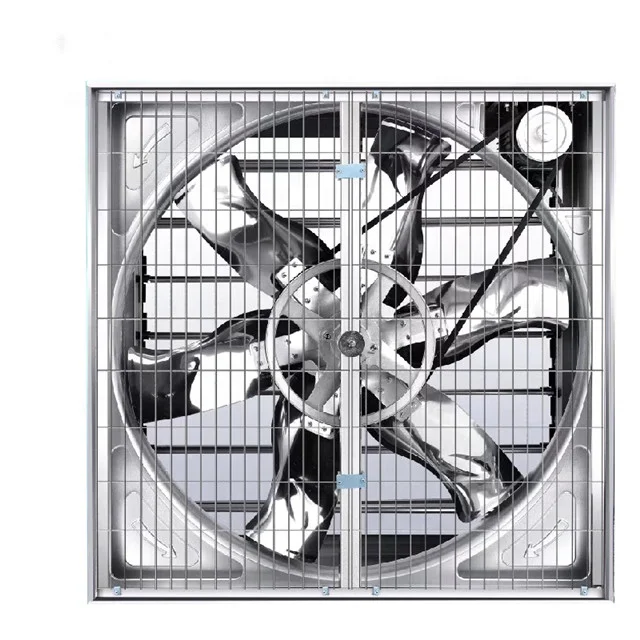

1. Fan blade is made of stainless steel by punch forming. No dust, attractive and durable. Special blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.
2.Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduce the weight of blade impeller complete, high corrosion resistance. Special three reinforced ribs pulley design. Blast-sanding treatment for attractive appearance, eliminate internal stress to improve its own rigidity and stability, never broken.

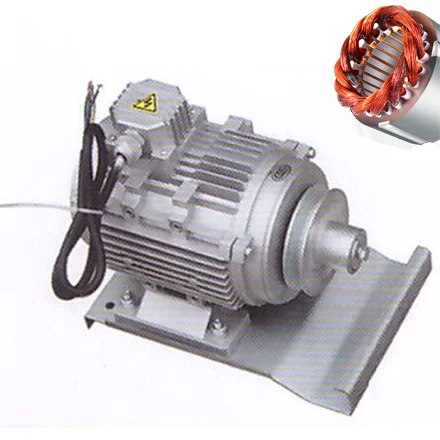

3. Both China famous motor and Siemens motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan,the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55,insulation class F grade.
4. Fan blades are adjusted by intelligent dynamic-balance tester, each blade tolerance weight controlled
within 1g. Ensure the fan smooth running, lower vibration, less noise, increase stability. Blade material have stainless steel, galvanized sheet, aluminum alloy, FRP for option.

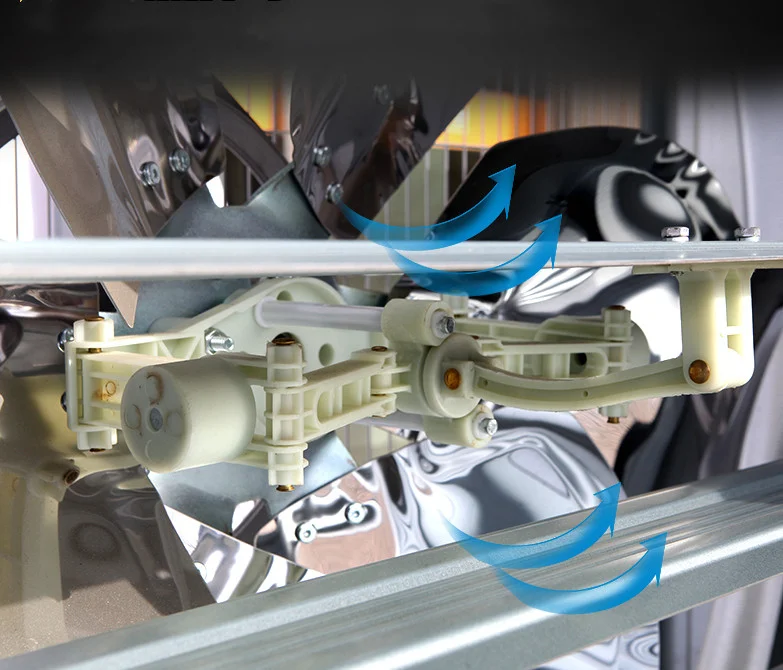

5. Fan bearing adopts imported double-row bearing with special waterproof design, water can't enter. High strength, lower noise,maintenance free and long service life. 6. Using high strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly.
3. Both China famous motor and Siemens motor are available. Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan,the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55,insulation class F grade.
4. Fan blades are adjusted by intelligent dynamic-balance tester, each blade tolerance weight controlled
within 1g. Ensure the fan smooth running, lower vibration, less noise, increase stability. Blade material have stainless steel, galvanized sheet, aluminum alloy, FRP for option.
5. Fan bearing adopts imported double-row bearing with special waterproof design, water can't enter. High strength, lower noise,maintenance free and long service life. 6. Using high strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly.
7. Belts are Japanese Mitsubishi brand, ensure the long service life, maintenance free .
8. Hot-DIP galvanized blade support and safe net ensure never rust.
8. Hot-DIP galvanized blade support and safe net ensure never rust.
Product Paramenters
Model | Fan blade diameter mm | Fan blade speed r/min | Moter speed r/m | CFM m³/h | Total pressure pa | Noise db | Output power w | Voltage v | Overwall dimension mm |
TH-620B | 500 | 1400 | 1400 | 17000 | 55 | ≤70 | 370 | 380 | 620*620*400 |
TH-800B | 710 | 650 | 1400 | 20000 | 60 | ≤70 | 370 | 380 | 800*800*400 |
TH-900B | 750 | 630 | 1400 | 22000 | 65 | ≤70 | 550 | 380 | 900*900*400 |
TH-1000B | 900 | 610 | 1400 | 25000 | 70 | ≤70 | 750 | 380 | 1000*1000*400 |
TH-1100B | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100*1100*400 |
TH-1220B | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 1100 | 380 | 1220*1220*400 |
TH-1380B | 1250 | 440 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380*1380*400 |

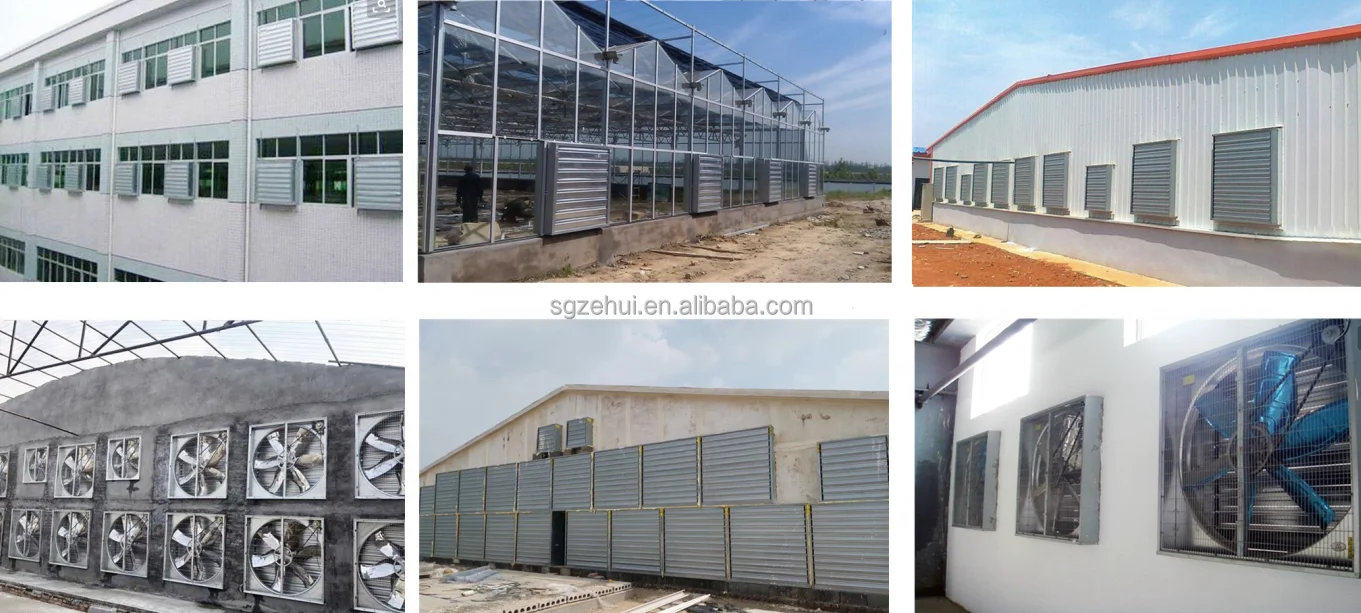

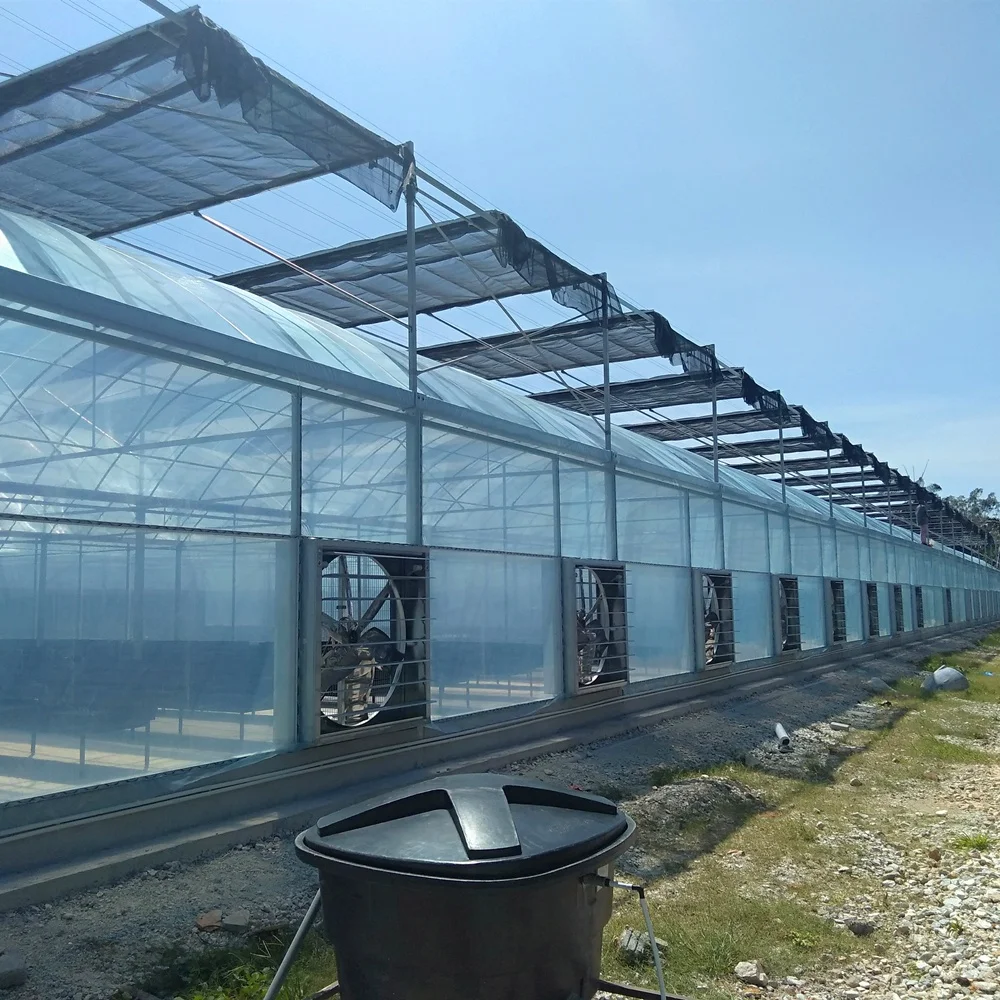

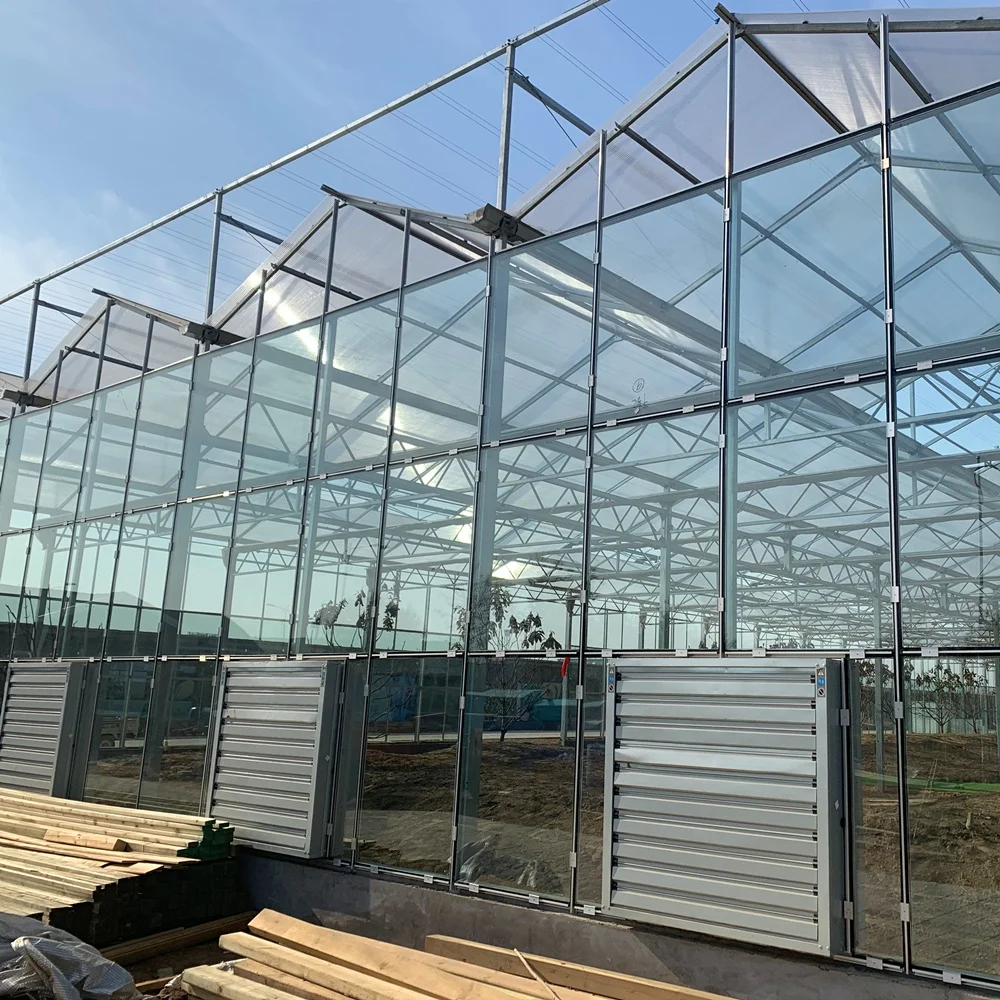

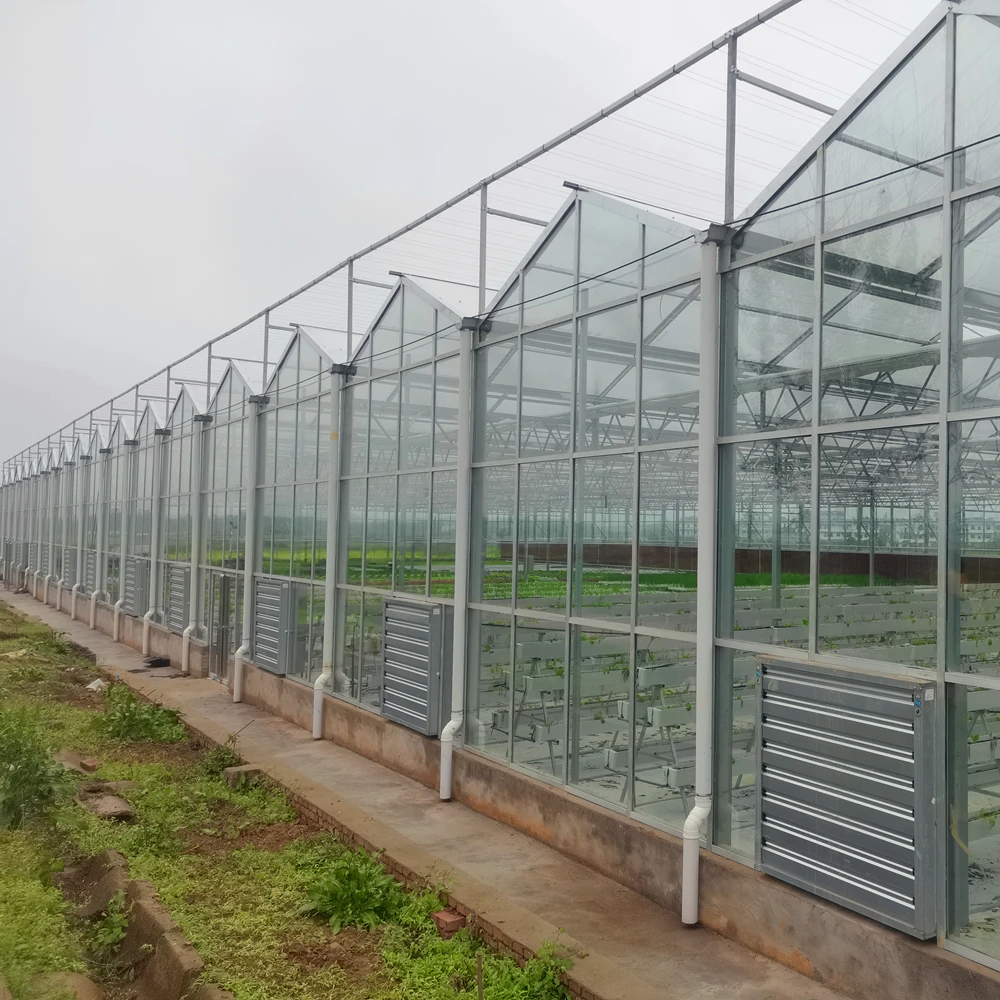

Application Images

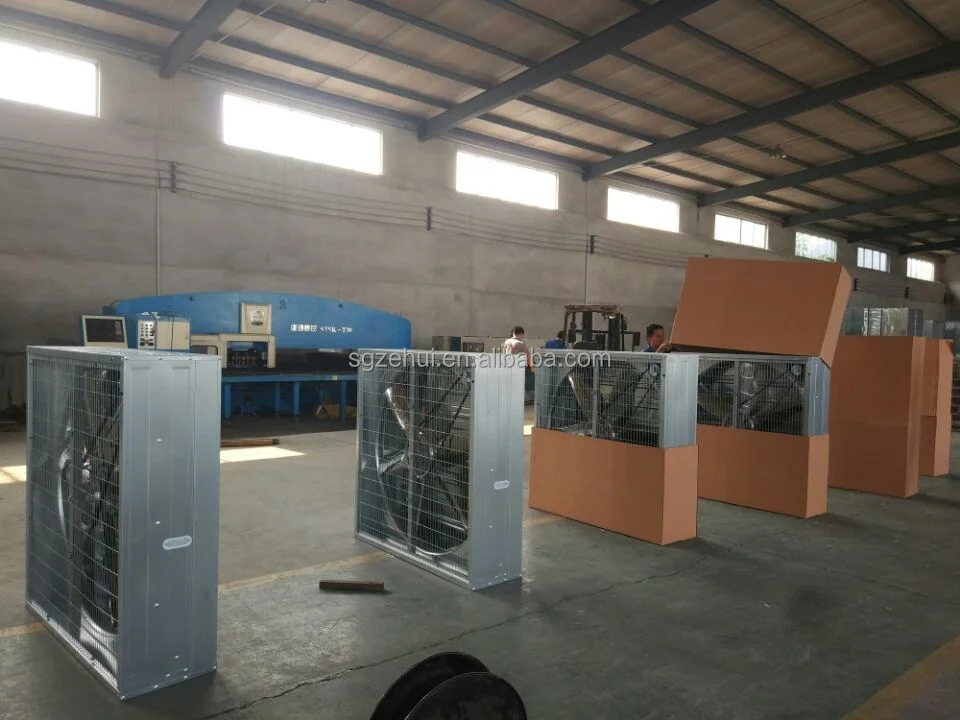

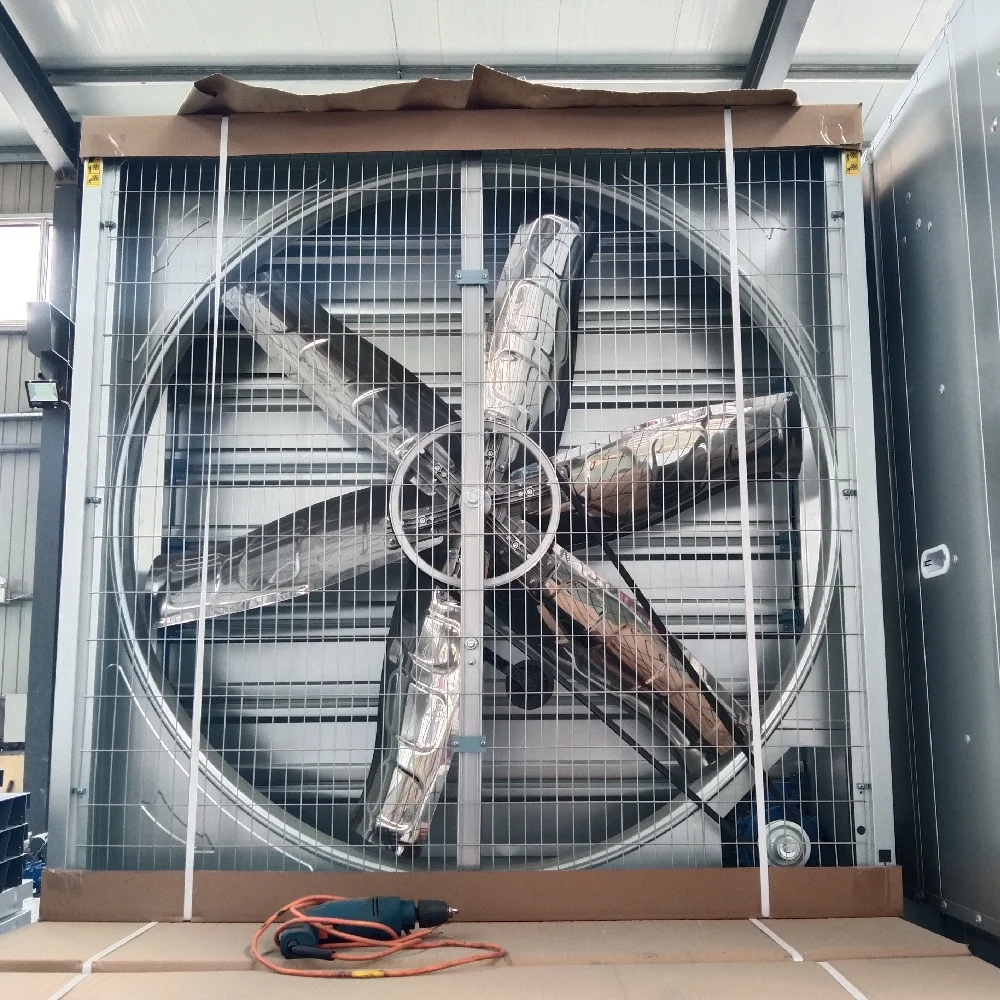

Product packaging
Related Products
Why Choose Us
SHOUGUANG ZEHUI AGRICULTURAL SCIENCE AND TECHNOLOGY COMPANY----professional & focused in Agriculture, the expert of Greenhouse integrated solution in China, the right one that you need.
Shougang City is the headstream of Greenhouse. The greenhouse technology was upgrading in the past 30 years, and we ZEHUI company is still in the top grade. We have professional Research &
Development team, Park Planning team, Production team, installation team, After-sale service team. The main products are multi-span greenhouse, single-span greenhouse, garden greenhouse, greenhouse supporting system like irrigation system/heating system/outside shading system/inside shading system/cooling system/ventilation system/seedbed system/electric control system, agricultural technology and service, etc...
The main applications of our greenhouse are in agriculture planting, flower planting, birds breeding, exhibition hall, ecological restaurant, ecological park, hotel, etc...The main foreign market are North America, Europe, Central Asia, Russia, Africa, and some Arab countries. Now we have excellent cooperation with foreign customers after years of exporting, and the greenhouses are popular in above markets. We can design customized greenhouse just as your request, and also we can make fast delivery, safe container loading, golden service.
