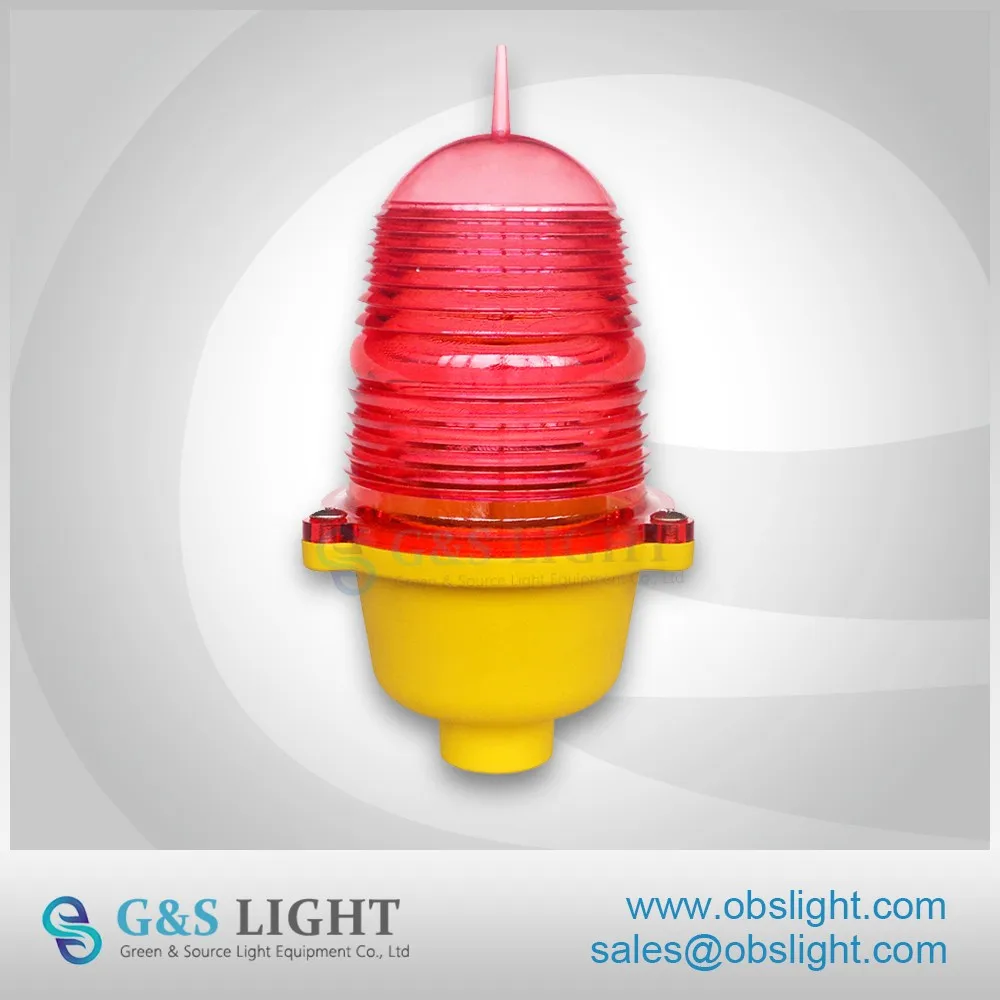

LED low intensity aviation obstruction light for GSM towers

Share on (60726365906):


Price:$45.00 - $55.00

Quantity:


Product Overview

Description


Product Description

Product Details

LED low intensity aviation obstruction light for GSM towers Base with high intensity aviation aluminum casting, fully sealed structure. Light source adopt with independent research and development dedicated LED chip, which have the specific of low power consumption and long long life. Lampshade adopt with PC material, it can resist corrosion, anti-UV, anti-shock.

Management circuit with Strong lightning protection and With the surge protection device, which can adopt to extremity bad working environment. This lamp with photoswich, it can turn on when light intensity less than 50LUX, and turn off when above 50Lux.

Specification
\t
LIGHTING
\t
Effective Intensity
\t
32.5cd
\t
Compliant with
\t
FAA L810, ICAO TYPE B
\t
Emitting Color
\t
Red
\t
Operation Mode
\t
Steady burning
\t
Vertical Divergence
\t
10°
\t
Horizontal Out-put
\t
360°
\t
Light source
\t
LED
\t
Light lifespan
\t
>10000h
\t
POWER
\t
Power Supply
\t
Optional voltage:AC220V, AC120V, DC12V,DC24V,DC48V
\t
Supply Frequency
\t
50HZ~60HZ
\t
Power Consumption
\t
≤3W
\t
STRUCTURE
\t
Overall Size
\t
136mm×136mm×220mm
\t
Installation Size
\t
3/4inches or 1 inch  chassis install
\t
Lens
\t
Polycarbonate, UV Stabilize, Corrosion Resistance
\t
Body
\t
aviation Aluminum alloy, Die-casting
\t
Temperature Range
\t
-40℃~70℃
\t
Weight
\t
1KG
\t
Waterproof
\t
IP65
Structure drawing
Application
Relate products
FAQ

Q1. Can I have a sample order for obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for obstruction light?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
