2018 New Products Intel QM77 I5 2430M Dual Core Motherboard Fully Tested Working Good With Board Memory Mainboard
- Category: Laptop Motherboards >>>
- Supplier: Shenzhen Lingjiang Computer Technology Co. Ltd.
Share on (60726367102):
Product Overview
Description
Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store
Bulk Order !!!!!!!
More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.
2018 New Products Intel QM77
I5-2430M Dual Core Motherboard Fully Tested Working Good With Board Memory Mainboard
ordersssssssssss!!!
Product Description

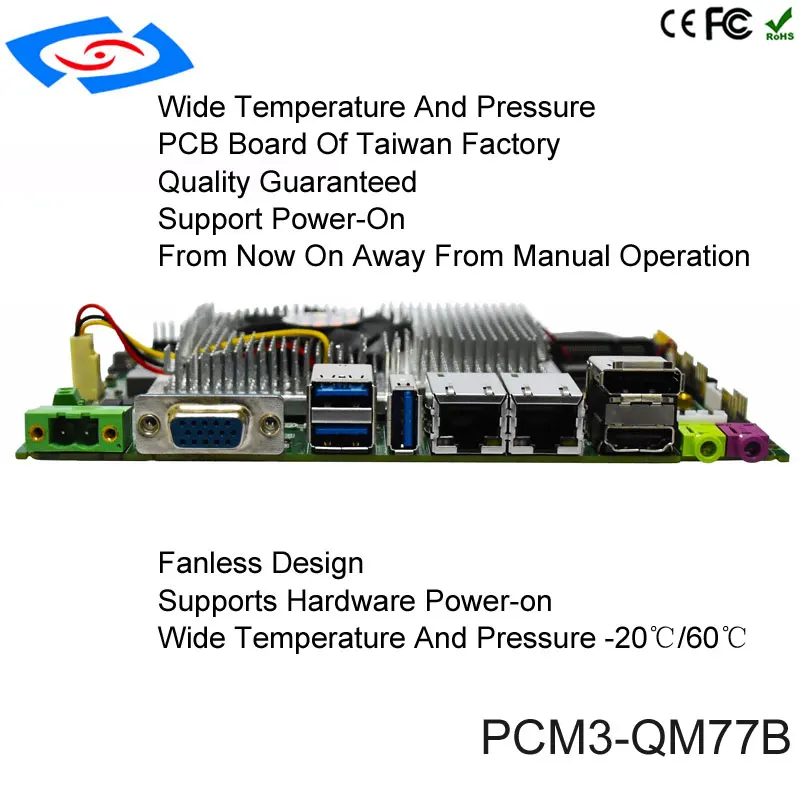

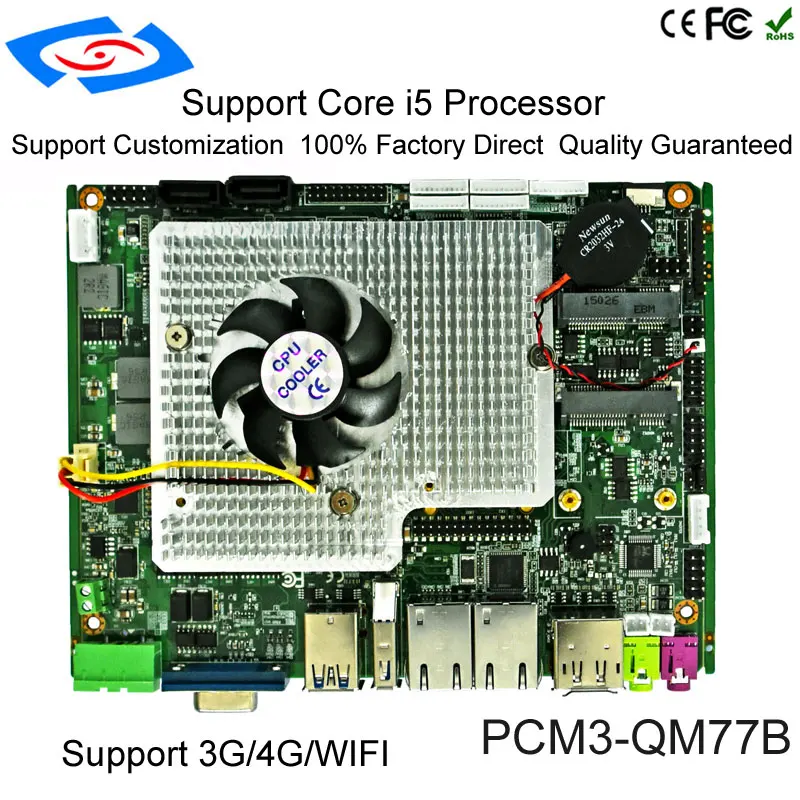

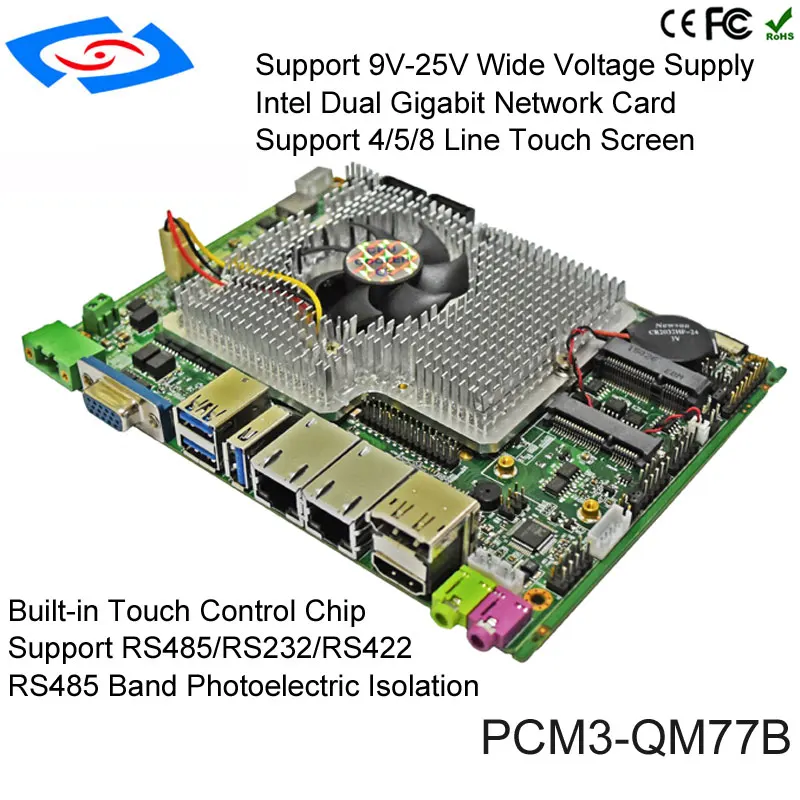

1.Fanless design industrial motherboard in Mini-ITX form factor with intel core I5 chipset
2.Low power consumption
3.Support wireless 3G/WIFI,24-bitLVDS+VGA;2xLAN;1xLPT;
4.1-255 step watchdog timer;8-bit GPIO
5.2*ddr3, 2*sodimm socket,total up to 8G memory,stabitily secuity, seismic,adapt to bad working environment,gigabit lan connector,provide strong communication.
| Features | |
| Model Name | PCM3-QM77B |
| Mechanical | |

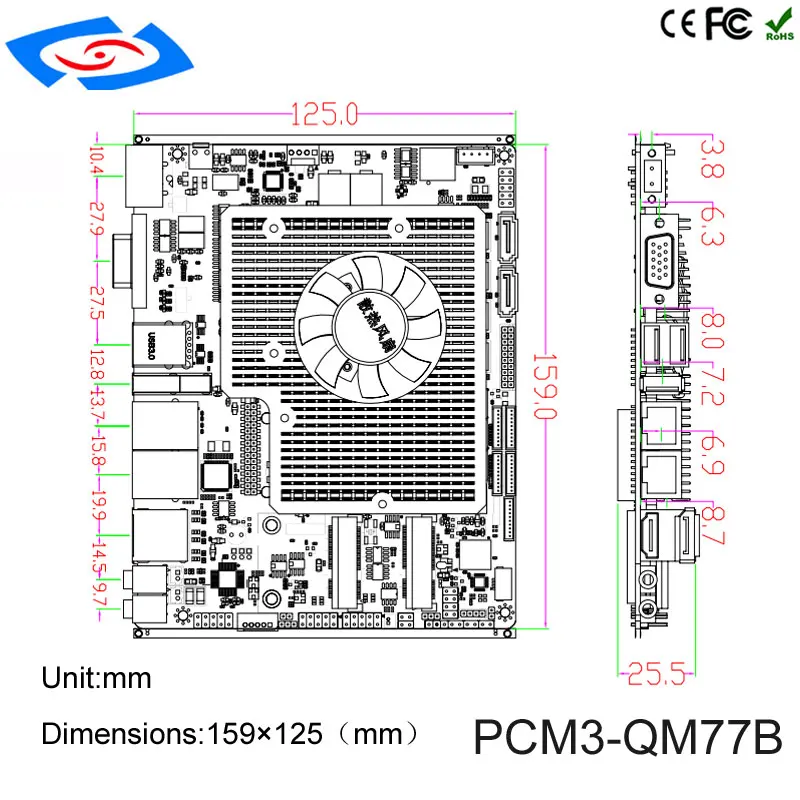

| Dimensions | 158 ×125(mm) |
| Power supply | 9V-25V |
| Watchdog timber | 0-255s |
| Net weight | 0.3kg (Including heatsink) |
| Thermal methods | Fanless |
| Working Temp | Working Temperature:-20℃-60℃,Working Humidity:5% - 95% |
| Storage Temp | Storage Temperature:-40℃-60℃5%,Storage Humidity:5% - 95% |
| System | |
| CPU | Intel i5-2430M CPU(Default) 2.4GHz,35W(consumption) i5-2410M CPU,2.3GHz,35W(consumption) |
| Chipset | Intel QM77 |
| Memory | Onboard SO-DIMM 2G/4G,1×DDR3 slot,supports 2G/4G |
| SATA | 2×SATA,1×M-SATA 3.0 |
| System | XP/Win7/Linux/Win8 |

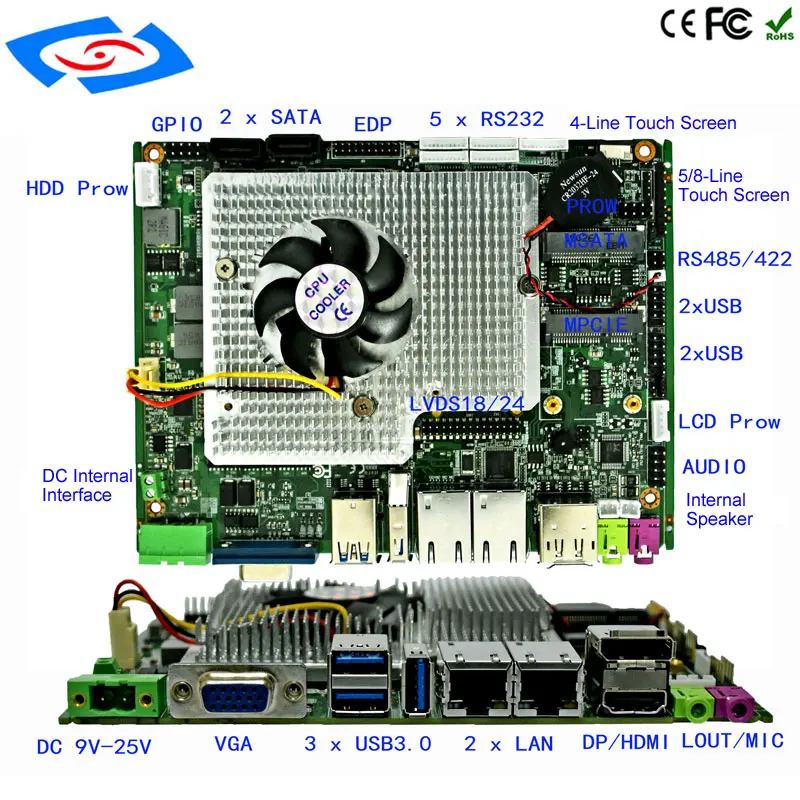

| I/O | |
| Lan | 2×10/100/1000Mbps RJ45,Integrate Intel 82583V/82579LM Chip |
| Serial ports | 6×COM(Inner)(1×RS485/422 Pin), RS485 with Photoelectric isolation 5×RS232 (Inner) |
| USB | Onboard 3×USB 3.0 4×USB 2.0 Pin(Inner) |
| GPIO | 1×GPIO 8 Bits(4in/4out) |
| Display | Onboard 1×VGA,1×DP,LVDS:18/24 bits (inner), 1×EDP Pin Integrate Intel HD3000 |
| Audio | Onboard 1×MIC-in,1×Line-out, Integrate sound card ALC892 2×2W power AMP(Inner) |
| Touch function | 1(4/5/8 wire) |
| Others | Fan connector, 2×min-PCIE(Wifi/3G/4G),1×SIM slot |
| Warranty | |
| Warranty | 12 months |
| Order information | |
| Model Name | PCM3-QM77B |
| Standard Configuration | CPU i5-2430M CPU, SO-DIMM:Onboard 2G, 3×USB 3.0, 4×USB 2.0, 1×COM-RS422/485 Photoelectric isolation, 1×GPIO,1×MSATA, 2× MPCIE . |
| Standard Accessories | Heat sink,fan Serial port extension cable,Sata cable,switch,Power connector |
| Optional | i5-2410M CPU,2.3GHz,35W,Optional upgrade: SO-DIMM:4G,WIFI/3G/4G,Bluetooth,SSD:32G/64G/128G |
