Product Overview
Description
Product Description
Upgraded version:
1. Added memory function, remember the voltage you used last time you charged. 12V is not the default voltage, which is a good solution to the sudden power failure, for 6V battery charging without worries.
2. Defective Battery Recognition Function
3. 72-hour safety feature

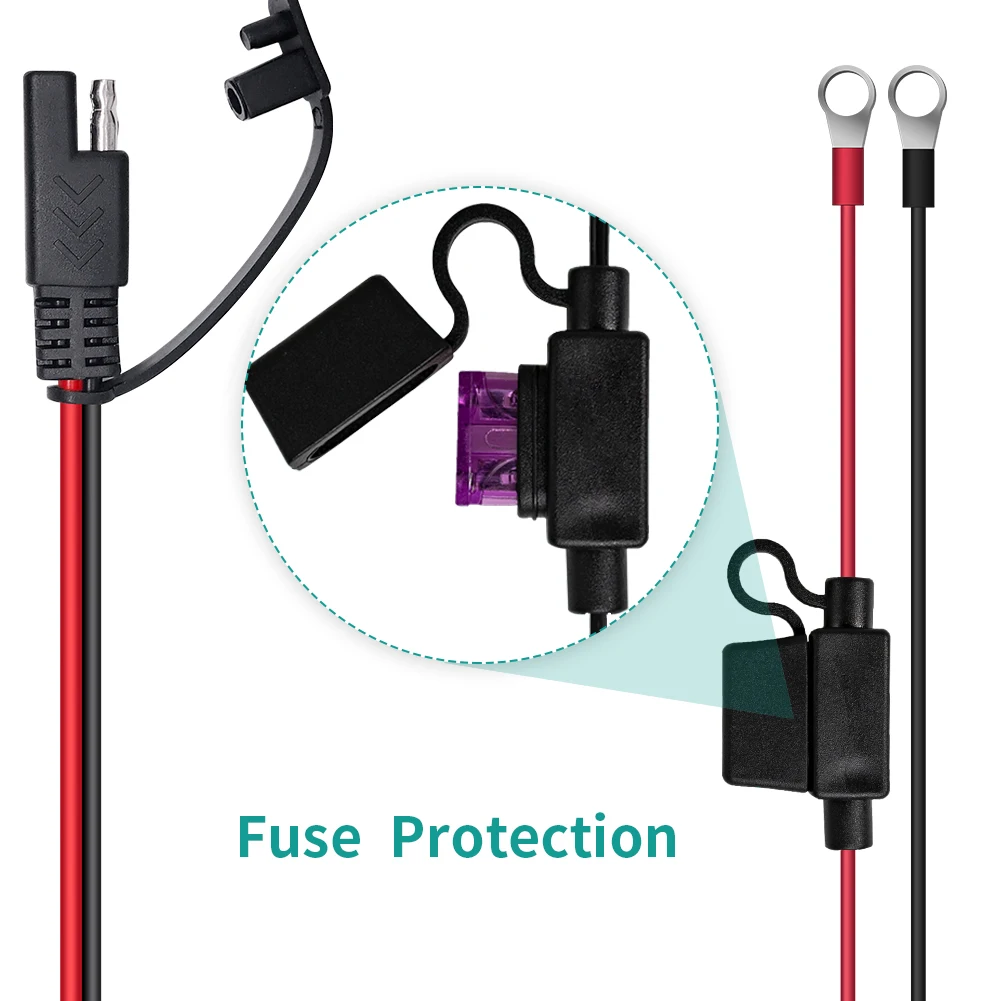

4. Add a fuse on the ring terminal cable
BRIEF:
EPA1020 is 4 stages smart battery charger by Microprocessor controlled with switch mode for 6V and 12V is selectable output .it is ideal for charging your CAR,MOTORCYCLE AND RIDE-ON TOY batteries,suit for type of batteries included AGM GEL VRLA SLA WET and
deep-cycle.
deep-cycle.

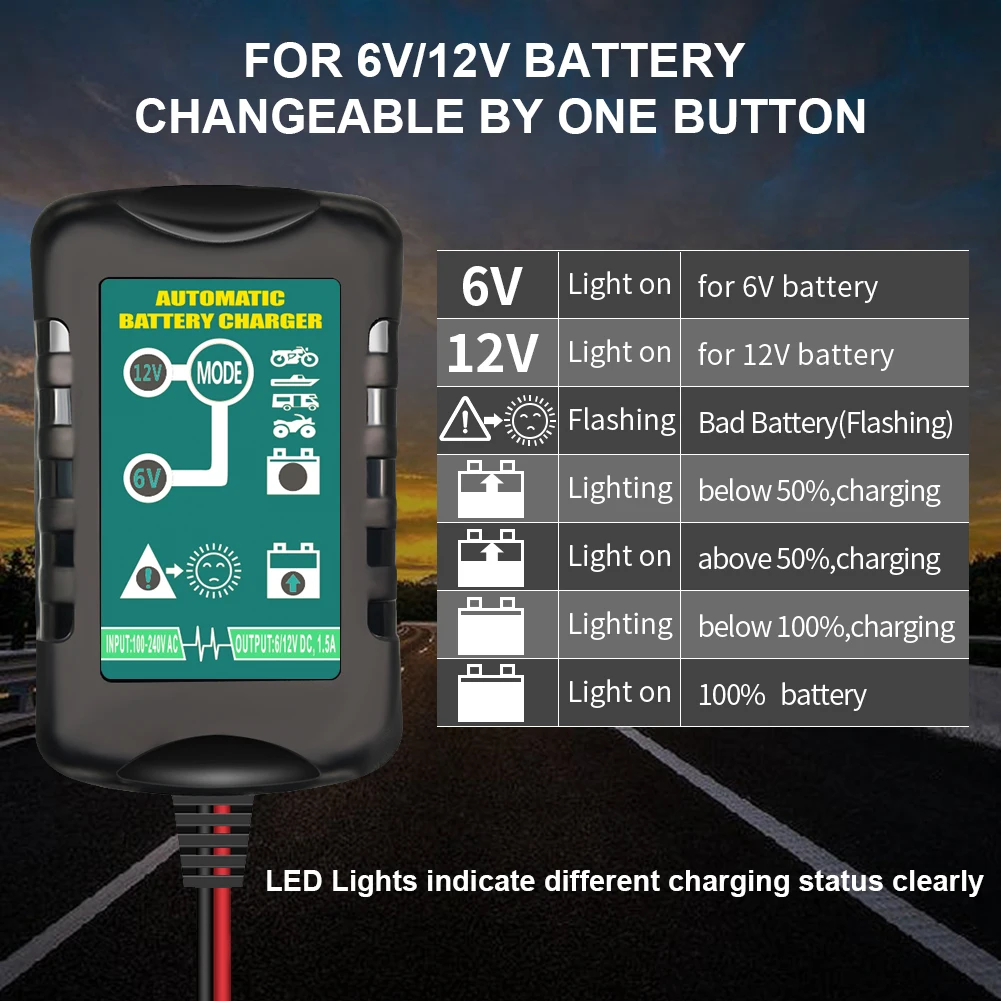

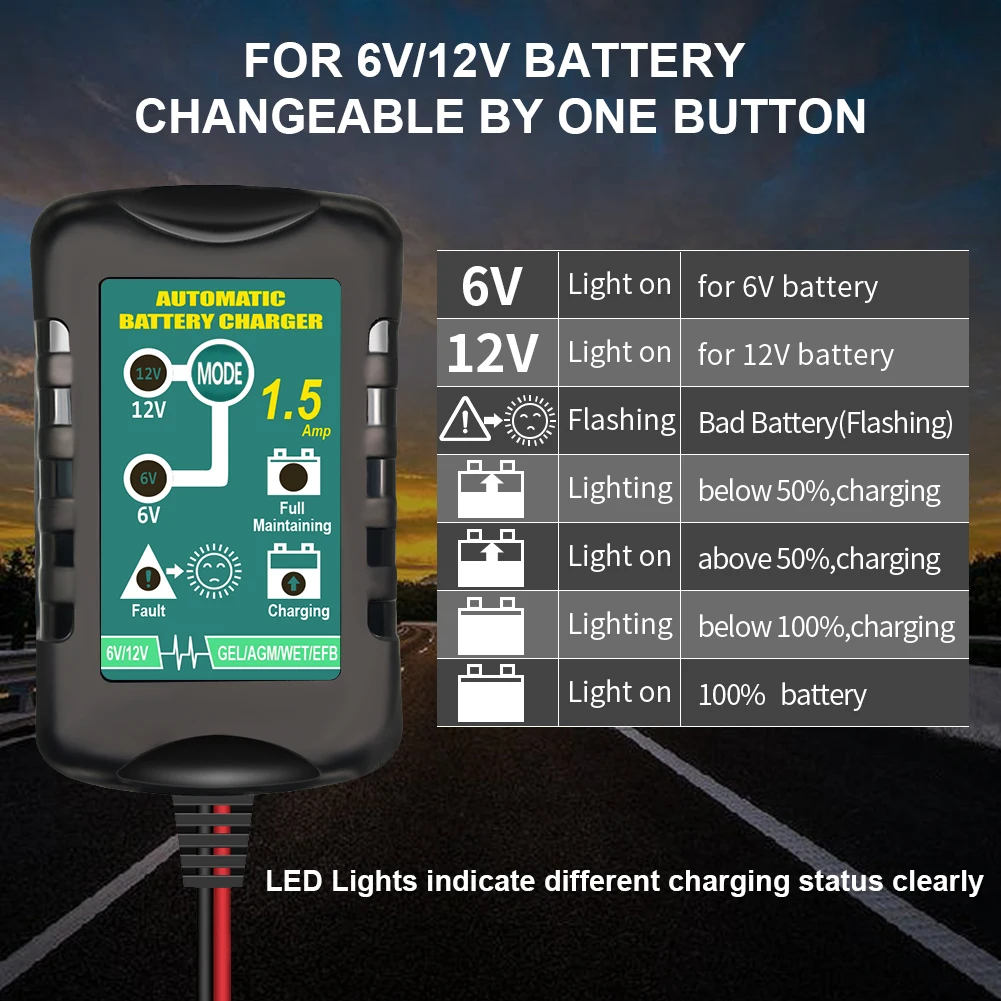

INDICATOR:
2LEDs indicate battery charging 50%,100%
ONE LED:6 Volt POWER ON
ONE LED:12 Volt POWER ON
ONE LED: FAULT
ONE LED:6 Volt POWER ON
ONE LED:12 Volt POWER ON
ONE LED: FAULT
4-stage charging process
Stage 1:initialization,when the charger power on then it start self-check and detect the battery correct connect. low output voltage without battery Fault LED is light, please CHECK THE POLARITY IS CORRECT.
Stage 2:Bulk charge,using the charger highest rated current for the type of battery in use until it reaches 80% capacity( LEDs 50% ON ,100% blinking)
Stage 3:Absorption,the output voltage is limited to 7.3V(6V battery) or 14.5V(12V battery) while current declines as the battery charges to its full capacity without overheating( LEDs 50% ON ,100% blinking)
Stage 4:Float,At this stage,the battery is fully charged and the charger maintains the battery through pulse charging ( LEDs 50% ON,100% ON)
Stage 2:Bulk charge,using the charger highest rated current for the type of battery in use until it reaches 80% capacity( LEDs 50% ON ,100% blinking)
Stage 3:Absorption,the output voltage is limited to 7.3V(6V battery) or 14.5V(12V battery) while current declines as the battery charges to its full capacity without overheating( LEDs 50% ON ,100% blinking)
Stage 4:Float,At this stage,the battery is fully charged and the charger maintains the battery through pulse charging ( LEDs 50% ON,100% ON)
FEATURE:
DESIGNED FOR MOTORCYCLE, CAR & MARINE BATTERIES
Fully automatic – faster, safer, smarter
Microprocessor controlled – automatically adjusts the amperage rate to charge and maintain
Monitors the battery and resumes continuous charging when battery becomes discharged
Multi-stage charging for added precision, safety and battery life
Automatic voltage detection
Glowing charger status interface
Charges standard, AGM and gel and deep-cycle batteries
Reverse hook-up protection
Fully automatic – faster, safer, smarter
Microprocessor controlled – automatically adjusts the amperage rate to charge and maintain
Monitors the battery and resumes continuous charging when battery becomes discharged
Multi-stage charging for added precision, safety and battery life
Automatic voltage detection
Glowing charger status interface
Charges standard, AGM and gel and deep-cycle batteries
Reverse hook-up protection
Product Specification
Part Number | EPA1020-0612 |
Charger Battery Compatibility | 12 Volt @6 Volt SLA GEL AGM VRLA WET Battery |
Charging Battery(Ah) | 5-36 AH |
Charging Time(Hrs) | 3-24 Hours |
Battery indicator | 2LEDS for 50% 100% battery |
Housing Material | Plastic@PC |
Input Voltage | 100-240Vac |
Maximum Charging Current | 1.5A@12V 1.5A@6V |
