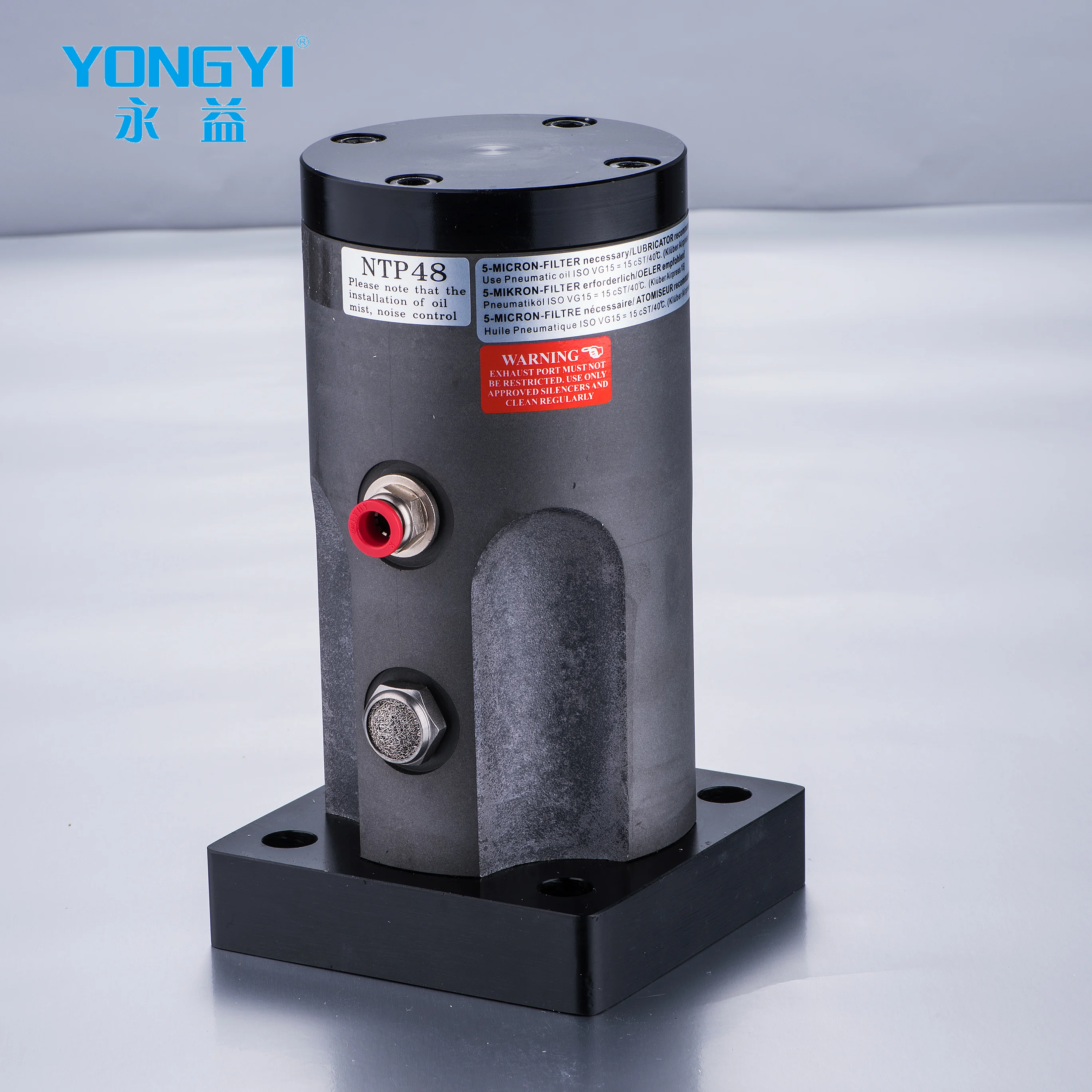

NTP Series Germany Netter Pneumatic Piston Reciprocating Type Ball Vibrator NTP48 Linear Vibration

Product Overview

Description





Features:

•Big power with lower noise

•Standard frequency is from 43 to 146 times per minute

•Excitation force is from 150 N to 2039 N

•The frequency and vibration amplitude can be adjusted via regulating the working pressure

•The normal maximum working pressure is 150 degrees centigrade

•The pneumatic hammer can be used for severe environment.





Applications
The pneumatic piston vibrators series NTP are especially suitable for knocking off material adhering to container walls in funnels, containers, silos and hoppers. They can be used as drives for vibrating tables and chutes and as assitance for emptying containers.
Special features of NTP vibrators are: impacts like a rubber hammer or vibration with high peak acceleration.



Design and functioning principle
The vibration (linear) is produced by a freely vibrating differential pressure piston. In the standard version B+C the piston is knocking against an elastomer impact plate and works like a rubber hammer. In the version B without impact plate the piston works against an air cushion (noise reduced).
Hard knocking versions available.
The frequency can be adjusted by varying the pressure of the air supply and the amplitude by throttling the exhaust.
For operation a control valve is required (not included in scope of delivery).
Lubricationfree operation is possible in compliance with the recommendations of Netter.
ATEX compliant linear vibrators of the NTP series and units with stainless steel housing are available.



Permissible operating conditions
Drive medium: Compressed air or nitrogen (Filter ≤ 5 μm), preferably with oil mist
Operating pressure: 2 bar to 6 bar
Ambient temperature: 5℃to 60℃
