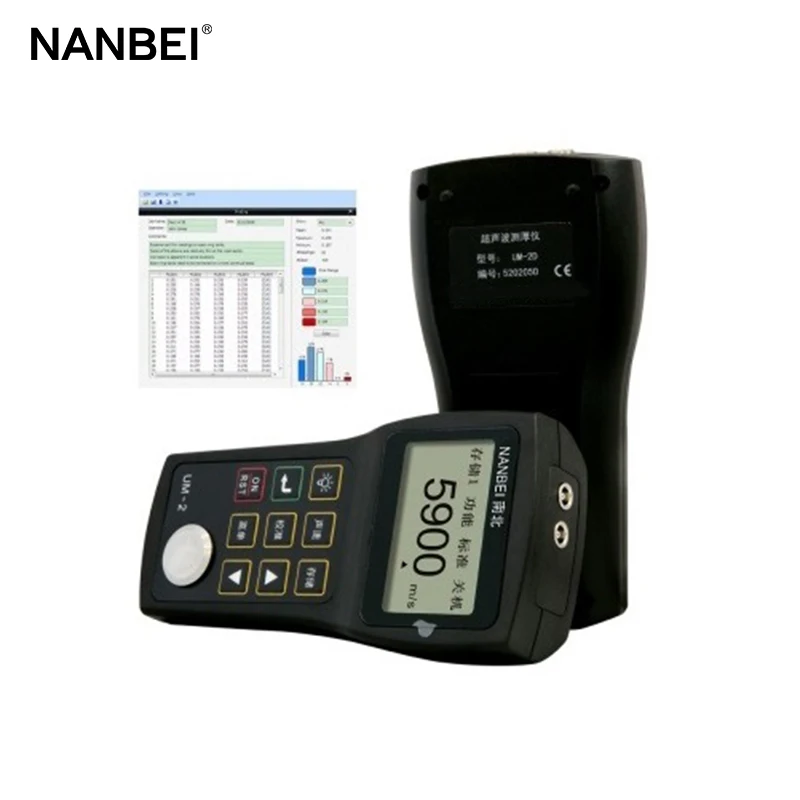

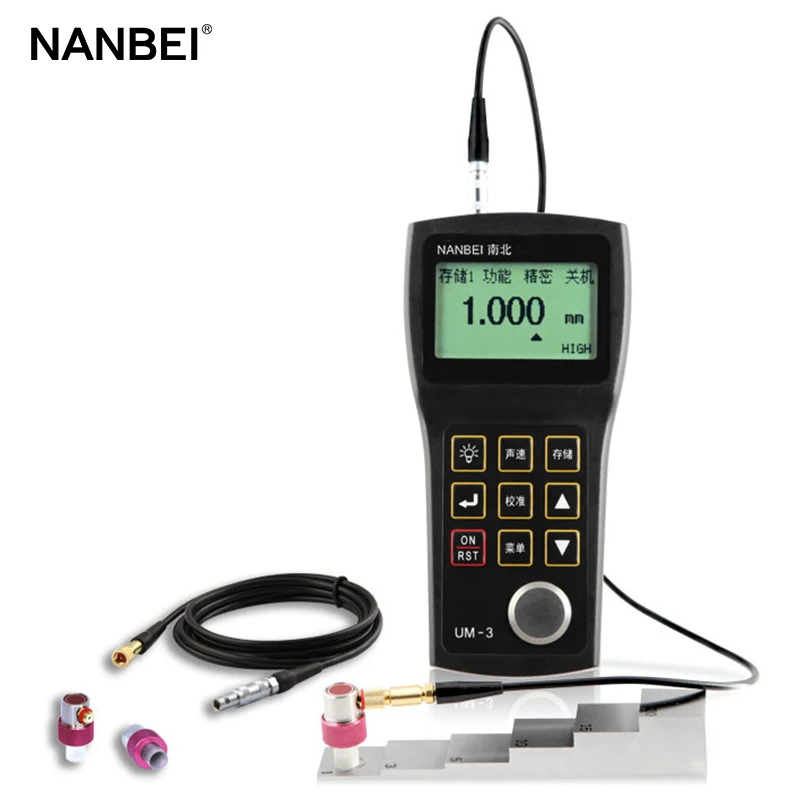

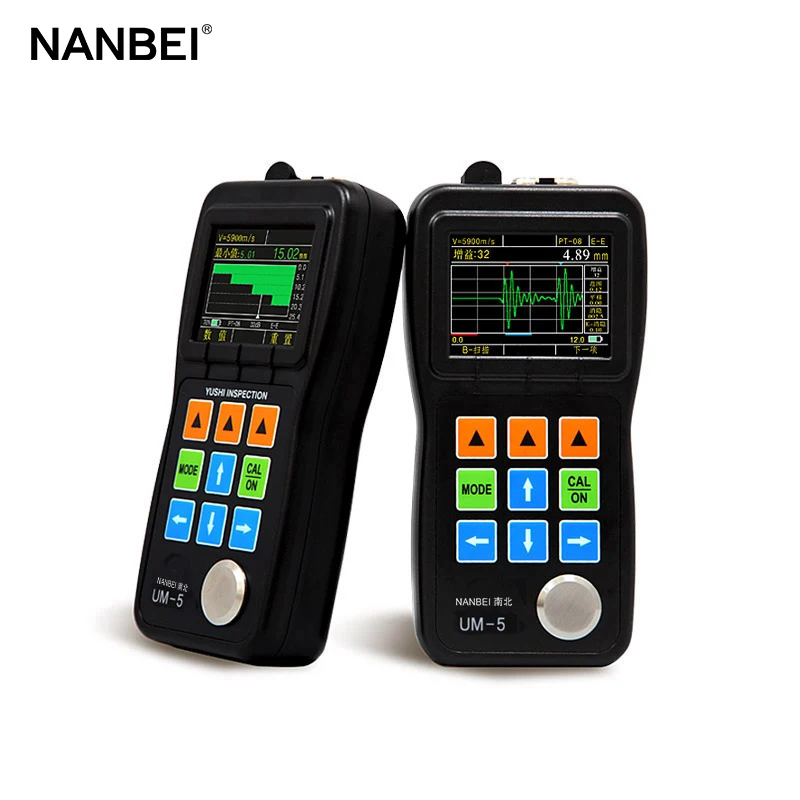

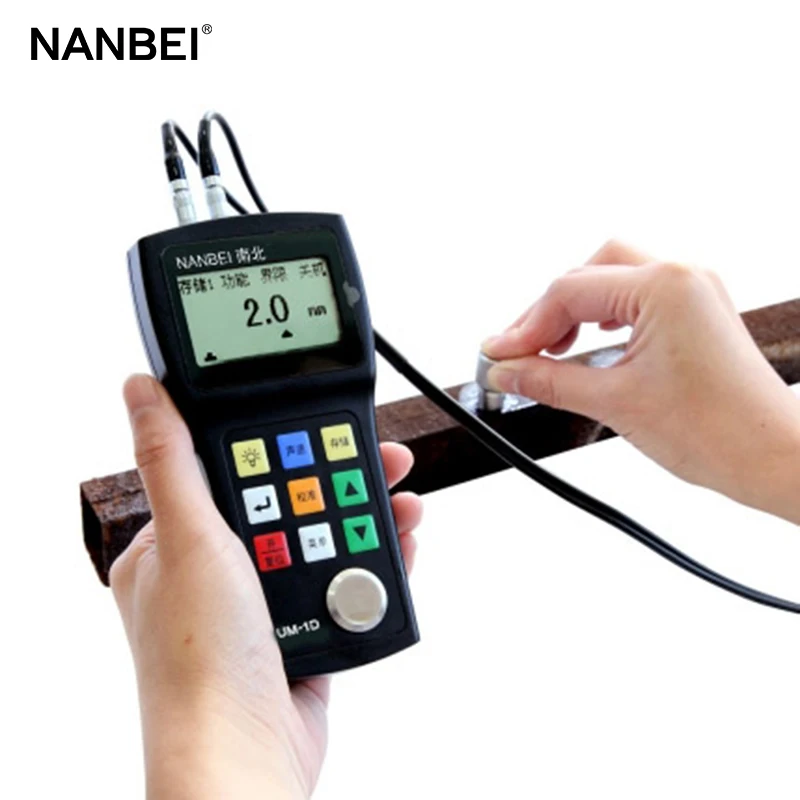

Digital coating ultrasonic thickness of steel gauges test (60726452384)

Share on:


Price:$680.00 - $1,350.00
Price in USD:Details

Quantity:


Product Overview

Description


Ultasonic thickness of steel gauges test



Product Description












Operating principle:


Standard mode: P-E (pulse-echo) method with dual-crystal probes


Coating mode:  E-E (echo-echo) method with dual-crystal probes





Probe Zero Adjustment:


Selectable: 1-point calibration: normal measurement


                   2-point calibration: curve surface measurement or other special application with a high precision





V-path correction:


Automatic





Measuring range:


1.0mm to 300mm in standard mode


3.0mm to 18.0mm in through coating mode


Depending on probe, material and surface condition





Resolution:


H<100.0mm : 0.01mm/0.1mm


H≥100.0mm : 0.1mm





Units:


Selectable: inch or mm





Display:


128×64 dot-matrix LCD screen with EL backlight (42mm×57mm)





Measurement update rate:


4 Hz





Material velocity range:


1000 -- 9999 m/s;





Power:


Two 1.5V AA alkaline batteries (Warning with low battery voltage)





Operating time:


Up to 200 hours (without backlight) with alkaline batteries, depending on operating mode





Auto shut-off:


After 5 minutes of non-use





Operating temperature:


-10°C to +50°C; (Specification to -20°C on request)





Size:


149mm×73mm×32mm (H×W×D)





Weight:


200g; 7oz (including batteries)





Data logger capacity:


Up to 500 readings can be divided into a maximum of 5 files (user-selectable)





Operating language:


English and Chinese





Measuring error:


Up to 10mm: ±0.05mm


Above 10mm: ±(0.5%H+0.01)mm





Repeatability:


±0.05mm





Application software:


UMVIEW





Interfaces:


Serial RS 232C port in combination with a communicative cable;
