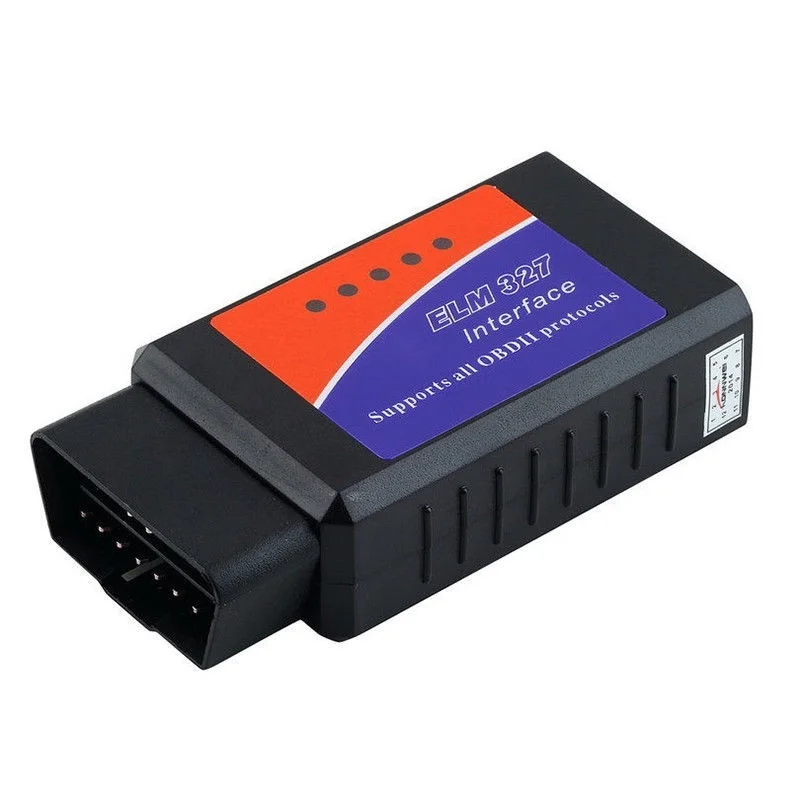

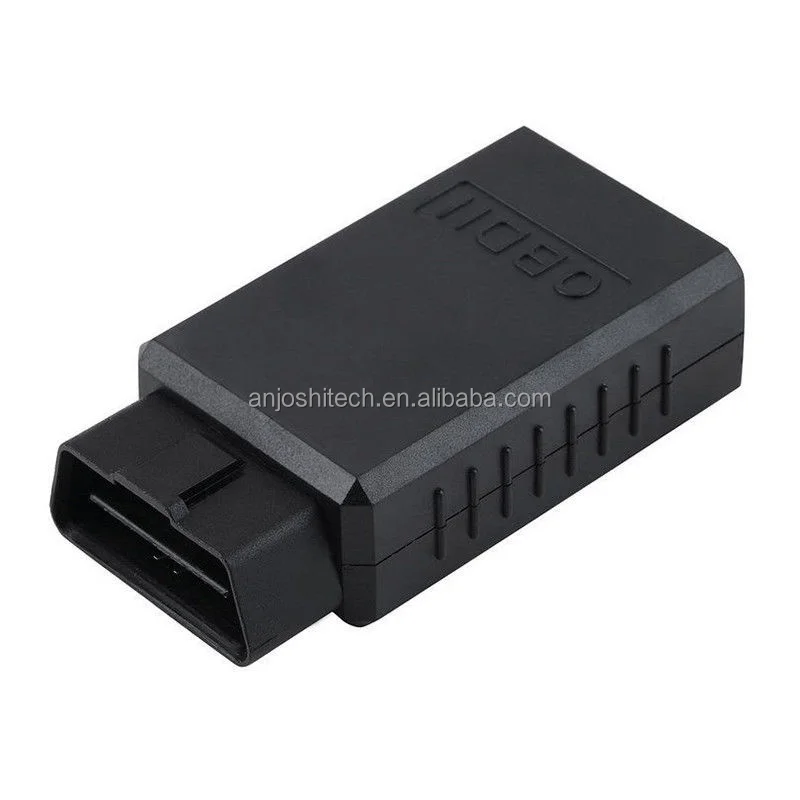

ELM327 Auto Car Diagnostic Scanner Scan Tool for iPhone for Android WIFI OBD2 OBDII Adapter Car Code Reader

Product Overview

Description



Descroption:

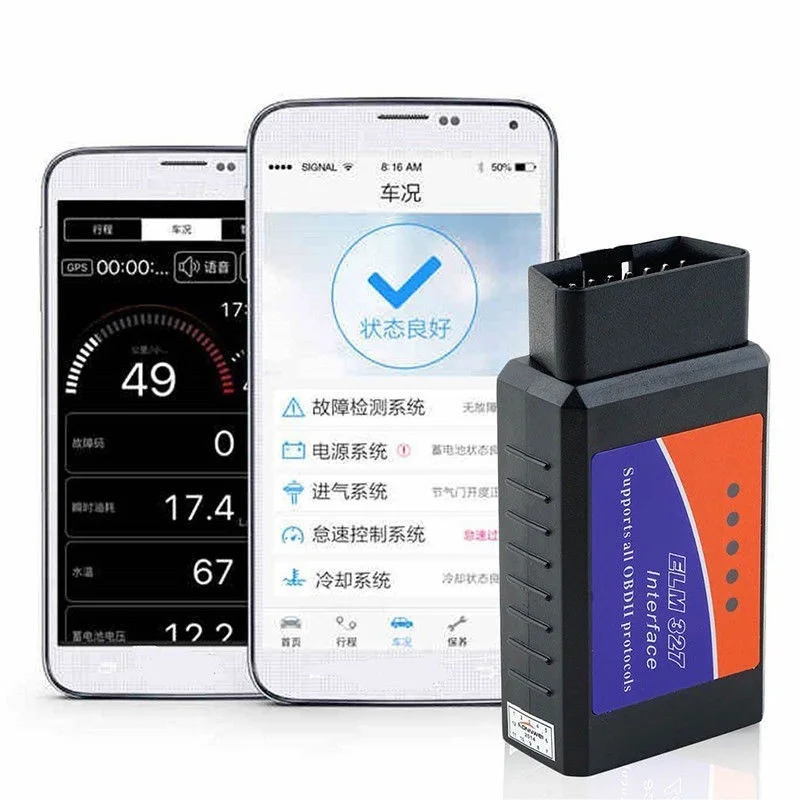

By using this device, you can monitor your cars from PC, Mac,Smartphone, to do inspection by yourself! It would save your money and time.

Works with all OBD-II compliant vehicles.

Works on all 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok.

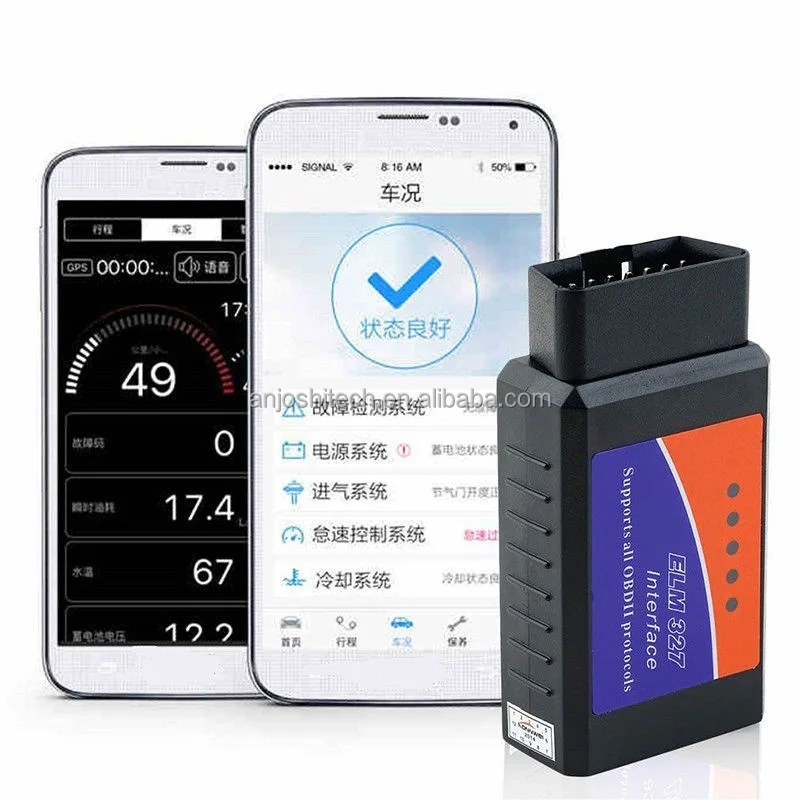

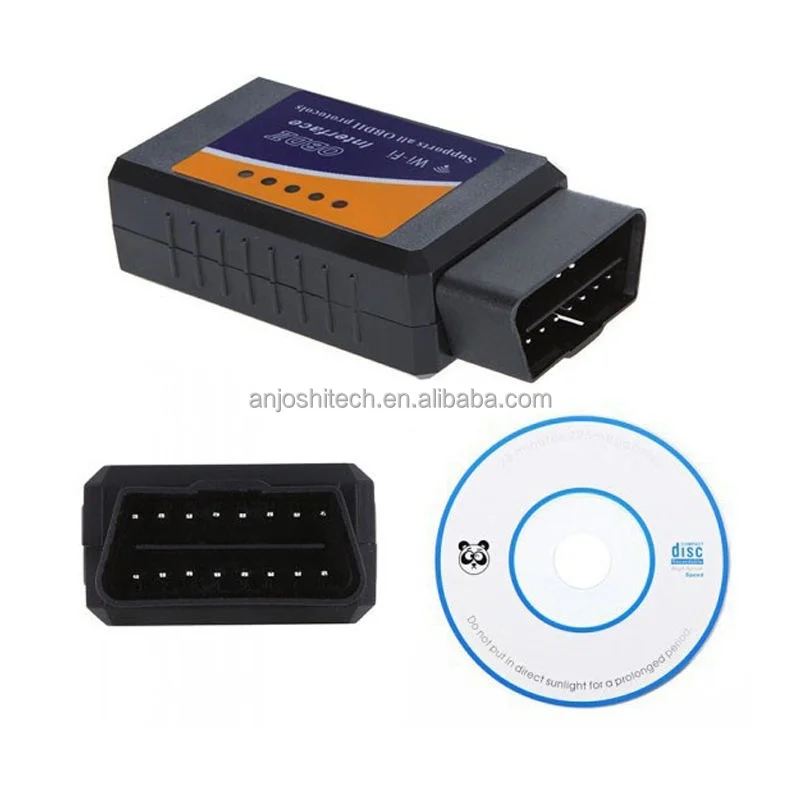

Software included in CD for  iOS (for iPhone, iPad, iTouch, Mac), Smartphone and PC.

Clear trouble codes and turn off the MIL (Check Engine light).

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

How to see if your vehicle is comliant with OBD II?

Please pop the hood and look for a sticker named VEHICLE EMISSION CONTORL INFORMATION.

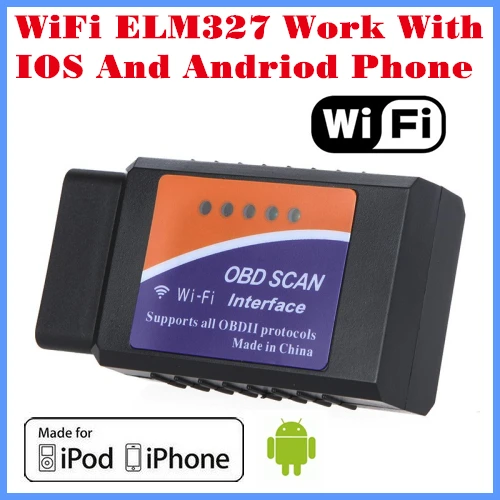

WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:

ISO 9141

ISO 11898(aka. CAN)

ISO 14230(aka. KWP2000)

ISO 15765(aka. CAN)

SAE J1939

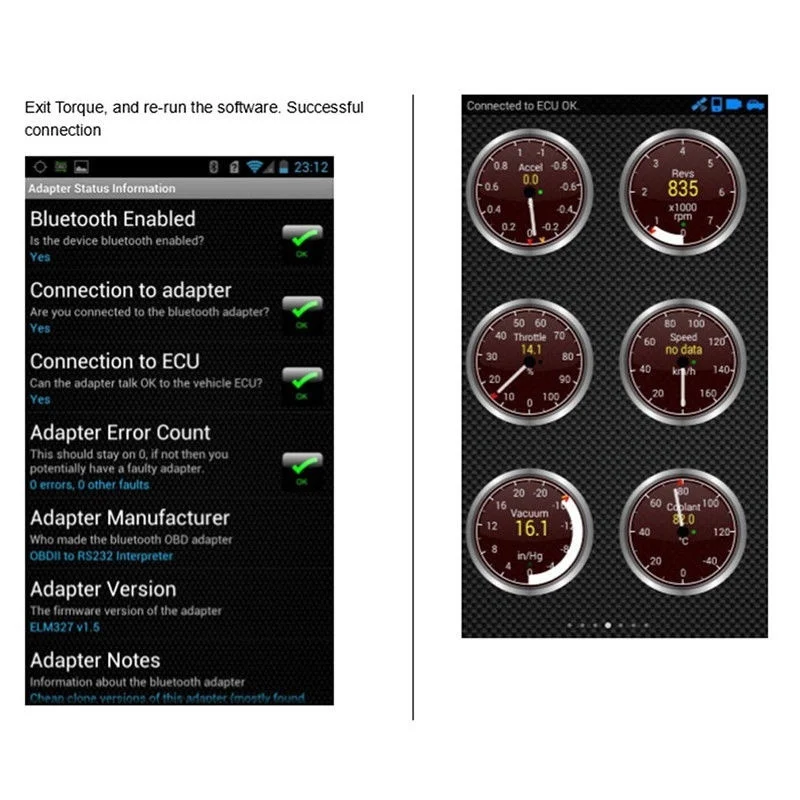

Following are some of the parameters which could be read from the vehicle.

Vehicle Speed

RPM

Fuel Consumption*

Engine Coolant Temp

Fuel Pressure

Calculated Engine Load

Throttle Position

Intake Manifold Pressure

Air Intake Temp

Timing Advance

Mass Air Flow

Fuel Level

Barometric Pressure

EVAP System Vapor Pressure

Fuel Trim



Material: automotive grade plastic

Operating temperature: -15 to 100 Deg Celsius

SSID: WiFiOBD

IP: 192.168.0.10

Subnet: 255.255.255.0

Port: 35000

Range: 50 ft (Line of sight)

Antenna: Internal

Power Consumption: 0.75 Watts (With Power Switch)

Wifi Standard: 802.11a/b/g

Item size: 9 * 5 * 3cm (3.5 * 2.0 * 1.2in)

Item weight: 75g/2.6oz
