Z type bucket elevator/feeder
This type of elevator drives the materials through chain transmission, for vertical transport of granule and small blocky materials, high lifting capacity and speed. It matches up with electronic combination weigher and packing machine to achieve quantitative automatic packaging system, widely used in the food packaging industry.
| SPECIFICATIONS | ||
Technical parameters | Model | JBS-D3000 |
| Conveying volume | 7200L/hr | |
| Bukcet volume | 1.8L | |
| Lift height | 3 meters | |
| Machine frame | SS304 or SS316 | |
| Power supply | 0.75kw AC 380V50Hz | |
| Total weight | 320kgs | |
| Overall dimensions | 2800*800*3000mm | |
| Features | * Feeder:vibrating feeder
* Machine frame:SS304 or SS316
* Bucket material:food grade reinforced polypropylene
* Vertical lifting:90 degree transportation saves covered area and reduces power cost
* Conveying volume:400L/hr—7200L/hr
* Chute:avoid scattering and make meterial automatic filling
* Special design for the bucket avoid problem of bucket dropped out
* Easy to install and maintain,smooth operation | |

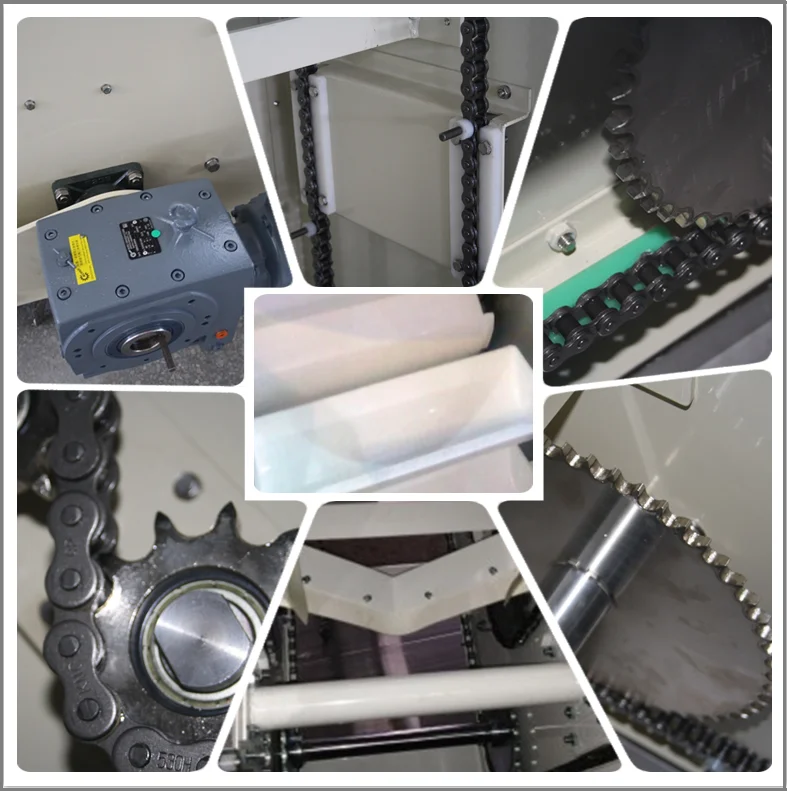

Details

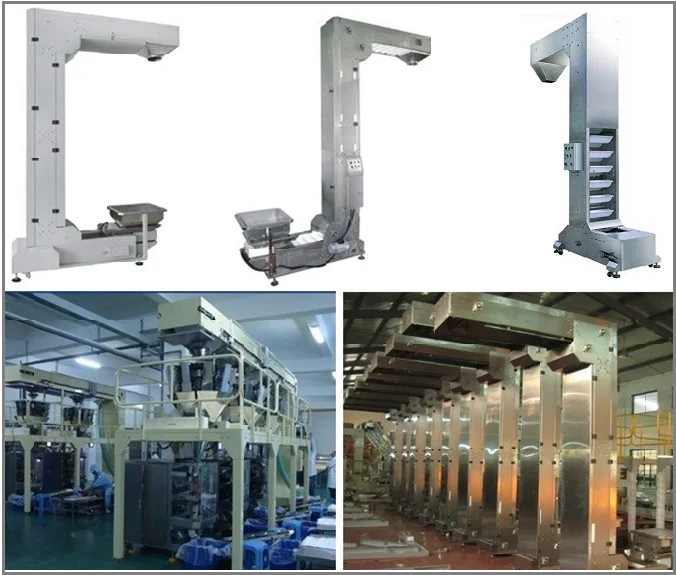

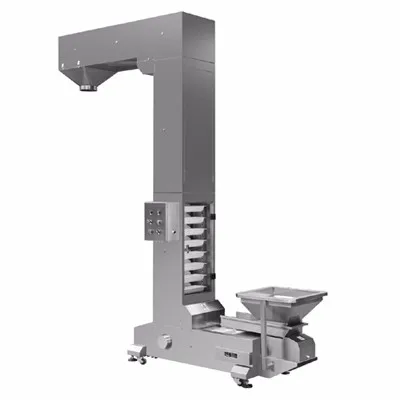

Product display:

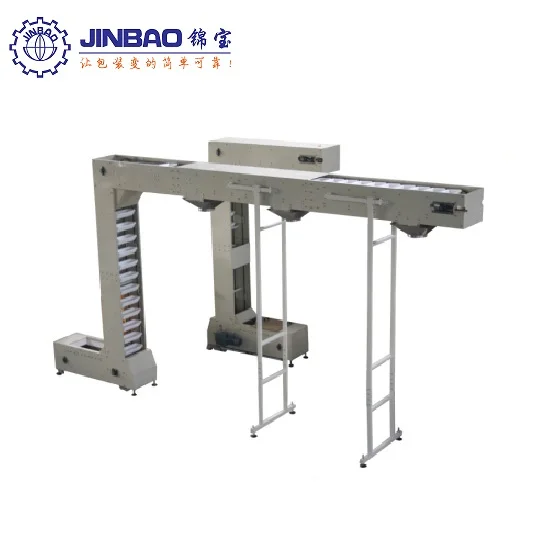

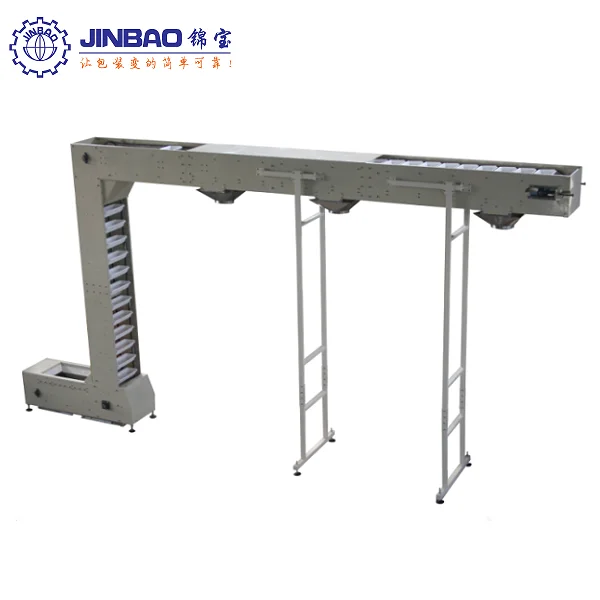

(Z type)
(C type: Save space)

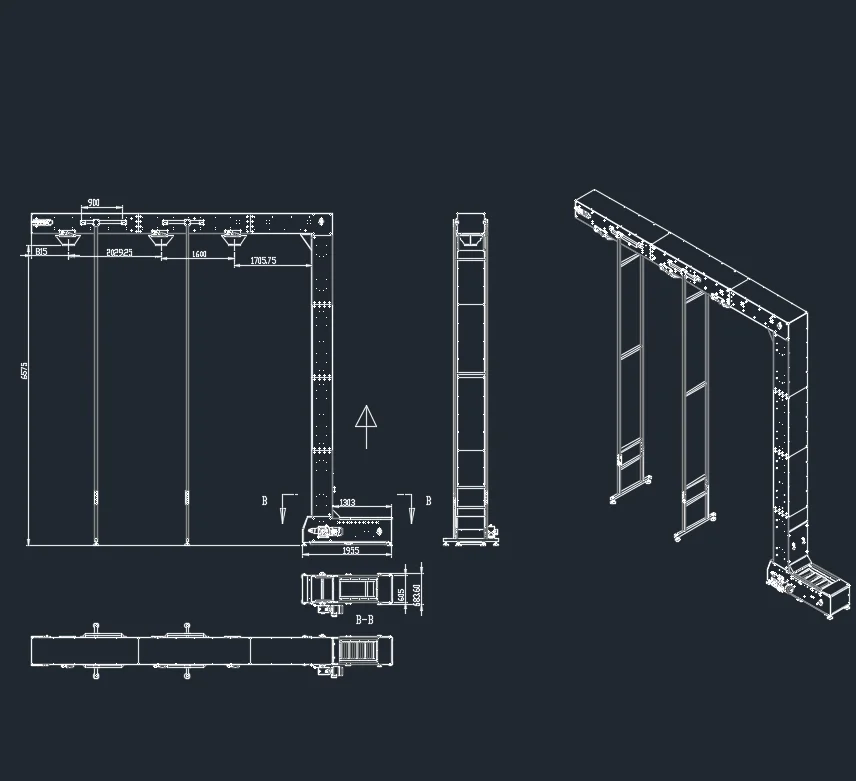

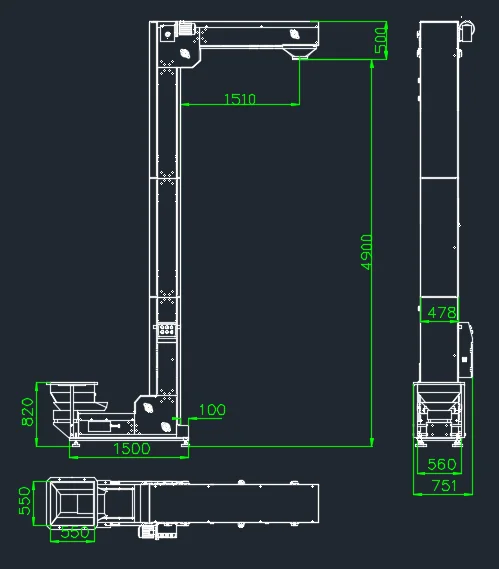

Drawing pictures:
