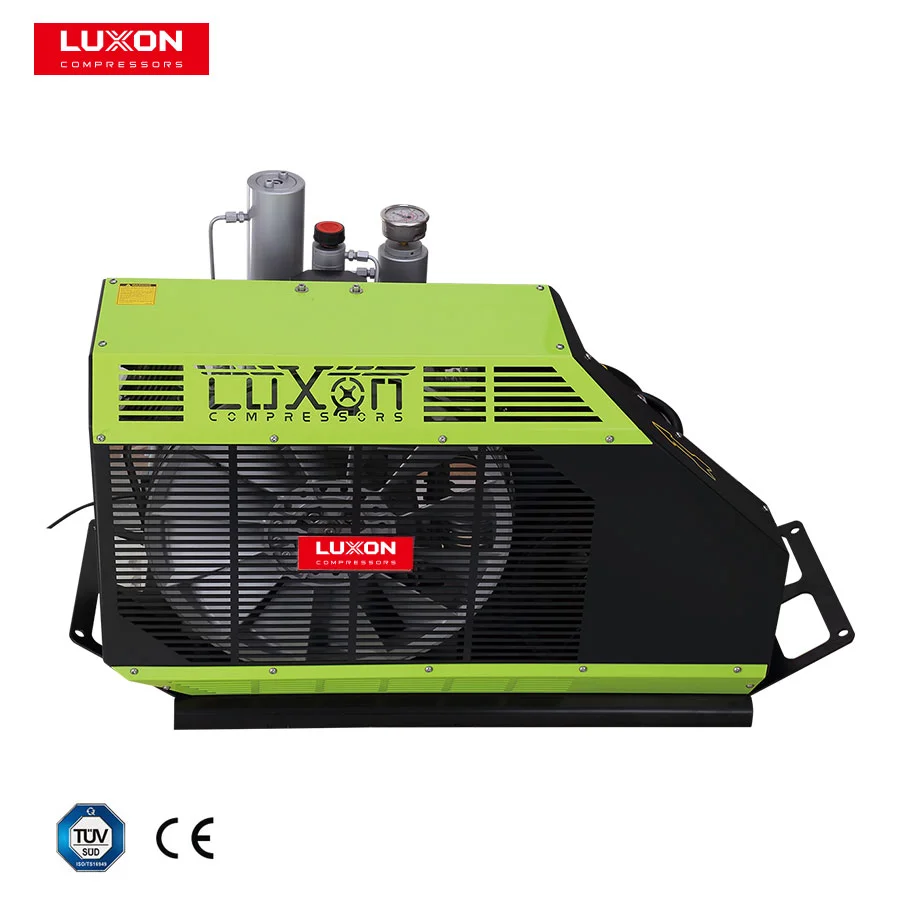

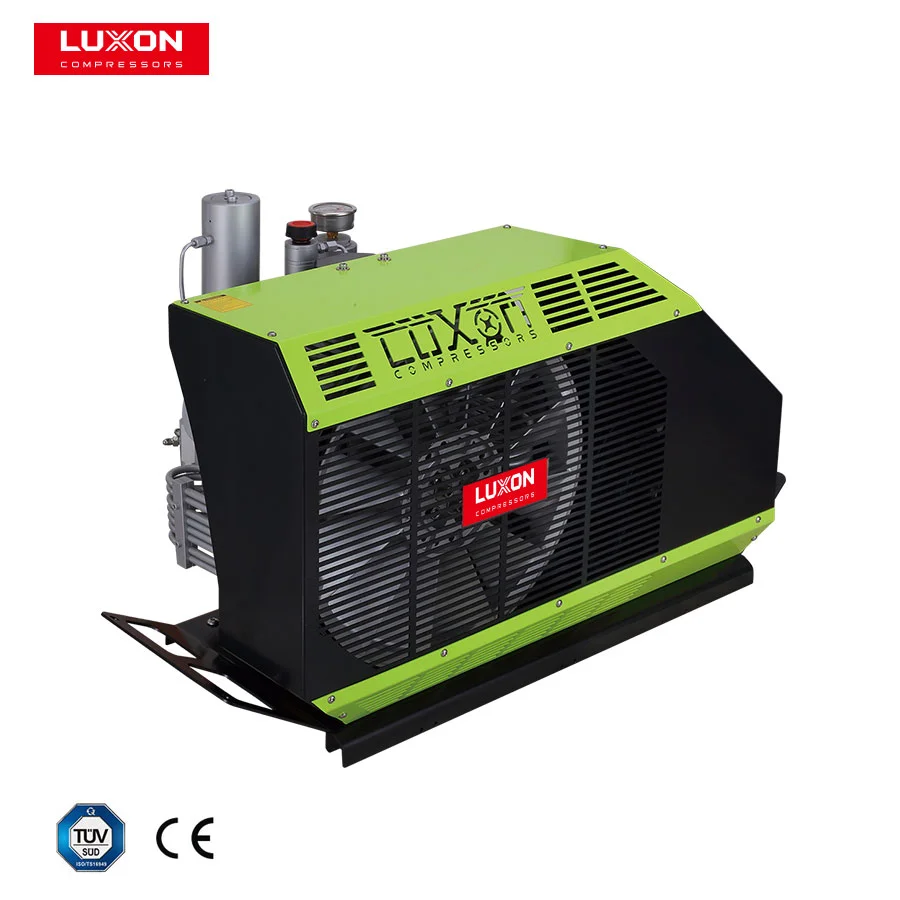

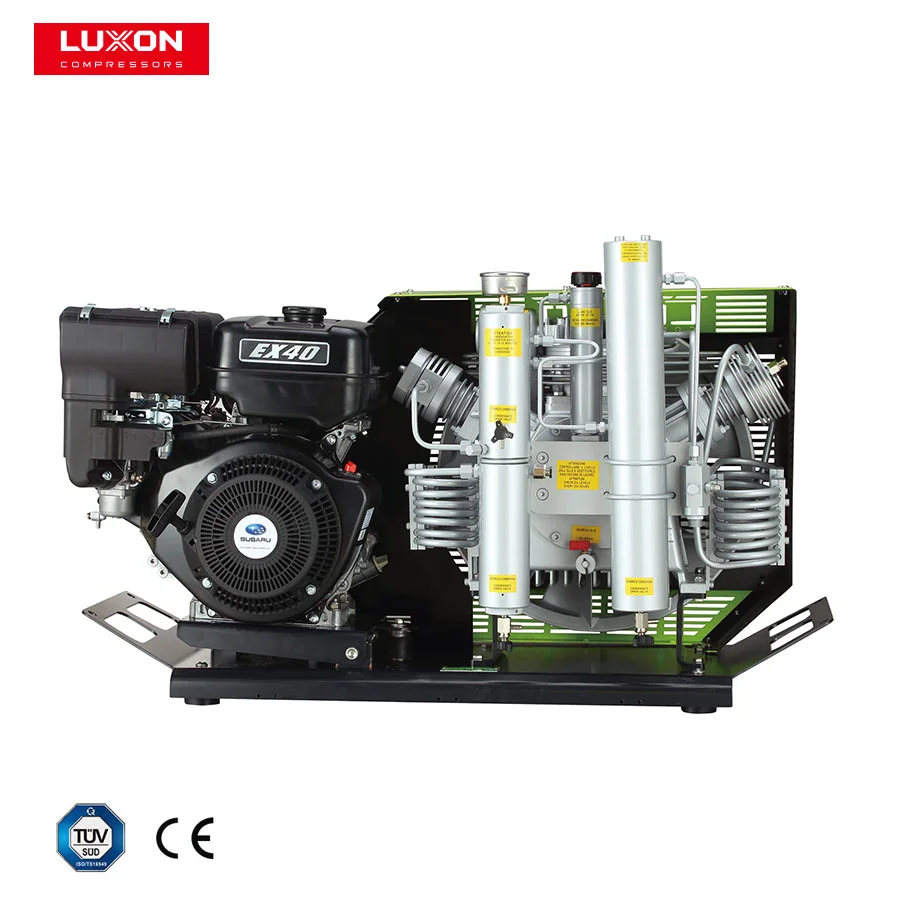

LUXON GMC 215/265/300/ET STD Semi Portable high pressure breathing air compressor EN12021 (scuba diving & firefighting)

Share on (60726480752):


Price:$5,858.83

Quantity:


Product Overview

Description


Product Description

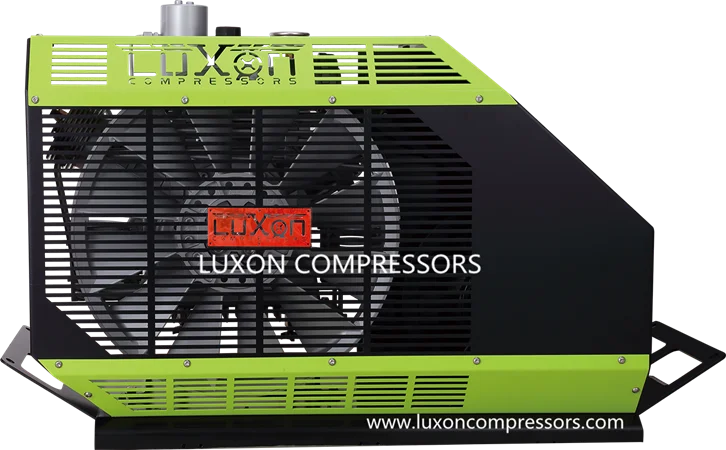

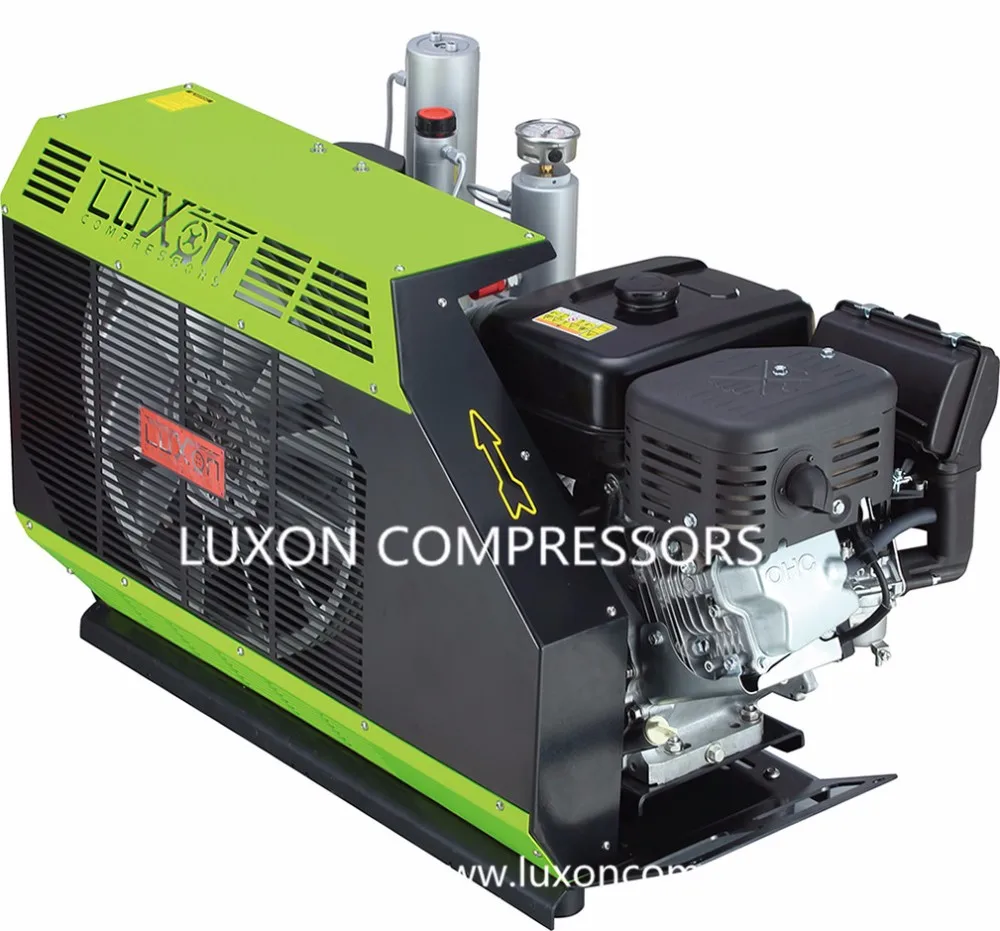

GMC 215/265/300 SH/ET Standard Series has a size between the portable and stationary range of compressors. Its smaller build than a stationary compressor allows for greater mobility and portability .Two high pressure hoses are included in the standard configuration ,which can inflate two cylinders at the same time ,increasing efficiency .The final stage safety valve prevents the compressor from overloading in case of misoperation .

It is applicable for use in a range of industries including: Fire fighting industry, Chemical industry, Mining , Diving service station and other industries with high usage demands .


\t
Detail
\t

Type

\t

Capacity
\t

Power
\t

Drive Options
Three Phase Electric Motor
\t

Rotation
Speed (RPM)
\t

Weight (KG)
\t

Volume (L*W*H)
\t




GMC 215/ET
\t




215L/min (7.6CFM)
\t
4.0 KW
\t
380-400V 50HZ
\t
1250
\t
124
\t
1100*498*655
\t
4.0 KW
\t
380-400V 60HZ
\t
1250
\t
124
\t
1100*498*655
\t
4.0 KW
\t
400-440V 50HZ
\t
1250
\t
124
\t
1100*498*655
\t
4.0 KW
\t
400-440V 60HZ
\t
1250
\t
124
\t
1100*498*655
\t
4.0 KW
\t
220-230V 50HZ
\t
1250
\t
124
\t
1100*498*655
\t
4.0 KW
\t
220-230V 60HZ
\t
1250
\t
124
\t
1100*498*655
\t




GMC 265/ET
\t




265L/min (9.3CFM)
\t
5.5 KW
\t
380-400V 50HZ
\t
1480
\t
134
\t
1100*498*655
\t
5.5 KW
\t
380-400V 60HZ
\t
 1480
\t
134
\t
1100*498*655
\t
5.5 KW
\t
400-440V 50HZ
\t
1480
\t
  134
\t
1100*498*655
\t
5.5 KW
\t
400-440V 60HZ
\t
1480
\t
 134
\t
1100*498*655
\t
5.5 KW
\t
220-230V 50HZ
\t
1480
\t
 134
\t
 1100*498*655
\t
5.5 KW
\t
220-230V 60HZ
\t
 1480
\t
 134
\t
  1100*498*655
\t




GMC 300/ET
\t




300L/min (10.6CFM)
\t
7.5KW
\t
380-400V 50HZ
\t
1800
\t
144
\t
1100*498*655
\t
7.5KW
\t
380-400V 60HZ
\t
1800
\t
144
\t
1100*498*655
\t
7.5KW
\t
400-440V 50HZ
\t
1800
\t
144
\t
1100*498*655
\t
7.5KW
\t
400-440V 60HZ
\t
1800
\t
144
\t
1100*498*655
\t
7.5KW
\t
220-230V 50HZ
\t
1800
\t
144
\t
1100*498*655
\t
7.5KW
\t
220-230V 60HZ
\t
1800
\t
144
\t
1100*498*655

Specifications

1) 3-cylinder ,3-stage compressor

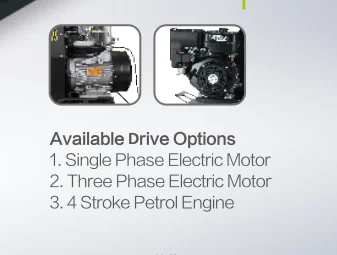

2) Drive:Three Phase Electric Motor 、Petrol Engine

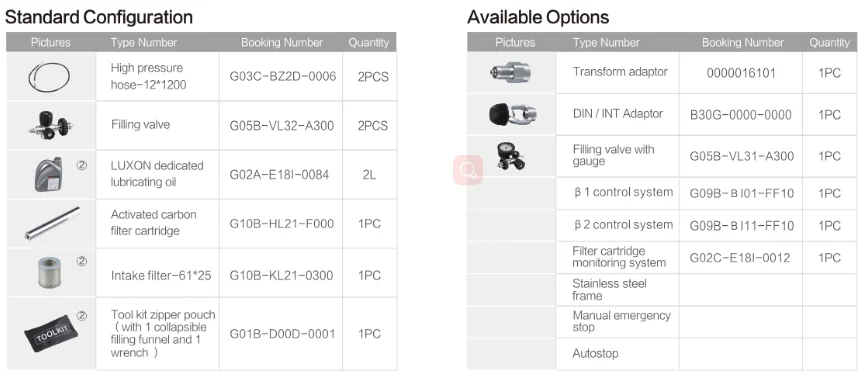

3) Two high pressure hoses with two filling valves

4) Breathing air conforms to the EN12021 Standards

5) Final stage safety valve offer overload protection

6) Metal frame with spraying coating

7) Aluminum and stainless steel interstage condenser pipe

8) Mini inlet silencer filter

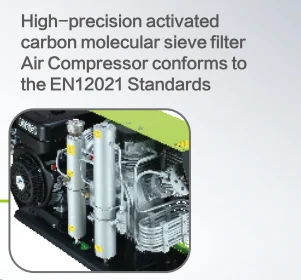

9) Active carbon molecular sieve filter

10) Condensate drain valve

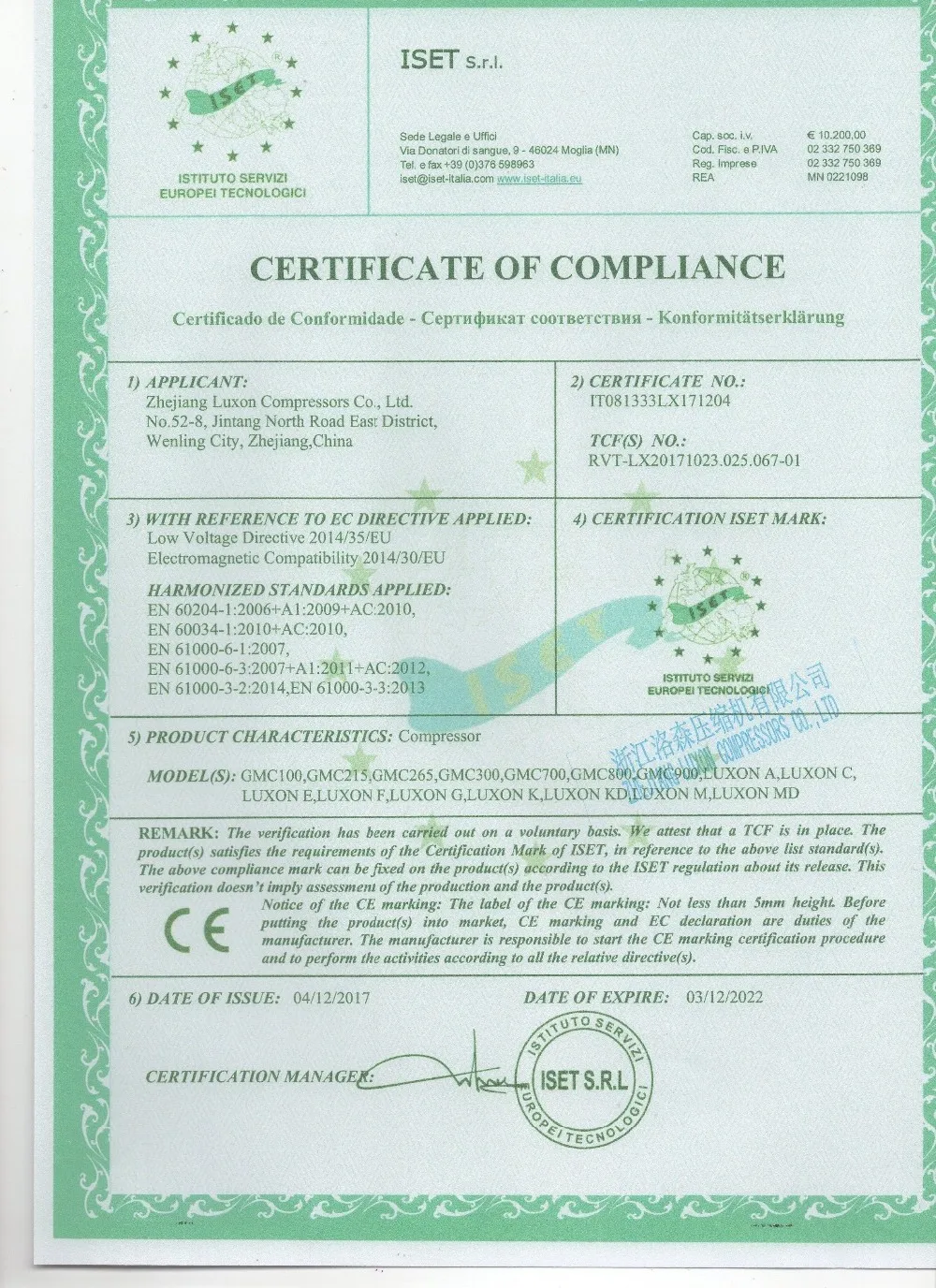

Certification


CE certification
DATE OF ISSUE :04/12/2017
DATE OF EXPIRE:03/12/2022

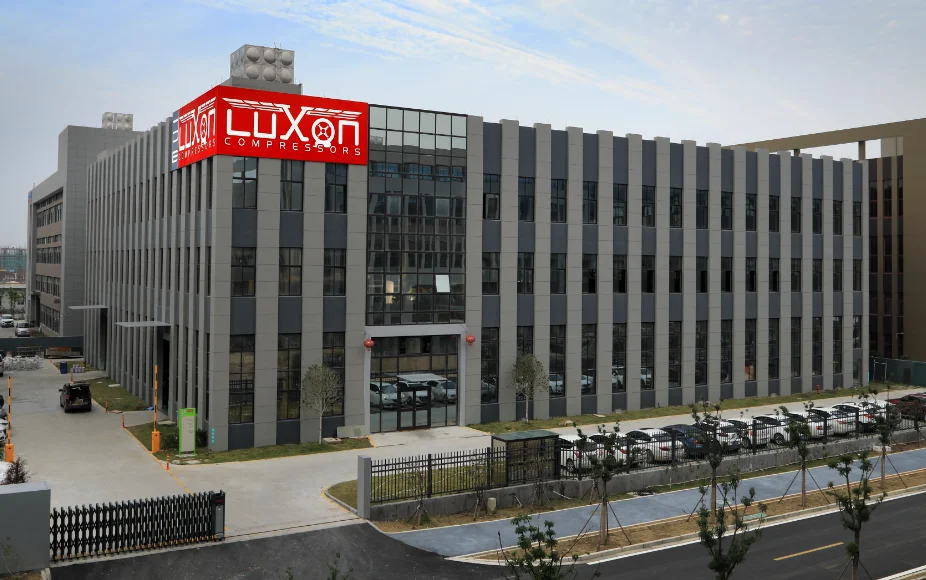

FACTORY VIEW
LUXON is an emerging brand of quality and technologically advanced air compressors.


Founded in 2002, LUXON Compressors started off as an OEM; designing and producing quality high-pressure compressors for international clients. Progressing towards a goal to manufacture quality air compressors for the world.
LUXON aims to provide technologically advance and thorough system solutions for our clienteles. With high expectations on the technical, quality and efficacy aspects of manufacturing our air compressors; this has propelled us as a growing manufacturer worldwide.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to use the machine, training how to maintain the      machine.

* One year warranty

Packing
\t
Packaging
\t
Size
\t
123*63*93 cm
\t
Weight
\t
22KG
\t



Packaging Details
\t

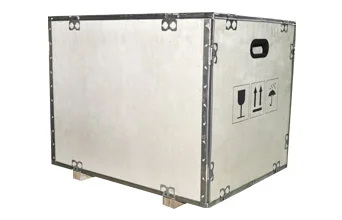

1.Plywooden box to protect compressor

2.Zip tie to fix the compressor , to avoid slanted

3.Easy to move by forklift
