UL led panel 2x2 2x4 emergency lighting

Parameter of UL 40w 60w emergency led panel light
| Input Voltage(V): AC100-277V | Shell Material: Aluminum& High Quality LGP | ||||
| Working Temperature(℃): -20 - 50 | IP Rating:IP44 | ||||
| CRI (Ra>):80 ? | PF:>95 | ||||
| Beam Angle: 120 | Lifetime: 50,000h | ||||
| Warranty: 5 Years | |||||
| Certification: UL,cUL | |||||
| Color Temperature(CCT):3000-3500K;4000-4500K;5000-5500K | |||||
Standard Series
| Model | Watt (Main) | Watt (Emergency) | Lumen | Emergency Time | Size | LED type | N.W |
| PLE-36W-66-28-TG-02 | 36W | 10Wor17W | 110lm/W | ≥90 mins | 2*2ft | SMD2835 | 3.9kg/pc |
| PLE-40W-66-28-TG-02 | 40W | 10Wor17W | 2*2ft | 3.9kg/pc | |||
| PLE-45W-66-28-TG-02 | 45W | 10Wor17W | 2*2ft | 3.9kg/pc | |||
| PLE-40W-123-28-TG-02 | 40W | 10Wor17W | 1*4ft | 4.0kg/pc | |||
| PLE-50W-126-28-TG-05 | 50W | 10Wor17W | 2*4ft | 7.4kg/pc | |||
| PLE-60W-126-28-TG-05 | 60W | 10Wor17W | 2*4ft | 7.4kg/pc |
Premium Series
| Model | Watt (Main) | Watt (Emergency) | Lumen | Emergency Time | Size | LED type | N.W |
| PLE-25W-66-28-TG-01 | 25W | 10Wor17W | 130lm/W | ≥90 mins | 2*2ft | SMD2835 | 3.9kg/pc |
| PLE-35W-66-28-TG-01 | 35W | 10Wor17W | 2*2ft | 3.9kg/pc | |||
| PLE-25W-123-28-TG-01 | 25W | 10Wor17W | 1*4ft | 4.0Kg/pc | |||
| PLE-40W-126-28-TG-01 | 40W | 10Wor17W | 2*4ft | 7.4kg/pc | |||
| PLE-50W-126-28-TG-01 | 50W | 10Wor17W | 2*4ft | 7.4kg/pc |

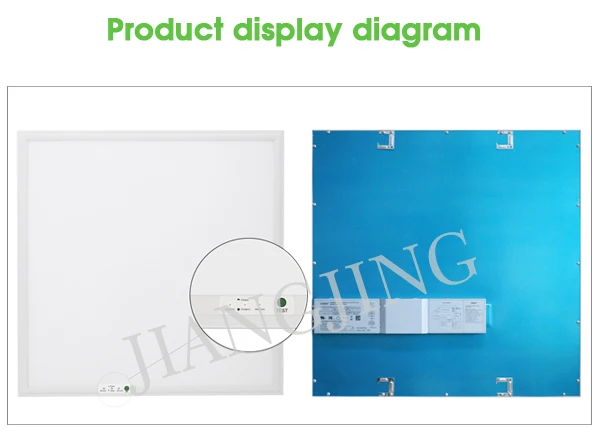

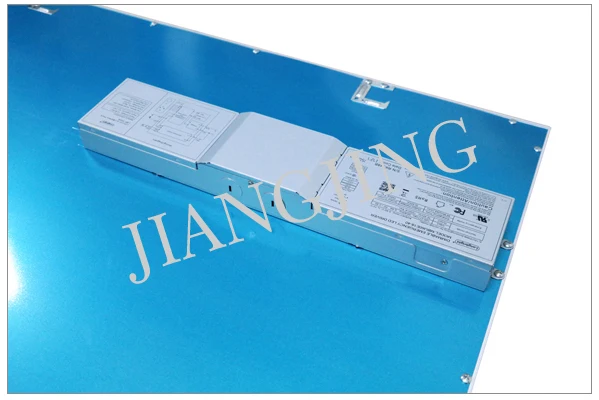

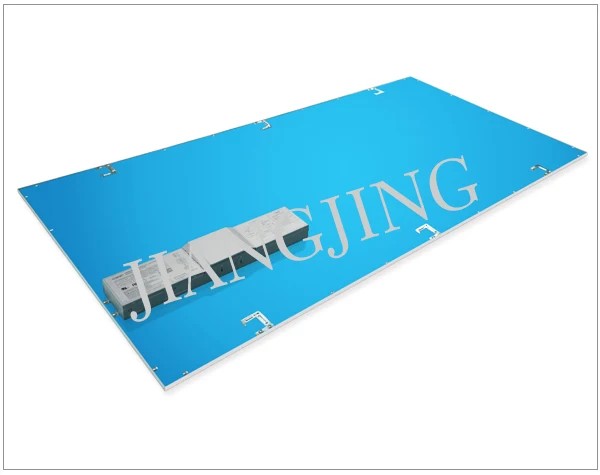

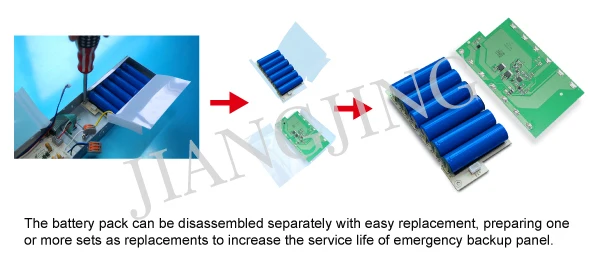

Product details of 40w 60w emergency led panel light






Installation of 40w 60w emergency led panel light

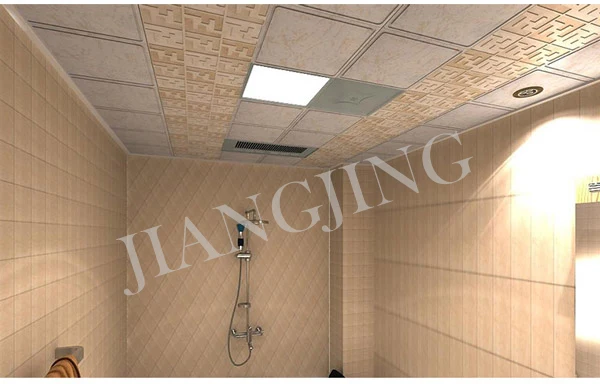

Application of 40w 60w emergency led panel light
