Genyu graphic lcd 128x32 dots 2.23 inch oled display module with SSD1305

More OLED Display ⇓

Product Description

Products: Organic light emitting diode (OLED)

Regular size, standing stock.

1. Pin

Pin	1	2	3	4	5	6	7	8	9	10	11	12	13-20	21	22	23	24
Symbol	NC	VLSS	VSS	NC	VDD	BS1	BS2	CS#	RES#	D/C#	R/W#	E/RD#	D0-D7	IREF	VCOMH	VCC	NC

2. Features

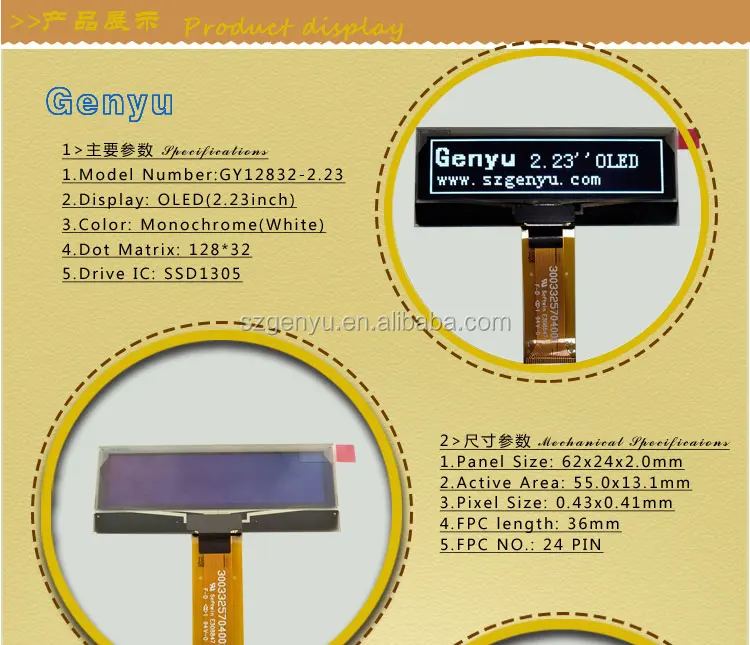

(1) Display Size : 2.23 inch oled

(2) Color : White
(3) Panel matrix : 128x32 dot
(4) Drive IC : SSD1305
(5) High contrast : 2000:1
(6) Wide viewing angle : 160°
(7) Interface : 8-bit 6800/8080-Series Parallel interface, Serial Peripheral interface, I2C

(8) Wide range of operating temperature : -40 to 70 °C

Small molecular organic light emitting diode.

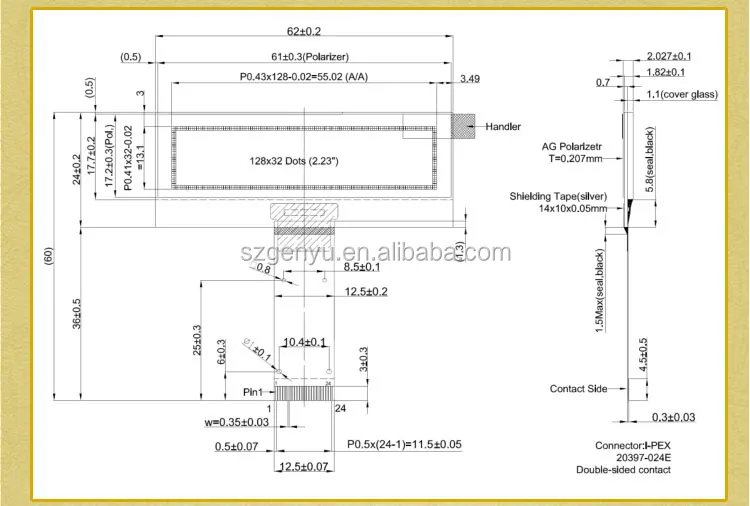

3. Mechanical data

NO	ITEM	SPECIFICATION
1	Diagonal A / A size	2.23 inch
2	Panel Size	62 (W) x 24 (H) x 2.02 (D) mm
3	Active Area	55.02 (W) x 13.1 (H) mm
4	Panel Thickness	1.82 ± 0.1
5	Dot Pitch	0.43 (W) x 0.41 (H)
6	Dot Size	0.41 (W) x 0.39 (H)
7	Dot Matrix	128 (W) x 32 (H) dot

Life Time (120 cd/m 2 ) 10000 - hour
Life Time (80 cd/m 2 ) 30000 - hour
Life Time (60 cd/m 2 ) 50000 - hour

NOTES:
OLED should be grounded during handling OLED.

Detailed Images

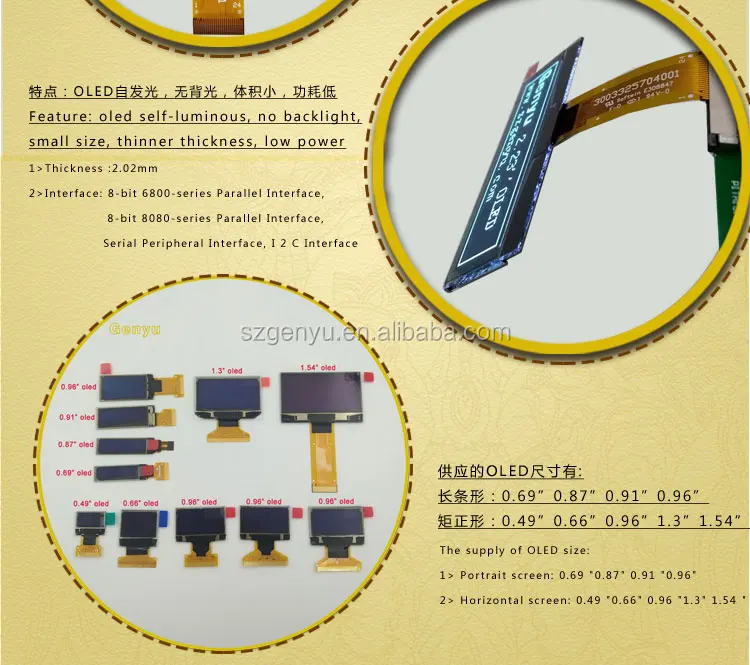

2.23 graphical lcd display oled panel with 24 pin connector white oled light panel

2.23 inch oled white color

♣ OLED Display Packaging
