200a Main Circuit Rating Current and 24v/ 48v Main Circuit Rating Voltage DC Contactor

The product has two sets of contact switch, which can be used in auto electric winch, telecommunication equipment, engineering machinery, storage battery, electric forklift trucks, trains, ships, uniterruptible power supply and other electric control system.
Detailed Images

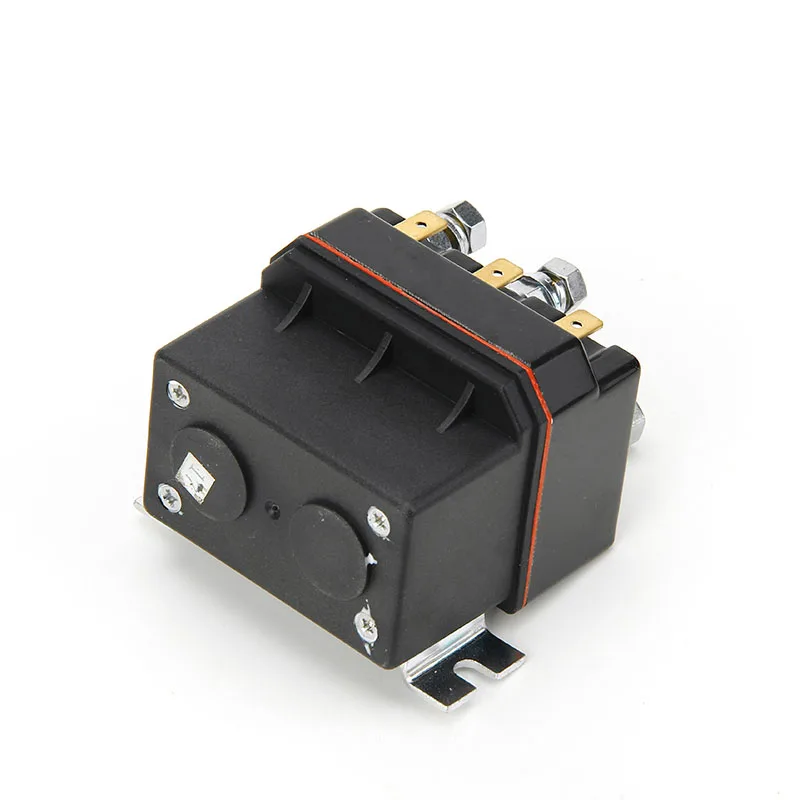

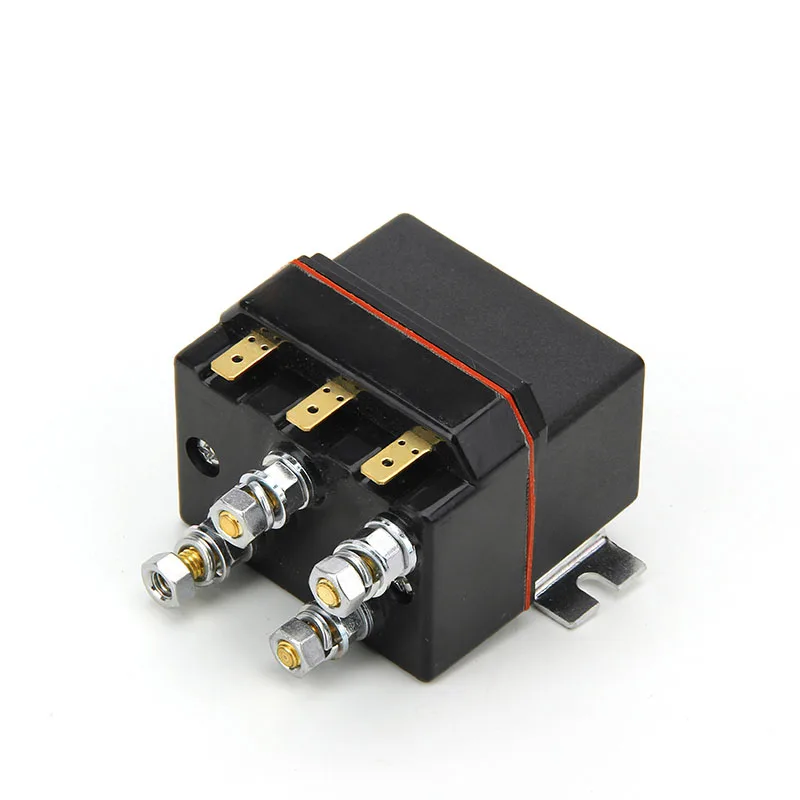

200a Main Circuit Rating Current and 24v/ 48v Main Circuit Rating Voltage DC Contactor

1) Rated Voltage:12V

2) Current: Continuous 100A, DE short work interrupted 400A

3) Contact form:2 NO and 2NC


Technical Parameters
\t
Rated Voltage
\t
12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, etc.
\t
Contact circuit rated load current
\t
continuous 100A, DE Short work interrupted 400A
\t
Typical voltage drop across contacts per 100A
\t
>80mV
\t
the cooling pull-in voltage at (20+5)°C
\t
>70%
\t
The allowed range of coil voltage
\t
±20%
\t
insulation resistance
\t
≥50mΩ
\t
Coil power
\t
Continuous ≤10.0W, DE ≤28.0W
\t
Electrics strength to resist
\t
50Hz/60Hz 1000VAC/1min
\t
Contact form
\t
2NO and 2NC
\t
Contact material
\t
AgCdO/AgCuO
\t
Work specification
\t
continuous or intermittent
\t
Mechanical life
\t
300 thousand times
\t
Start current
\t
≤4A
\t
Technical Specification
\t
GB14048.4-2010
Environment
\t
altitude
\t
≤2km
\t
ambient temperature
\t
-25~+55℃
\t
International protection
\t
IP56
\t
way to install
\t
any
Packing & Delivery

200a Main Circuit Rating Current and 24v/ 48v Main Circuit Rating Voltage DC Contactor

Packaging Details:\tregular packing
Delivery Detail:\tShipped in 20 days after payment
