Chinese Supplier Good Quality Epe Corrugation Galvanized Sheet Metal Steel Press Roll Laminating Machine

Share on (60726590166):


Price:$30,000.00

Quantity:


Product Overview

Description


Chinese Supplier Good Quality Epe Corrugation Galvanized Sheet Metal Steel Press Roll Laminating Machine--_16.jpg

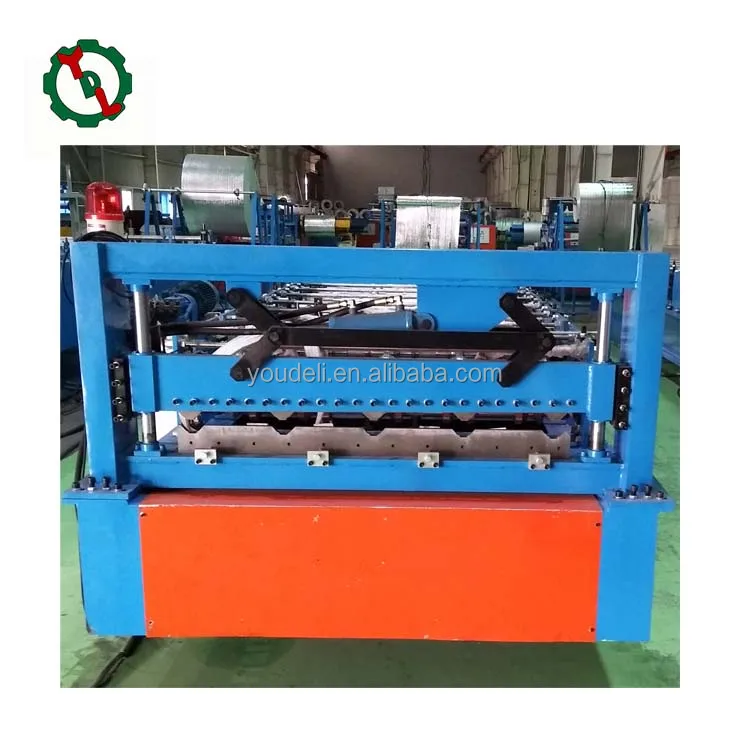

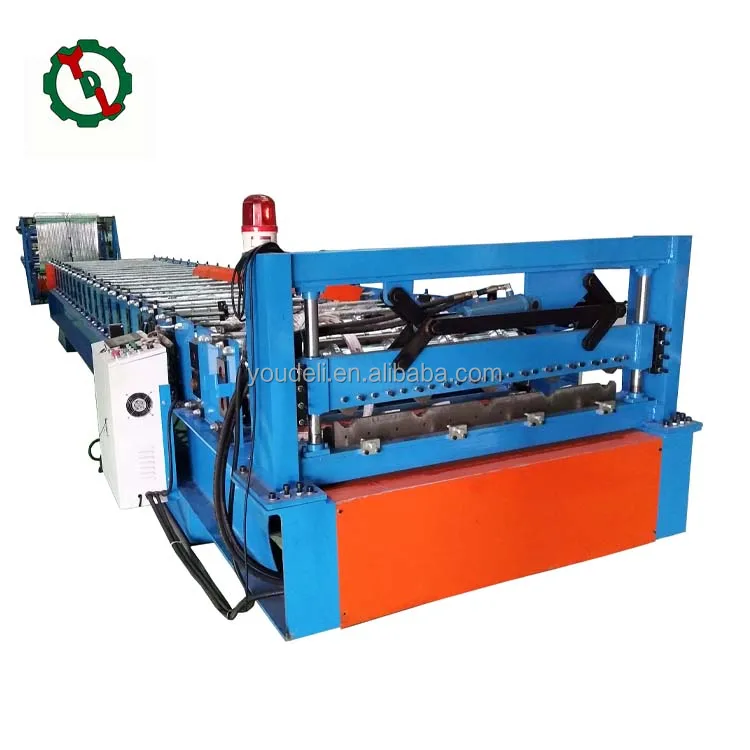

EPE roofing Laminating Machine



Technical Parameters


































































Size for Roofing Machine



7500*1550*1650mm



Total Weight



8000KGS



Voltage of Motor



380V/50HZ/3PH



Driving Motor for Roofing Machine



5.5KW



Hydraulic Motor for Roofing Machine



5.5KW



Motor Power for Feeding EPE



0.75KW



Motor for Spreading Glue Device



0.75KW



Forming Step for Roofing Machine



16steps



Working Speed for roofing Machine



 0-5m/min



Height of roofing Machine



 28mm



Effective Width for roofing Machine



 828mm



Material Width for roofing Machine



 1000mm



Thickness for roofing Machine



 0.3-0.6mm



Tolerance



 ±2mm



After-sales Service Provided



Engineers available to service machinery overseas






Main Accessories




























































































No



Items



Quantity



Remarks



1



Manual/Hydraulic Uncoiler



1set



Up to customer



2



EPE Laminating


Machine



Feeding rollers



2pc







Heating device



1set







Spreading glue device



1set







PLC controlling system



1set







3



Roofing Roll


Forming Machine



Pre-cutting device







Up to customer



Feeding device











Hydraulic system











Roll forming system











Hydraulic punching stamp device











Post cutting device











Protective cover







Up to customer



3



PLC control system with touch screen



1set







4



Run out table



4pcs



Up to customer

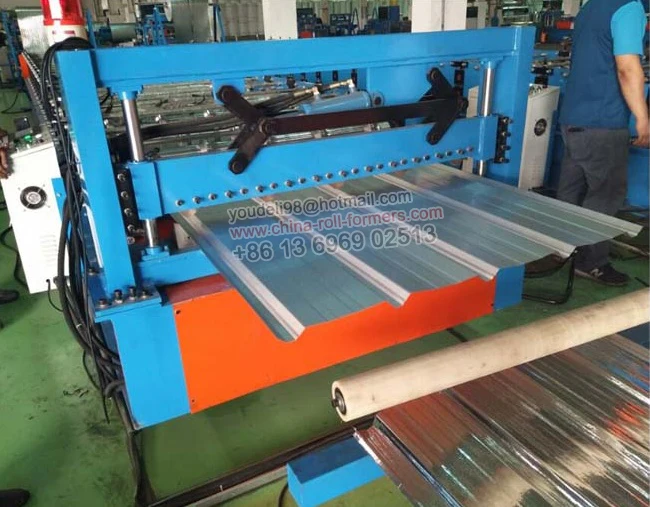

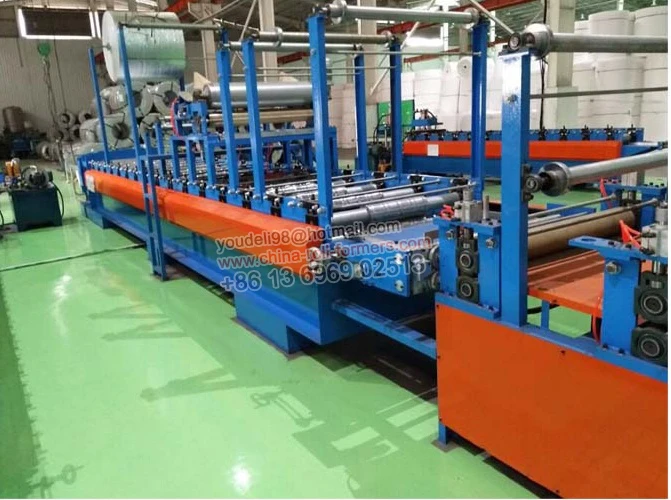

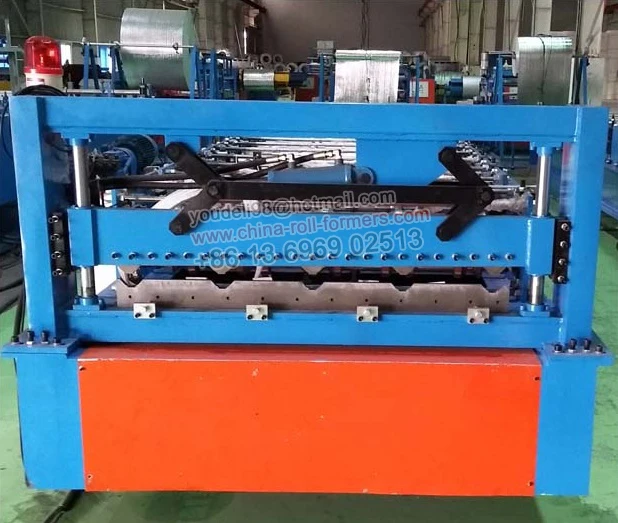

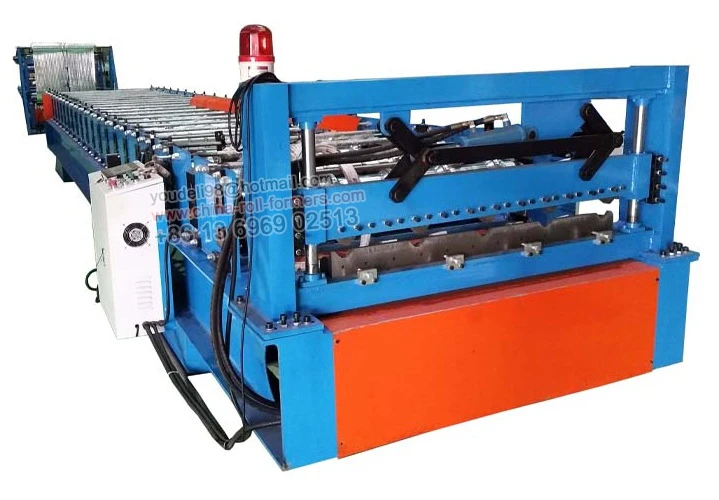

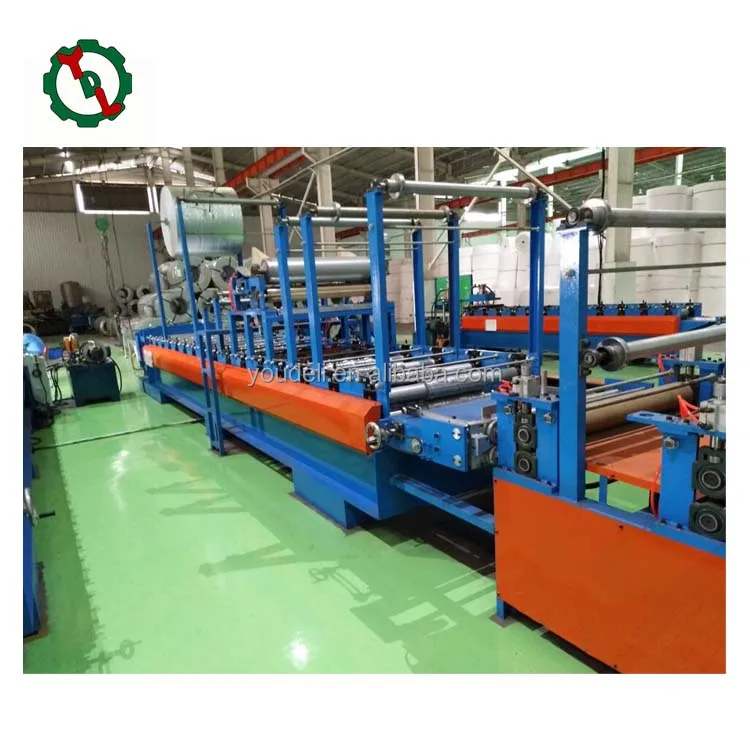

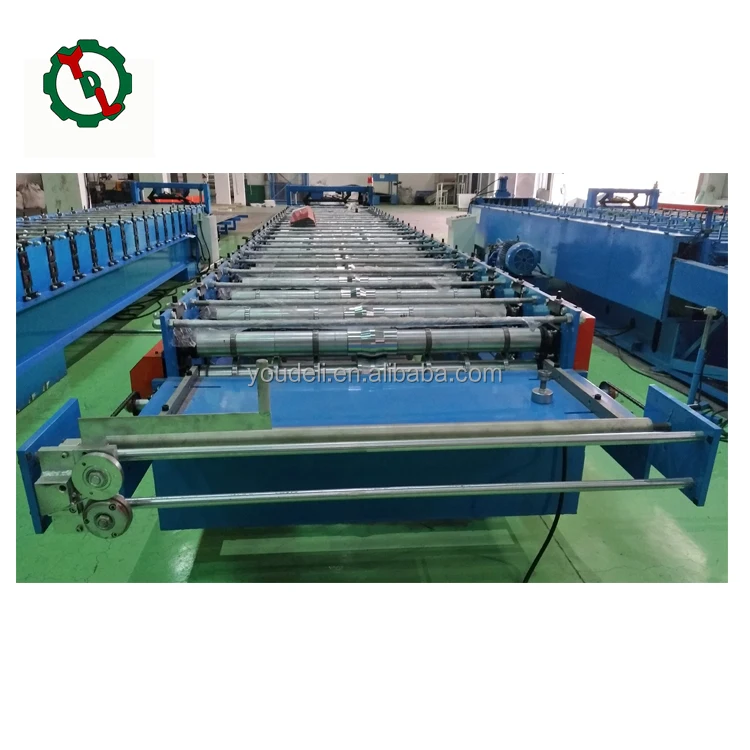

Product Show



























FAQ





1. Are you the trade company or factory?


We are professional manufacturer for making cold metal roll forming machines.





2. How to visit your factory?


We can pick up you at the Xiamen International Airport or Xiamen North Railway Station


to our factory.





3. Do you provide customized machines?


Sure, we can design and make the machines as per your requests. We are the professional


designer and manufacturer for cold metal roll forming machines.





4. Does one machine can only produce one size?


Not exactly, it depends on the machine.





5. Is there quality control when manufacturing the machines?


Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.





6. Why your price is higher than others?


Because we insist on that every company must attach importance to the quality at first


place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.





7. What can you do if the machine broken?


The warranty period of our machines is one year.


If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines.  Anyway we can promise to provide our technology supports for the whole life of our machines.





8. Do you have after technology support?


Yes, we are glad to give suggestions and also have skilled technicians available to service


machinery oversea if you needed.





9. Do you have oversea engineers?


Yes, we can supply not only good skilled technicians to oversea, and also provide


technology training.





10. Can you response for the transport of machines?


Yes, please check us your destination port or address, we have good services of


cooperated shipping line with us.
