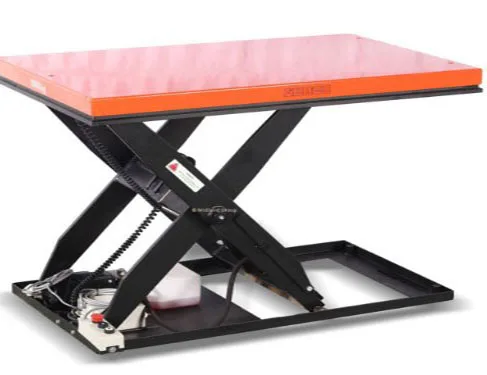

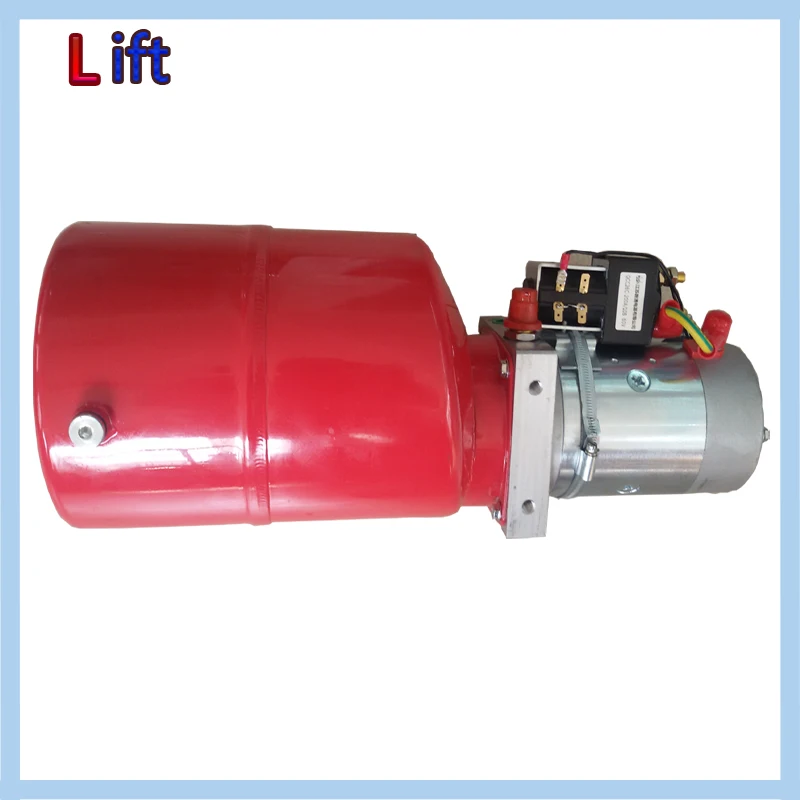

12V 24V volt hydraulic power pack mini table truck platform stacker hydraulic power packs sale

Product Application

12V 24V volt hydraulic power pack mini table truck platform stacker hydraulic power packs sale,this compact structure power unit wquipped with dynamic flow control device to keep constant speed,its advantage:low noise,small size and little weight makes it very suitable for table truck & platform stacker,etc.

Special Notes

1) The duty if this hydraulic power unit is S3.I.E.,30 seconds on and 270 seconds off.

2) Clean all the hydraulic parts concerned before mounting the power unit.

3) Viscosity of the oil should be 15-68cst.

4) This power unit should be horizontal.

5)  Check the oil level in the tank after the first star of the power unit.

6) Change the oil after the first 100 hours of using the power unit,then change the oil every3000 hour.

Hydraulic power unit Parts

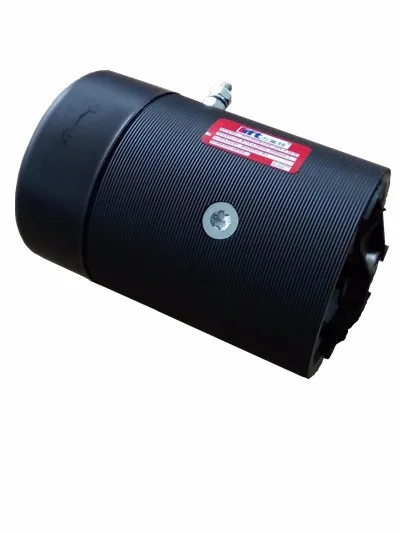

Name: Motor

Brand: LIFT

Original: China

DC motor,International standard steel casting motor with CE & SA certificntion.

Center Manifold Features

Name: Center manifold
Brand: LIFT
Original: China
According to customers requirement,We designed for the usages in different flow and mounting condition.

Hydraulic power unit Parts

Name: Spare part
Brand: FELIFT
Original: China
 Solenoid valve: Max pressure:300bar

                            Max flow:20L/min

                            Coil power:18W

Oil Tank Main Features

Name: Oil tank
Brand: LIFT
Original: China

International standard palstic tank

Colour:White

"W" type:Horizontal    "L" type:Vertical

FAQ.

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:
