pu insole injection machine manufactory
- Category: Other Shoemaking Machines >>>
- Supplier: Ruian Credit Limited Company
Share on (60726684428):
Product Overview
Description
pu insole injection machine manufactory
Product Description
Productd Overviews
Features
1:uesd for shoes
2 Simple operation
3:bulk supply
4:factory price
5:soon delivery
6:sample available
7:customer design can be done
8.high quality and reliability
9.auto/by hand
10.convenient maintenance
Use:
1. Well configured system and ease maintenance.
2. Used for making safety shoe, leisure shoe, casual shoe, sandal, etc in double density.
3. Suitable for direct soling injection of single PU or colorful PU.
4. Each injection unit is equipped with two colors with accurate measurement of painting.
5. Automatic cleaning
6. Low noise and low energy consumption
7. Stable rotation and accurate positioning.
8 High mold clamping force
9. Independent PLC control for each station with multi-function
10 :any colors can be made.
Parts imported:
Electric control:Chnt china
Switch: France:Schnnider
Plc: Siemens
Touch screen: Siemens
Motor: Japan

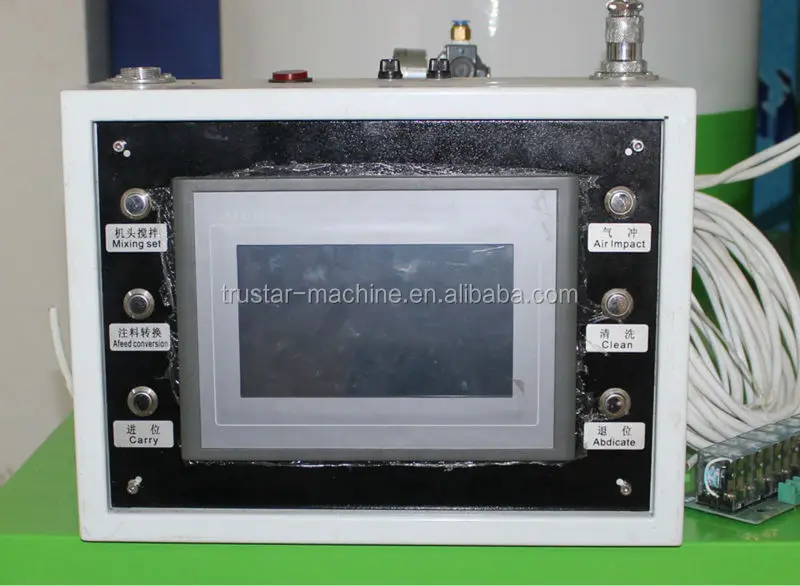

Control system:
1, With the state of the art computer controlled system to gain the machinery more efficiency and reliability.
2, Self-diagnosis, alarming and monitoring functions and multi-language alternatives.
3, Preset technical parameters.
4, Reserve electrical interface for mechanical arm
5, PID closed-loop and self-regulated injection program
6, Automatic PID temperature control
7, Emergent halt protection device.
Specifications
5tanks, capacity of each tank: 160L or 250L
Can three colors three density PU and transparent PU shoe sole at the same time
Characteristics:
1. Have three A tank and two B tank, can make different density and different color foaming outsole, by mix each A and B under requirement. Especially advantage in double pouring head can make transparent polyurethane outsole at same time.
2. Under different proportion of A and B raw material, can get different properties polyurethane sole material. The mix head with five needle which can work independently.
3. Heating system with electricity, make heating more fast and more efficient in power saving.
4. Self-developed PLC, with function of setting time, real-time monitoring and so on.

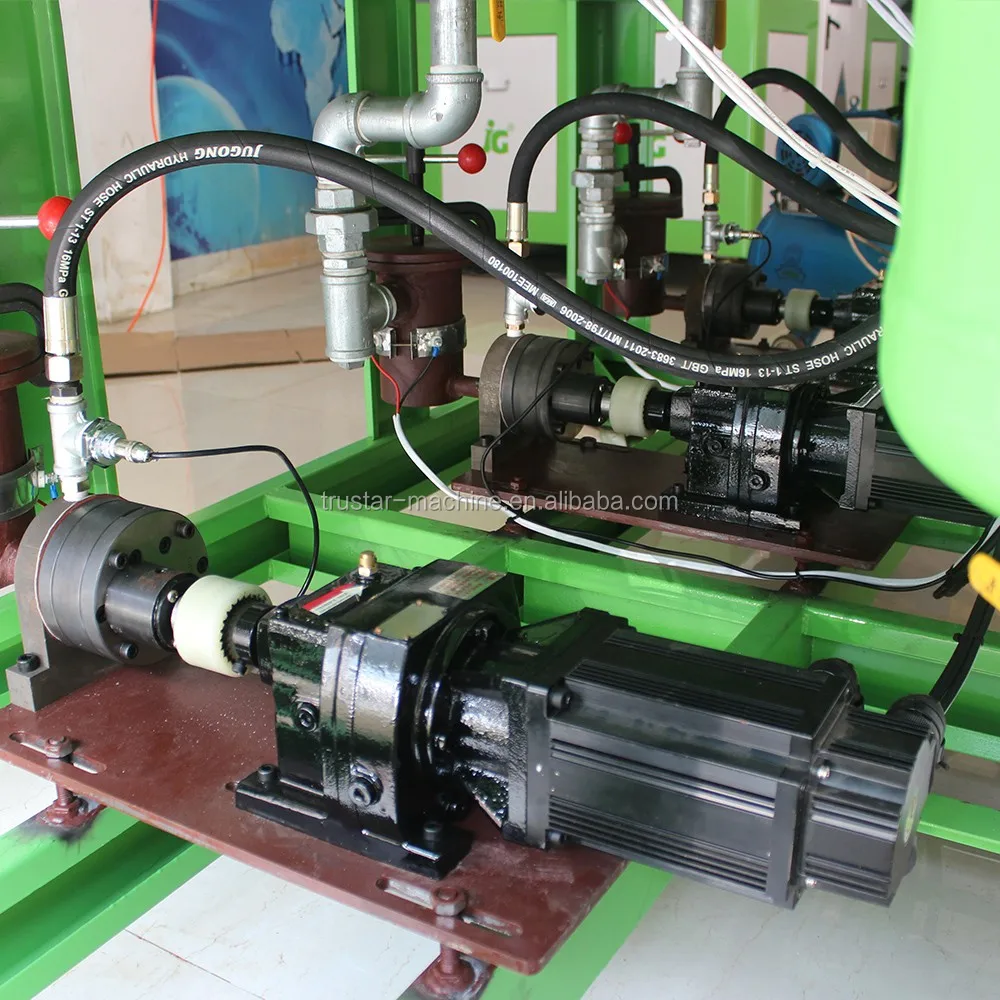

5. The speed of pump use frequency conversion control, with advantages of energy saving and keep the rotational speed when voltage instability.
Technical Parameter:
| 1 | Model | JG-806 |
| 2 | Tank quantity | 5 |
| 3 | Tank capacity | 250L |
| 4 | Pump quantity | 5 |
| 5 | Speed of pump(r/min | 0---280 |
| 6 | Precision (%) | ±0.5 |
| 7 | Max rotating Speed of injection screw | 4500/8600-10000 (Choice by yourself) |
| 8 | Clean the head | Automatic/By hand |
| 9 | Voltage | 380V,50HZ |
| 10 | power | 20(kw) |
| 11 | Clean quantity | 4500(r/min)>25,9000(r/min)>160 |
| 12 | Product characteristics | three color three density and transparent PU soles Can produce two different material |
| 13 | Productivity(output ) | if work 8 hours can produce 3600pairs of the shoes. every four minute can produce 30prs of the shoe. |
Detailed Images
The whole producing line include one main machine, one 60 station convey, one oven

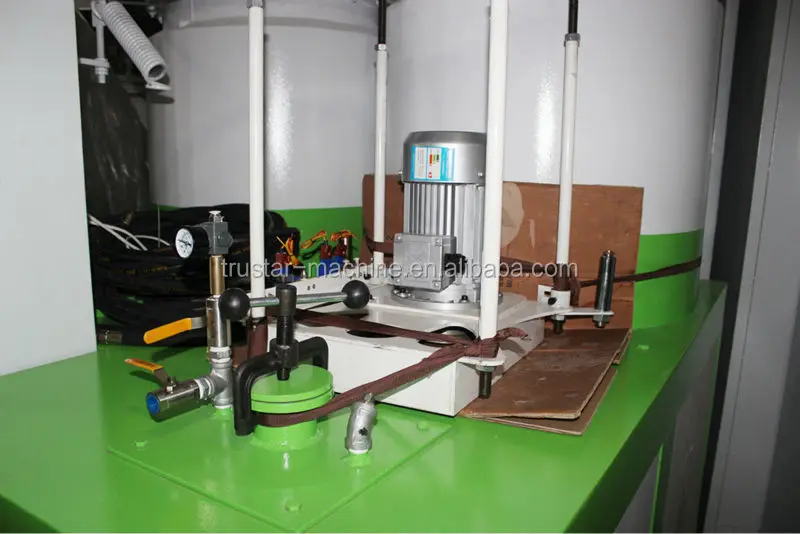

1.main machine
2. 60 station producing line(conveyor)

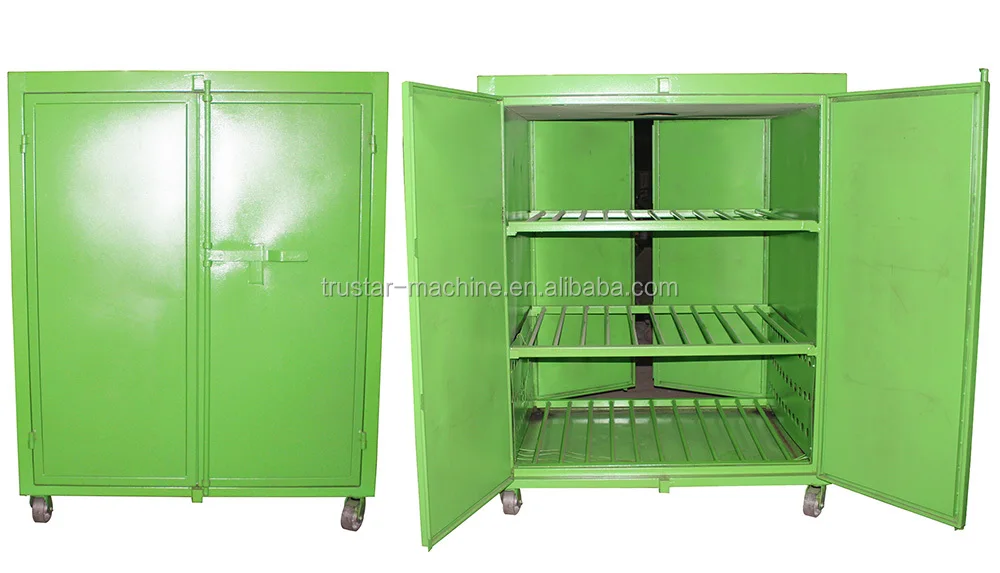

3. The raw material oven
4.CE
Packaging & Shipping
Can produce safty shoes, leathe shoes, sandal shoes etc.
The packing and shipping

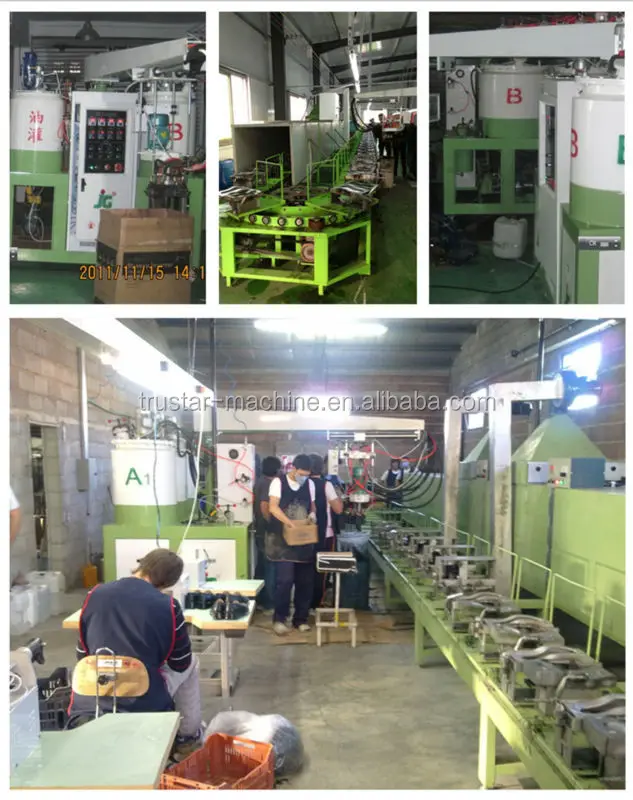

The production workshop
Attend trade shows
