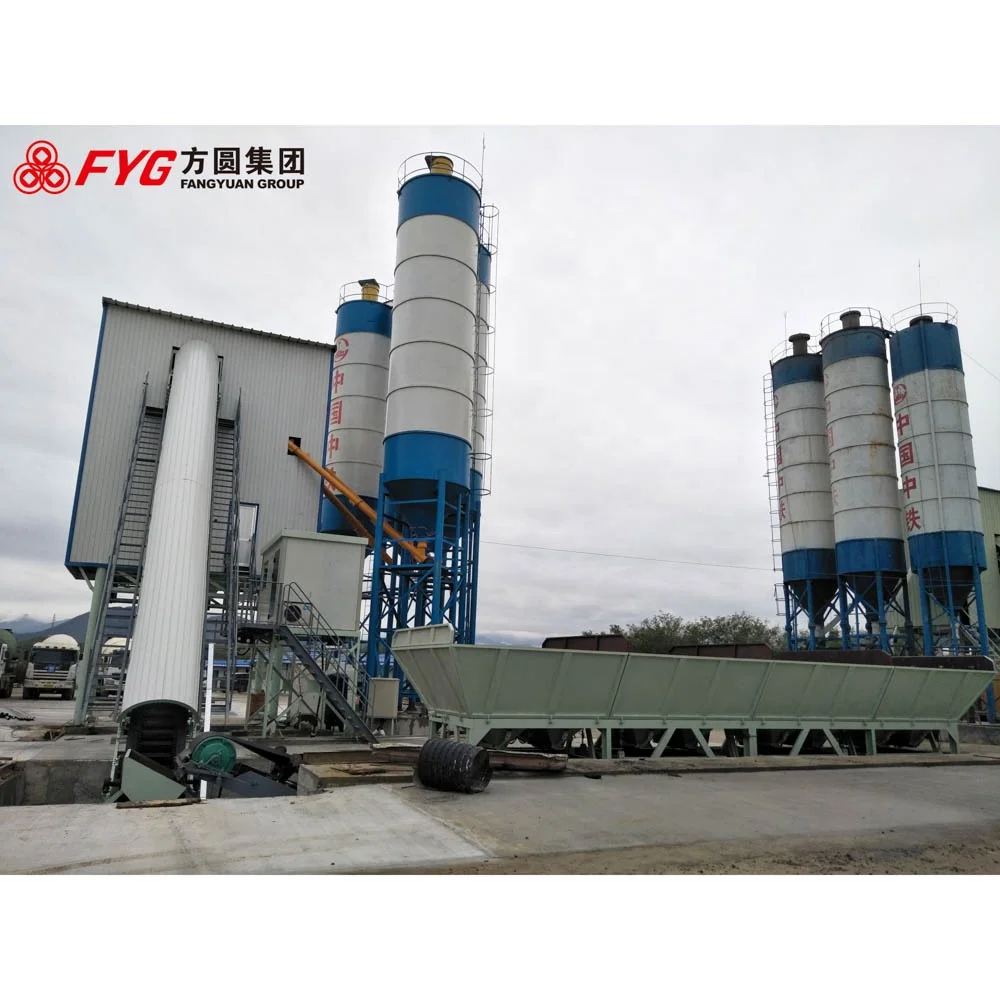

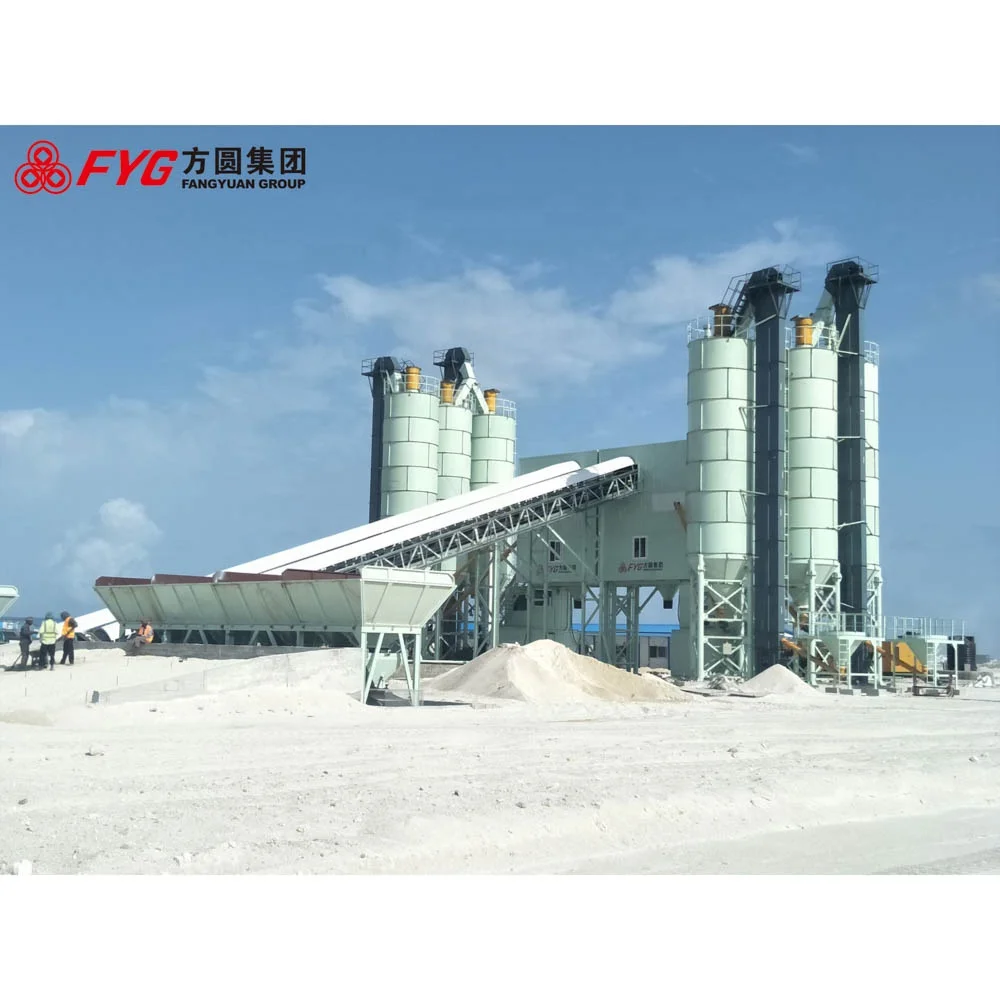

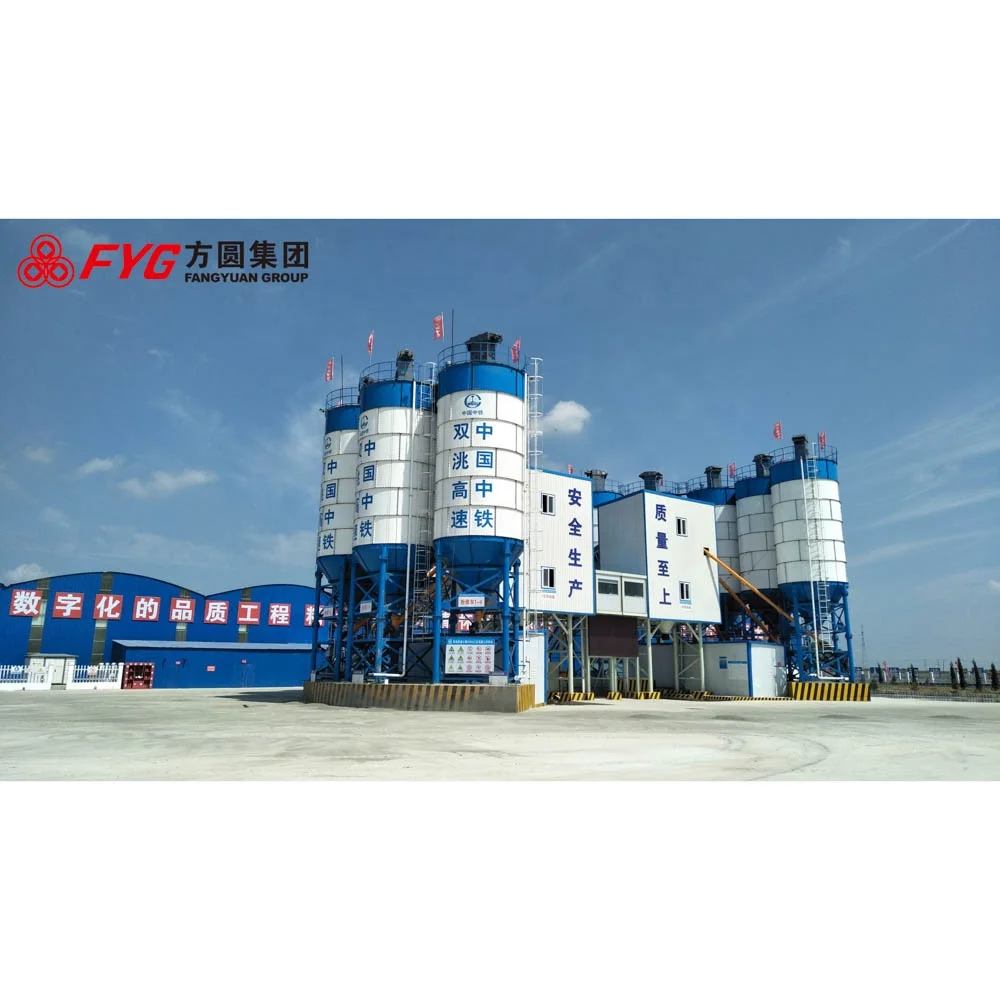

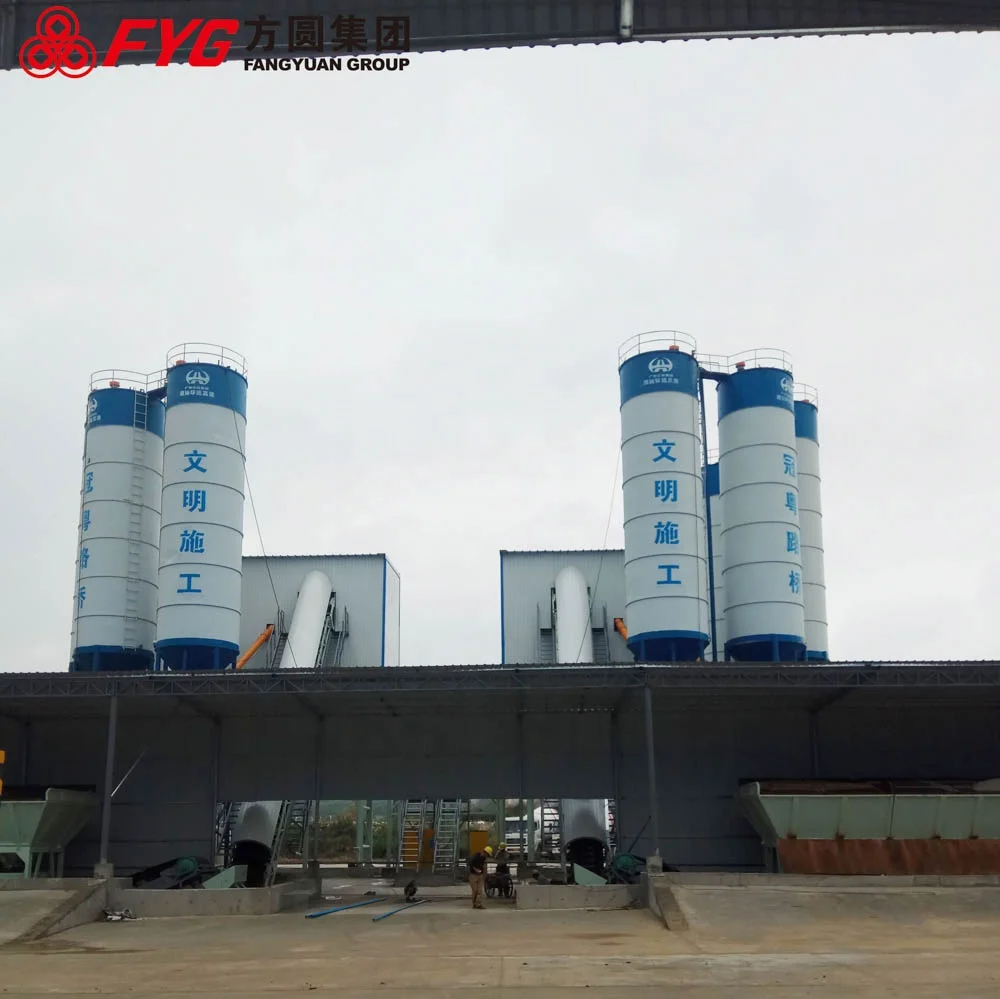

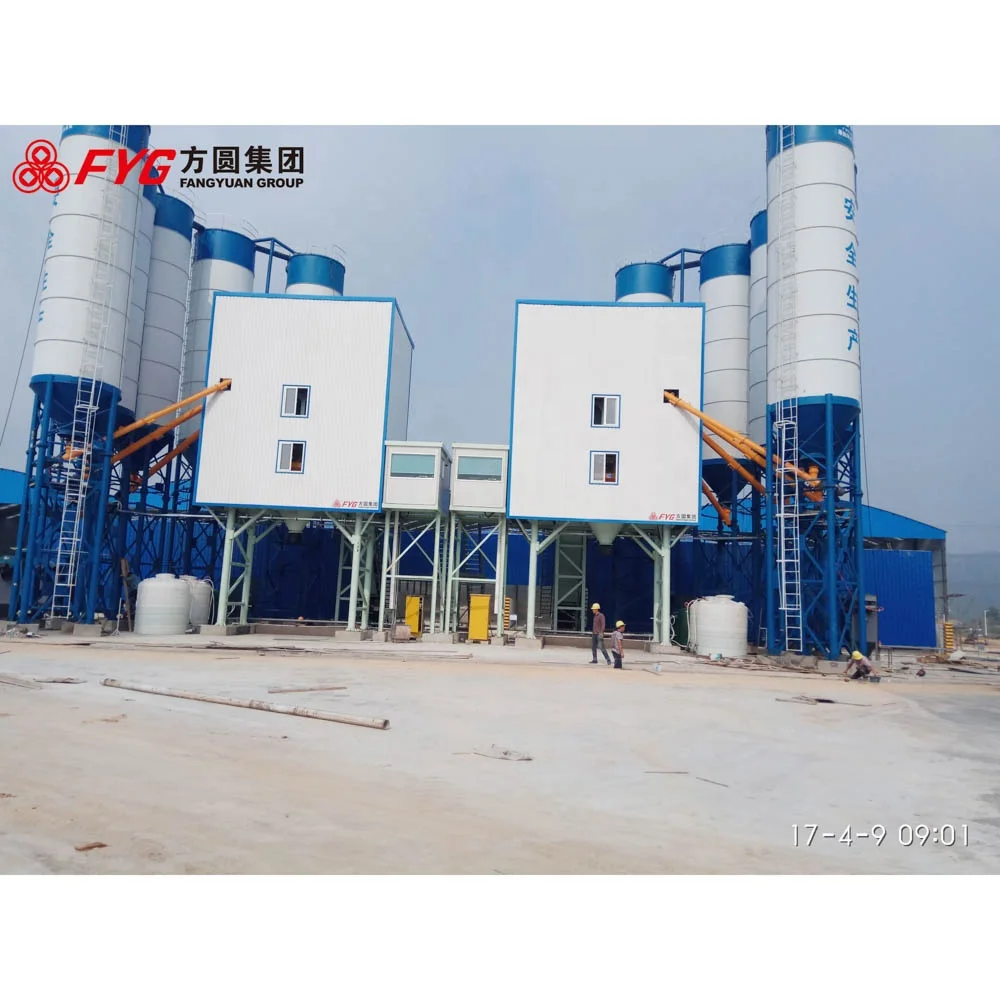

HZS120 mobile cement concrete mixing plant station

Product Overview

Description

HZS120 mobile cement concrete mixing plant station cement mixing station hzs120 concrete mixing plant mobile cement mixing plant

Technical parameters		Unit	HZS120
Theory prouducivity		m³/h	120
Volume of mainframe		m³	2
Batcher			PLD3200QD-IV
Batcher(volume perbin)		m³	20
Batcher(bin's amout)			4
Aggregate max scale		kg	4×2000
Cement max scale		kg	1200
Powder material max scale		kg	400
Water max scale		kg	500
Liquid additive max scale		kg	50
The mixer's power		kw	2×37
Lifting power		kw	30
Whole power		kw	150
Discharging height		m	3.8
The whole weight		t	60
Dimension(length×witch×height)		m	46.7×23×20
Feeding style			Belt
Calcuulating precision	Aggregate		±2%
	Powder material		±1%
	Water		±1%
	Additives		±1%
