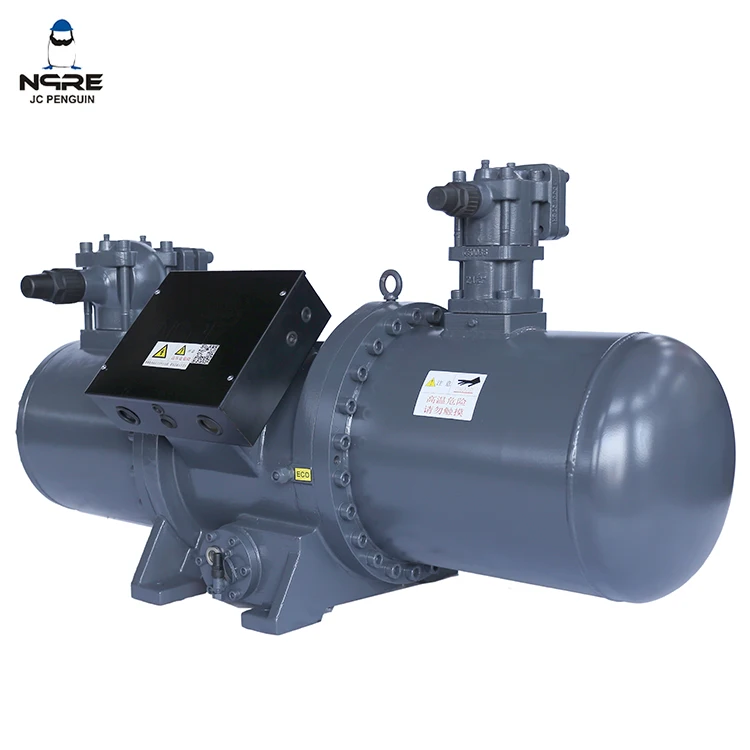

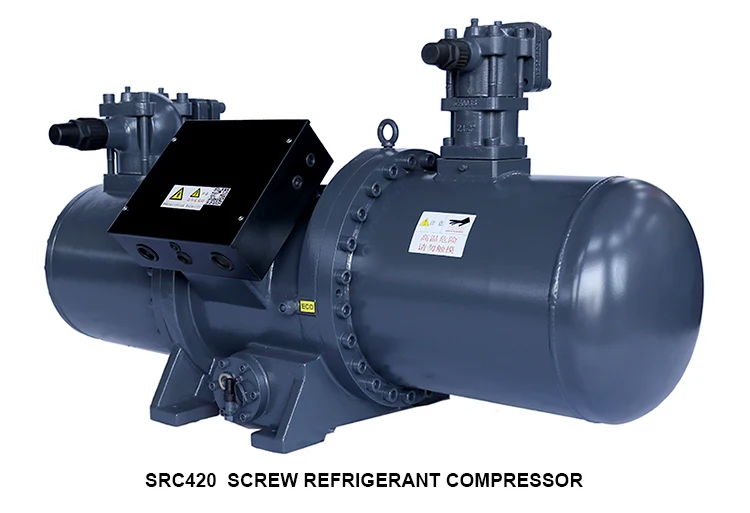

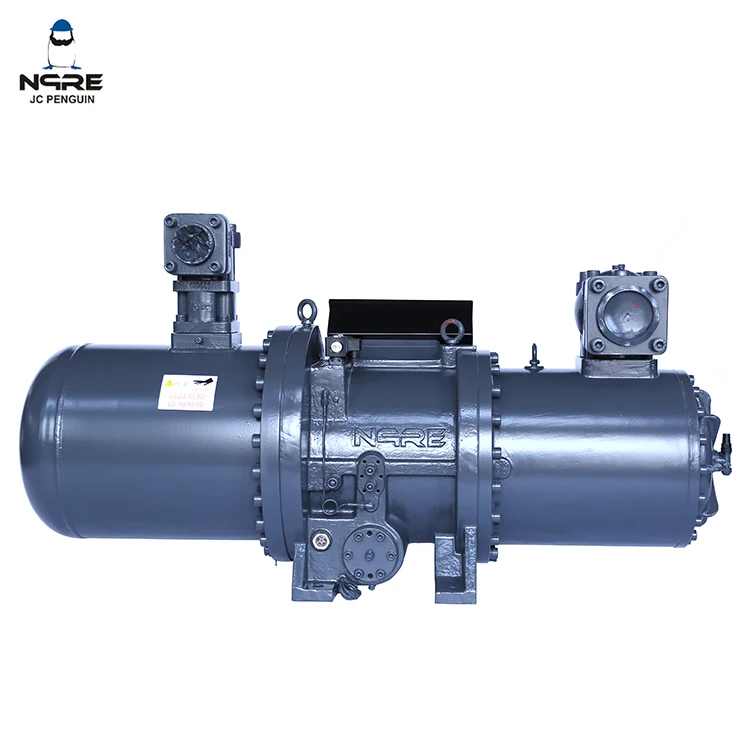

120HP Condensing Machine Refrigeration system hermetically sealed compressor
- Category: >>>
- Supplier: Taixing Jingchuang Penguin Refrigeration Equipment Factory (general Partnership)
Share on (60726701981):
Product Overview
Description
120HP Condensing Machine Refrigeration system hermetically sealed compressor

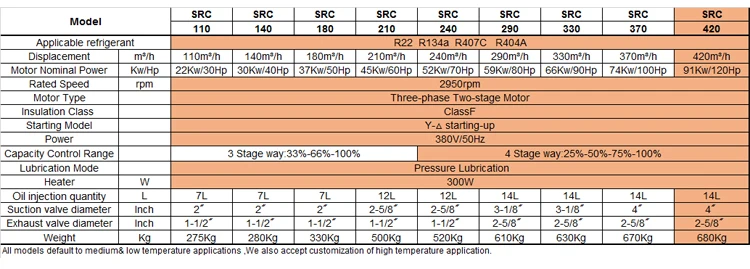

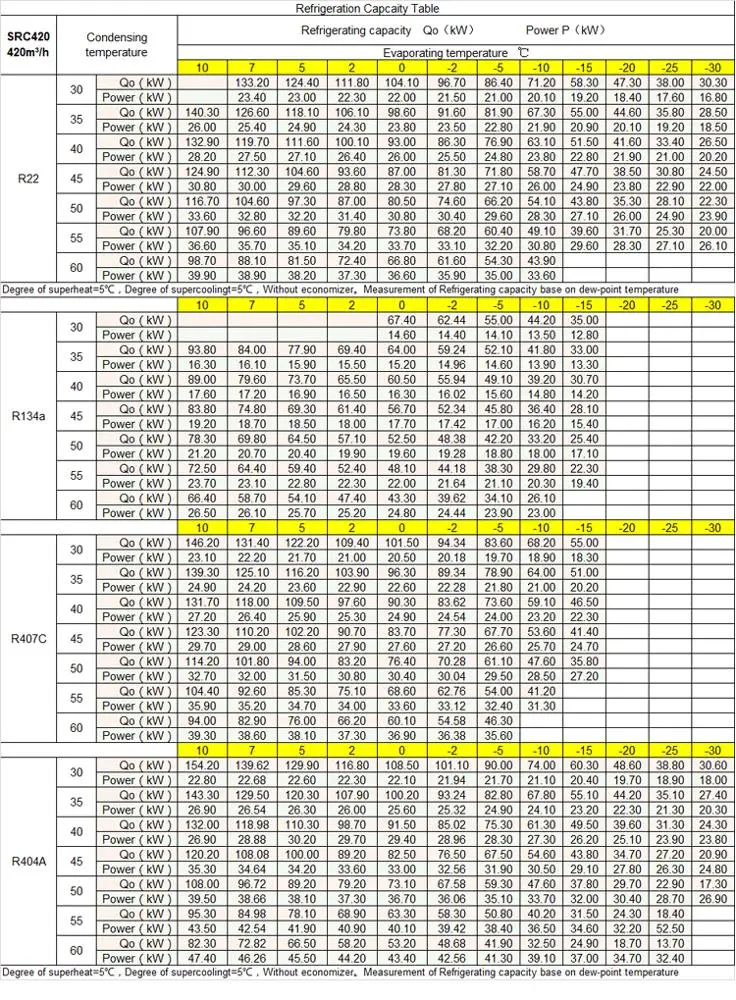

Technical Parameter

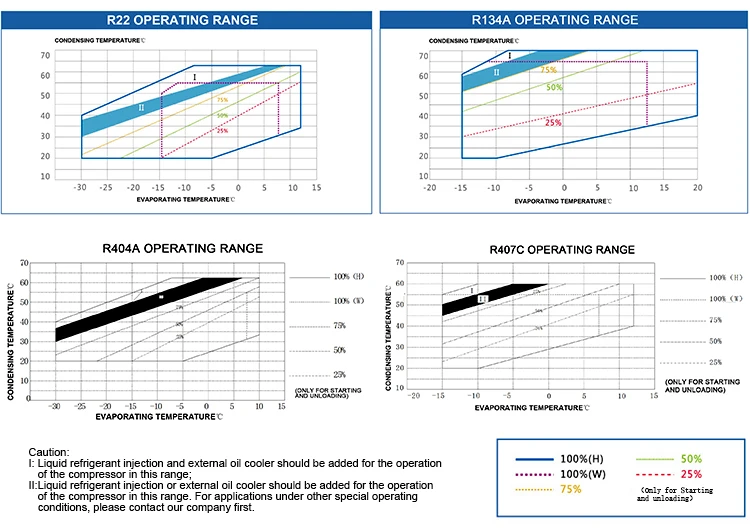

Range Of Application
Application Scope

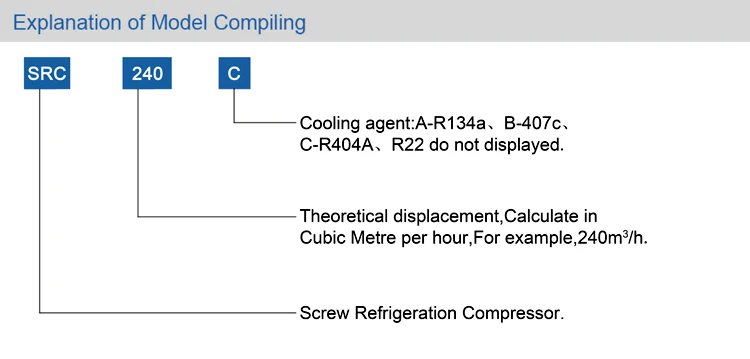

Model Compiling
Eg:SRC240C means a Screw Refrigeration compressor which theoretical displacement
is 240 cubic metre per hour,and use cooling agent R404A.

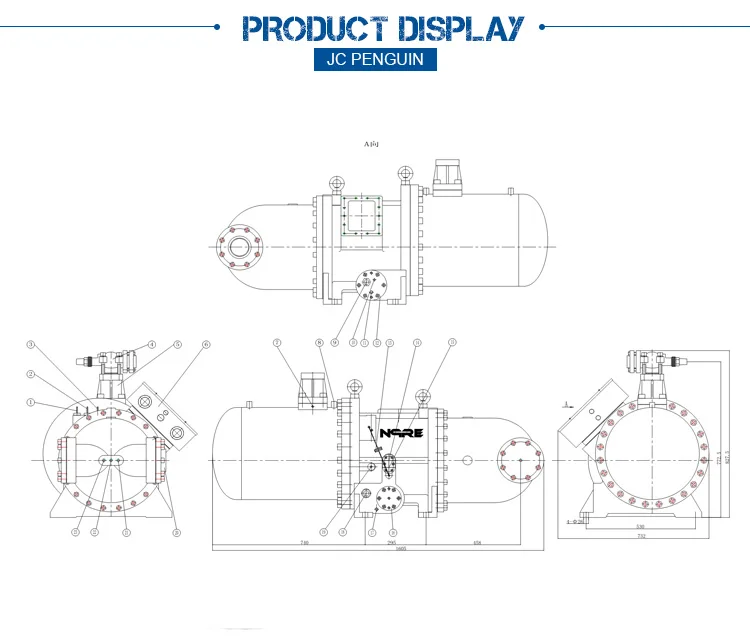

structure chart
| No. | Description | No. | Description | ||
| 1 | magnetic valve for step control | 25% | 13 | capacity control capillary tube | |
| 2 | magnetic valve for step control | 75% | 14 | oil cooling outlet | RC3/8" |
| 3 | magnetic valve for step control | 50% | 15 | oil cooling inlet | RC3/8" |
| 4 | inlet shutoff valve | 16 | oil filter | ||
| 5 | outlet shutoff valve | 17 | oil heater | 300W | |
| 6 | connecting box | 18 | external sight glass | M27X1.5 | |
| 7 | high temperature protection connector | RC1/8" | 19 | backup connector | RC1/2" |
| 8 | high pressure connection | RC1/8" | 20 | inlet shutoff valve | |
| 9 | external sight glass | M27X1.5 | 21 | backup connector | RC3/8" |
| 10 | liquid level switch | 22 | refrigerant filling corner valve | RC3/8" | |
| 11 | oil outlet valve | RC3/8" | 23 | low-pressure connection | RC1/8" |
| 12 | cover of liquid level switch | for clean purpose |
Company Information
Jiangsu Taixing Jingchuang Penguin Refrigeration Equipment Manufactory (JC PENGUIN) was established in 1992, we are an enterprise specializing in the development and production of refrigerating compressors and related condensing units. The main products range from semi-hermetic Piston refrigerating compressors to scroll and screw refrigerating compressors and related condensing units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.
