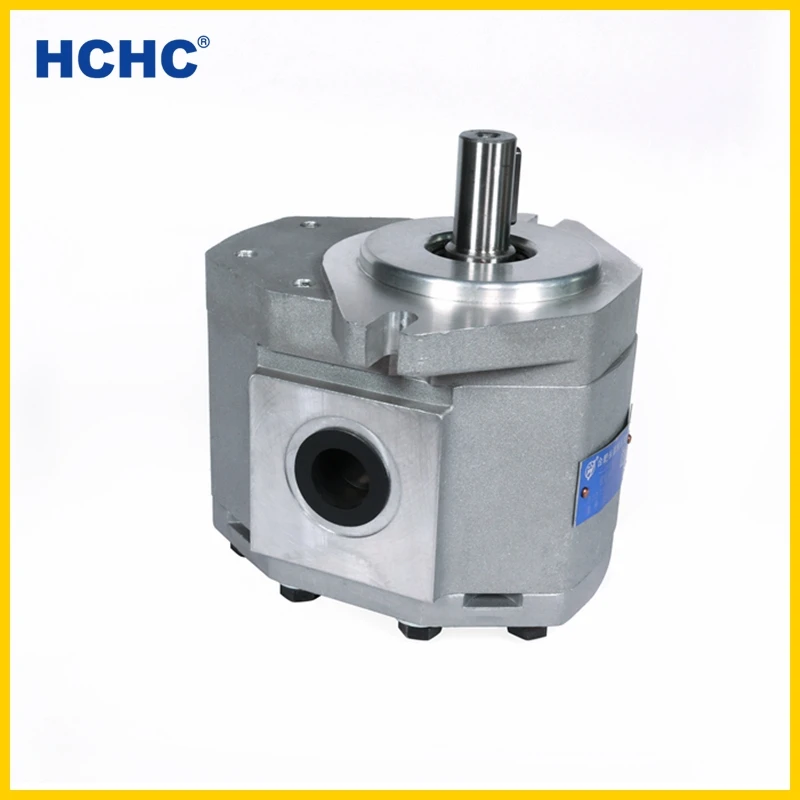

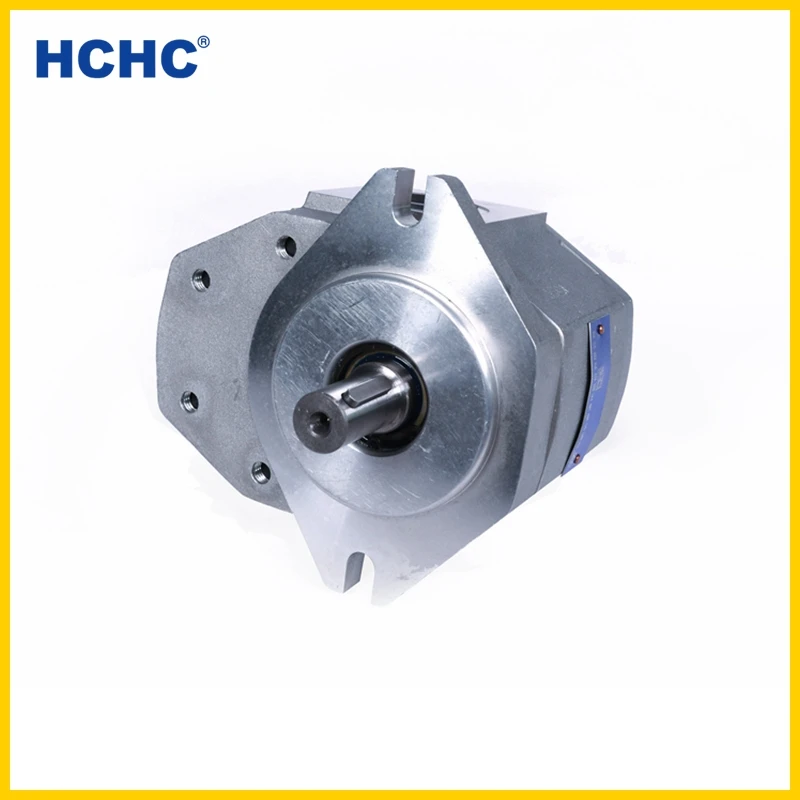

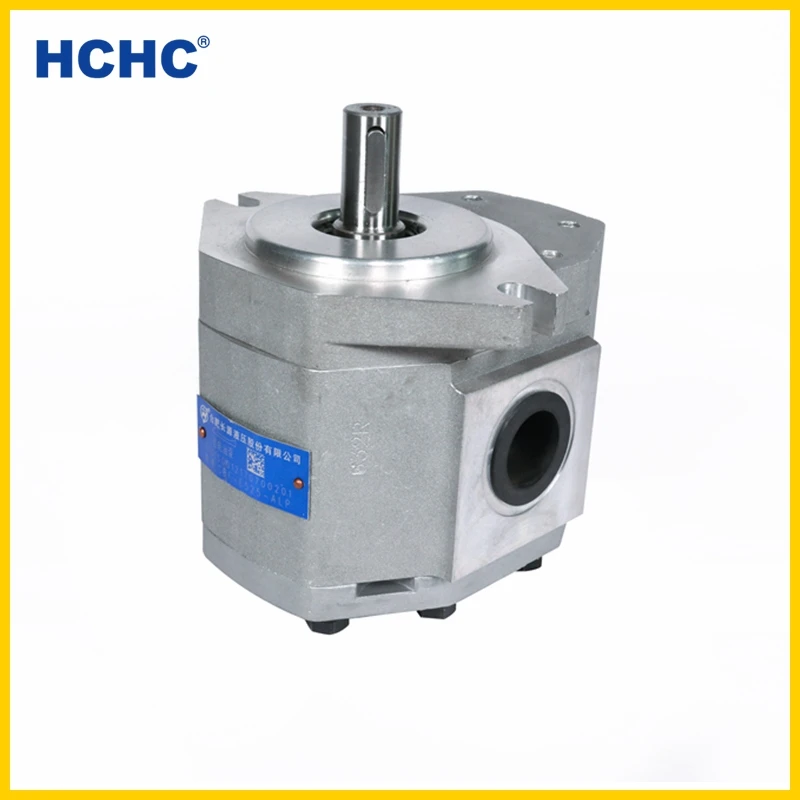

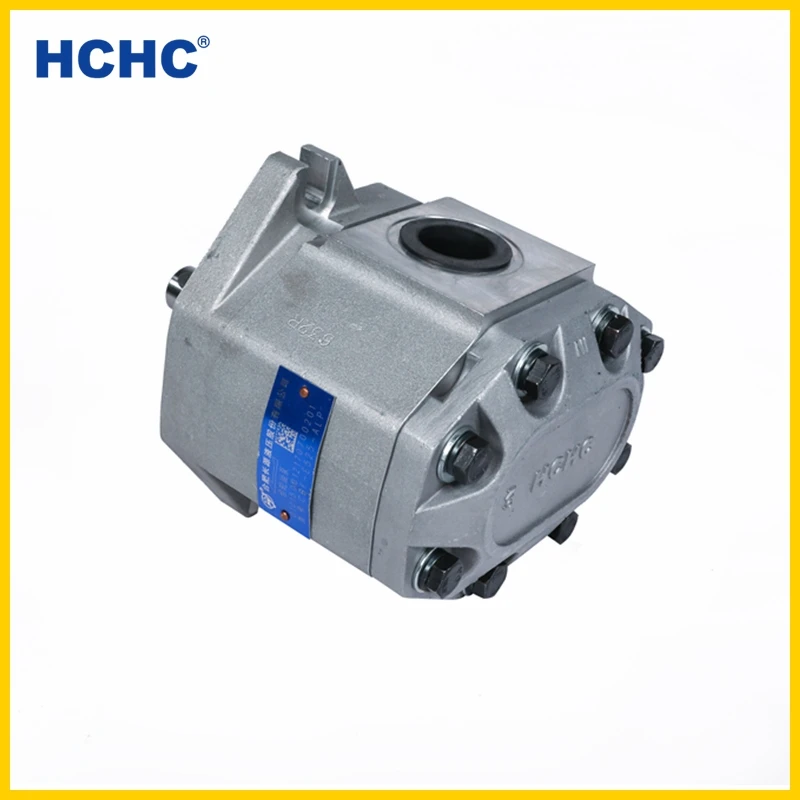

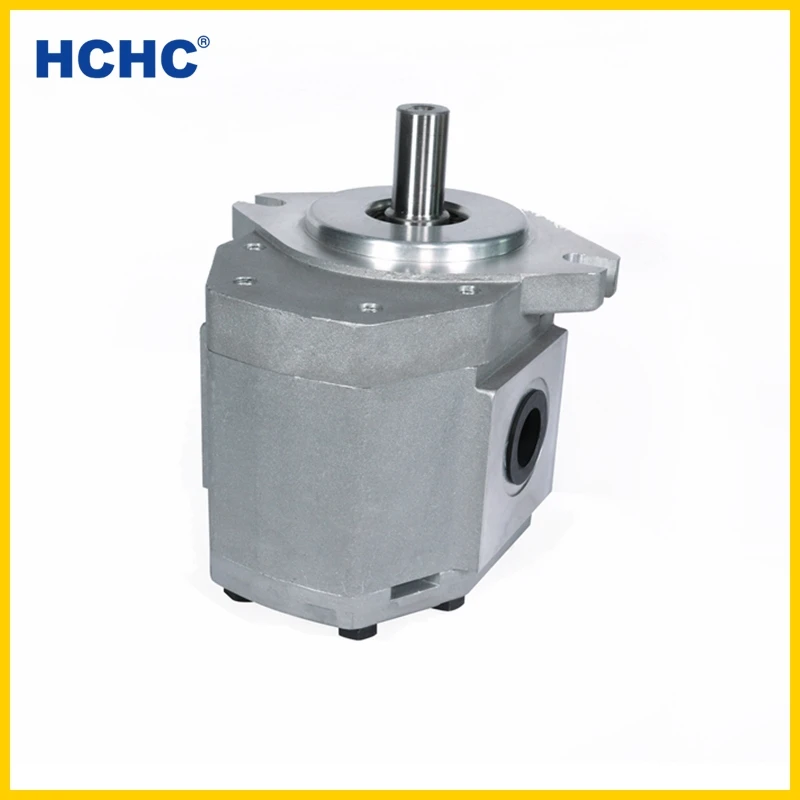

HCHC hydraulic pump exporter of hydraulic gear pump aluminum CBF

★ High strength aluminum alloy housing.
★ The connection form of input shaft includes flat key and rectangle spline.
★ The automatic compensation mechanism of axial clearance enables gear pump to maintain a long-time high efficiency work.
★ High working pressure and wide speed range.

Specification

Model Code

CBF - E 5 ** - A   L   *   *

①      ②③④ ⑤ ⑥ ⑦ ⑧

①Product code
②Pressure grade: E=160bar
③Gear module: 5
④Nominal displacement (mL/r)
⑤Mounting type: A=rhombic flange
⑥Joining port type: L=thread

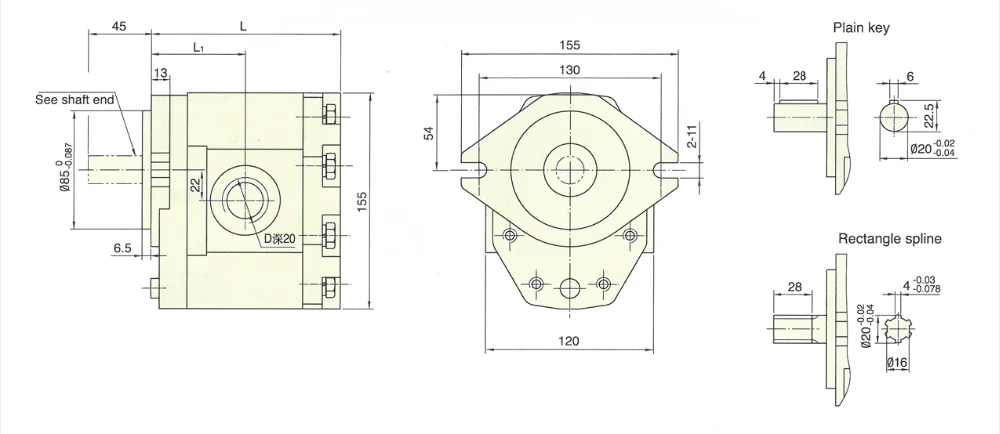

⑦Shaft extension type:

P=flat key, H=rectangle spline
⑧Rotation: L=counterclockwise, R=clockwise

Model	Nominal Displacement (mL/r)	Pressure (MPa)			Speed (r/min)					Volume Efficiency (≥%)	Weight (kg)
				Rated	Max.	Min.	Rated	Max.
CBF-E510-AL**	10	16	20	800	2500	3000	91	5.1
CBF-E514-AL**	14													5.3
CBF-E516-AL**	16													5.4
CBF-E520-AL**	20								600				5.6
CBF-E525-AL**	25											93	5.9
CBF-E532-AL**	32													6.2
CBF-E540-AL**	40													6.7
