professional supplier pert water and gas pipes making machine equipment

Product Overview

Description

professional supplier pert water and gas pipes making machine/equipment

Machine Desciption:

The screw of the extruder equipped with barrier unit and mixing structure, and the barrel owns new stype grooves.

All of these offer good plastification and mixing effect.

Special design of basket die head of for PPR large diameter pipe withi thick wall offer lower melting temperature, good mixing, lower pressure of cavity, and stable production.



Feature and advantage:

1. This production line aim at the characteristic of the PPR pipes.

2. It adopts high efficiency single screw extruder can equipped with the Siemens PLC controlling system

(3) It can realize the whole line automatic controlling of high capacity, stable extruding with the suitable changing of different units could realize the production job of PE-RT, PEX, PB pipe.



Processing Flow:

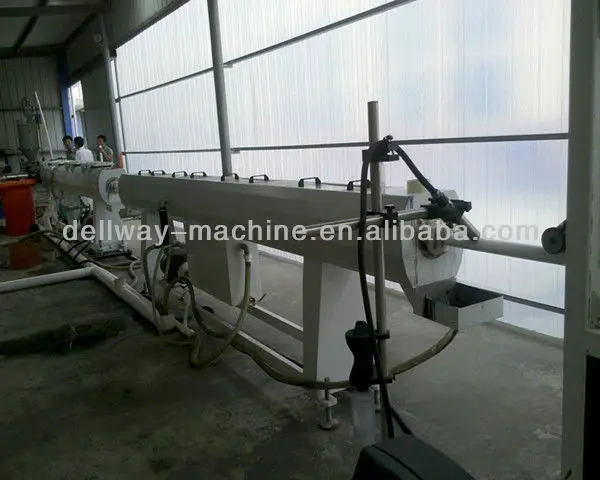

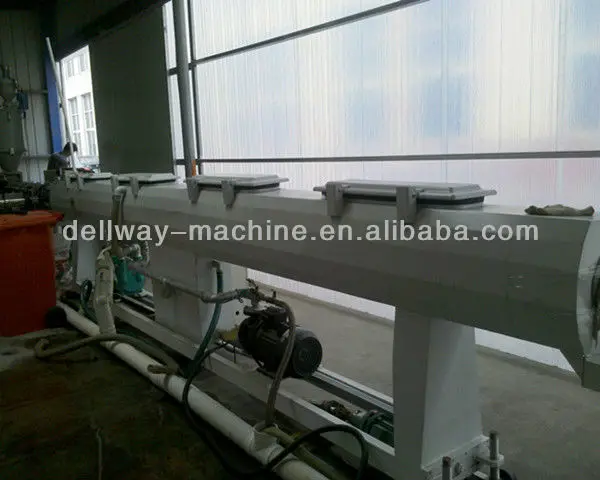

Raw material+master batches → Mixing → vacuum feeding → material dryness → single screw extruder →color string extruder → spiral mould → calibrator → spray vacuum calibration tank → spray cooling water tank →spray-code printer → belt haul-off → no-dust cutter → pipe rack → finished product inspecting &packing



Technical Parameters:



Model	Screw Dia	L/D	Extruder Qty	Pipe Range	Capacity	Main Motor Power	Total Power	Line Length
FR-PPR-63A	50mm	33:1	4	20-63	100-200	22*3	120	30
FR-PPR-63B	65mm,50mm	33:1	3	20-63	100-180	37*1,22*1	110	30
FR-PPR-110A	65mm	33:1	4	20-110	180-300	37*3	190	38
FR=PPR-110B	75mm,65mm	33:1	3	20-110	150-300	55*1,37* 1	180	38

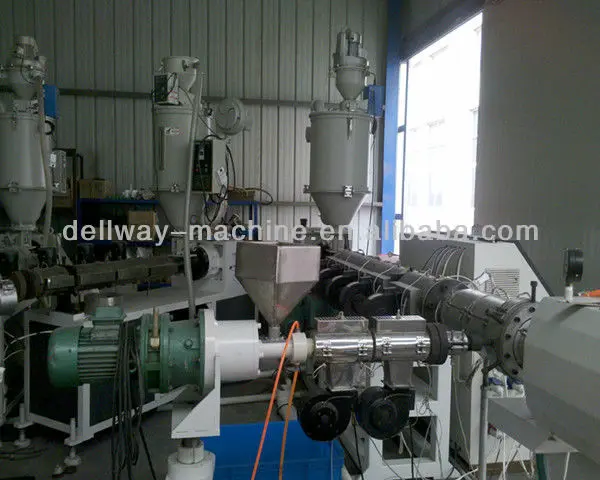

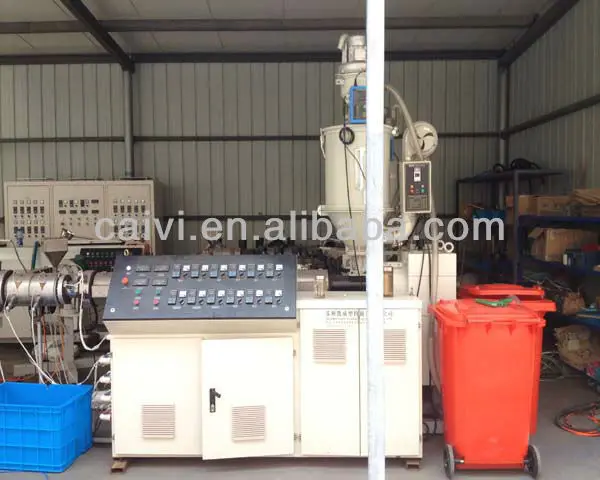

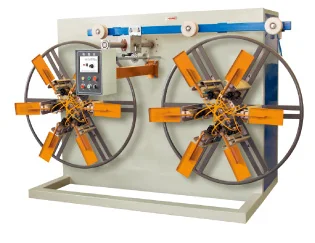

Pictures:













Exhibition Show:



Shipping Show:

Welcome to our factory to check your PPR Pipe Extruder Machine.

Please contact us without any hesitation if you have any qeustion!!!

Skype:caivisales3
