1 2T 3 ton 3.2 ton europe style single beam girder bridge electric overhead traveling crane in workshop price

Product Overview

Description

Best selling 2T 5 ton bridge crane overhead crane price9

Product details

Best selling 2T 5 ton bridge crane overhead crane price



• Brief introduction

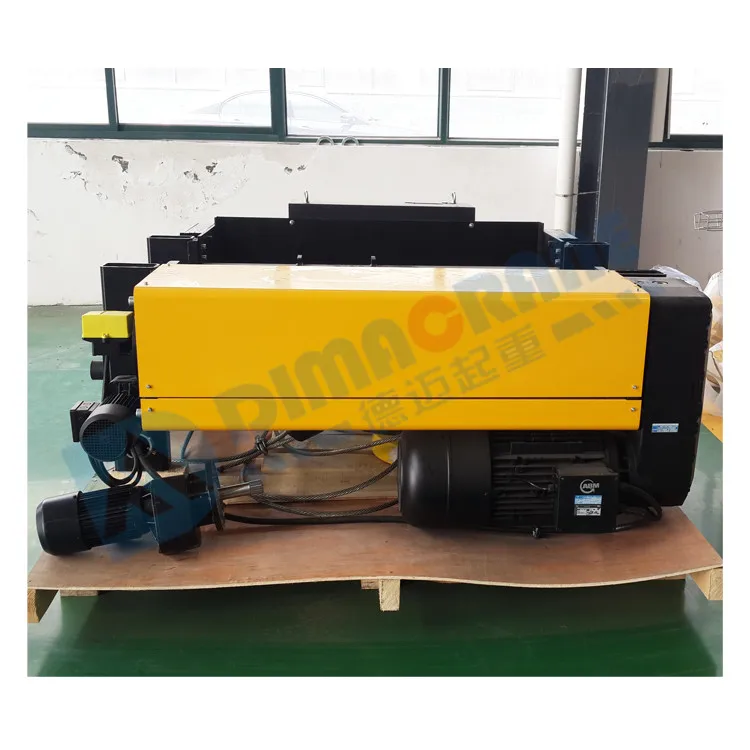

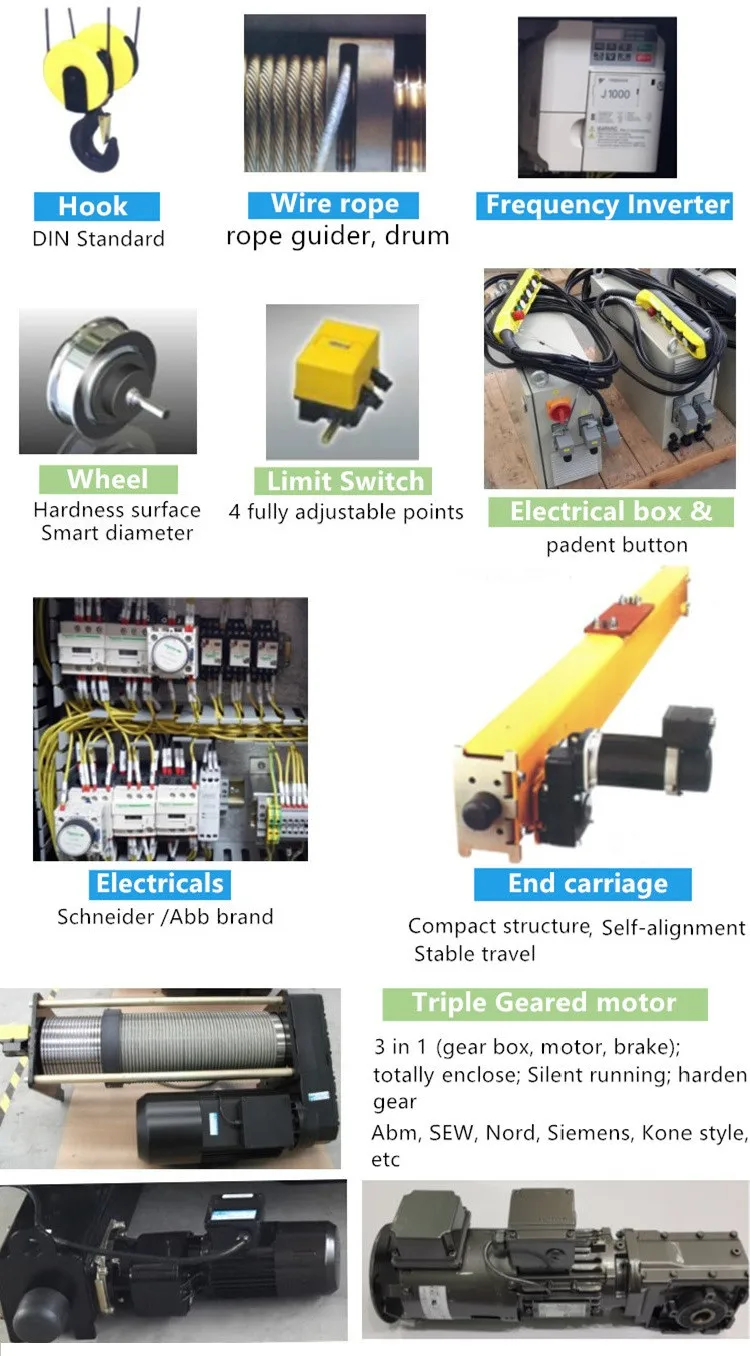

This is LD model single girder overhead bridge crane which including 12.5 ton 10 ton 6.3 ton 5 ton 3 ton 2 ton and so on. It can be customized according to your different requirements. It is of advanced technology, whose design is based on international standard: FEM (Europe), DIN (Germany), ISO(International), equipped with many advantages such as: strong rigidity, light dead weight, low power, outstanding structure design etc.  The configurations are very advanced, such as Schneider electrical appliances, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and so on

• Unique features

1) high reliability, safety, free maintenance rate;

a) work duty: FEM2M, M5

b) Protection class: IP55

c) Insulation class: F

d) continuing rate: 60% ( for the high class motor)

e) Cooling rate: 30% than normal crane

f) Over temperature protection: 170℃

2) compact design, small size, low dead weight, low headroom

3) Low noise

4) Investment-saved---the workshop’s civil work cost, due to crane’s light dead weight and low wheel pressure.

5) Power-saved. The total motor power is much lower than normal design.

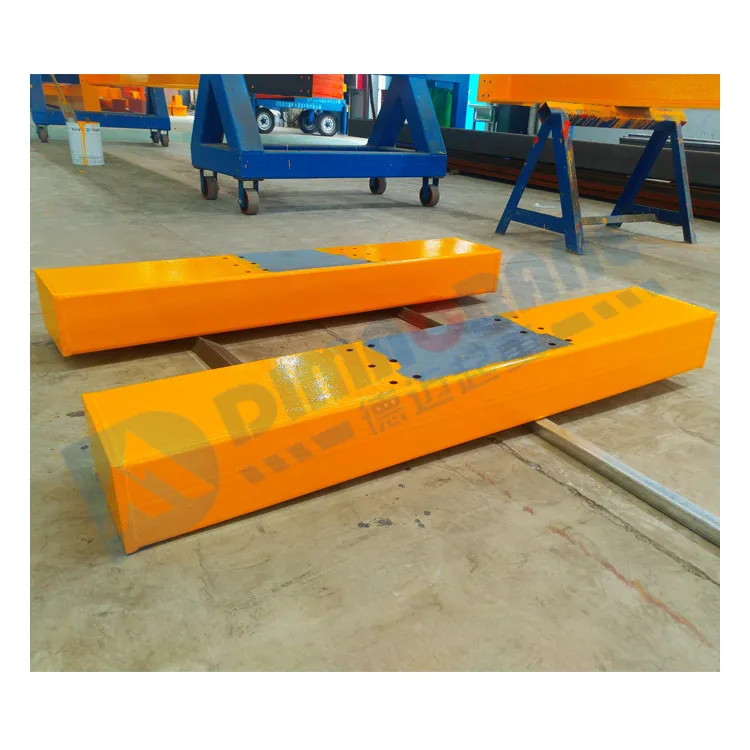

• Euro-style Main Girder

1. Main girder uses bias-rail box type structure, with optimized design and light dead weight.

2. Steel material. Q235B, or, Q345B.

3. The cover and web plate should get surface rust removal by roller-way conveyor blasting machine before welding; this blasting machine can perform blanking, sandblasting, painting and drying, after that they get to Sa2 level.

4. The welding work of main girder should be performed on work platform (welding assembly unit). In order to avoid distortion of main beam, we adopts U-shaped welding assembly unit to assure that vertical deflection degree between the top cover plate and joint edge of stiffened plate and web plate is no more than H/200, and also effectively reduce the partial wave of web plate

Product Picture

Best selling 2T 5 ton bridge crane overhead crane price









•   Technical parameter

Lifting capacity	Span	Lifting height	Work duty	Lifting speed	Dead weight
2T	6-21M	6-9M	M5/FEM2M	5/0.8m/min	0.99-3.8T
3.2T	6-21M	6-9M	M5/FEM2M	5/0.8m/min	1.09-4.26T
5T	6-21M	6-9M	M5/FEM2M	5/0.8m/min	1.28-4.91T
10T	6-21M	6-9M	M5/FEM2M	5/0.8m/min	2-6.5T

Note: Cross travelling speed is 20/5m/min;Long travelling speed is 32/8m/min

Other kits

Best selling 2T 5 ton bridge crane overhead crane price

Related products of overhead cranel

Maybe you will like below product,if you want to konw moer details about these products,please click corresponding picture.

Our Company

Best selling 2T 5 ton bridge crane overhead crane price

We are an Innovative Designer & Professional Supplier of Euro-style cranes & kits, such as Overhead crane, gantry crane, jib crane, Euro-style hoist, Euro-style end carriages, KBK crane system, Bridge launching crane, bridge lifting cranes, etc.

Now, this is a time of changes----In China, crane industry is upgrading to Europe Crane levels; in the world, China government is implementing the great project of "One Belt and One Road" (OBAOR) and has established the "Asian Infrastructure Investment Bank " (AIIB). Too much Business Opportunity is waiting for us!
