Product Overview

Description

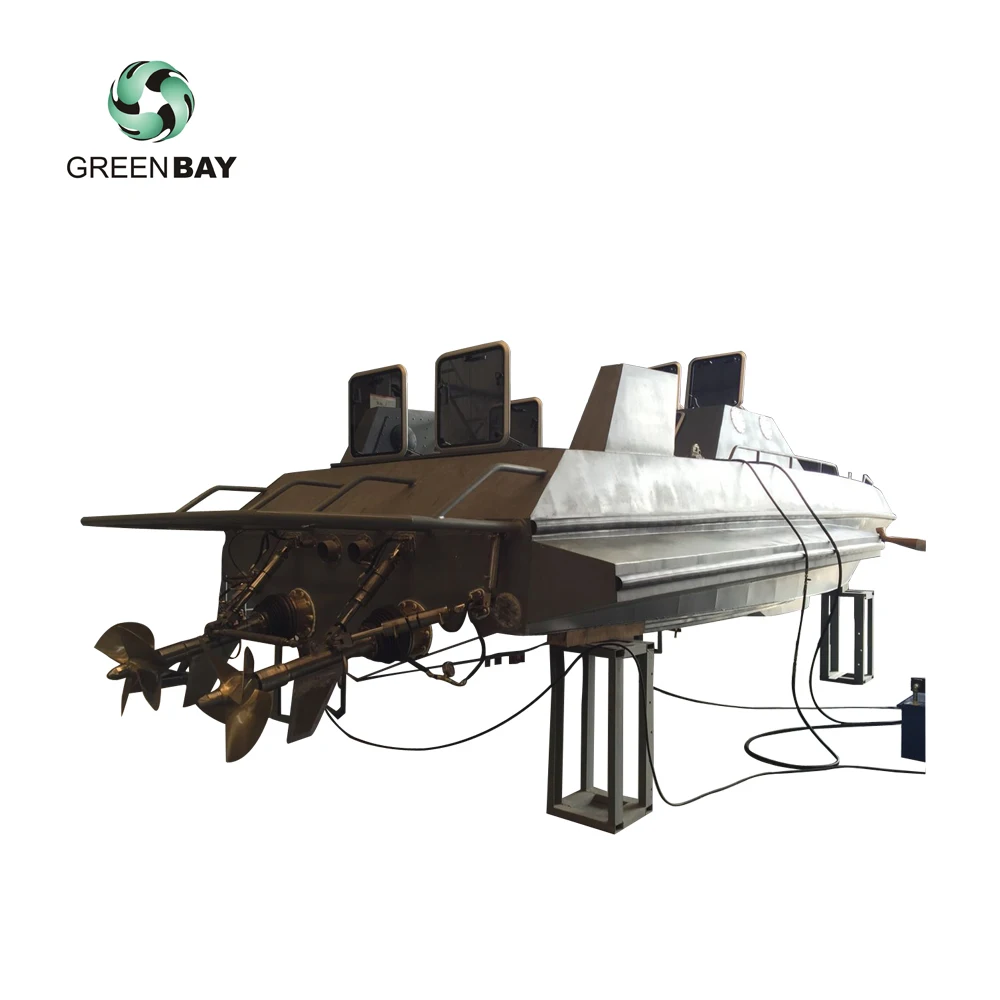

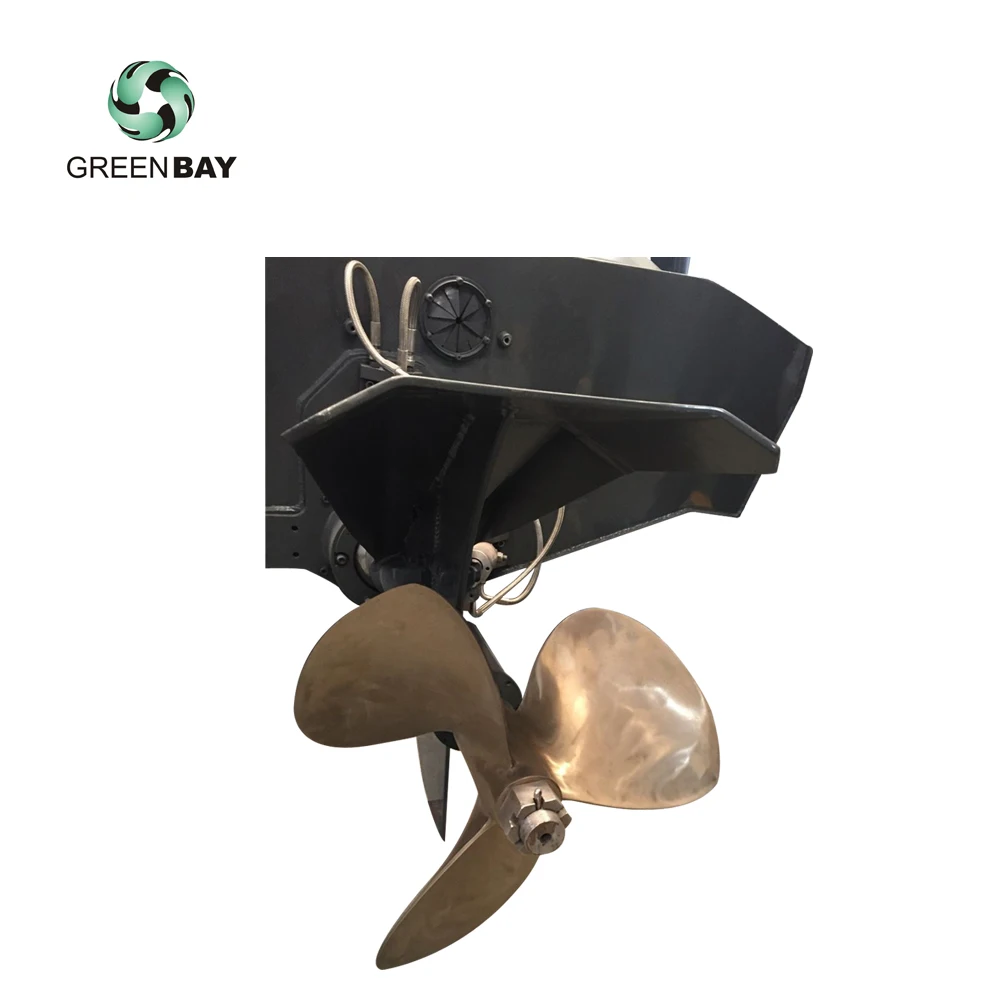

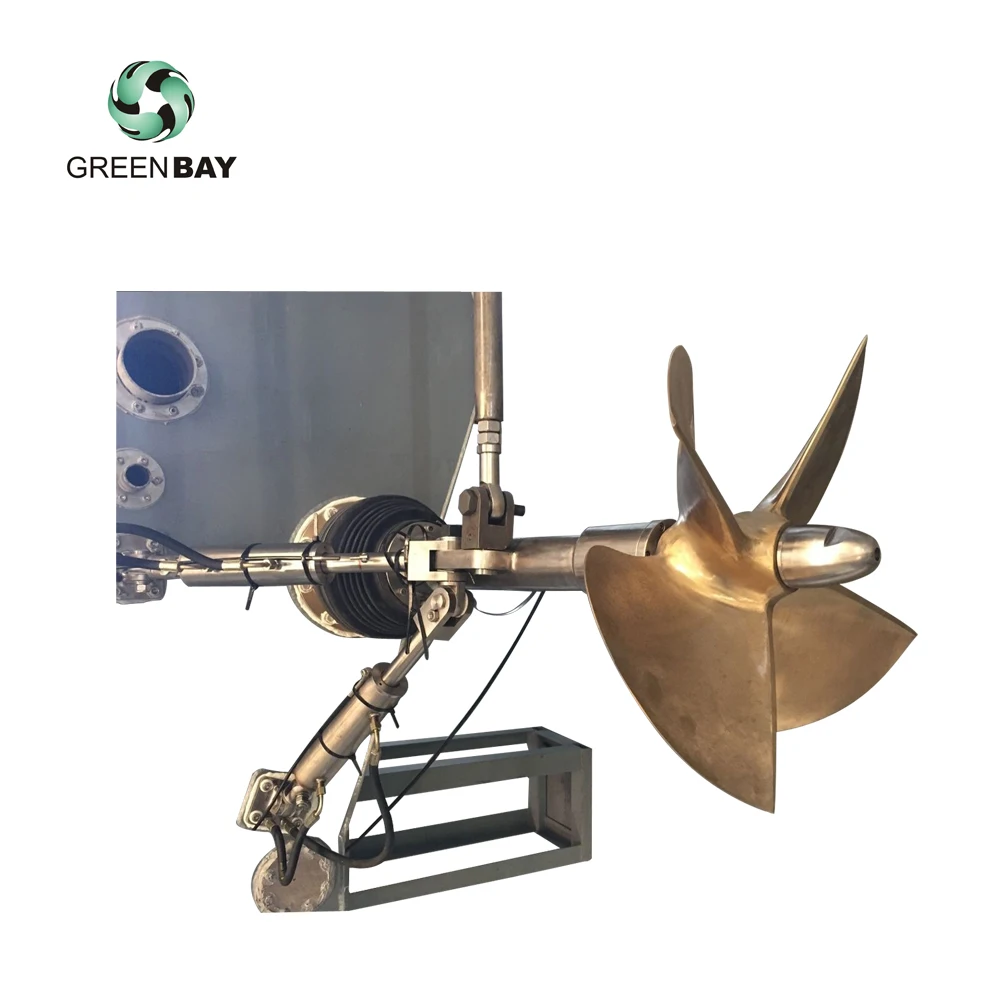

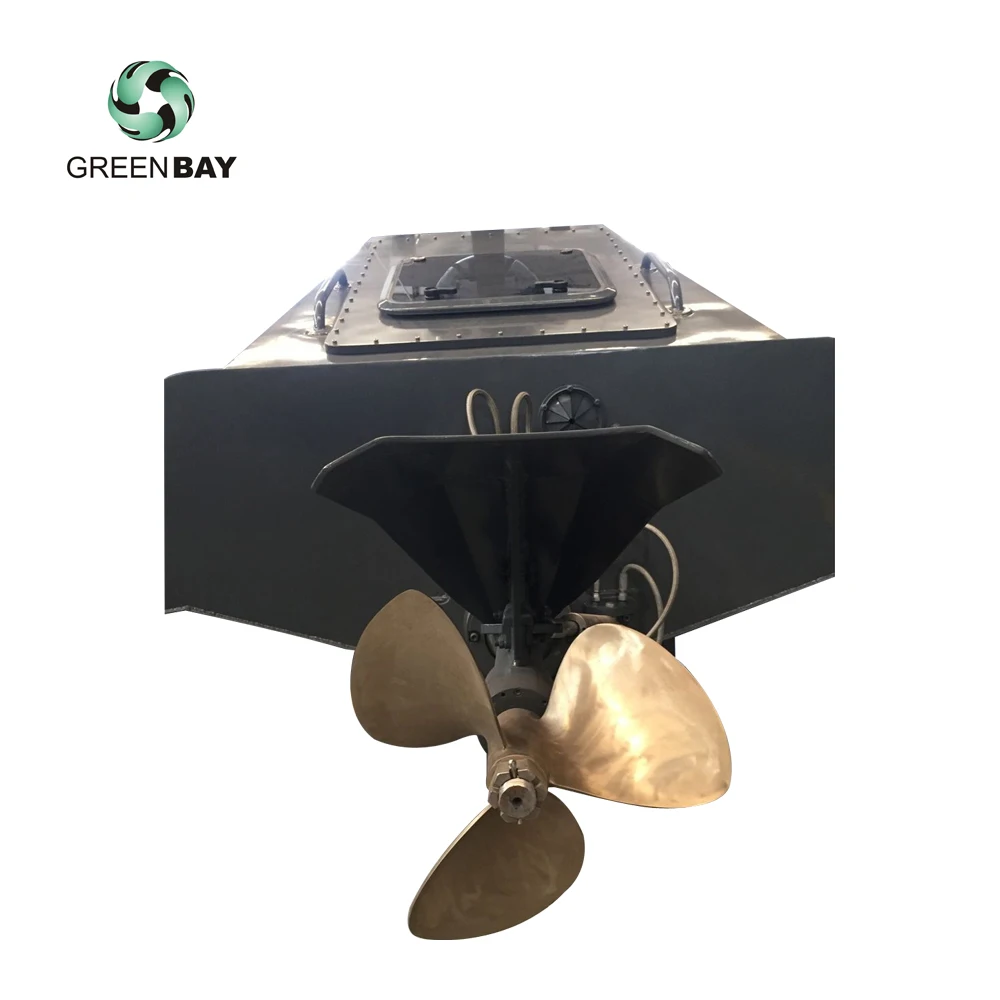

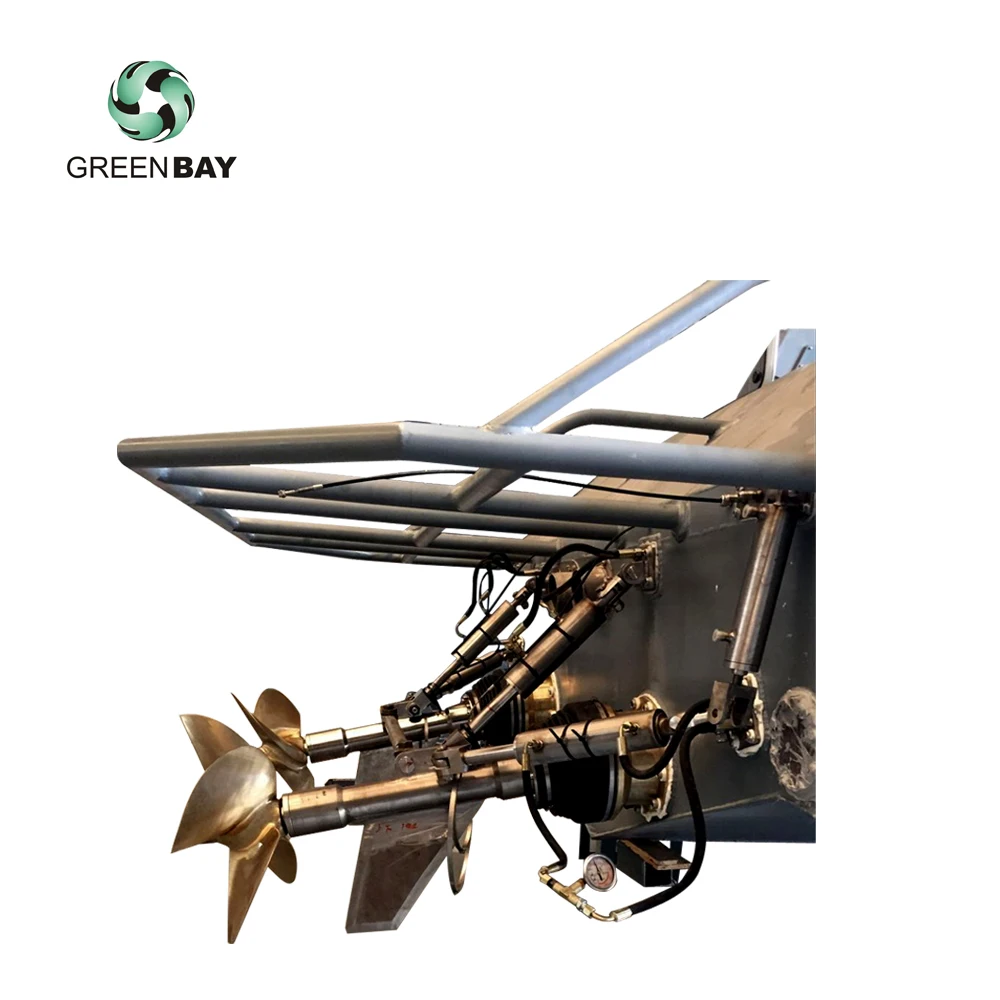

Surface piercing Propeller MSD Surface drive Thruster High speed craft application Boat Vessel Ship Propulsion systerm



1._01



Product Details
The parameters of our MSD surface drive as below:
                                     Model         MSD200SMSD200LMSD300MSD400MSD500
Length (mm)950980116013601800
Max input Power (Hp)2003005008002000
Max input speed (rpm)36003000250025002500
Max input Torque (N.m)60013202700650010000
Steering angle40°40°40°40°36°
Trim angle 15°15°15°15°15°
weight(kg)(without propeller)~80~90~110~180~700
body meterial stainless steel stainless steel stainless steel stainless steel stainless steel



Surface piercing Propeller MSD Surface drive Thruster High speed craft application Boat Vessel Ship Propulsion systermSurface piercing Propeller MSD Surface drive Thruster High speed craft application Boat Vessel Ship Propulsion systermSurface piercing Propeller MSD Surface drive Thruster High speed craft application Boat Vessel Ship Propulsion systermSurface piercing Propeller MSD Surface drive Thruster High speed craft application Boat Vessel Ship Propulsion systerm
