300w led tunnel light 20000 lumen good price led stadium lighting IP65 300 watt tunnel led light 200w 400w 500w 600w available
- Category: >>>
- Supplier: Shenzhen Penel Optoelectronics Technology Co. Ltd.
Share on (60726829005):
Product Overview
Description

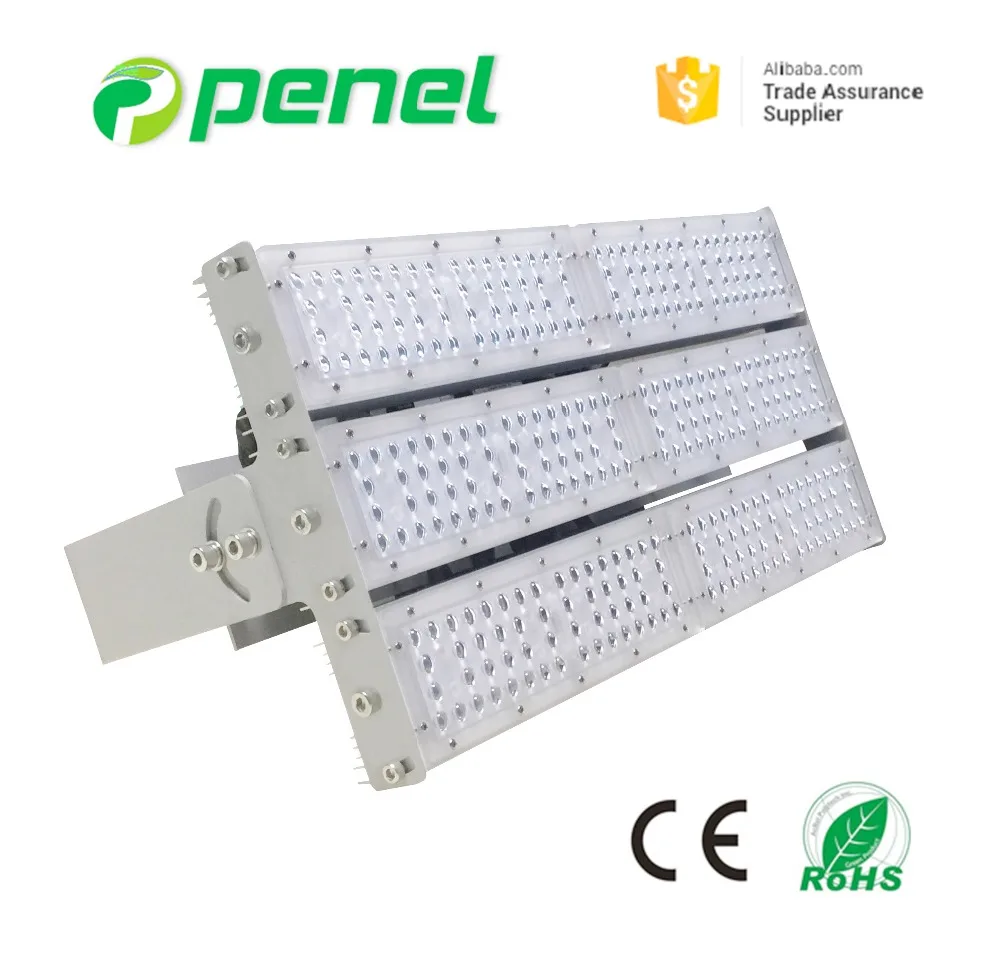

300w led tunnel light 20000 lumen good price led stadium lighting IP65
300 watt tunnel led light 200w 400w 500w 600w available
Product Description
| Product Type : | High power Modular led tunnel light |
| Power : | 300Watt |
| Light source : | 336 pcs of SMD3030 Lumileds chips |
| Color Temperature : | 3000K,4000K, 5000K, 570K ,6500K |
| CRI : | >70 or >80 or >90 |
| Luminous Efficiency : | 126.81 lm/w |
| Lens beam angle : | 4 options (30, 60 ,90 , 70x140 degrees) |
| Driver : | use Meanwell ELG series |
| Input : | 200-305VAC (If need 90-305VAC input ,should use HLG series) |
| IP rating : | IP65 |
| Housing : | Aluminum |
| Working temperature : |
-20°C ~60°C |
| Lifespan : |
50,000 hours |
| Product Dimension: |
526*268*200mm |
Product Detial

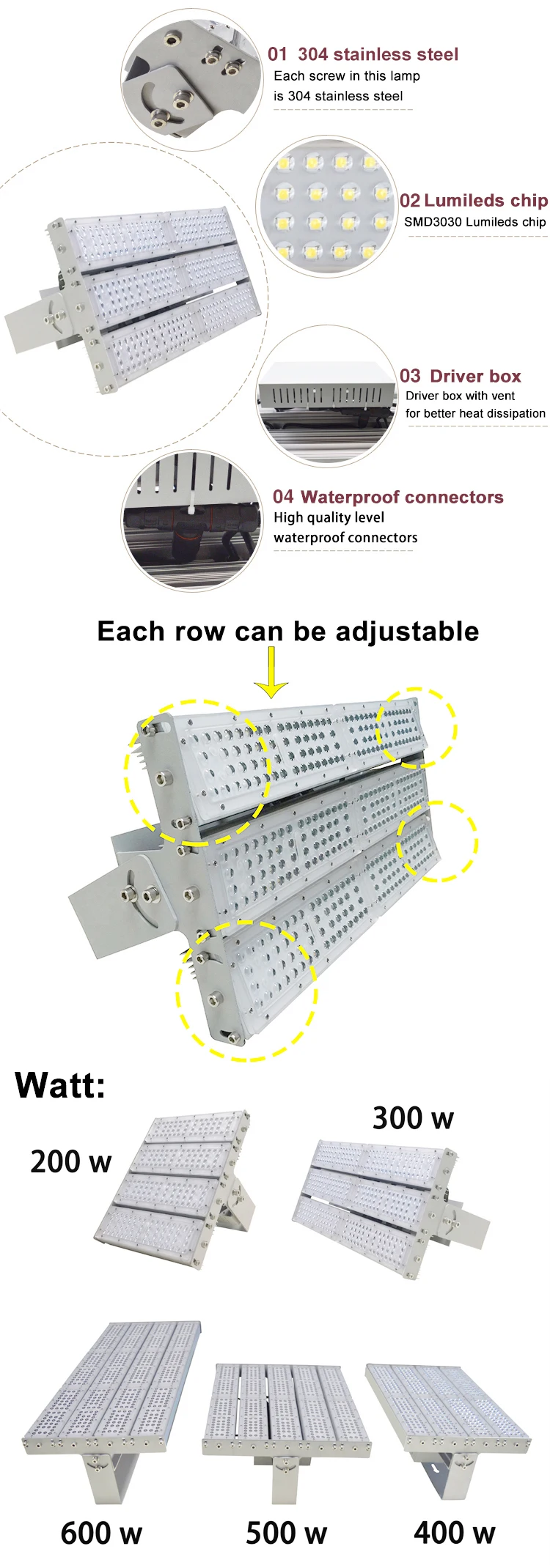

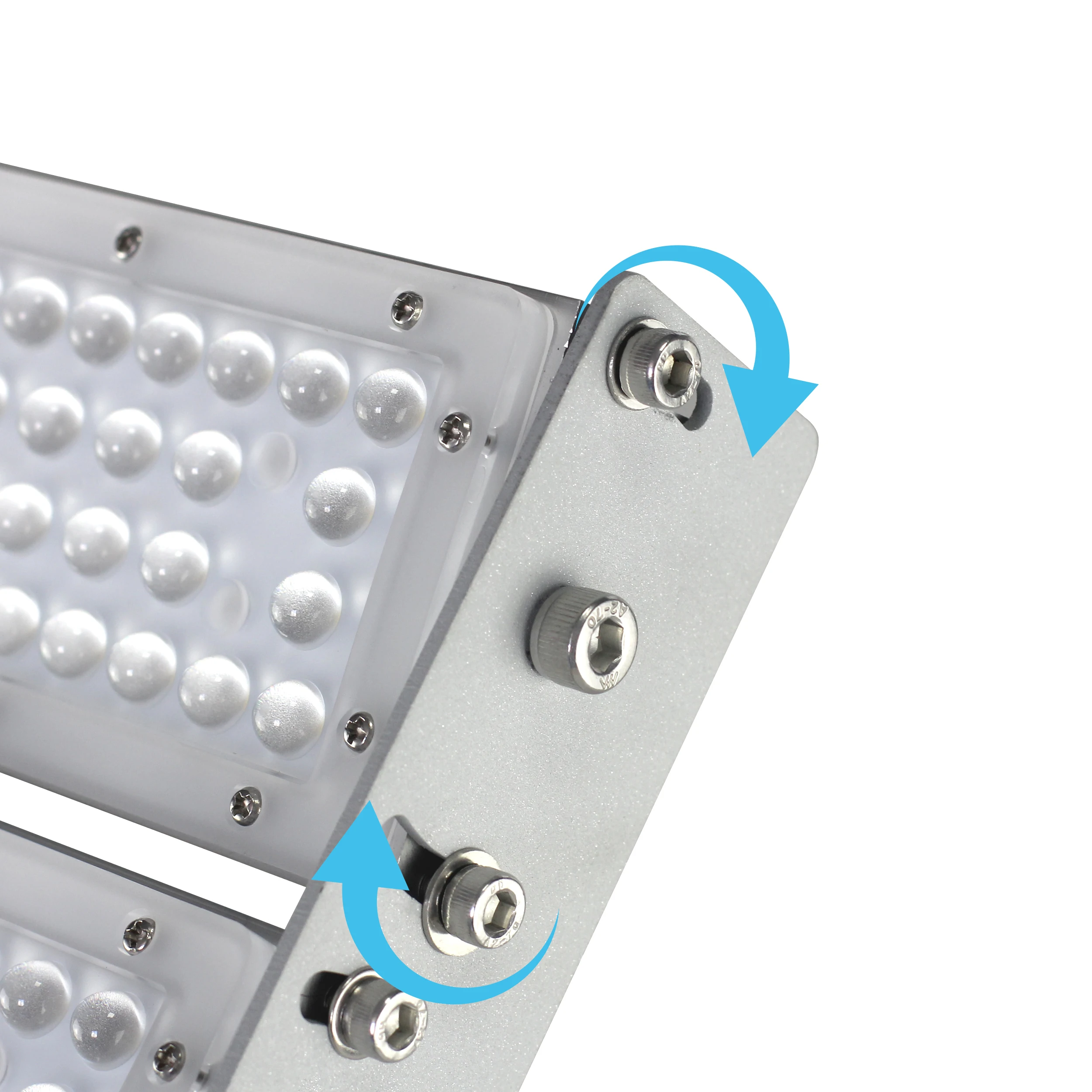

- Each row can be adjustable

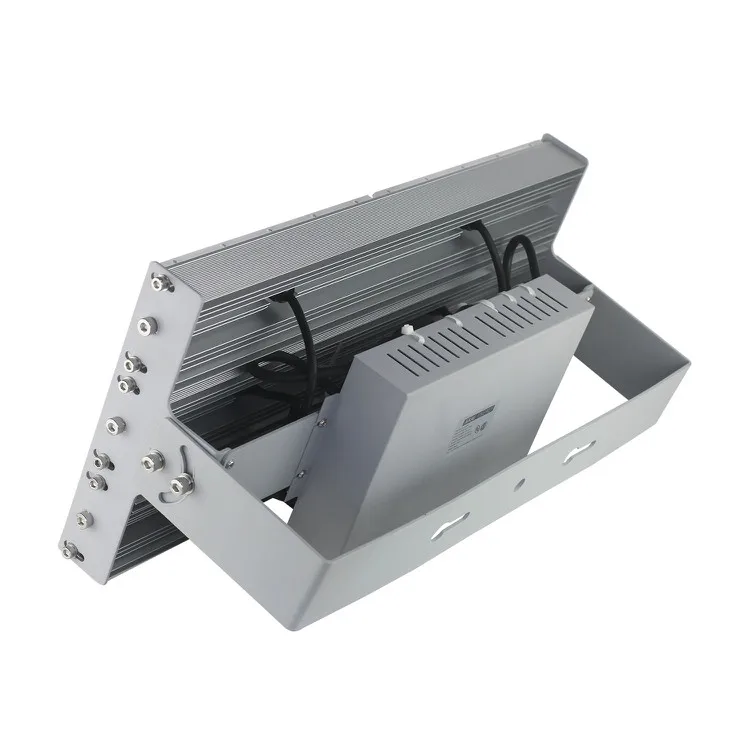

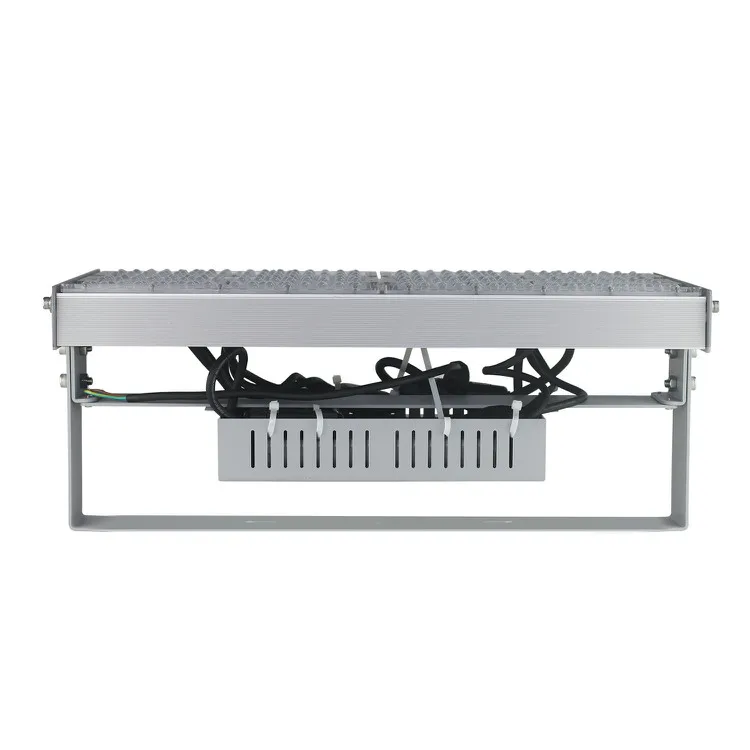

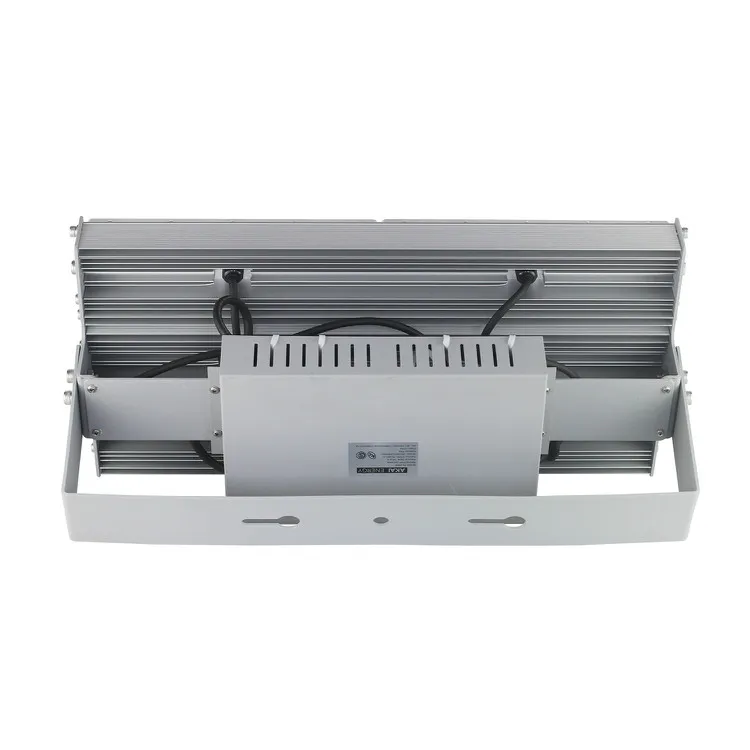

- Driver box with vent for better heat dissipation
- More modules are available for higher power to 1000Watt
-
Housing material of Modular Tunnel light:
the heat-sink are pure 6063 aluminum material.
the driver box and the bracket part are galvanized with painting, double protectionfrom corrosion.the whole housing can resist corrosion for at least 5 years even installedbeside seas.

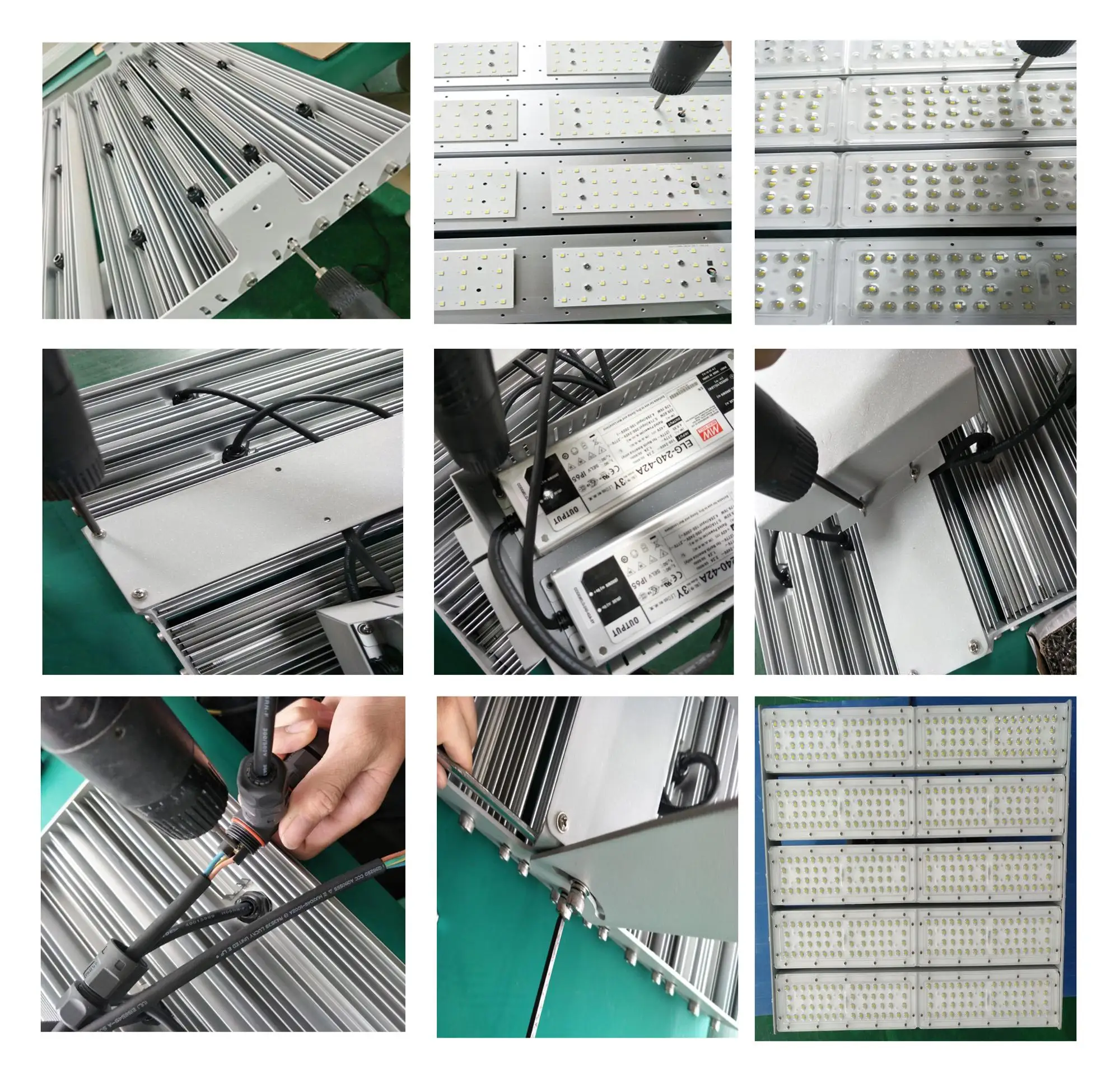

Product process
Related products
200w led tunnel light 400w led flood light 600w led flood light

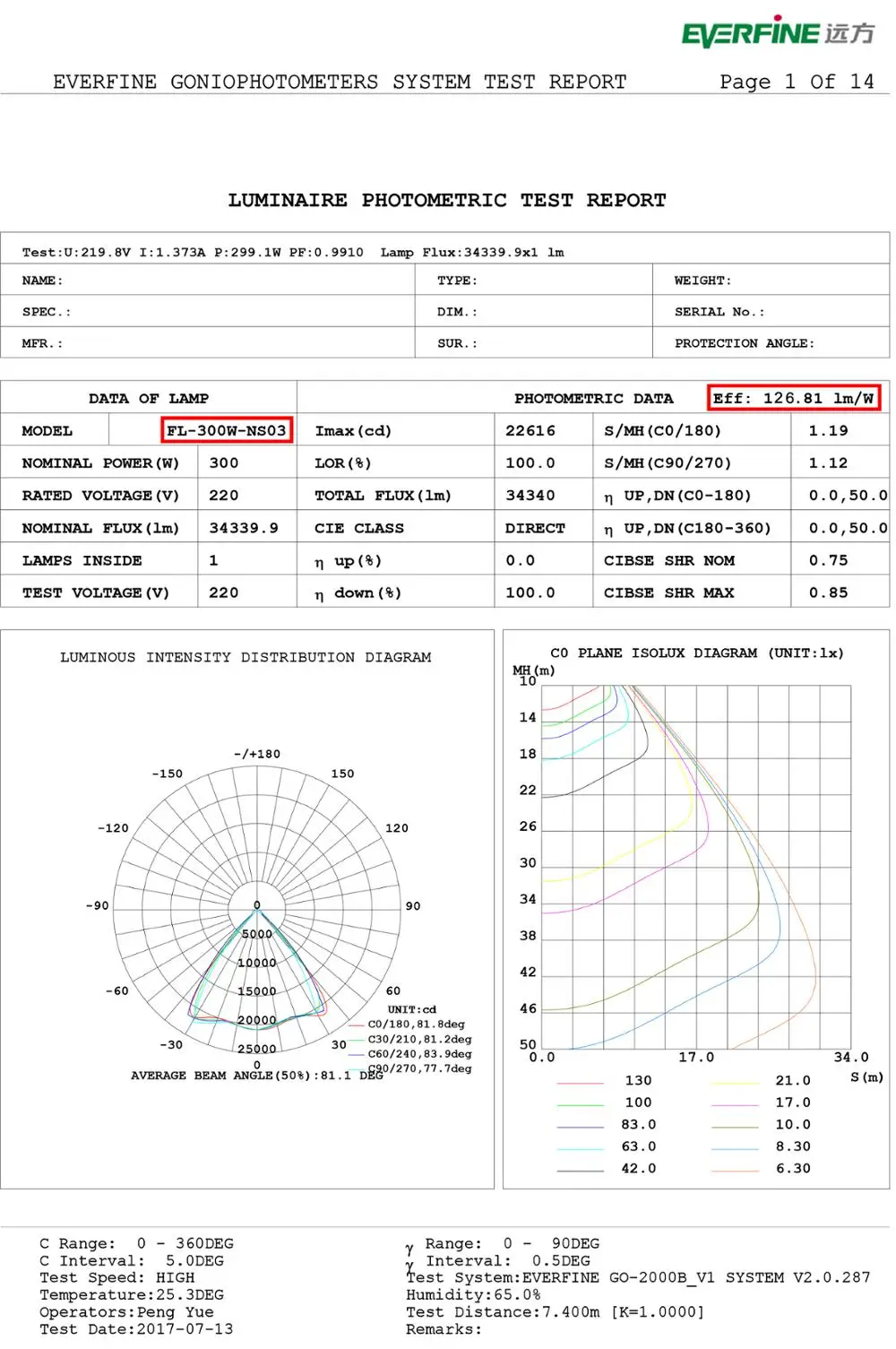

TestTest Report--IES
Luminous Efficiency : 126.81 lm/w
Quality Control:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
CertificationsOur products have many certifications such as IP65/CE/ROHS/TUV etc.
Warranty & InstallaWarranty 5 years
During the warranty period , if the led tunnel lights have any quality problems ,
we will surely slove the problems in the following way :
a. If the driver or chip is faulty , we will send new drivers or chips for free replacement .
b. If the lamp itself has problem , if convenient for customer to repair ,
we will send detailed instructions with pictures step by step ,
and if necessary send materials for free replacment, and help customer finally repair the lamp.
c. If the lamp itself has problem but difficult for customer to repair , we will send new lamp for free replacement.
d. If we found the faulty lamps quantity is more than normal level, we will assign engineers to go to buyer's company to check and repair all of the faulty lamps .
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.Installation
PackagingPacking---Professional and safe packaging
Shipping
We ship led driver by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
Application
The High power Modular led tunnel light is designed to be one of the most versatile luminaires to date.Can be widely applied for indoor and outdoor lighting, such as Tunnels,warehouses, factories, stadiums, buildings, billboards, Parking Lot, Tennis field, Football Field, Dock, Port, Courtyard, ect.
Company InformationCompany Information
PENEL OPTOELECTRONICS TECHNOLOGY CO.,LTD
We are an original and professional led manufacture of led high bay light, led street light, led flood light, led tunnel light, in Shenzhen, with 11 years' Exporting experiences, we have been Alibaba's golden member for 5 years. We shipped more than 3 full 40HQ containers to South America and Europe every month in average.
Our advantage is our strong R&D ability and good technology, and this is why we can provide a lot more competitive ratio of quality/price than our competitors.
Popular at International Lighting Fair:
FAQQ1.Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to get discount price?
Send us an inquiry to get discount price about 300w Led tunnel Light.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
