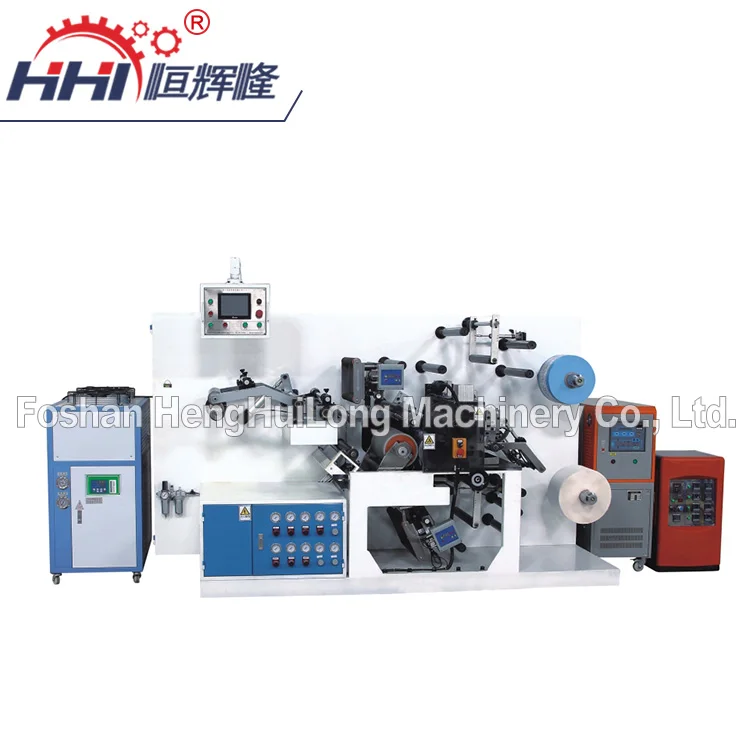

Full Servo Motion Control Hot Melt Adhesive Zone Nonwoven Fabric Film Baby Diaper Backsheeet Laminating Machine
- Category: >>>
- Supplier: Guangdong Henghuilong Machinery Co. Ltd.
Share on (60726852025):
Product Overview
Description
Application
Used for bottom film of diapers, medical protective clothing, surgical gowns, pet supplies, adult incontinence products, and other breathable composite products.
Used for bottom film of diapers, medical protective clothing, surgical gowns, pet supplies, adult incontinence products, and other breathable composite products.
Type | HZF460S | HZF900S |
machine speed[m/min] | 10-300 | 10-210 |
glue spread | 0.7-1.3g/m^2 | 0.7-1.5g/m^2 |
structural type | (Single plate) | (Double plate) |
core diameter[mm] | 76/3' | 76/3' |
width of raw material[mm] | 50-440 | 50-860 |
Max OD for film[mm] | 500 | 500 |
Max OD for N [mm] | 800 | 800 |
tension control | sets SERVO | sets SERVO |
Max winding OD [mm] | 800 | 800 |
Rated Power(KW) | 17 | 25 |
W*H*L[mm] | 1350*1400*2450 | 1500*1450*3100 |
total weight(KG) | 2600 | 3100 |
Processing method
Glue and unwind the non-woven fabric-lamination-slitting-rewinding.
Main features
Winding and unwinding system
•Using low glue volume, high speed, high precision web-spoke transfer coating form, coating control precision and service life are greatly improved;
• Servo motor drive system controls rewinding and unwinding to provide precise tension control;
•The unwinding is equipped with a correction device, and the high-performance photoelectric sensor and servo actuator ensure the neatness of the coil;
• Tension closed loop automatic control, stable tension and speed control before compounding, product quality assurance;
• Automatic feedback of tension and automatic calculation of roll diameter.
Human-Machine Interface
• Touch control platform.
• Automatic acceleration and deceleration to the set speed.
•Automatic tension control for receiving material.
•The length and the size of the roll diameter are automatically stopped and set.
•The whole machine is easy to operate, with high degree of automation, status display, and misoperation prompts.
HMT system
• Touch control platform.
• With automatic tracking, display, and storage of glue volume, it is convenient and quick to operate and use.
•The temperature of the heater is all controlled by high-precision pid, with high temperature control accuracy and good stability.
•The glue volume is tracked synchronously with the speed of the host, and it can also be adjusted independently. The machine has the function of producing full-frame composite film and online slitting.
Glue and unwind the non-woven fabric-lamination-slitting-rewinding.
Main features
Winding and unwinding system
•Using low glue volume, high speed, high precision web-spoke transfer coating form, coating control precision and service life are greatly improved;
• Servo motor drive system controls rewinding and unwinding to provide precise tension control;
•The unwinding is equipped with a correction device, and the high-performance photoelectric sensor and servo actuator ensure the neatness of the coil;
• Tension closed loop automatic control, stable tension and speed control before compounding, product quality assurance;
• Automatic feedback of tension and automatic calculation of roll diameter.
Human-Machine Interface
• Touch control platform.
• Automatic acceleration and deceleration to the set speed.
•Automatic tension control for receiving material.
•The length and the size of the roll diameter are automatically stopped and set.
•The whole machine is easy to operate, with high degree of automation, status display, and misoperation prompts.
HMT system
• Touch control platform.
• With automatic tracking, display, and storage of glue volume, it is convenient and quick to operate and use.
•The temperature of the heater is all controlled by high-precision pid, with high temperature control accuracy and good stability.
•The glue volume is tracked synchronously with the speed of the host, and it can also be adjusted independently. The machine has the function of producing full-frame composite film and online slitting.
Comparison of the properties for Dot transfer lamination & Suspension scraping lamination
Item | Dot transfer lamination(other used) | Suspension scraping lamination(we used) | ||||
Post-maintenance | Frequently changing the width of the rubber baffle will result in a short life of the rubber baffle. The rubber baffle needs to be replaced frequently. The scraper blade is replaced in about 30 days. The rubber roller is often repaired and replaced, which is troublesome to disassemble. | Since the width of the glue is changed, there is no need to adjust the rubber baffle, and the rubber baffle has a long life. The pressure of squeegee for suspension scraping coating is 2-3KG air pressure relative to the squeegee for dot transfer coating, so the life of the squeegee is relatively long. | ||||
Frequently change the width of the glue coating, the baffle is easy to damage | The rubber roller is easy to be deformed and needs maintenance, and the accuracy must be well controlled. | |||||
Glue coating material | Not suitable for high air permeability and perforated materials, and not suitable for low weight materials, such as (8-15g non-woven fabric, etc.) | Breathable and non-breathable materials, both high and low weight materials are available, and mesh materials can also be coated | ||||
Q1: What Industry is your product suitable for?
A1:Our machines are widely used in the fields of disposable hygienic products,disposable medical products, clothing, textile fabrics, self-adhesive labels, medical tape, plaster backing, and various othercoating compounds.
Q2：What if the machine fails during use?
A2:Our machines will be carefully inspected and ensured before delivery,and we will provide the correct instructions for use of the products. In addition, our products support lifetime warranty service, if there any question during using our products please consult our work personnel.
Q3: When can I get the machine after payment?
A3:The product production time about 45-60 days. We will deliver it on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4:We will provide installation videos and tutorials, or send our engineer to your side ASAP
you get all your machines ready, for testing and teaching your technicians how to run the machine.
you get all your machines ready, for testing and teaching your technicians how to run the machine.
Q5: What payment do you accept?
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
