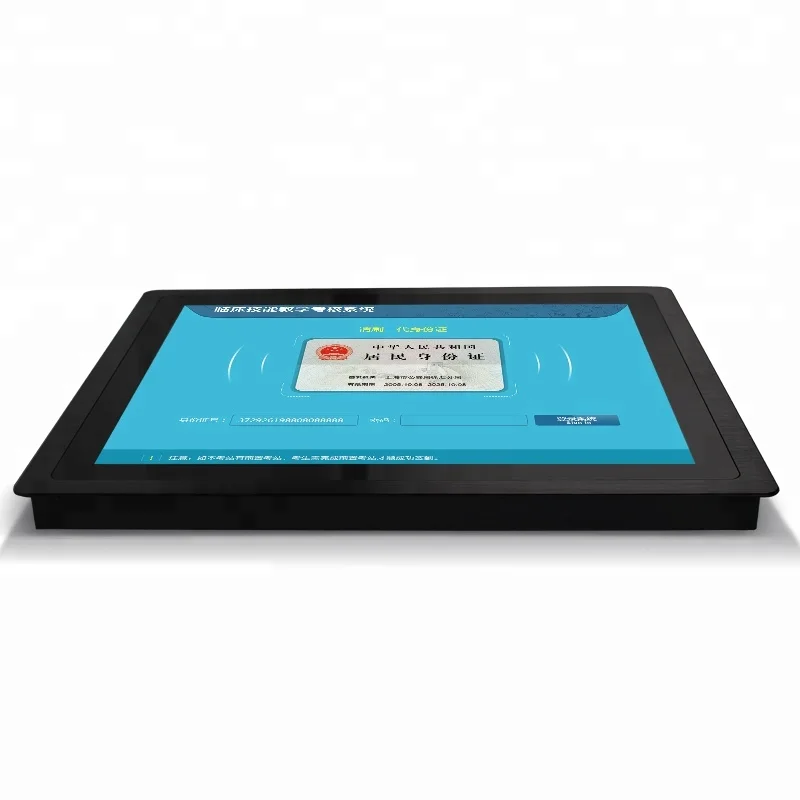

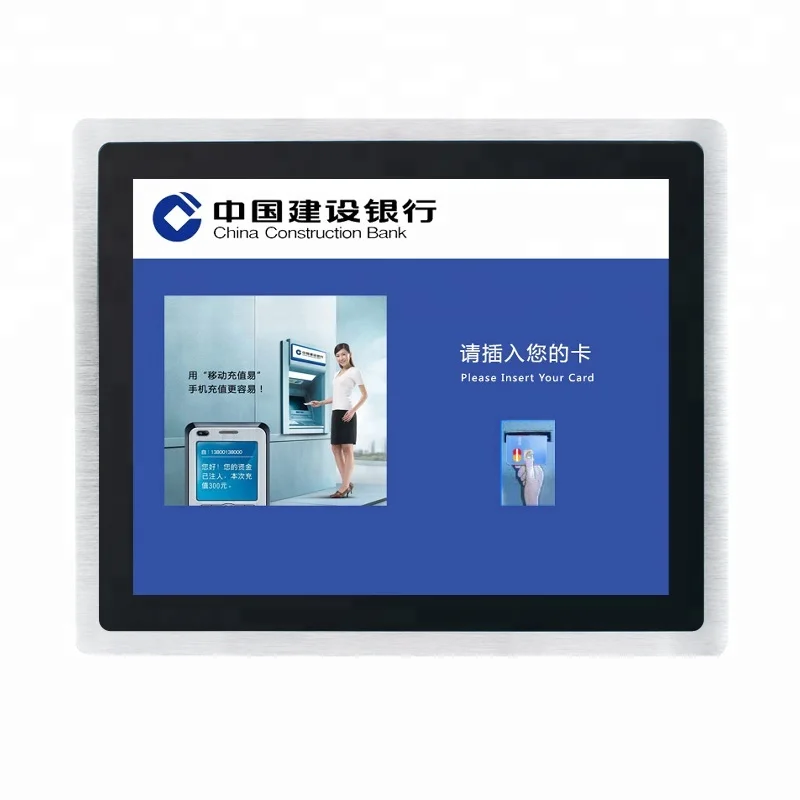

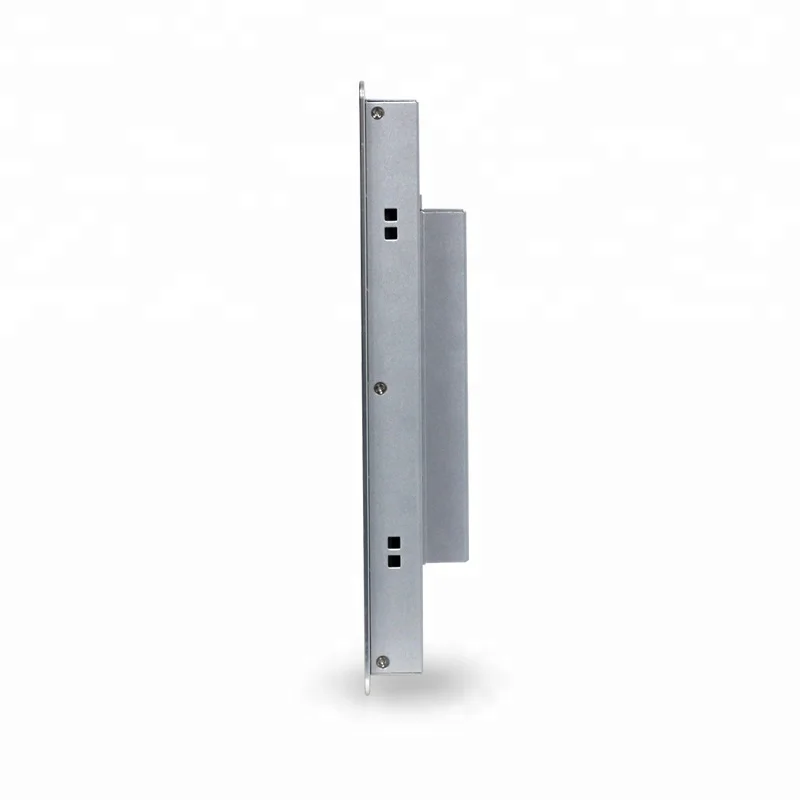

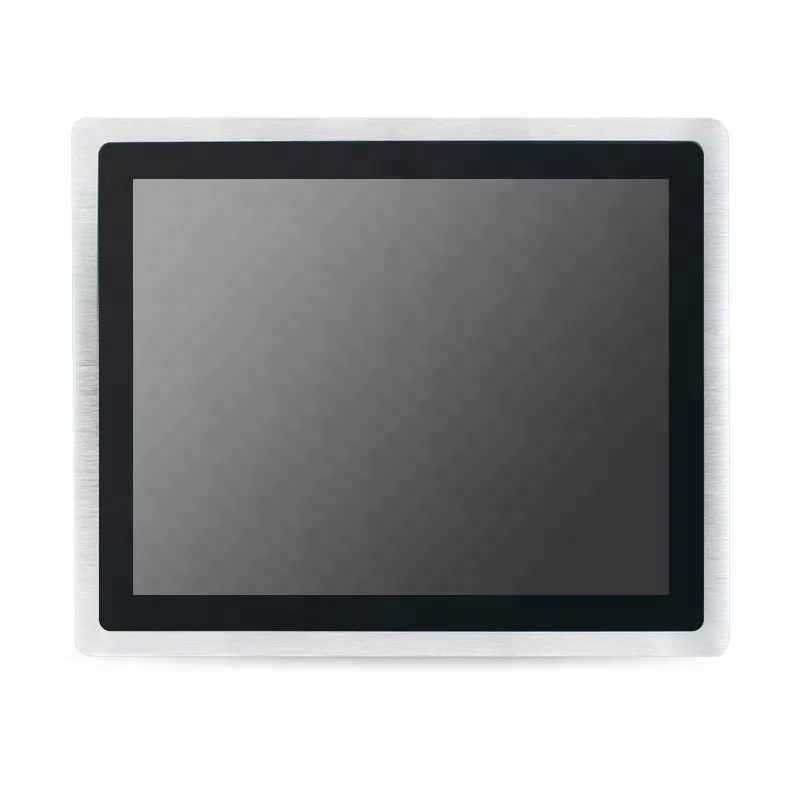

17inch industrial pc,IP65 touch screen industrial embedded panel pc

Panel

Size

17inch,8",10.1",10.4",11.6",12",12.1",15",15.6",17",17.3",19",19.1",21.5"option

Panel Type

LCD display with LED back-light

Aspect Ratio

4:3

Resolution

1280*1024

Contrast

1000:1

Luminance

300nit,can expandable to 1000nits

Response time

5ms

Active Area (mm)

341.5*274mm

Display colors

16.7M(8-bit)

View angle

85/85/85/85

Touch screen

Touch type

Projected capacitive touch with 10-point touch option

Touch Times

50million times for Projected capacitive touch screen

SYSTEM CONFIGURATION

CPU

Intel celeron J1900(Fanless)2.0Ghz,

Intel Core I3/I5/I7 option

System Memory

2G RAM,can expandable to 4G/8G

WIFI

Built-in, 802.11a/b/g/n

HDD

500G SATA HDD or 32G/64G/128G/256G SSD

I/O PORTS(Intel celeron J1900 CPU)

USB Ports

3xUSB2.0+1*USB3.0 Ports

Serial Ports

2xDB-9 COM Ports

LAN Port

1x100M bps auto

HMI Port

1xHMI output Port

VGA Port

1xDB-15 VGA Port

Audio Port

1xAudio output Port,1xAudio input Port

DC Output

1xDC 12V output

POWERING SYSTEM

Power Supply

External DC Power supply(placed inside the system

 base)AC 100V to 240V

Power Button

1xSystem on/off button

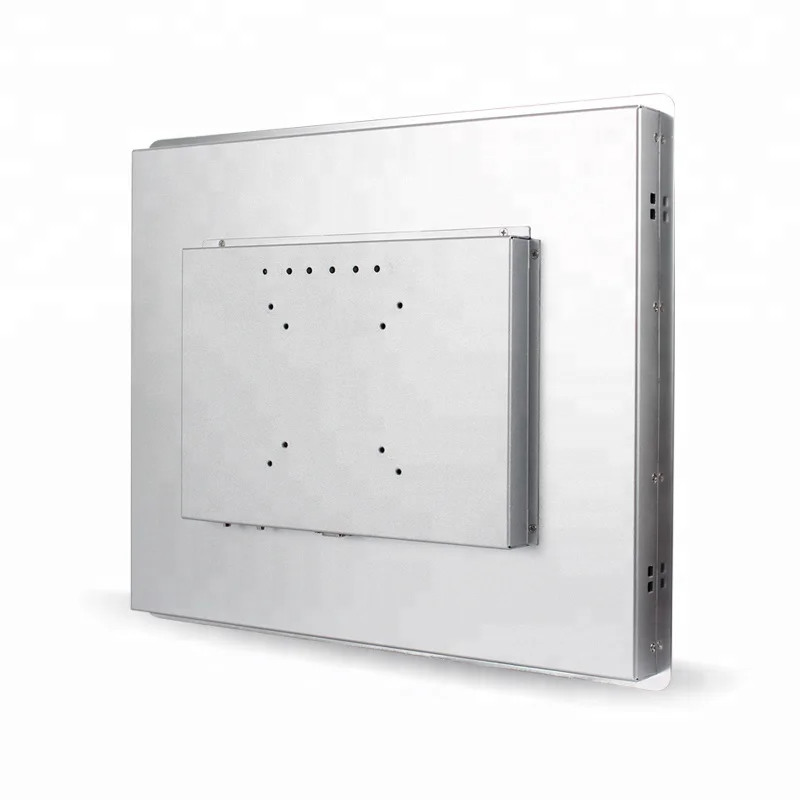

Installation method

VESA hole,wall mount, arm bracket, desktop stand, embedded.

SAFETY & ENVIRONMENT

Product certification

CCC,CE,FCC,ROHS,ISO

Operation Temperature

-20°C-60°C

Storage Temperature

-30°C-70°C

Operation Humidity

10%--80%

Storage Humidity

10%-90%

OS Compatibility

Windows XP,Windows7/8.1/10,Ubuntu(Linux)

Color option

Black/silver

Material

Aluminum all
