100L 500L Chinese Herb Extraction Equipment for Lab
- Category: >>>
- Supplier: Zhejiang Tanlet Machinery Co. Ltd.
Share on (60726888604):
Product Overview
Description
Product Description
100L-500L Chinese Herb Extraction Equipment
Main Feature

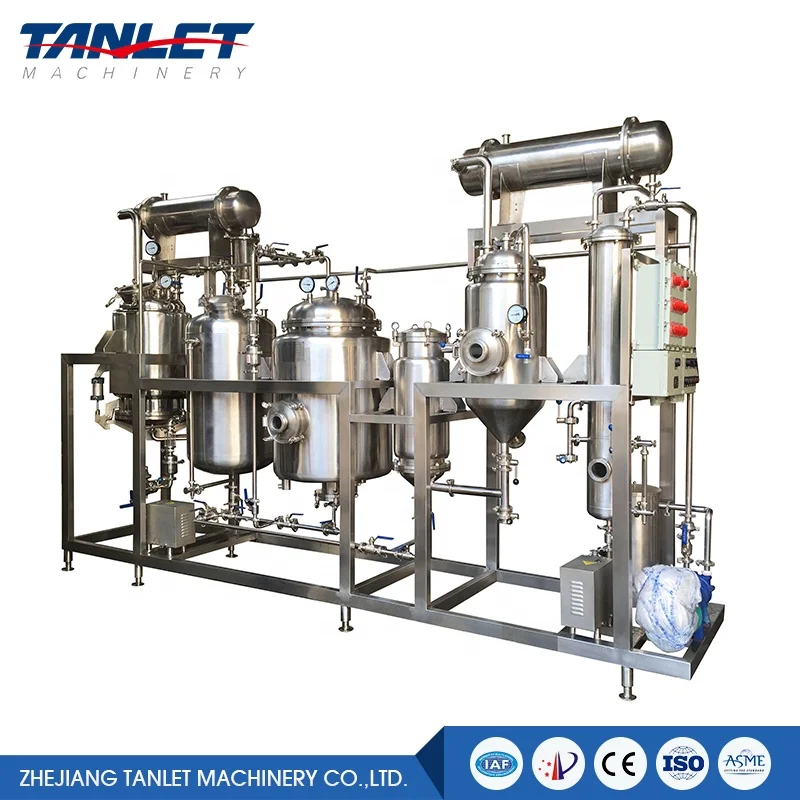

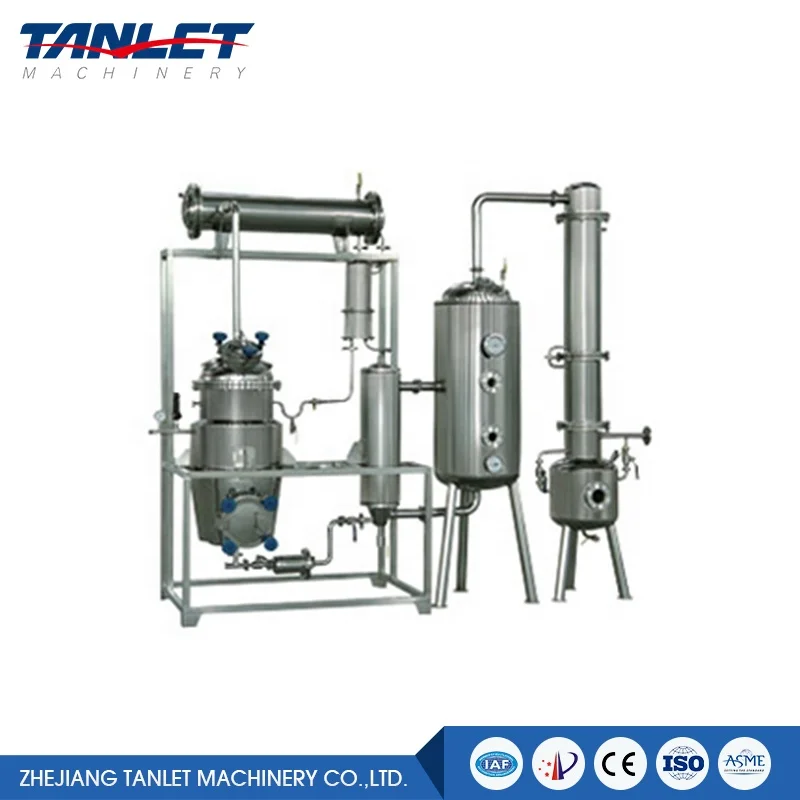

1. The 100L~500L Chinese Herb Extraction Equipment consists of extractor, tubular heater, evaporator, condenser, oil-liquid separator, oil collector, medicine liquid pump, weighing vent, liquid storage tank, filter, vacuum pump, and electric cabinet. Defoamers are fixed in the steam outlet of the extractor and evaporator. The units without steam heating can be fixed with oil heating system.
2. It can be operate to hot recyling distill and condense, normal extraction, concentration, precipitation and percolation.
3. It can work in the condition of negative pressure, atm. and positive pressure. It can apply to distill water, ethanol and solvent, up to GMP standard.
4. The group has great advantages in multi-function, high efficiency, energy saving, and wide operation arrange. It pioneers in comprehensive capacity in nationwide; it is the pilot equipment in distilling natural herbal medicine, especially fit for research institution, universities and collages, and factory pilot experiment, or distilling valued medicine, or low temperature fresh herbal. It has been widely used in factories.
Application
Extract Liquid
Main Parameters
Concentrate Cream
Extract Powder
Model and Specification | TNH-50 | TNH-100 | TNH-200 | TNH-300 | TNH-500 | |||||
Extraction Tank | Volume (L) | 65 | 125 | 250 | 375 | 550 | ||||
Jacket Op. Pre. (MPa) | 0.15 | |||||||||
Vessel Op. Pre. (MPa) | 0.09 | |||||||||
Concentration Tank | Volume (L) | 65 | 125 | 250 | 375 | 550 | ||||
Vessel Vacuum (MPa) | -0.08 | |||||||||
Heat Reflux (L/H) | 20 | 40 | 80 | 120 | 180 | |||||
Motor (kw) | 1.5 | 1.5 | 2.2 | 3 | 3 | |||||
Advantages
It has successfully enter into the international market because of multi-function, good performance, compact structure, and superior manufacture. It is widely used for pilot experiment in scientific research institution, university, college, factory; or extracting concentration of costly medicine.
Composition
The whole extraction concentration unit is composed of condenser, extraction tank, extract liquid storage tank, precipitation tank, heater, evaporation chamber, vacuum pump, primary condenser, secondary condenser, pipes, etc.
Accessories: quick-open manhole, nozzles, pipes, sight glass, pressure gauge, inspection light, valves, pressure gauge
Fabrication Process
Cutting
Plasma Welding
Mechanical Polishing
Assembly
Final Product
Our Service
User Demand Analysis
Once the project is confirmed, the product level, processing technology and consulting group are analyzed according to the actual demands of customers so as to provide suitable engineering plans, form a complete production line and calculate the budget.
Engineering Design
We carry out planning and designs on details of engineering plans through introducing internationally advances design conception to provide valuable project technological plans and ensure effective implementation of all steps.
Product Manufacturing
The approved production drawing is the basis for production and manufacturing. All equipment that is not manufactured on the site shall be indentified by our quality responsible person so as to meet the strict stipulations.
Automatic Control Integration
The installation of the system and the whole automatic project meets the GMP standard and FDA standard. According to our years of experience, the installation and process rules will help simplify the starting and commissioning of equipment.
Trial Running and Training
During the equipment commissioning, our engineers will provide guidance on the site and carry out various tests with respect to all performances of the equipment with customers. Approval will be received from users.
Verification Services
To ensure normal production, we can set up maintenance and servicing plans for a single machine, the whole production line or the whole factory and provide equipment maintenance services and offer fittings according to customer requirements.
Packing & Delivery
Delivery & Transportation
All delivery terms are available: EXW, FOB, CIF, CFR, DAF, DDP, CIP, etc.
Shipped in 45 days after the deposit confirmed.
Packing
The equipment and all accessories all packed in the wooden cases, to ensure safe shipping.
Payment Terms
T/T, L/C, Western Union, Paypal, Apple Pay, Online Payment, etc.
