Japan Isuzu GIGA 4x2 10 ton crane truck
- Category: >>>
- Supplier: Chengli Special Automobile Co. Ltd.
Share on (60726939211):
Product Overview
Description
Product Description
Professional export isuzu 4x2 10 ton crane truck
Specifications of ISUZU 4x2 10 ton crane truck:
Isuzu 4x2 10 ton crane truck is one of our main mature products which is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
Product Notes:
1. We can produce from 2 ton to 200 ton lifting capacity crane truck.
2. We can produce straight arm and floding arm truck crane with or without remote control.
3. You can choose different famous crane brand: HIAB, Shimei, Zoomlion, Sany, Chengli balong, etc.
5. You can choose different famous chassis brand: Dongfeng,ISUZU, FAW, Foton, Sinotruk, Syter, Shaanxi, T-king, Dayun, Yuejin, JMC, JAC, etc.
4. Factory direct sale, low price and good quality.
Main Parameters of ISUZU 4x2 10 ton crane truck:
Product Name | ISUZU 4x2 10 ton crane truck | |
Cab | Single row cab, two doors, rated passengers 2 or 3 | |
Chassis | Brand | ISUZU |
Chassis model | GIGA | |
Drive type | LHD or RHD 4*2 | |
Tire | 295/80R22.5 with 1 spare tire | |
Tire No. | 6+1(spare) | |
Braking System | air brake | |
Transmission | Manual , 6 forward and 1 reverse | |
Engine | Model | 4HK1-7C60 |
fuel type | diesel | |
Horse Power(kw/hp) | 151kw/205hp | |
Displacement(ml) | 5190ml | |
Emission standard | Euro /4/5/6 | |
Dimension & weight | Overall dimension (L*W*H/mm) | 9000x2450x3900mm |
Axles No. | 2 | |
Curb Weight(kg) | 7000 | |
Max speed(km/h) | 95 | |
performance parameter | Body dimension(L*W*H)(mm) | 6500x2450x400 |
Max lift quality(kg) | 10 ton | |
Crane type | three section telescopic straight boom and one main boom | |
Max. Lifting Height(m) | 16.5m | |
Supporting Legs | H type hydraulic outrigger | |
Swivel Angle Range | ±360°full rotation | |

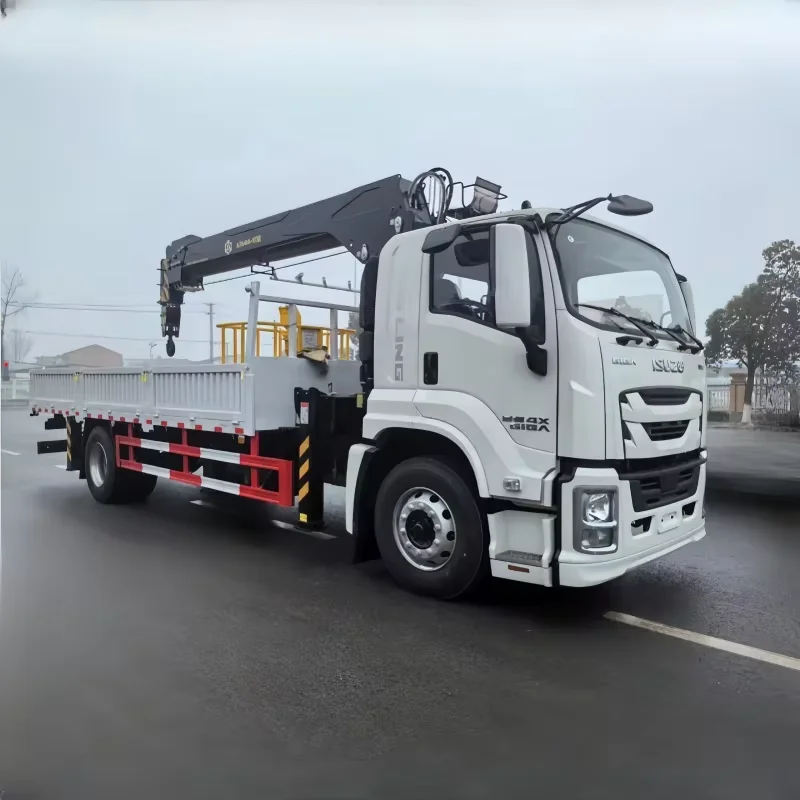

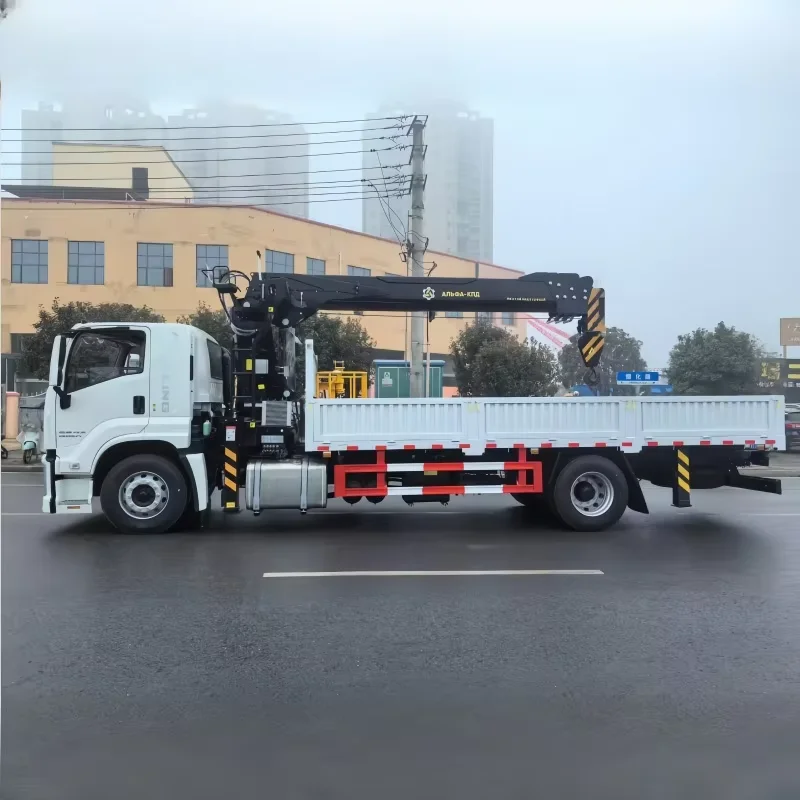

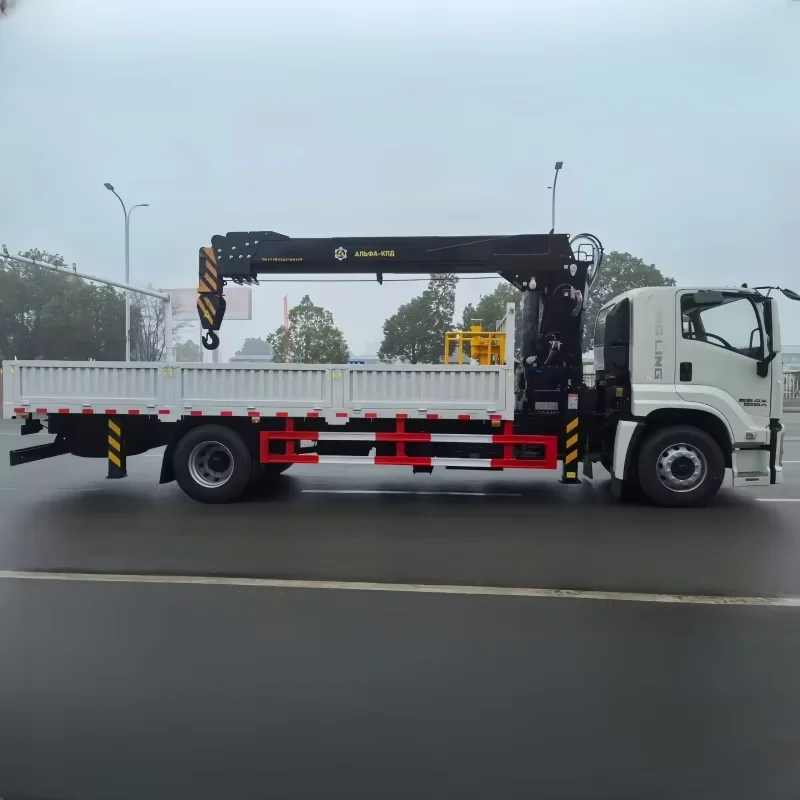

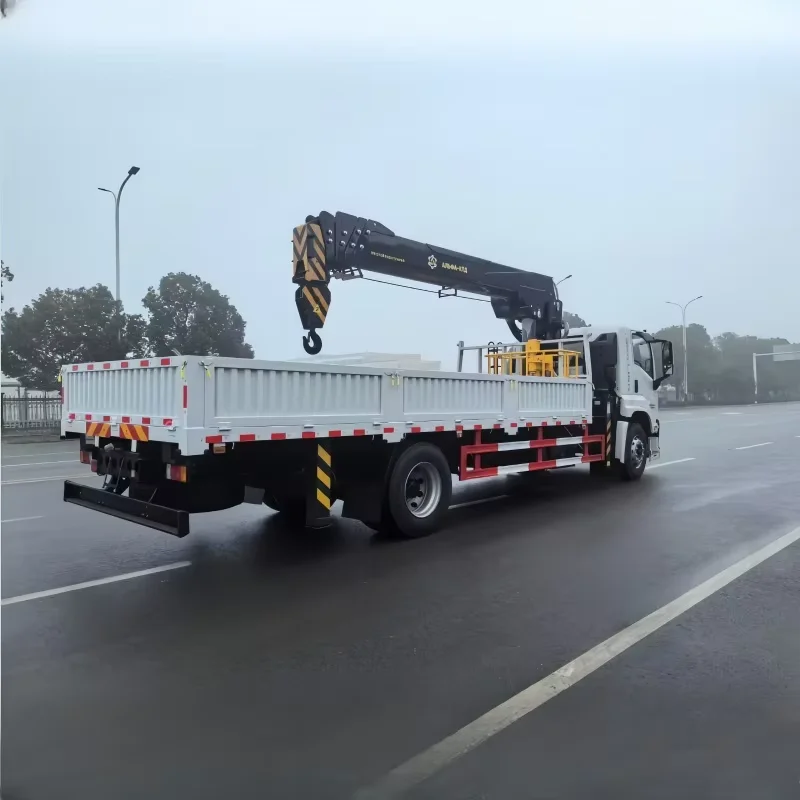

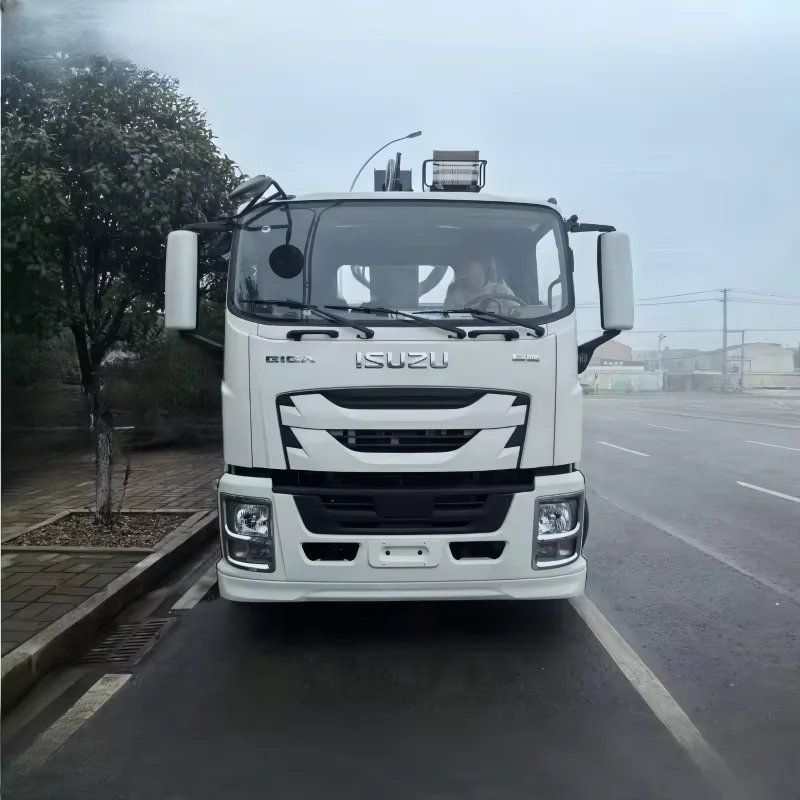

Pictures of ISUZU 4x2 10 ton crane truck:

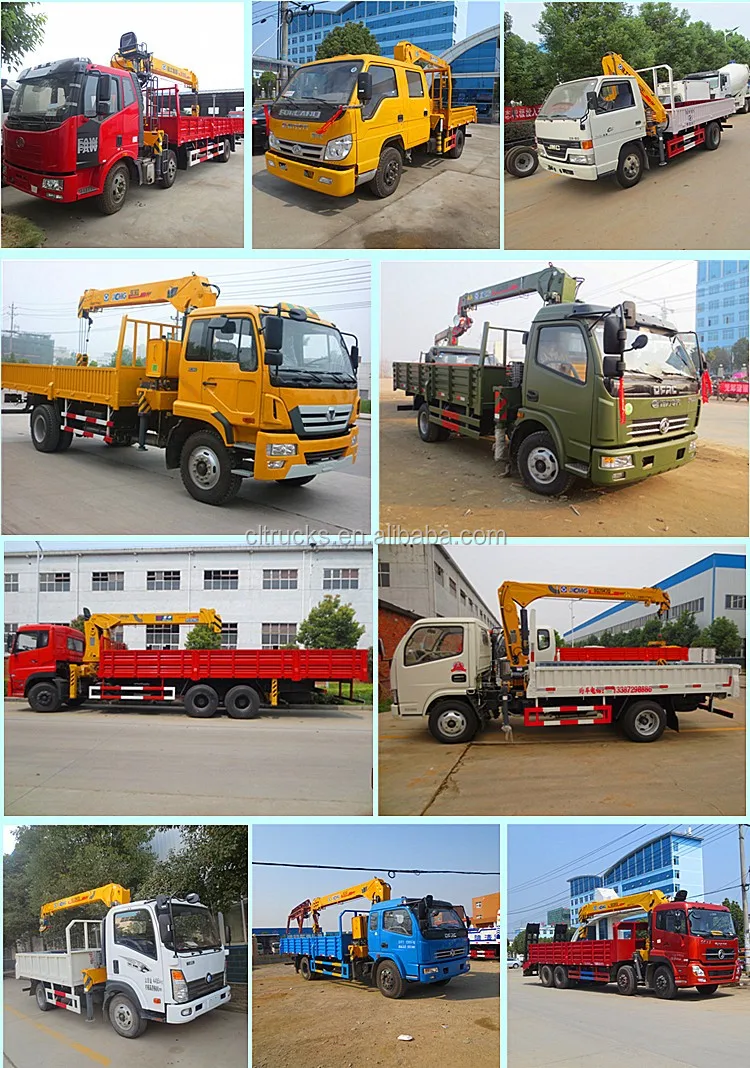

Pictures of truck crane series:
Packaging & Shipping
1, Packaging: nude or waxing;
2. Shipping: in the container or Ro-Ro ship or bulk ship according to the customer’ order or requirement;
Our Services
1. Factory direct supply: reliable quality and fast delivery;
2. Warranty; from the date of receiving, in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
3. Tracking service: lifelong
4. Chassis question: when the question occurs, please find the local nearest Service Station for repair or maintenance, or call us if the local have no Chassis Service Station;
5. Spare Parts: Superstructure spare parts is sent by ourselves, we only charge cost; Chassis spare parts is sent by the local Service station, if the local have no chassis service station, please call us freely.
6. OEM Ability: We can customize the truck according to your request, such as material, size, color, paint, logo, etc.
7. Warm tip: please operate, use, and maintain the truck according to our manuals and Instructions. When the question occurs, please call us freely.
Company Information
CHENGLI SPECIAL AUTOMOBILE CO., LTD , which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing many kinds of special trucks. Our leading productions contain more than 300 types of trucks such as water truck, sewage suction truck, garbage truck, road sweeper, fuel tanker, chemical liquid truck, concrete mixer truck, LPG tanker, dump truck, refrigerated truck, etc.We have registered trademark "CHENLIWEI" and the products code is “CLW”. We have solid technology, flawless inspection, advanced equipments, reliable quality and flexible modes of operation. What's more, we have roundly passed the certification of ASME, ISO 9001:2008, ISO 14001:2004, OHSAS 18001:2007 and the China 3C Certification (China Compulsory Certification), etc.
CHENGLI SPECIAL AUTOMOBILE CO., LTD is the most important partner of DONGFENG, FAW, JAC, FOTON, SINOTRUK and other Automobile Company. It not only design, manufacture and test all kinds of special automobiles and fittings accurately as per the customer’s request ,but also provide all spare parts.
CHENGLI SPECIAL AUTOMOBILE CO., LTD is located in SUIZHOU City, HUBEI province, China, the native place of YANDI SHENNONG, and the Capital of Special Truck. Welcome the friends from all over the world to SUIZHOU! To our factory, you will be received the most enthusiastic reception.
Our Advantage:
Certificate:
Factory Show:
Customer visited:
FAQ
1. Are you manufacturer or trading company?
We are direct manufacturer;
2. Min Order Quantity:
One unit or one sets;
3. Handling Time:
Within one day;
4. Payment Terms:
30% deposit, 70% balance before shipment by TT or Irrevocable LC at sight;
5. Specified delivery date from the Date of Order:
Depend on the detailed request and purchase order quantity.
6. Contact Information:
For any question or request, please contact with me freely according to the following information:
