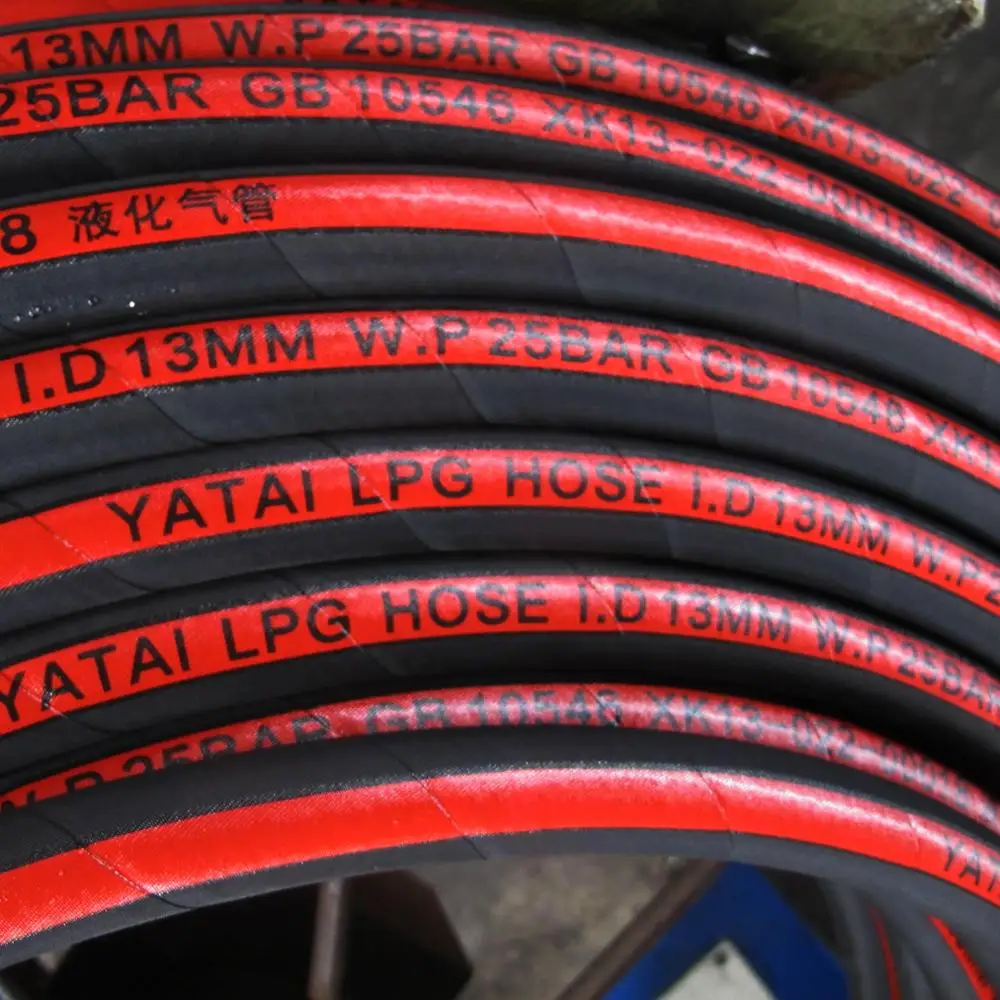

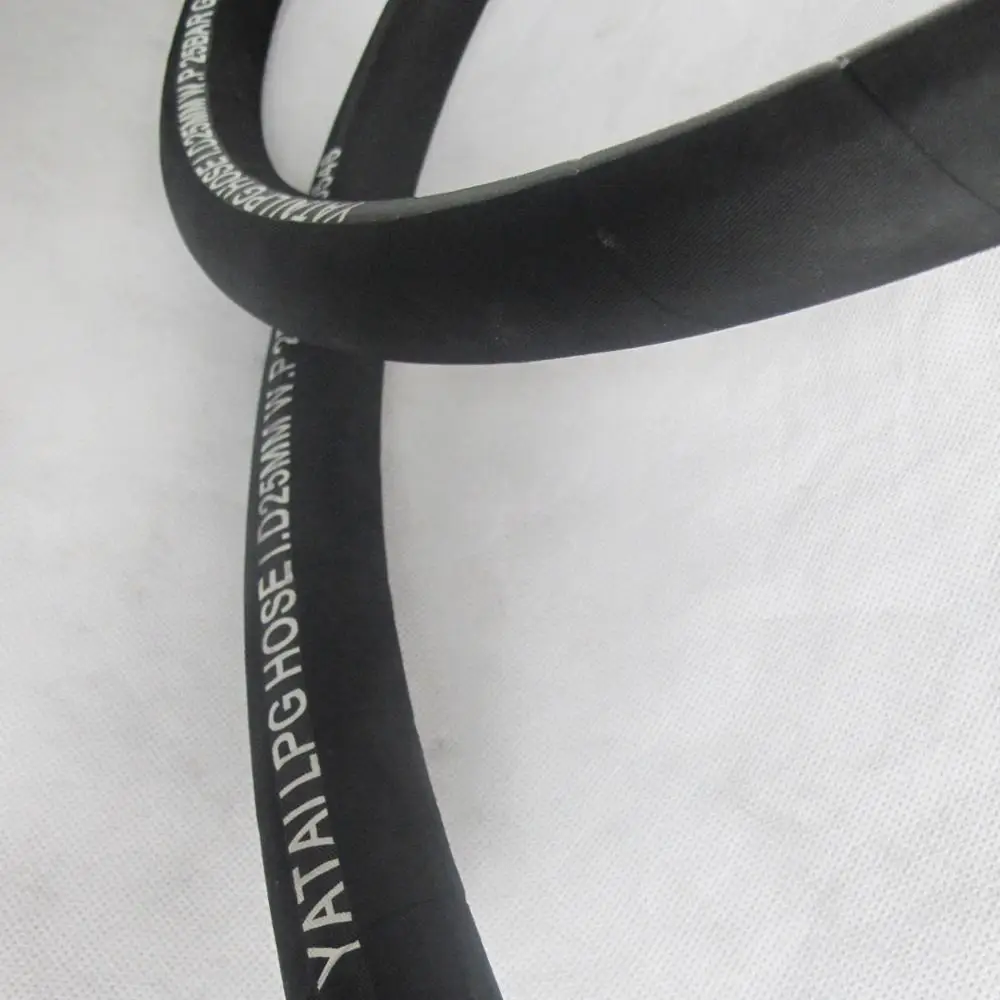

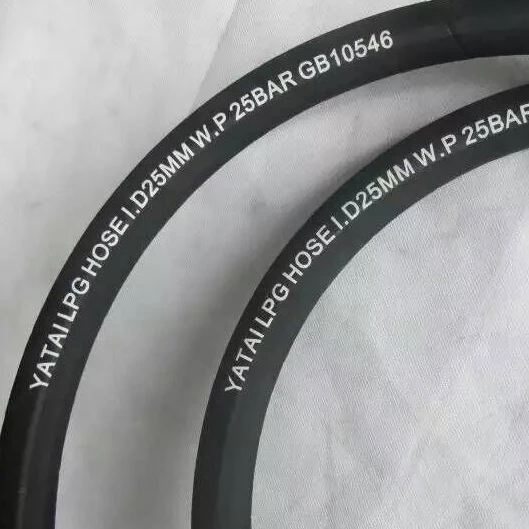

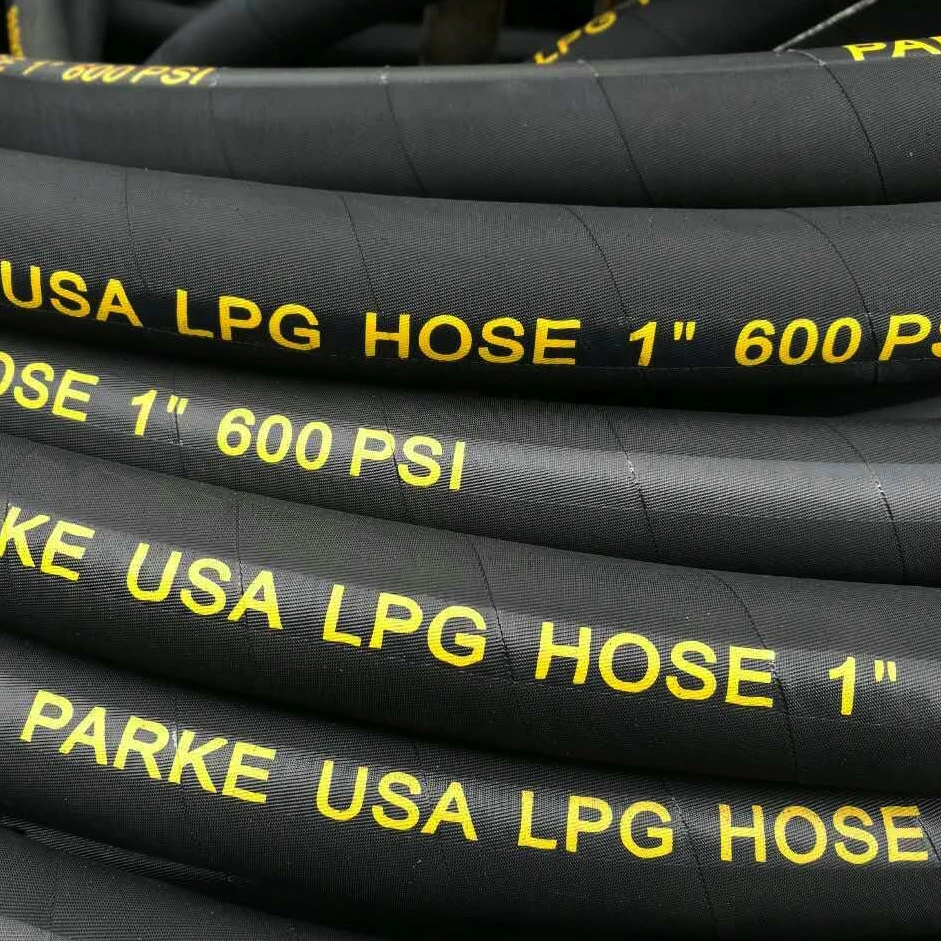

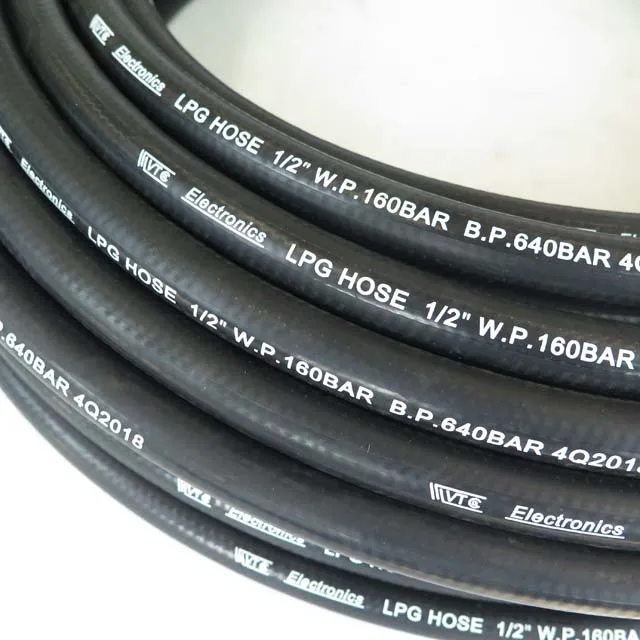

High pressure flexible LPG CNG flexible natural gas hose
- Category: >>>
- Supplier: Hengshui Yatai Especial Rubber Products Co. Ltd.
Share on (60726965105):
Product Overview
Description
High pressure flexible LPG CNG flexible natural gas hose
Product Description
Hydraulics:Low-medium pressure lines
Liquefied petroleum gas(LPG),natural gas(CNG),hydrogen,nitrogen,etc
CONTINUOUS SERVICE TEMPERATURE RANGE:-40°F / +140°F; -40°C / +60°C
INSERT: SHF-TYPE
TUBE: PERMEATION RESISTANCE SYNTHETIC RUBBER
REINFORCEMENT: ONE HIGH TENSILE STEEL BRAID
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS: EN 853 1SN - SAE 100 R1AT - ISO 1436-1 1SN/R1AT
HOSE MARKING:YATAI LPG HOSE 1″(DN25) W.P 350BAR 1270PSI
| TYPE | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| FG 6 | 6 | -4 | 1/4" | 14.5 | 225 | 900 | 3260 | 13050 | 100 | 270 | 0.18 |
| FG 8 | 8 | -5 | 5/16" | 17.0 | 215 | 850 | 3110 | 12320 | 114 | 340 | 0.23 |
| FG 10 | 10 | -6 | 3/8" | 19.5 | 180 | 720 | 2610 | 10440 | 127 | 410 | 0.27 |
| FG 12 | 12 | -8 | 1/2" | 23.5 | 160 | 640 | 2320 | 9280 | 178 | 510 | 0.34 |
| FG 16 | 16 | -10 | 5/8" | 26.5 | 130 | 520 | 1880 | 7540 | 200 | 620 | 0.41 |
| FG 19 | 19 | -12 | 3/4" | 28.0 | 105 | 420 | 1520 | 6090 | 240 | 770 | 0.51 |
| FG 22 | 22 | -14 | 7/8'' | 32.0 | 97 | 388 | 1400 | 5600 | 270 | 930 | 0.62 |
| FG 25 | 25 | -16 | 1" | 36.0 | 88 | 350 | 1270 | 5070 | 300 | 1050 | 0.70 |
| FG 31 | 31 | -20 | 1.1/4" | 41.5 | 63 | 250 | 910 | 3620 | 419 | 1250 | 0.83 |
| FG 38 | 38 | -24 | 1.1/2" | 48.5 | 50 | 200 | 720 | 2900 | 500 | 1600 | 1.07 |
| FG 51 | 51 | -32 | 2" | 63.0 | 40 | 160 | 580 | 2320 | 630 | 2200 | 1.47 |
WB more products
Packaging & Shipping
Company Information
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white wearable woven bags. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
