15M 18M 20M 25M 30M 35M LED High Mast Lighting Price in South Africa

 Height

From 18 m to 50m

 Suitable for

Airport ,seaport, plaza, stadium, square, highway station, street way ,etc

 Shape

Round, Multi-pyramidal, Column form, polygonal or conical

 Material

Q235B/A36,minimum yield strength>=235n/mm2

Torrance of  dimension

± 2%

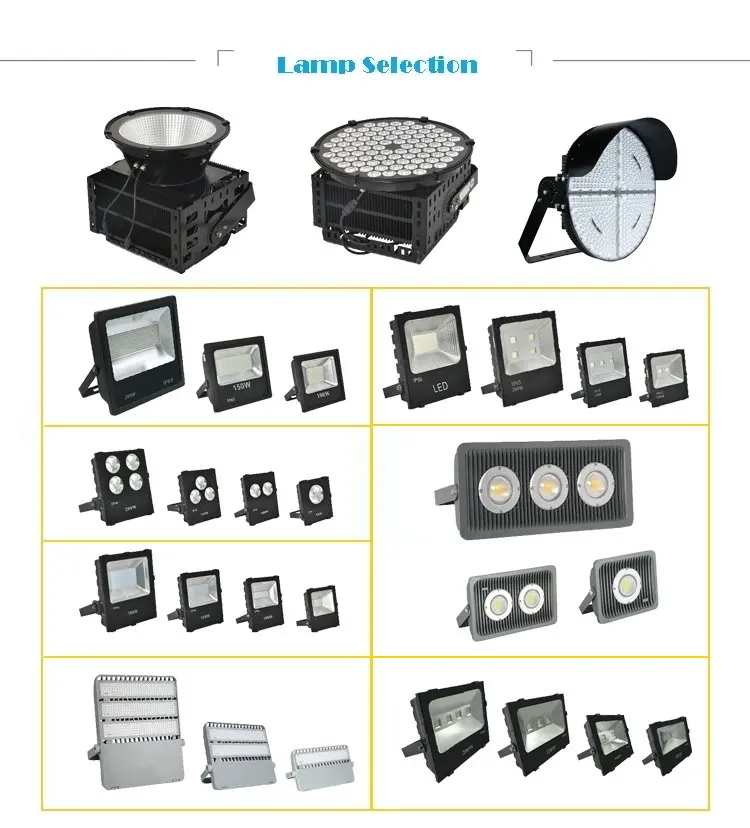

 Lighting Source

400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m²

Angle of illumination

180 or 360 degree.

 Light plate

Various figure of selection ,material with hot dip galvanization steel frame.

 Lifting system

Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute equipped electromagnetism brake and break –proof device, manual operation applied under power cut.

 Electric appliance    control device

Electric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode.

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Joint of Poles

Insert mode, inner flange mode, face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

80 Km/Hour

Welding

We has past flaw testing. Internal and external double welding makes the welding in shape

Thickness

6 mm to 20 mm

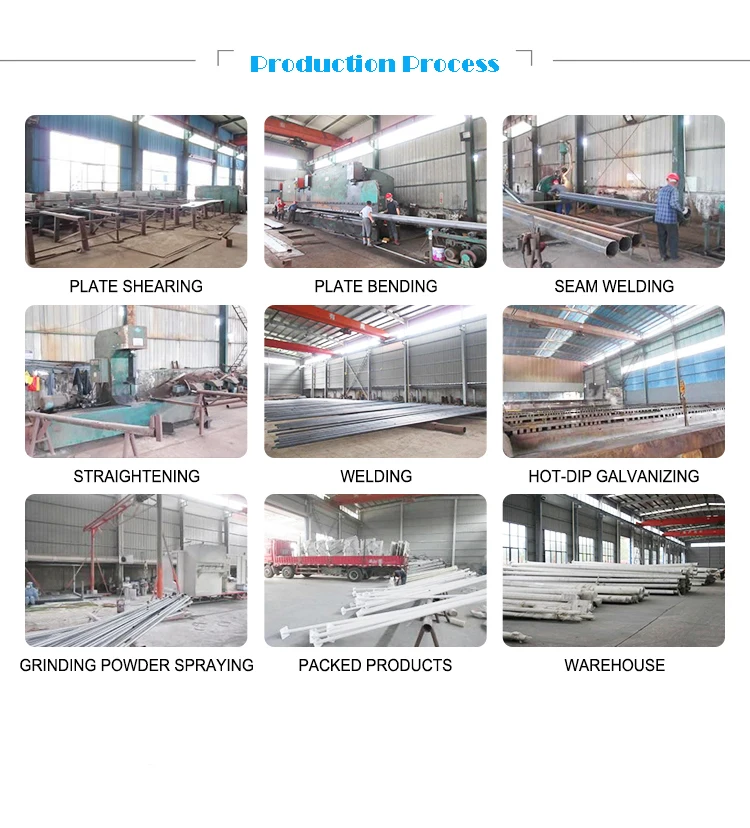

Production Process

Raw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flange welding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→Packaging

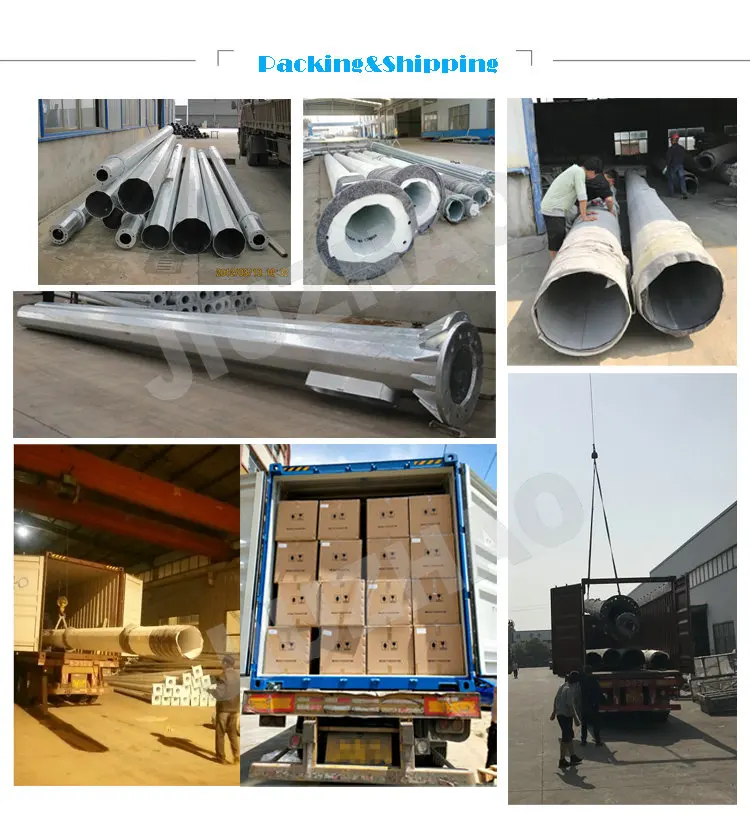

 Packages

Our poles as normal cover by bubble pack/blanket or straw bale at the top and bottom ,anyway also can following by client required
