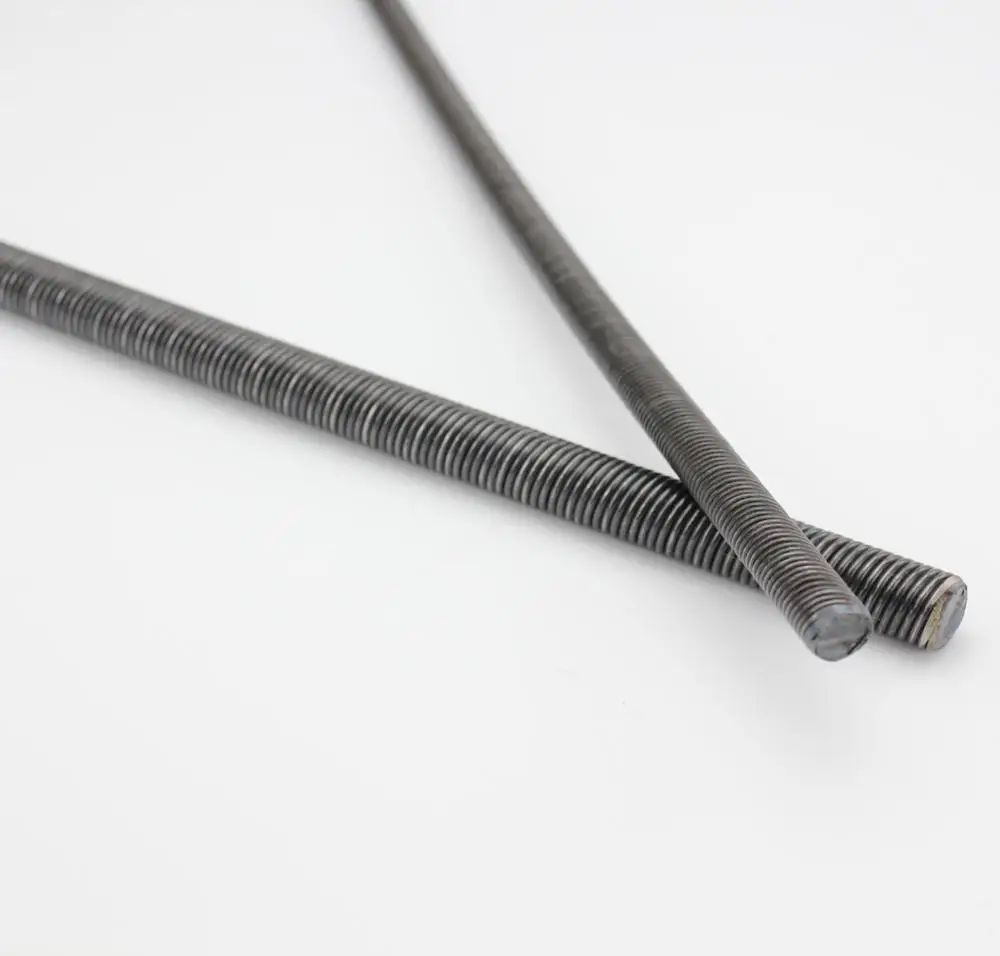

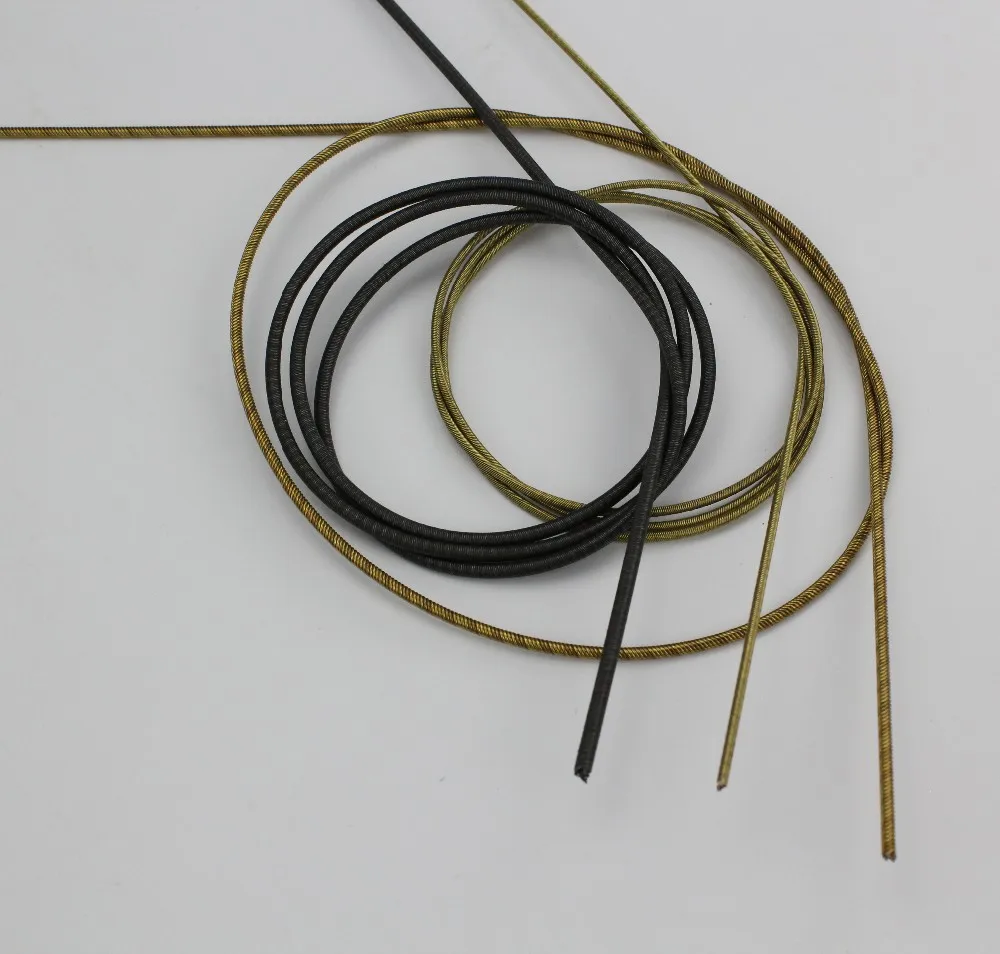

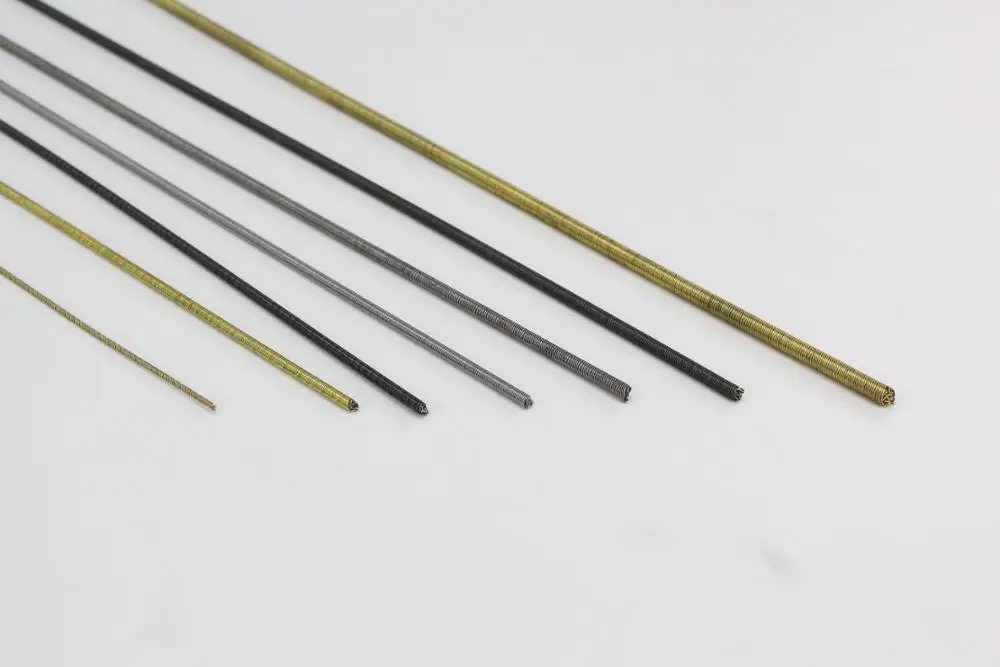

Material: 60 #, 70#, 65Mn, high-carbon steel wire Direction of Twist: Levorotation and Dextrorotation Scope of Application: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations, etc. Characteristic: Smooth, flexible, highly-elastic, and wear resistant Technical Specifications: Flexible shaft is composed of multilayer long spring, interlayer close by, and that by two layers of coil in the opposite direction. The center for steel wire core.
Diameter 3-20 mm Wire 70 high spring steel wire Five layer structure Material: 70, 65 mn high carbon spring steel wire; Lay: Left-handed and right-handed Scope of application: Construction machinery, garden tools, automobile industry, aviation industry, Marine equipment, railway locomotives, machine tools, mold manufacturing, metal processing, medical equipment and various kinds of remote control of the non linear mechanical transmission. Performance: Smooth, flexibility, high elastic, wear-resisting.
Diameter (mm)
Tolerance (mm)
Number of Layers
Torque Moment (N @ m) (Sample 500mm Long)
Weight (kg/ 100m)
2.0
+0.02 -0.02
3/5
0.8
1.8
2.5
3/5
1.0
2.8
3.2
3/5
1.3
4.6
3.8
3/5
1.5
6.5
5.0
+0.00 -0.05
3/4/5
1.8
11.3
6.0
3/4/5
2.4
16.2
6.5
4/5/7
2.9
18.7
8.0
5/7
7.5
28.8
10
4/5/6
22.5
45.5
12
5/7
39.0
66.5
13
5/7
50.5
77.5
16
5/7
115.0
114
18
5/7
160
145
The flexible shafts not listed in the chart can be customized
