SS316 Two stage gas air pressure regulator

Product Overview

Description

Description SS316 Two stage gas air pressure regulatoror

YR33 Series stainless steel pressure regulator adopts double stage diaphragm decompression structure, outlet pressure is stable, suitable for high purity gas, standard gas, corrosive gas, and other gas.

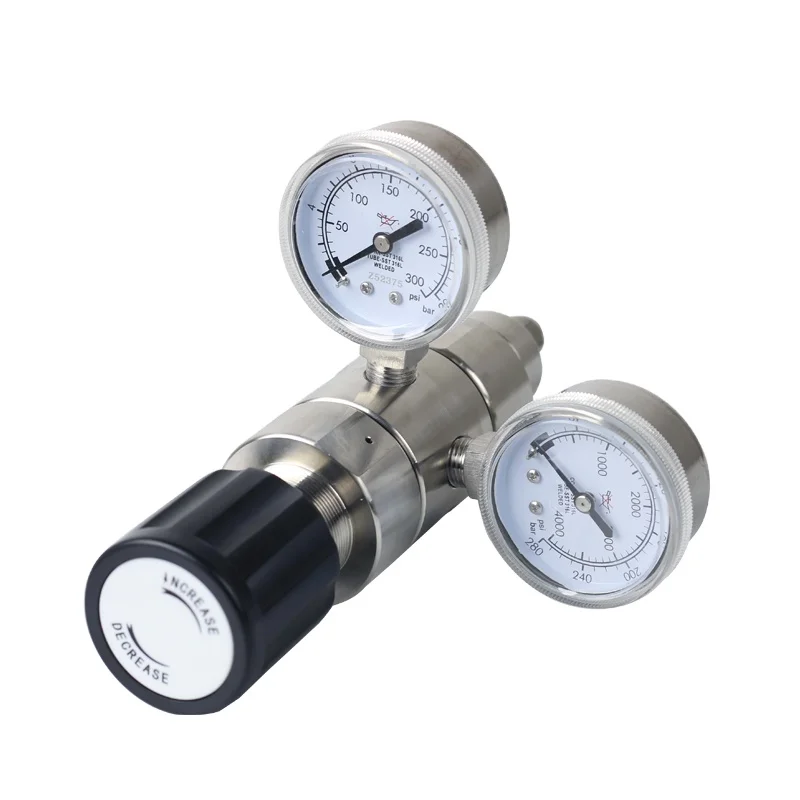

Detailed Images SS316 Two stage gas air pressure regulator

Specification SS316 Two stage gas air pressure regulator

Max inlet pressure: 6000psig

Outlet pressure: 0-2500psig

Safety testing pressure: 1.5 times of maximum inlet pressure

Working temperature: 40℃~ 74℃(-40°F ~ 165°F)

Leakage rate:  2*10-8 atm cc/sec He

CV value: 0.02, 0.06, 0.08, 0.2

Weight: About 1.55kg

Features SS316 Two stage gas air pressure regulator

Double stage decompression structure

Valve body and diaphragm adopt hard seal form

The internal structure is easy to clean

Inside is equipped with filter

Can be panel mounted

Can choose needle valve, diaphragm valve for outlet

Applications SS316 Two stage gas air pressure regulator

 Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment

Material SS316 Two stage gas air pressure regulator

Valve body: 316L

Top cover: 316L

Diaphragm: 316L

Filter: 316L (10μm)

Valve seat: PCTFE , PTFE, Vespel

Spring: 316L
