  • Class A hot water red energy saving circulating pump sanitary pump Auto20/6 130A Brass pump body
Class A hot water red energy saving circulating pump sanitary pump Auto20/6 130A Brass pump body
Class A hot water red energy saving circulating pump sanitary pump Auto20/6-130A Brass pump body

Class A hot water red energy saving circulating pump sanitary pump Auto20/6 130A Brass pump body

Share on (60727053887):


Price:

Quantity:


Product Overview

Description




ZHEJIANG OYAD PUMP CO.,LTD

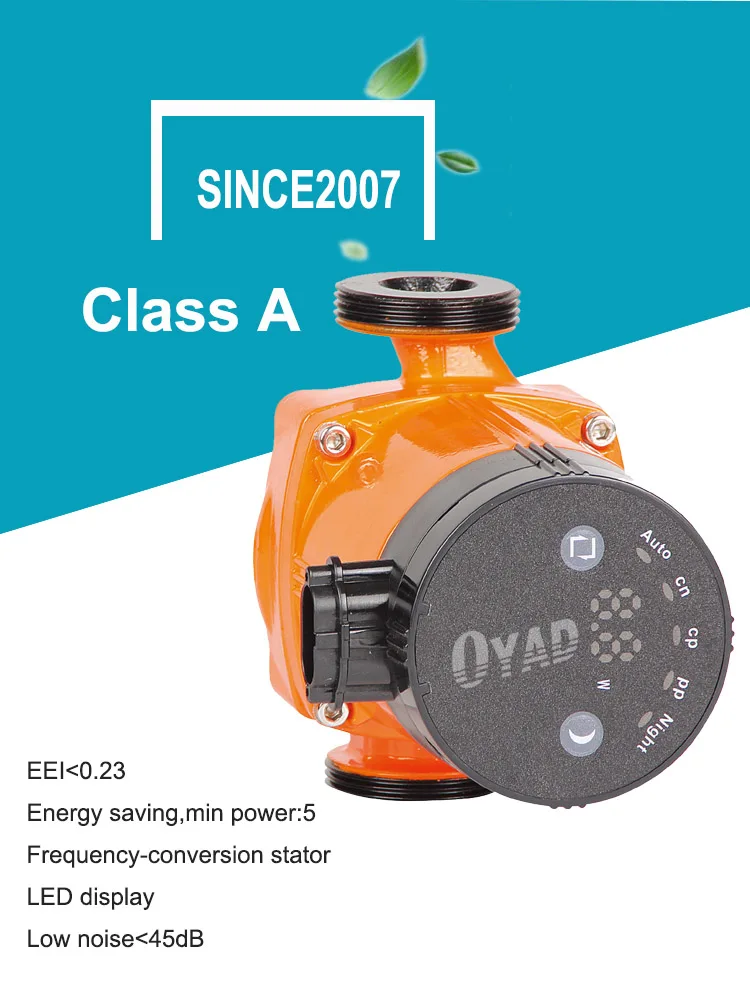

MODEL :class A circulation pump AUTO25-4 A 180

classA25-130A

 performance



MODELLengthPowerHeadFlow rateInlet/outlet
AUTO25-4 A 180mm5-22W 1.2-4M44l/min1 1/2 inch
AUTO25-6 A 180mm5-45W 1.2-6M60l/min1 1/2 inch

The Technical data:

1.Fluid temeprature range:-10℃ to 110℃
2.Max.working pressure:10bar
3.Max Permissible ambient temperature:+40℃



Motor data:
1.degree of protection:IP42
2.Insulating class:F
3.Ennegy Class:A
4.Noise<45dB

Material for pumps:
1.Ceramic shaft
2. impeller:PP
3.Pump body:Cast iron
4.Connectors:cast iron connectors (or brass connectors)
5.100%Copper wire
6.Therminal box:LDPE
7.Rotor:Stainless steel material
8.Bearing:Ceramic

other pump



factory

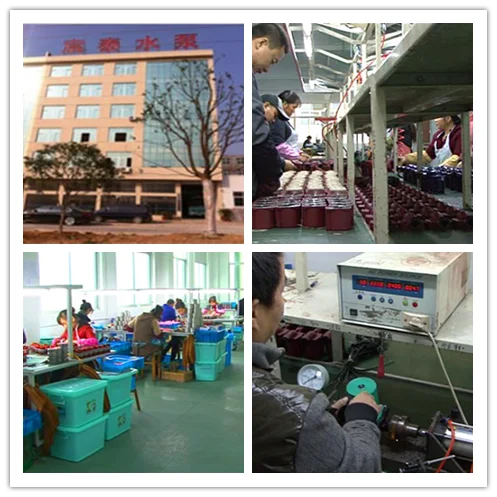

ZHEJIANG OYAD PUMP CO.,LTD is the new company name of Wenling Chentai Pump CO.,LTD.

Histroy:Our company was established in the year of 2007,is specialized in the hot water circulation pump and home use booster pump design ,development ,production and manufacturing enterprises.



Scale: Cover working area of 4000 square meters,have more than 50 employees.

Equipment: Automatic wiring machine for motor parts, Professional test mechine to test every pump.

Production capacity: 30000 pcs/month;

Marketing network: Europe,Asia,America,etc.

working room.png

Contact factory


FAQ
  1. Q:Are you a manufactuer or trading company?
    A: Yes. We are a professional circulating pump and booster pump factory for more than ten years.
  2. Q: What is your MOQ of this item?
    A: 200PCS

  3. Q: What is the lead time?
    A: 25-35 days after receiving your L/C or deposit.

  4. Q: Is it all right to make customer's own brand name?
    A: OEM is ok.

  5. Q: Where is your Loading Port?
    A: Ningbo, China Port.

  6. Q: What are your payment terms?
    A: 30% deposit and balance T/T against copy of Bill of Lading or L/C at sight.
